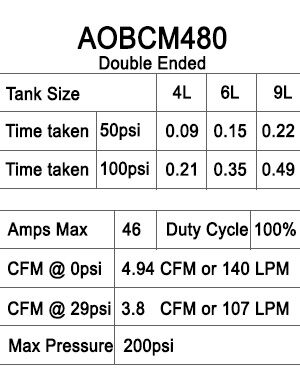

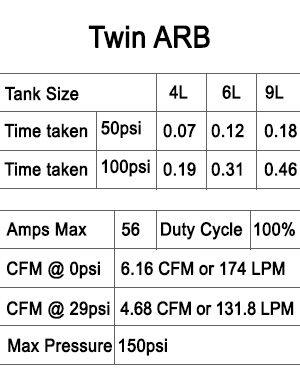

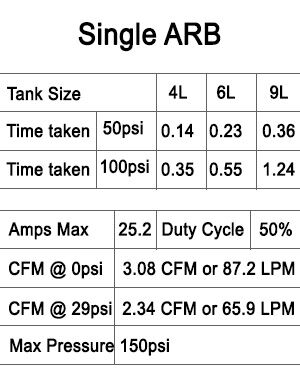

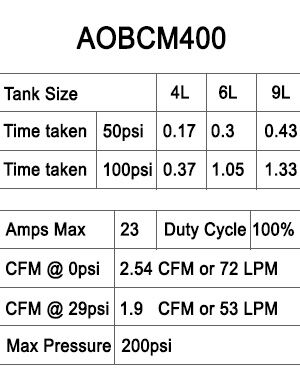

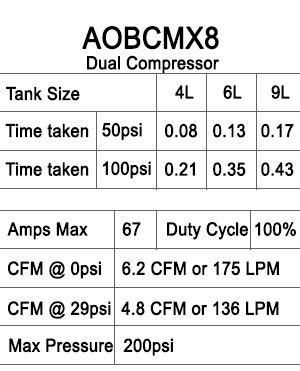

Compressor Test Result

ARB Single Air CompressorARB Twin Air CompressorAir On Board Single Air CompressorAir On Board Double Ended Air CompressorAir On Board Dual Air Compressor

Test Conditions

  • All tested direct from battery with vehicle running
  • charge voltage of 13.7
  • All running directly to tank with 700 mm leader hose
  • ARB single and twin doesn't run a oneway valve it just relies on the reed
  • ARB single and twin come with 70 to 100 psi pressure switch
  • ARB single and twin comes with own wiring loom and carling type switch
  • ARB single and twin have built in pressure relief valves into head assembly
  • ARB single and twin have max running pressure of 150 psi

AOBCM400 12 Volt Compressor



This 12 volt compressor has A full Steel body and an output of 1.76 cfm. With a maximum output of 200 Psi and a duty cycle of 100% at 72 deg F&100 psi it will provide you with enough air for all your needs.

The Following Items included in the Package:

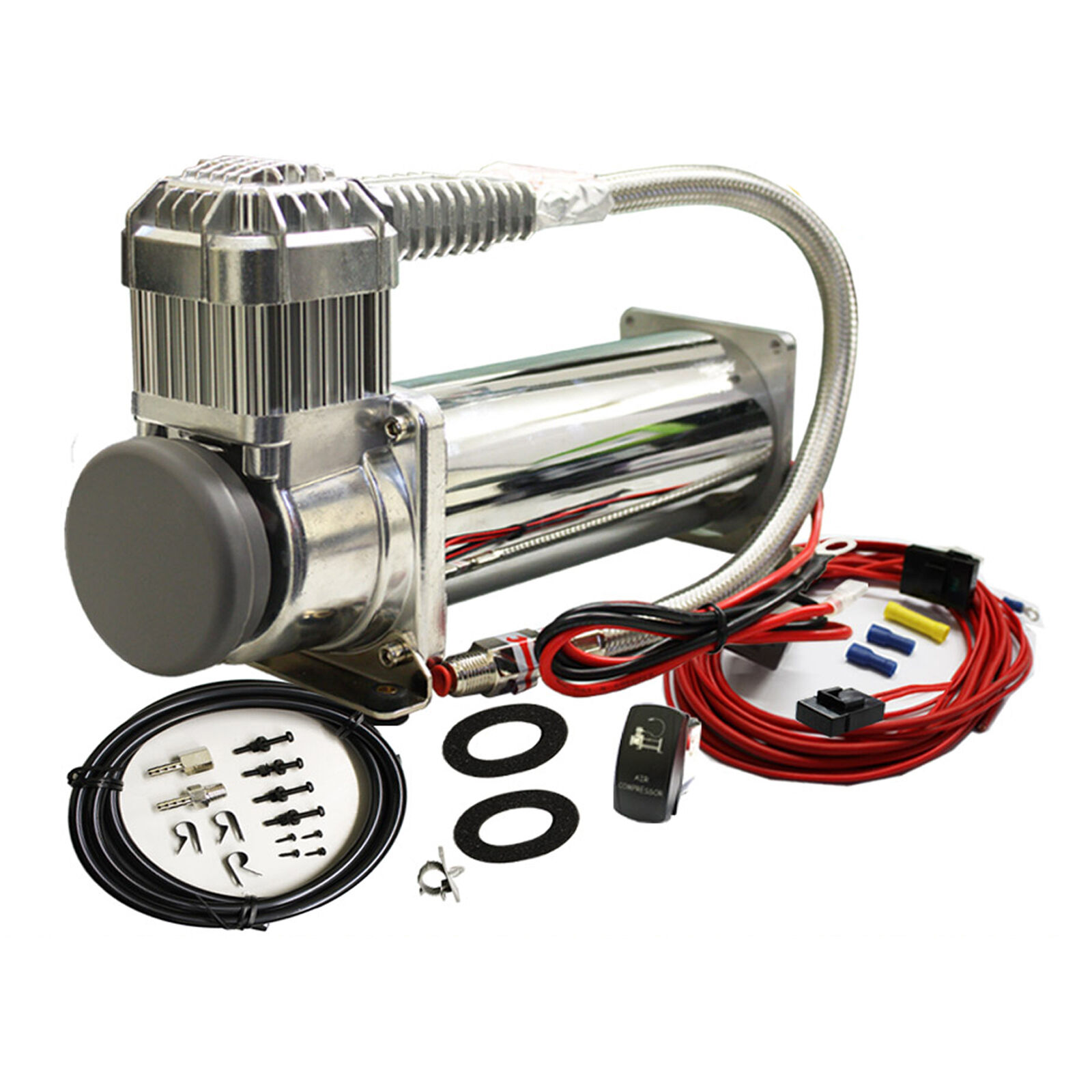

  • ''Air On Boards'' AOBCM400 compressor
  • Mounting Hardware
  • Inline discharge check valve
  • Full wiring kit
  • Vibration Isolators
  • Stainless Steel Braided Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

Fill tires, Run Air jacks, Pump up mattresses and inflatable boats in good time, run your air lockers, air bags and train horns, even run small Pneumatic air tools all from your 4WD or car.

Specifications:

The performance data
PSI CFM A
0 1.76 10
10 1.66 12
20 1.59 13
30 1.52 14
40 1.45 16
50 1.41 17
60 1.34 18
70 1.27 18
80 1.2 19
90 1.16 19
100 1.13 19
110 1.06 20
120 1.02 20
130 0.95 20
140 0.92 19
150 0.85 19
160 0.81 19
170 0.74 19
180 0.7 19
190 0.63 18
200 0.56 18



Fill Rates
9 Litre Tank Fill Rate
0 To 145 PSI 2 Min. 29 Sec.
110 To 145 PSI 57 Sec.
0 to 200 PSI 5 Min. 02 Sec.
165 to 200 PSI 1 Min. 23 Sec.
18 Litre Tank Fill Rate
0 To 145 PSI 6 Min. 02 Sec.
110 To 145 PSI 1 Min. 55 Sec.
0 to 200 PSI 10 Min. 08 Sec.
165 to 200 PSI 2 Min. 20 Sec.



Duty Cycle Reference Chart
DUTY CYCLE @100PSI / 72°F MINUTES ON/OFF
15% 6 Min. On / 34 Min. Off
20% 8 Min. On / 32 Min. Off
25% 10 Min. On / 30 Min. Off
30% 13 Min. On / 30 Min. Off.
33% 15 Min. On / 30 Min. Off
100%(AOBCM400) Continuous Duty


width=

AOBCM400 COMPRESSOR

  • 12-Volt DC
  • Permanent Magnetic Motor
  • Max Duty cycle(@72 deg F&100 psi ): 100%
  • Minutes On/Off(@72 deg F&100 psi ): Continuous
  • Max working pressure: 200 psi
  • Max Ambient Temperature: 158 deg F
  • Min Ambient Temperature: -40 deg F
  • Max. Air Tank Size: 18 Litre
  • Amp draw: 23 amps
  • Horse Power: 1/4
  • Auto Reset Thermal Protection: YES
  • Net Weight: 4.9kg
width=
WIRING KIT

Everything you need to install and wire this compressor is include in the sale price. Don't get court by buying 12 volt compressors with out the CORRECT wiring kit. By buying it all included you can be assured that you will receive the correct size fuses, relays, switches and wire.

  1. 100 mm black earth cable.
  2. 12 volt 30 amp relay.
  3. 3mtr 4mm power cable.
  4. 3mtr 3mm power cable.
  5. low amp fuse holder.
  6. High amp fuse holder.
  7. 12 volt rocker switch.
  8. All connectors, pre-wired ready to install .
width=

RUBBER MOUNT

The compressor is fixed to the tank by rubber vibration pads to protect the compressor from excessive vibration.

It is not recommended to mount any 12 volt compressor up side down. Whilst it will still run mounted in this position, the problem is caused by the heat generated by the compressor not escaping correctly and radiating back through the compressor body into the windings. This causing damage to the motor and premature failure of the compressor.

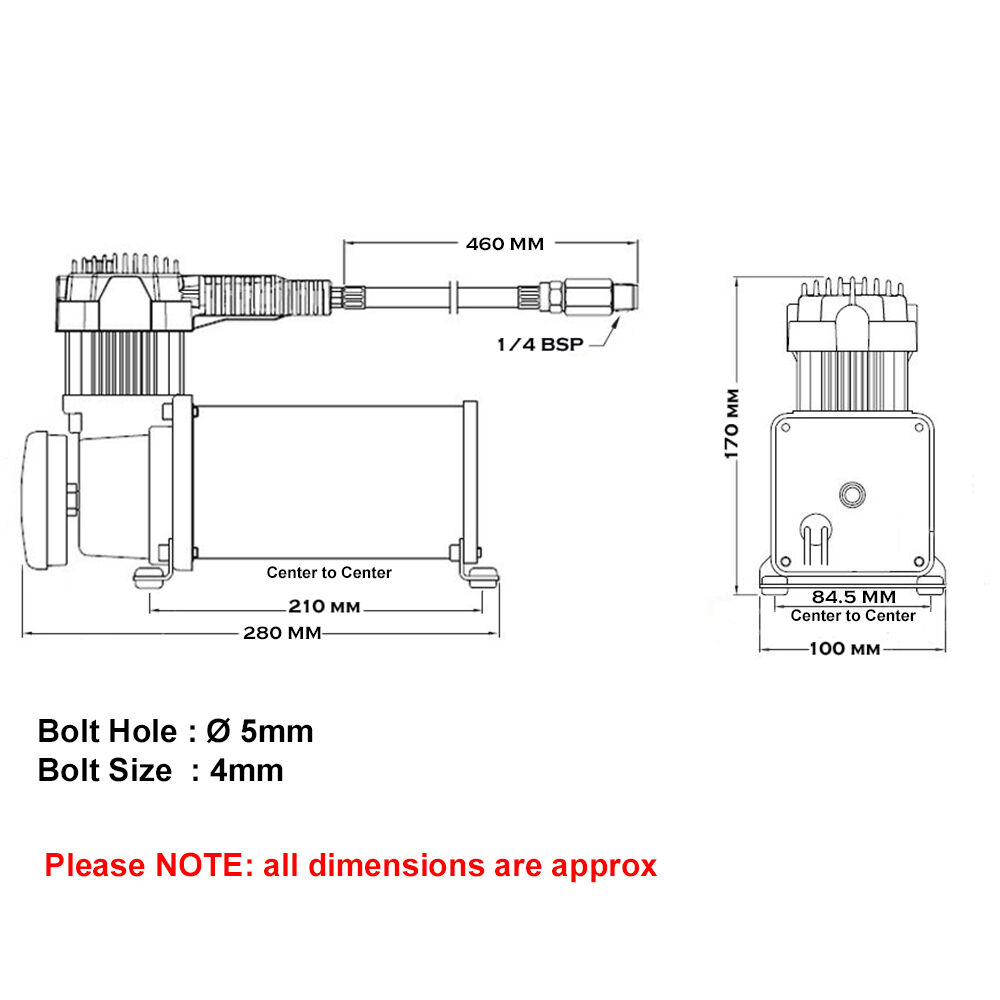

Length: 38cm Width: 17cm Height: 21cm

SKU AOBCM400
Shipping Weight 5.6500kg
Shipping Width 0.170m
Shipping Height 0.210m
Shipping Length 0.380m
Assembled Length 0.400m
Assembled Height 0.230m
