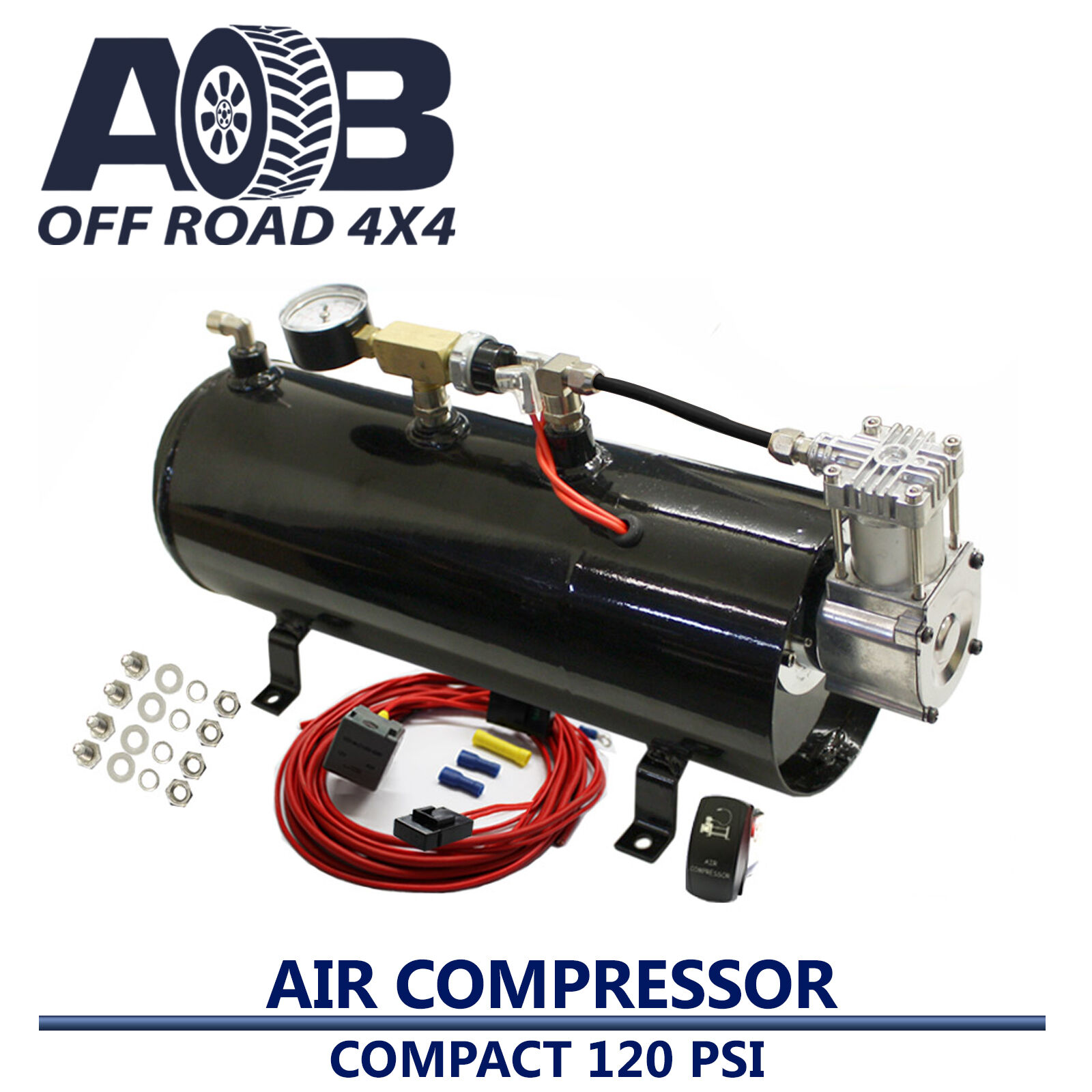

AOBCM680 12 Volt Compressor and Tank Kit
*Must be mounted upright only*
*Must be mounted in a clean and dry area only*

This all in one 12 volt compressor and 3 Litre tank system has high flow Rate of 1.27CFM and lower 12 Amp current draw.

The kit comes with all the following items:

  • 12 Volt Inbuilt compressor
  • Permanent Magnetic Motor
  • 3.0 Litre 0.8 gallon tank

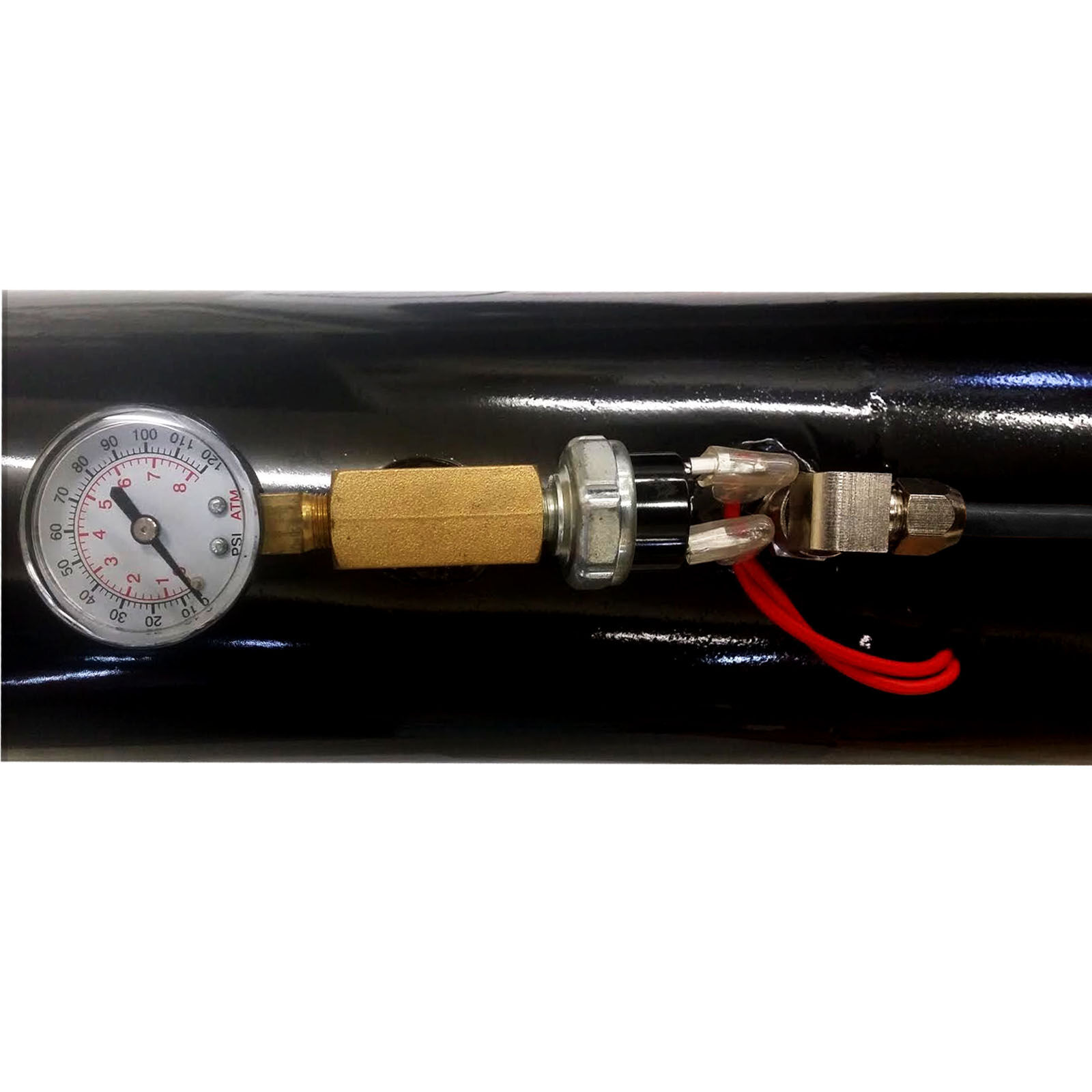

  • 85Psi on / 105 Psi off pressure switch
  • Inline Check Valve
  • 120 psi pressure gauge
  • Mounting Bolts
  • Full wiring kit
  • Instructions

Ideal for lighter duty applications, run your air lockers, air horns all from your 4WD or car.

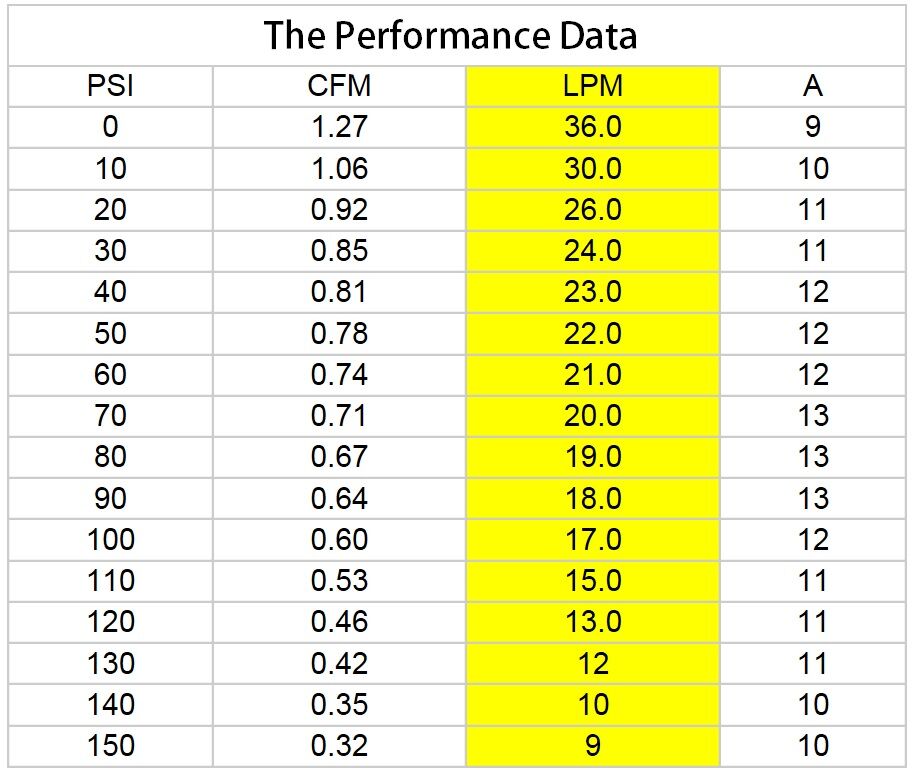

Whilst this sort of compact 12 volt system will not give you the amount of air that our full air systems will, it still comes with an impressive set of figures:

  • Dimensions: 432 mm L x 160 mm W x181 mm H
  • Mounting legs 145 mm wide (between 2 bolt holes' center)
  • Amp Draw: 12A
  • Thermal Protection: YES
  • Tank Fill Time (0-105psi): 1Min.58Sec
  • Recovery Time (85-105psi): 21 Sec
  • Pressure Max: 120 psi
  • Duty Cycle: 10% at 100 psi
  • Flow Rate: 1.27 CFM (36LPM) at 0 psi

Please note the drain tap sits lower than the mounting feet which requires either a hole to be drilled to give clearance or spacers to lift the compressor up

AOBCM680 12V air Compressor wiring kit

WIRING KIT

Everything you need to install and wire this compressor is include in the sale price. Don't get court by buying 12 volt compressors with out the CORRECT wiring kit. By buying it all included you can be assured that you will receive the correct size fuses, relays, switches and wire.

  1. 100 mm black earth cable.
  2. 12 volt 30 amp relay.
  3. 3mtr 4mm power cable.
  4. 3mtr 3mm power cable.
  5. low amp fuse holder.
  6. High amp fuse holder.
  7. 12 volt toggle switch.
  8. All connectors, pre-wired ready to install .

Length: 46cm Width: 16cm Height: 19cm

SKU AOBCM680
Shipping Weight 5.0000kg
Shipping Width 0.160m
Shipping Height 0.190m
Shipping Length 0.460m
Assembled Length 0.490m
Assembled Height 0.220m
