Compressor Test Result

Test Conditions

• All tested direct from battery with vehicle running
• charge voltage of 13.7
• All running directly to tank with 700 mm leader hose
• ARB single and twin doesn't run a oneway valve it just relies on the reed
• ARB single and twin come with 70 to 100 psi pressure switch
• ARB single and twin comes with own wiring loom and carling type switch
• ARB single and twin have built in pressure relief valves into head assembly
• ARB single and twin have max running pressure of 150 psi

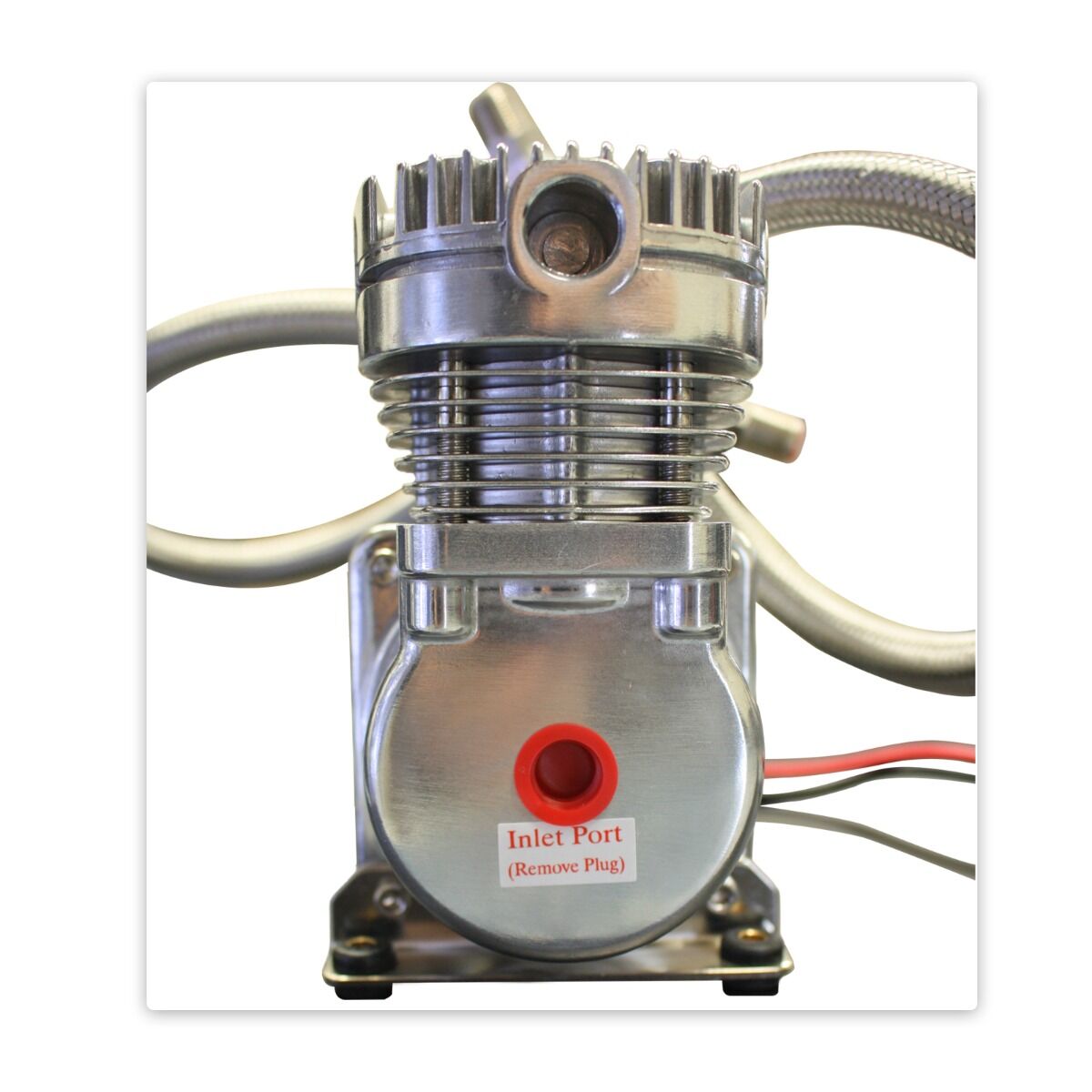

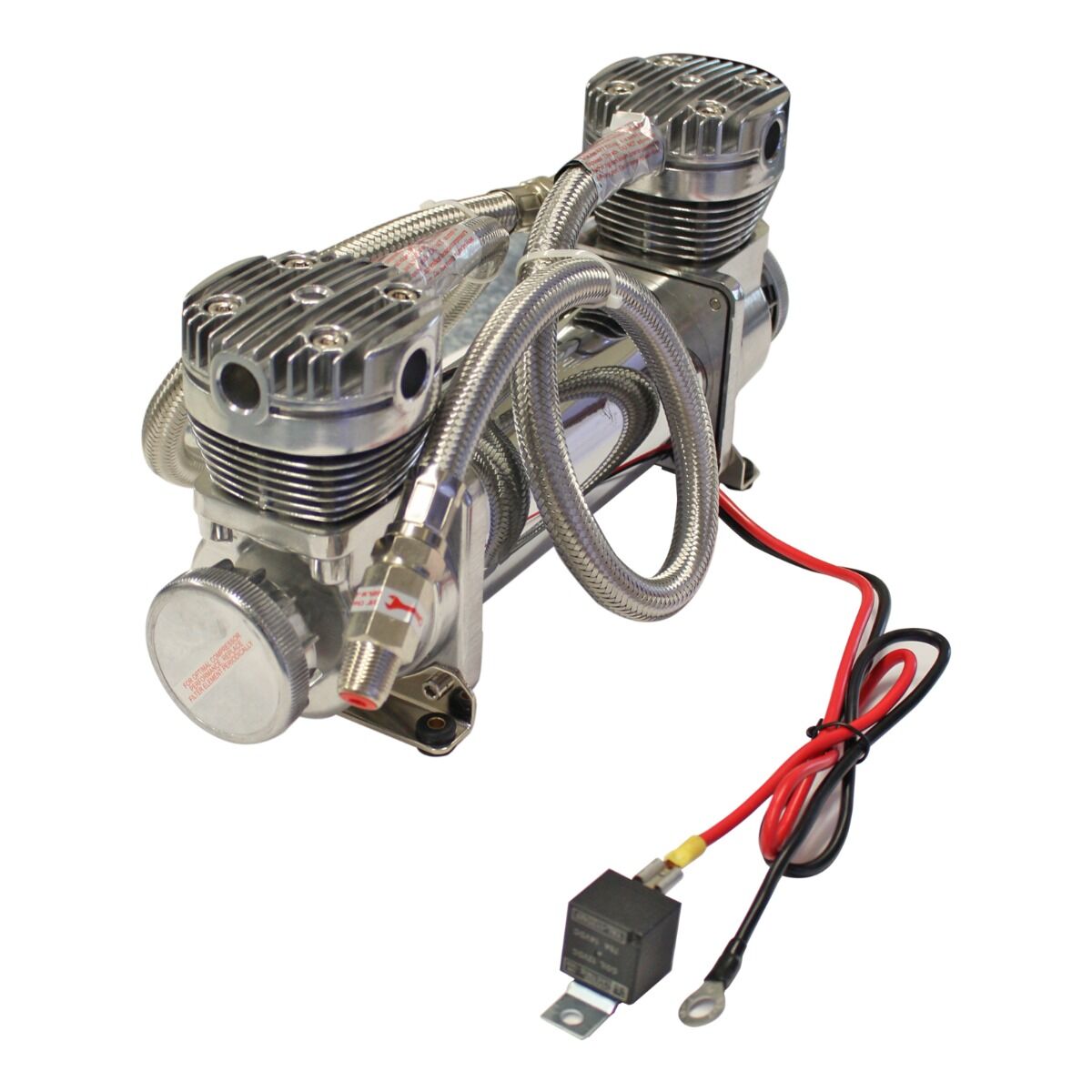

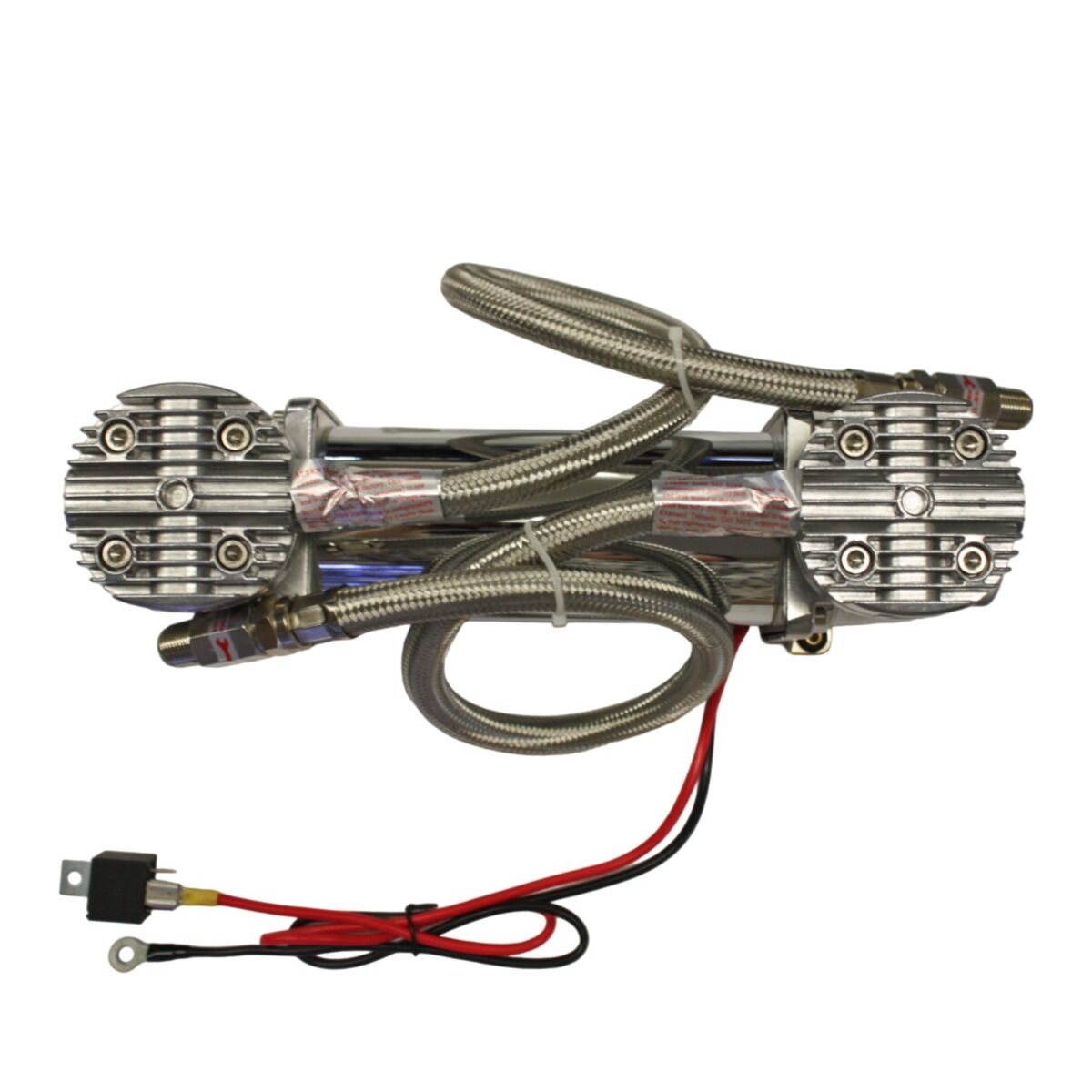

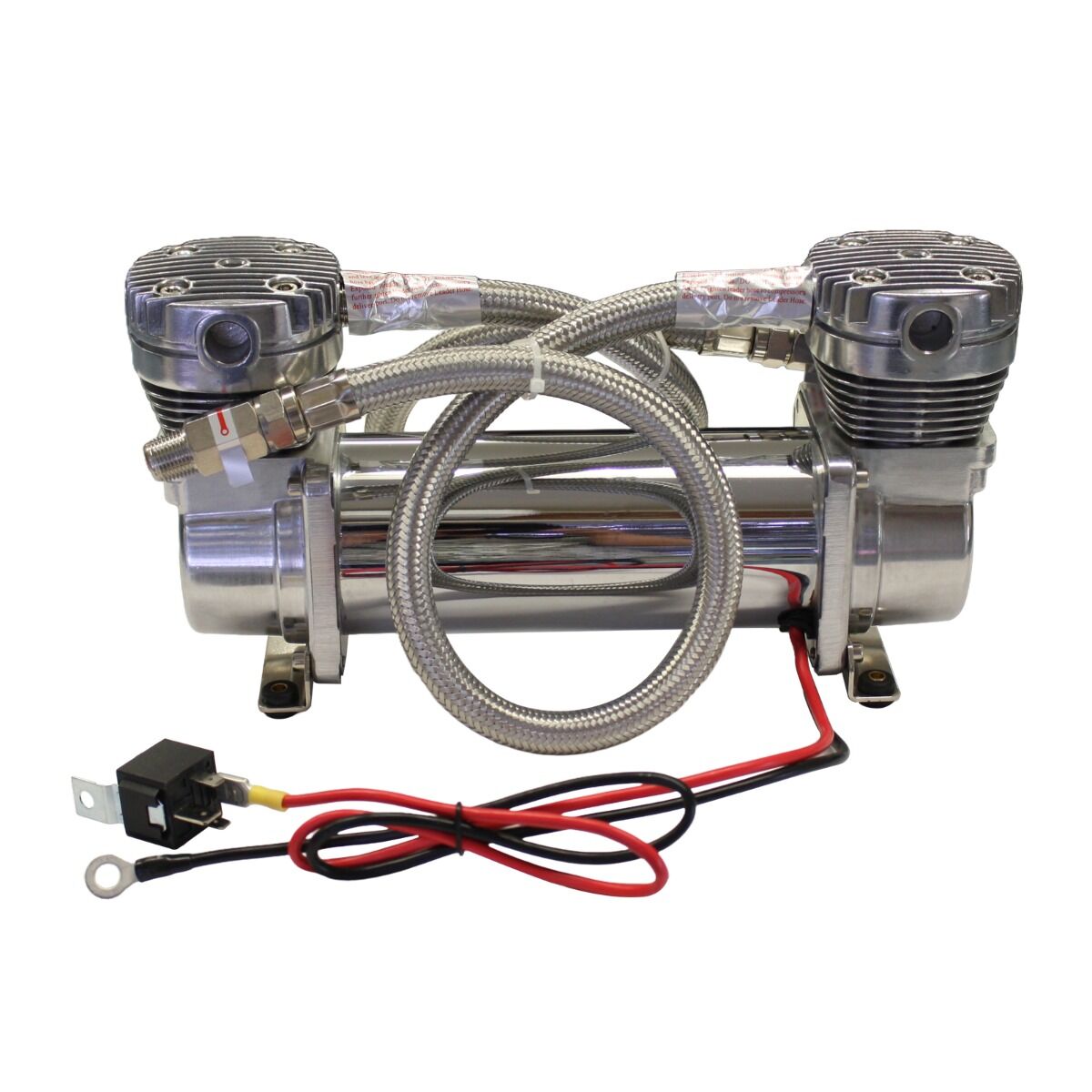

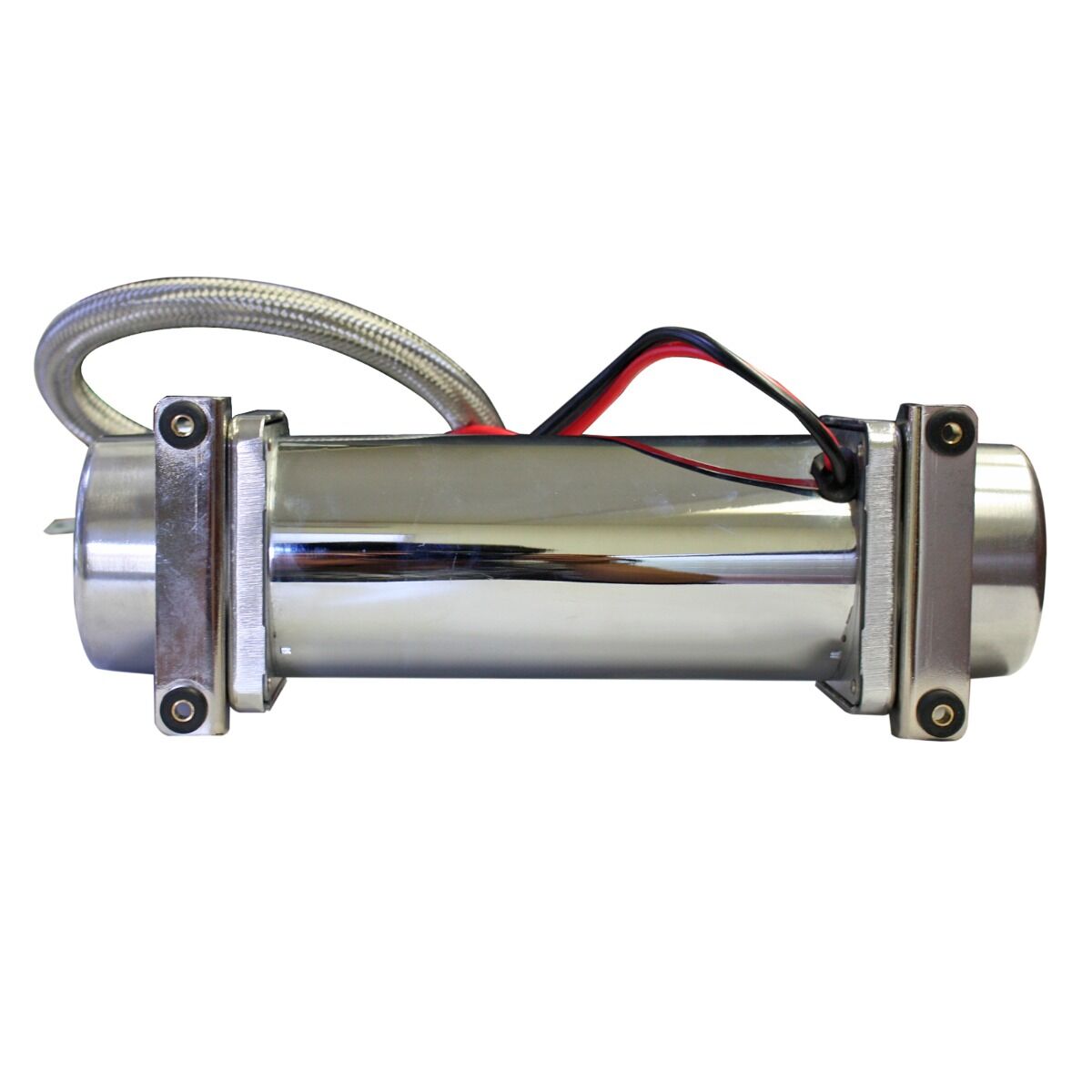

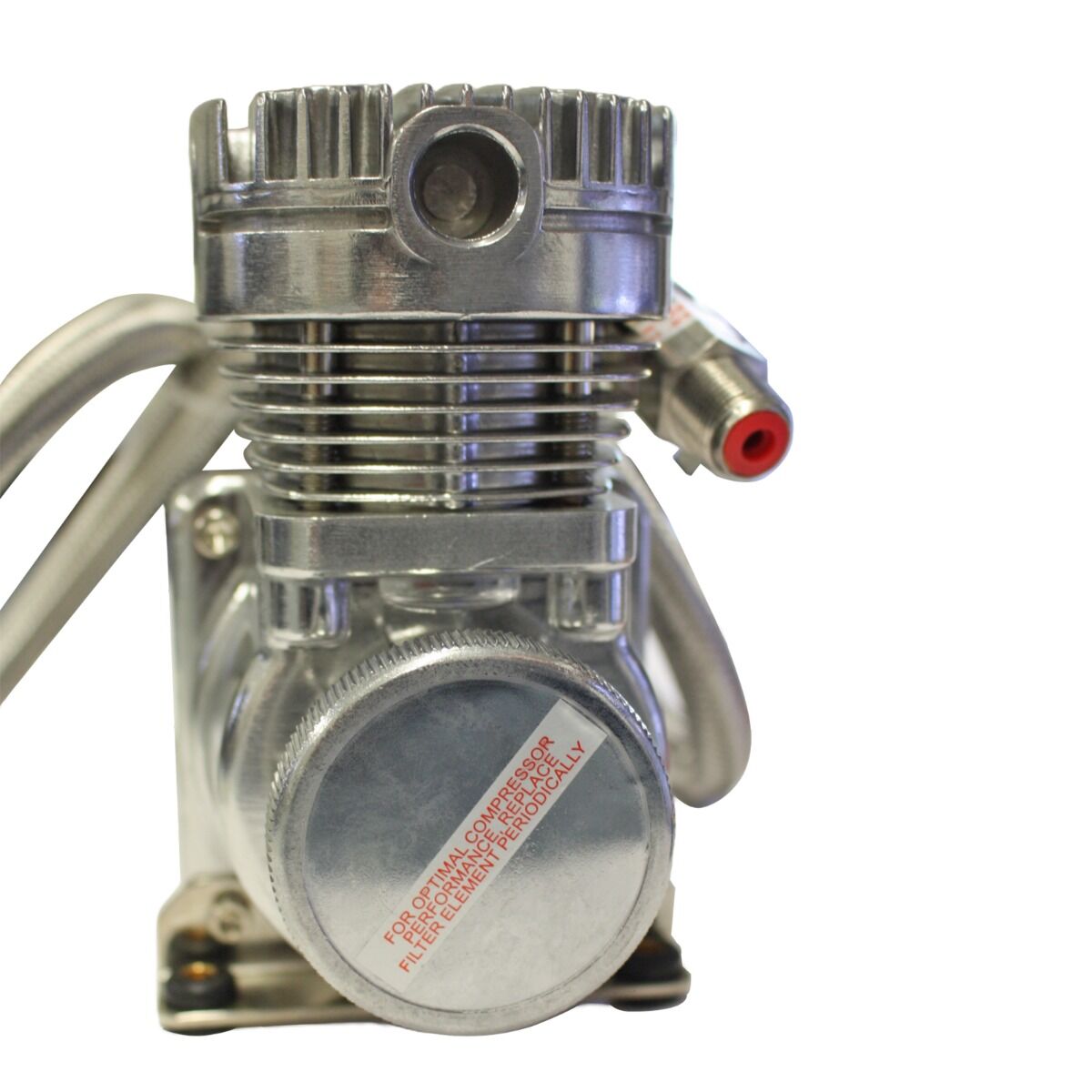

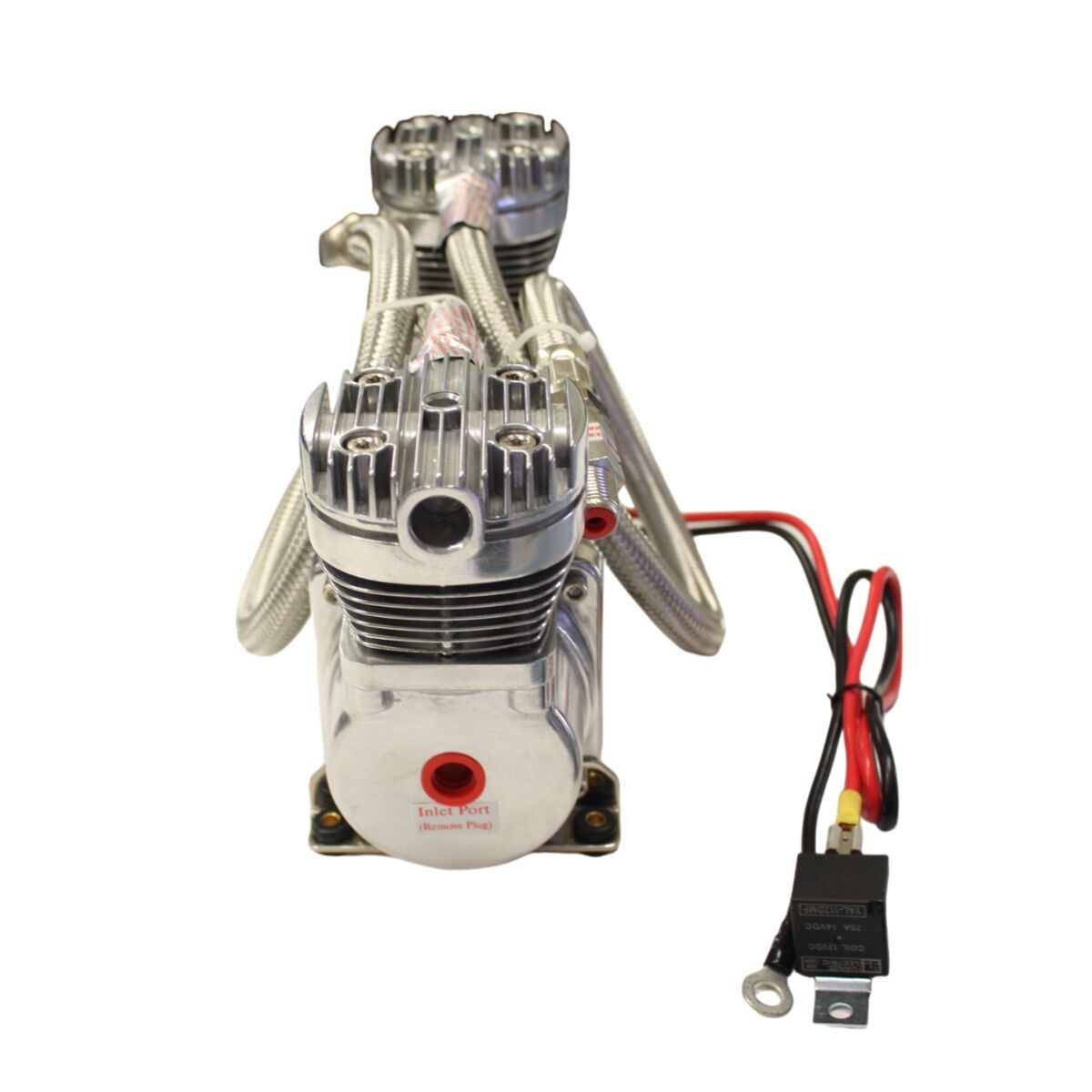

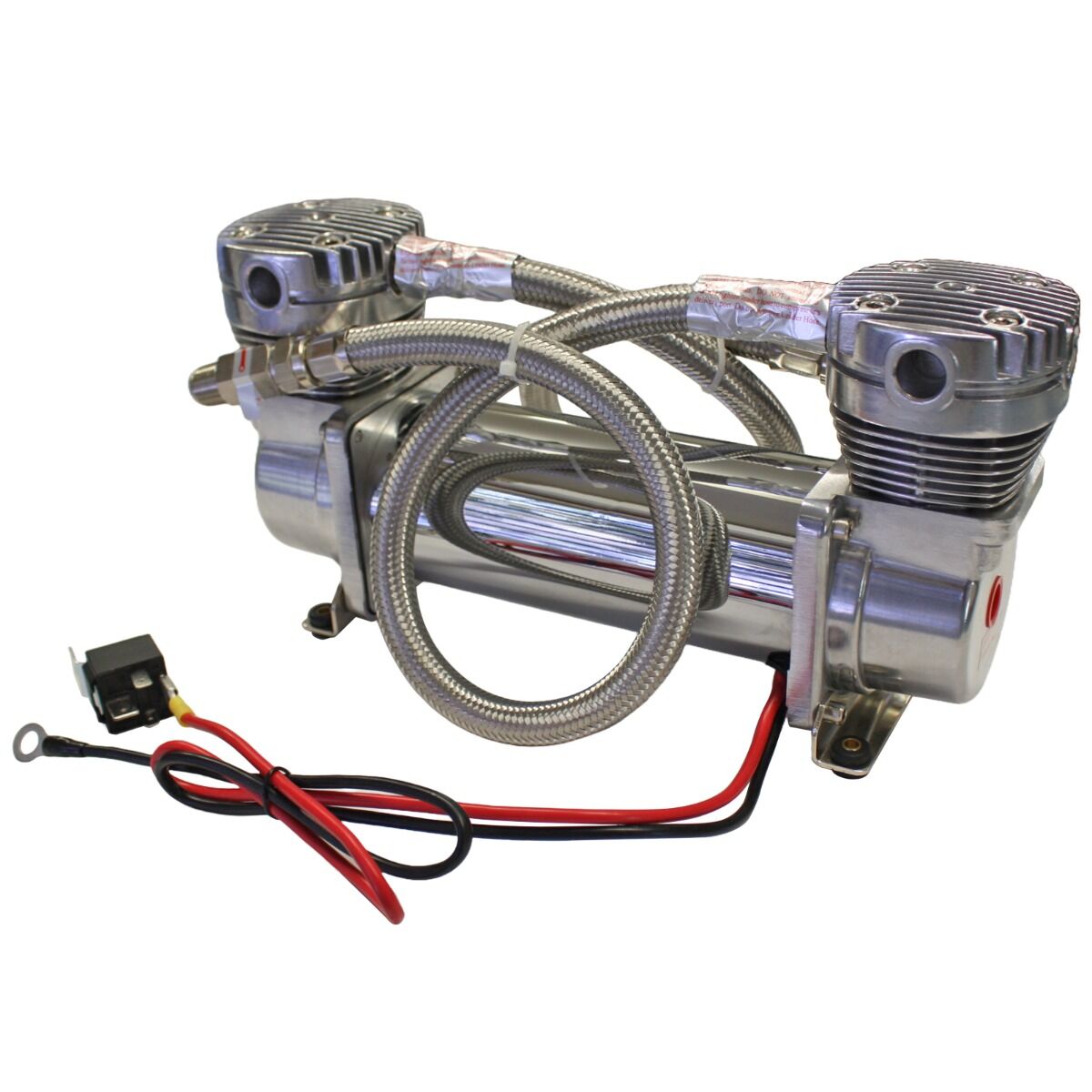

12 VOLT 200PSI STEEL AIR COMPRESSOR

This 12 volt compressor has A full Steel body. With a maximum output of 200 Psi and a duty cycle of 100% at 72 deg F&100 psi it will provide you with enough air for all your needs.

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 200 PSI
• Max. Air Tank Size: 2.5 gallon
• Ingress Protection Rating: IP67

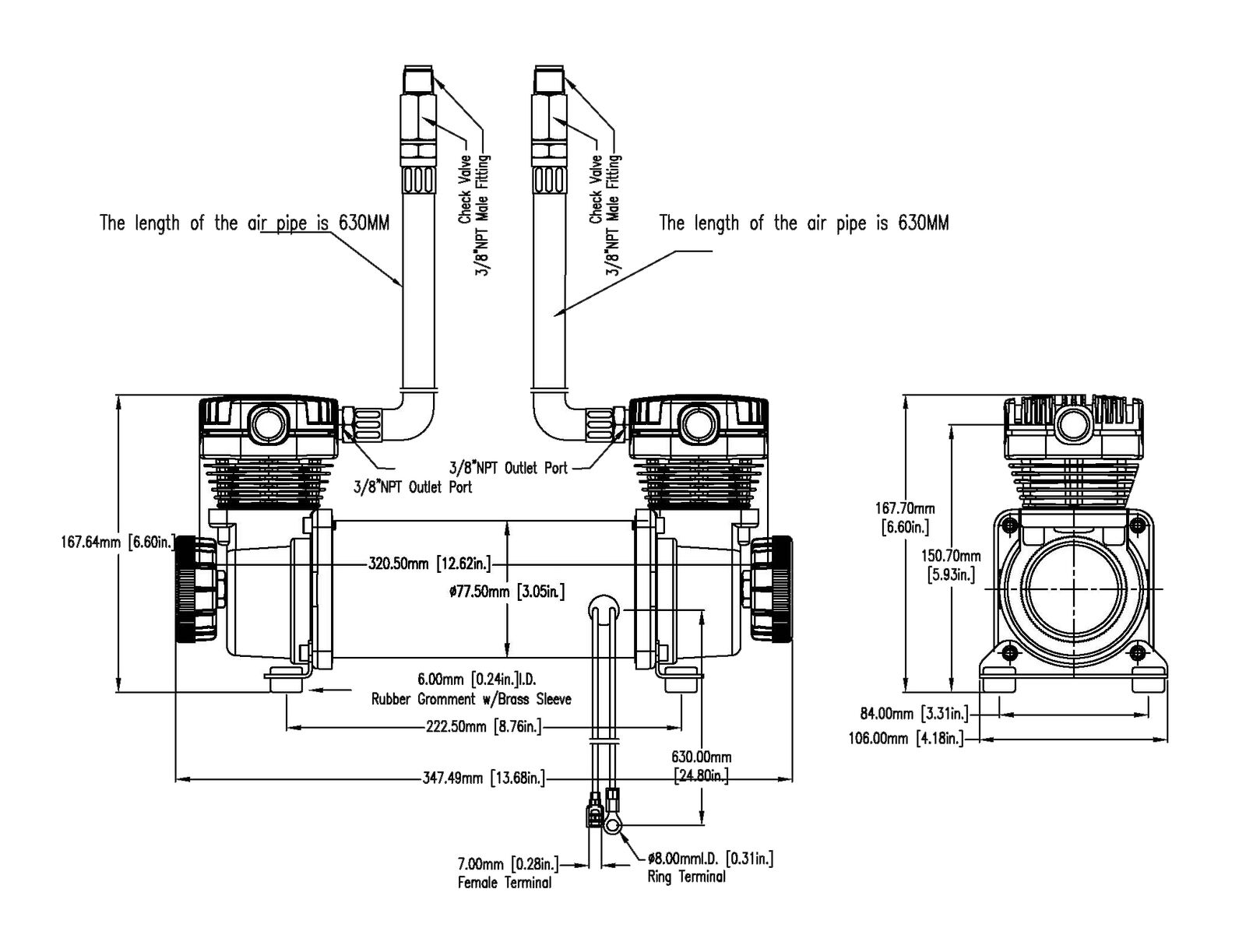

• Dimensions: 355mm(L) x 90mm(W) x 160mm(H)
• Net Weight: 6.4KG

Fill tires, Run Air jacks, Pump up mattresses and inflatable boats in good time, run your air lockers, air bags and train horns, even run small Pneumatic air tools all from your 4WD or car.

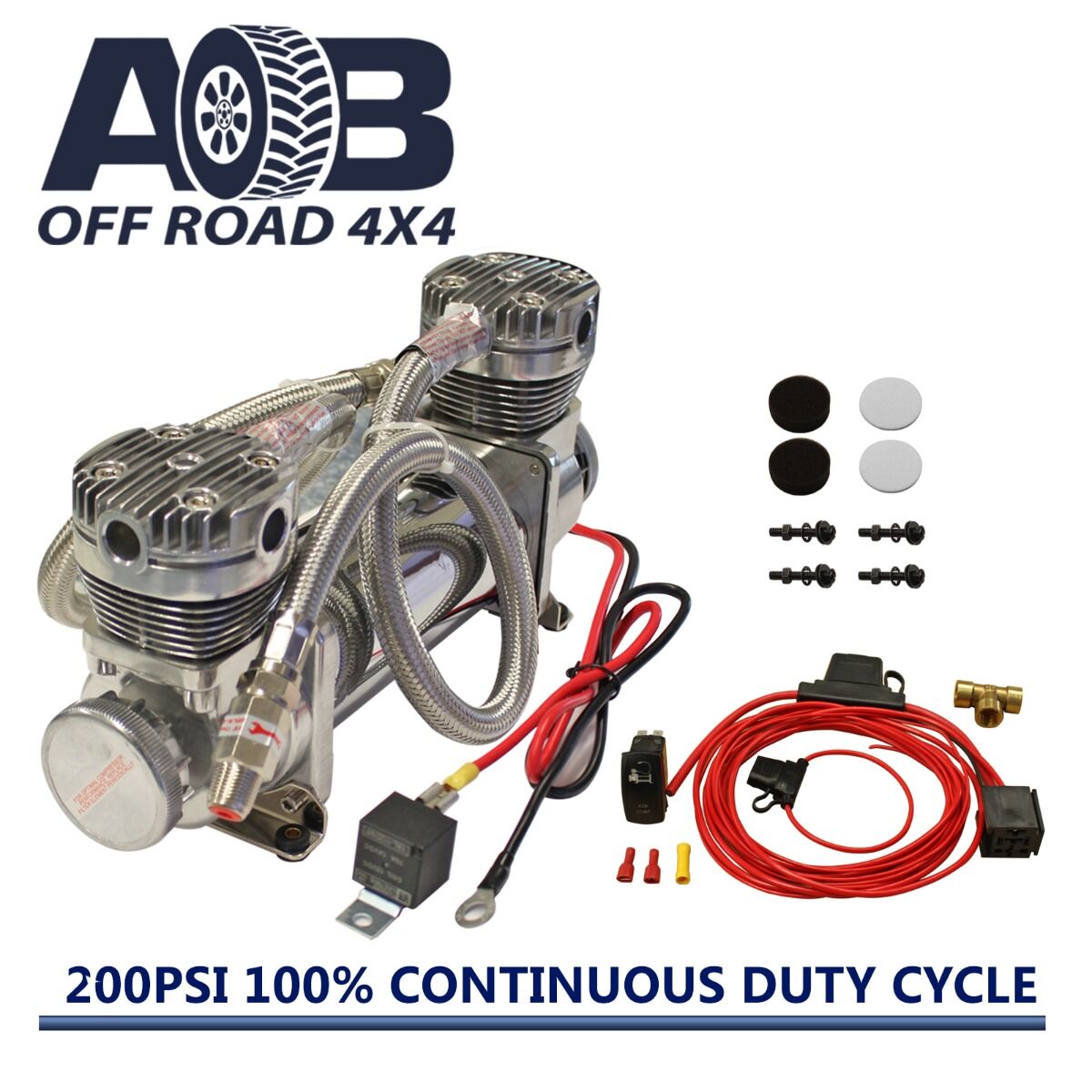

The Following Items included in the Package:

• 1 x 12V 200psi steel air compressor
• Installation Instructions
