AOBCM800 24 Volt Twin Compressors

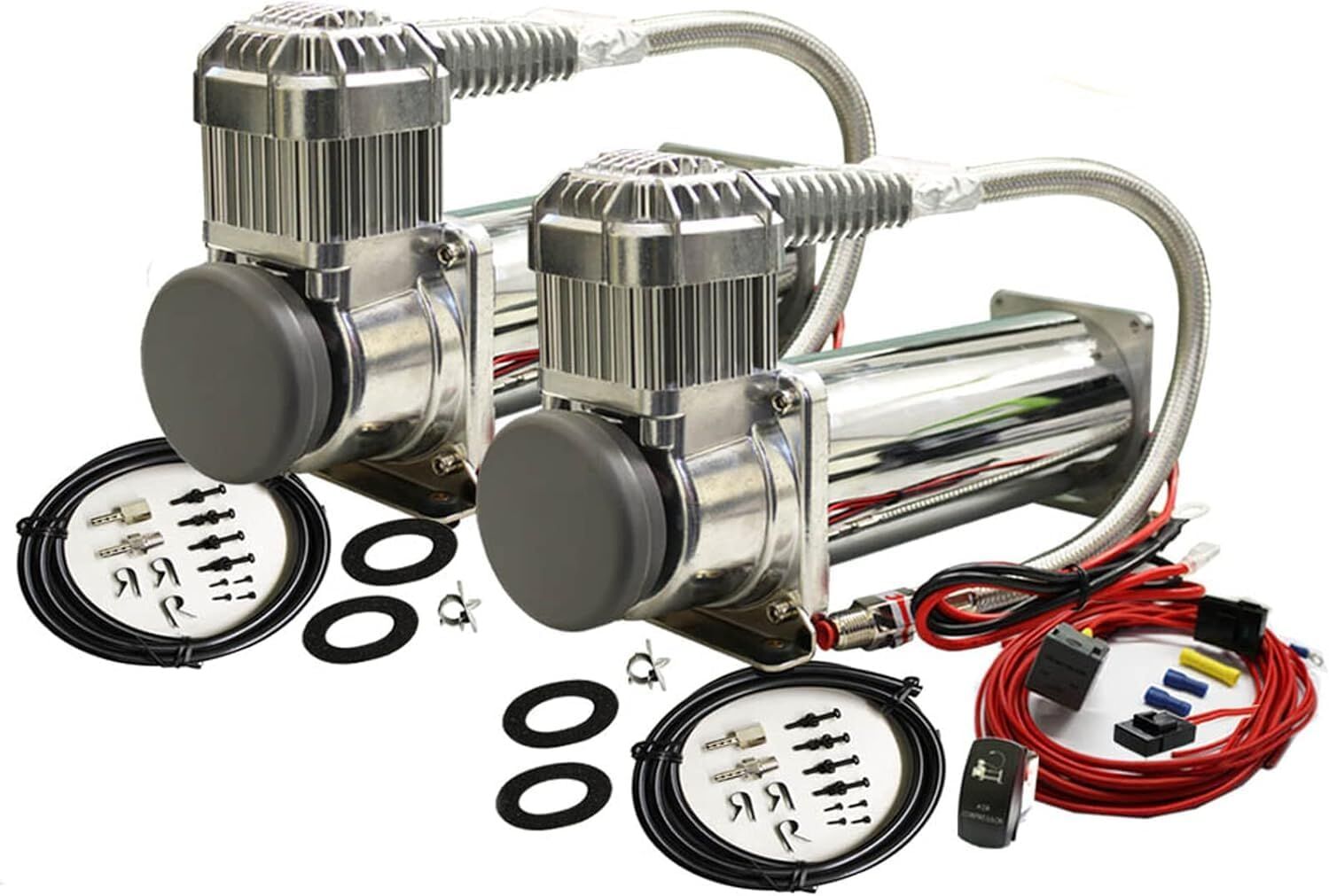

This kit includes two of ''Air On Boards'' impressive AOBCM40024 compressors and two heavy duty 40-amp relays. Each Dual Pack comes with remote mount filter assemblies and mounting hardware.

The kit comes with all the following items:

  • Dual ''Air On Boards'' AOBCM40024 compressor
  • Mounting Hardware
  • Inline discharge check valve
  • Full wiring kit
  • Vibration Isolators
  • Stainless Steel Braided Leader Hose
  • Air Line for Remote Mount Air Filter
  • Remote Mount Air Filter Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

Fill tires, Run Air jacks, Pump up mattresses and inflatable boats in good time, run your air lockers, air bags and train horns, even run small Pneumatic air tools all from your 4WD or car.

Compressor Specifications:

The performance data
PSI CFM A
0 1.76 10
10 1.66 12
20 1.59 13
30 1.52 14
40 1.45 16
50 1.41 17
60 1.34 18
70 1.27 18
80 1.2 19
90 1.16 19
100 1.13 19
110 1.06 20
120 1.02 20
130 0.95 20
140 0.92 19
150 0.85 19
160 0.81 19
170 0.74 19
180 0.7 19
190 0.63 18
200 0.56 18



Fill Rates
9 Litre Tank Fill Rate
0 To 145 PSI 2 Min. 29 Sec.
110 To 145 PSI 57 Sec.
0 to 200 PSI 5 Min. 02 Sec.
165 to 200 PSI 1 Min. 23 Sec.
18 Litre Tank Fill Rate
0 To 145 PSI 6 Min. 02 Sec.
110 To 145 PSI 1 Min. 55 Sec.
0 to 200 PSI 10 Min. 08 Sec.
165 to 200 PSI 2 Min. 20 Sec.



Duty Cycle Reference Chart
DUTY CYCLE @100SPI / 72°F MINUTES ON/OFF
15% 6 Min. On / 34 Min. Off
20% 8 Min. On / 32 Min. Off
25% 10 Min. On / 30 Min. Off
30% 13 Min. On / 30 Min. Off.
33% 15 Min. On / 30 Min. Off
100%(AOBCM400) Continuous Duty



AOBCM40024 COMPRESSOR

  • 24-Volt DC
  • Permanent Magnetic Motor
  • Max Duty cycle(@72 deg F&100 psi ): 100%
  • Minutes On/Off(@72 deg F&100 psi ): Continuous
  • Max working pressure: 200 psi
  • Max Ambient Temperature: 158 deg F
  • Min Ambient Temperature: -40 deg F
  • Max. Air Tank Size: 18 Litre
  • Amp draw: 12 amps
  • Horse Power: 1/4
  • Auto Reset Thermal Protection: YES
  • Net Weight: 4.9kg

WIRING KIT

Everything you need to install and wire this compressor is include in the sale price. Don't get court by buying 24 volt compressors without the CORRECT wiring kit. By buying it all included you can be assured that you will receive the correct size fuses, relays, switches and wire.

  1. 100 mm black earth cable.
  2. 2 x 24 volt 40 amp relay.
  3. 3mtr 4mm power cable.
  4. 3mtr 3mm power cable.
  5. low amp fuse holder.
  6. 2 x High amp fuse holder.
  7. 24 volt toggle switch.
  8. All connectors, pre-wired ready to install .

RUBBER MOUNT

The compressor is fixed to the tank by rubber vibration pads to protect the compressor from excessive vibration.

It is not recommended to mount any 24 volt compressor up side down. Whilst it will still run mounted in this position, the problem is caused by the heat generated by the compressor not escaping correctly and radiating back through the compressor body into the windings. This causing damage to the motor and premature failure of the compressor.

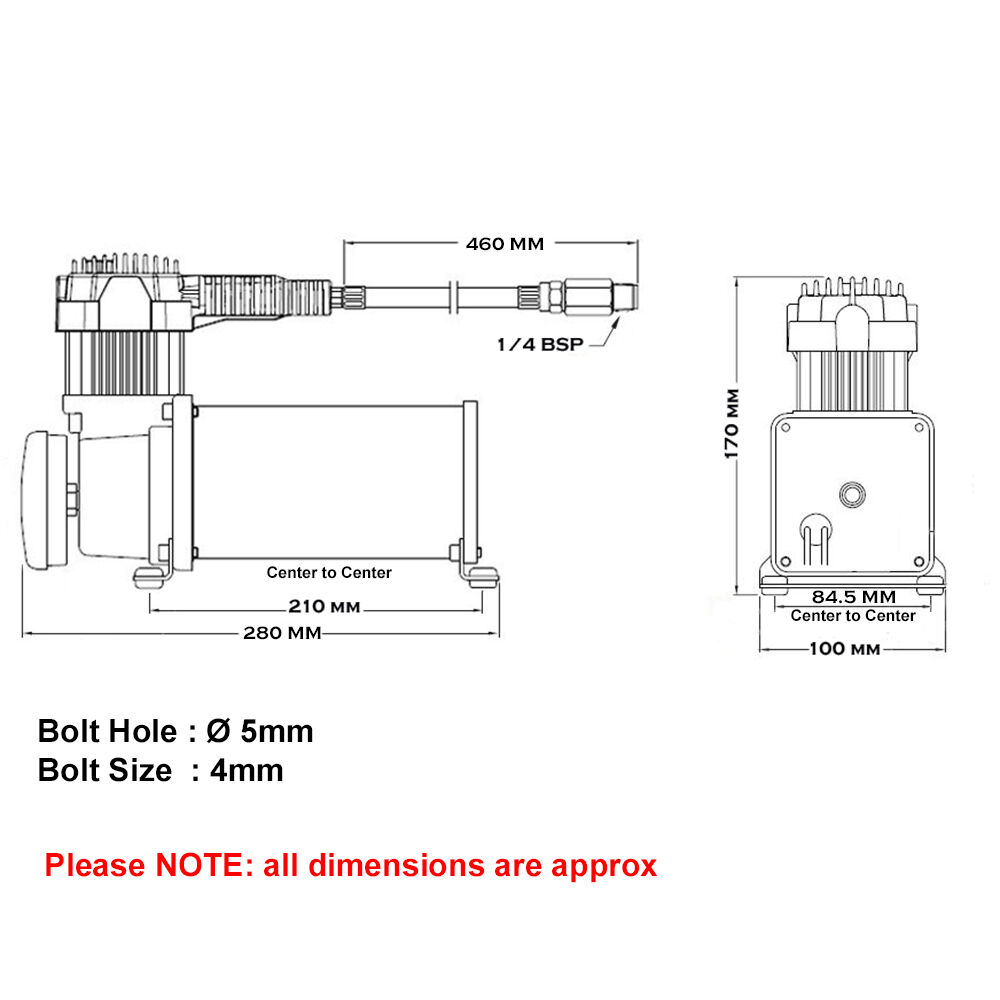

Length: 20cm Width: 33cm Height: 31cm

SKU AOBCM80024
Shipping Weight 11.3000kg
Shipping Width 0.330m
Shipping Height 0.310m
Shipping Length 0.200m
Assembled Length 0.520m
Assembled Height 0.200m
Type Kit
