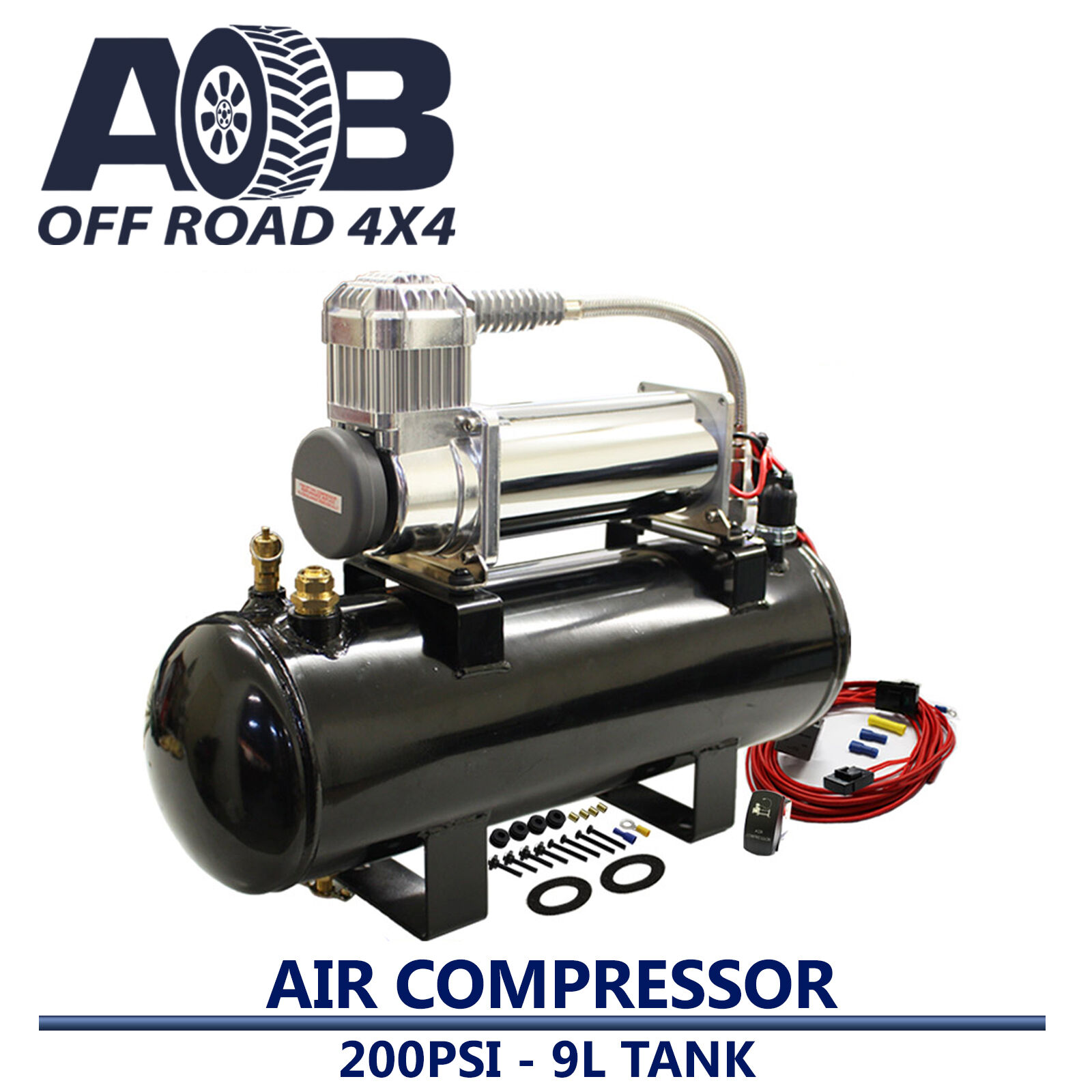

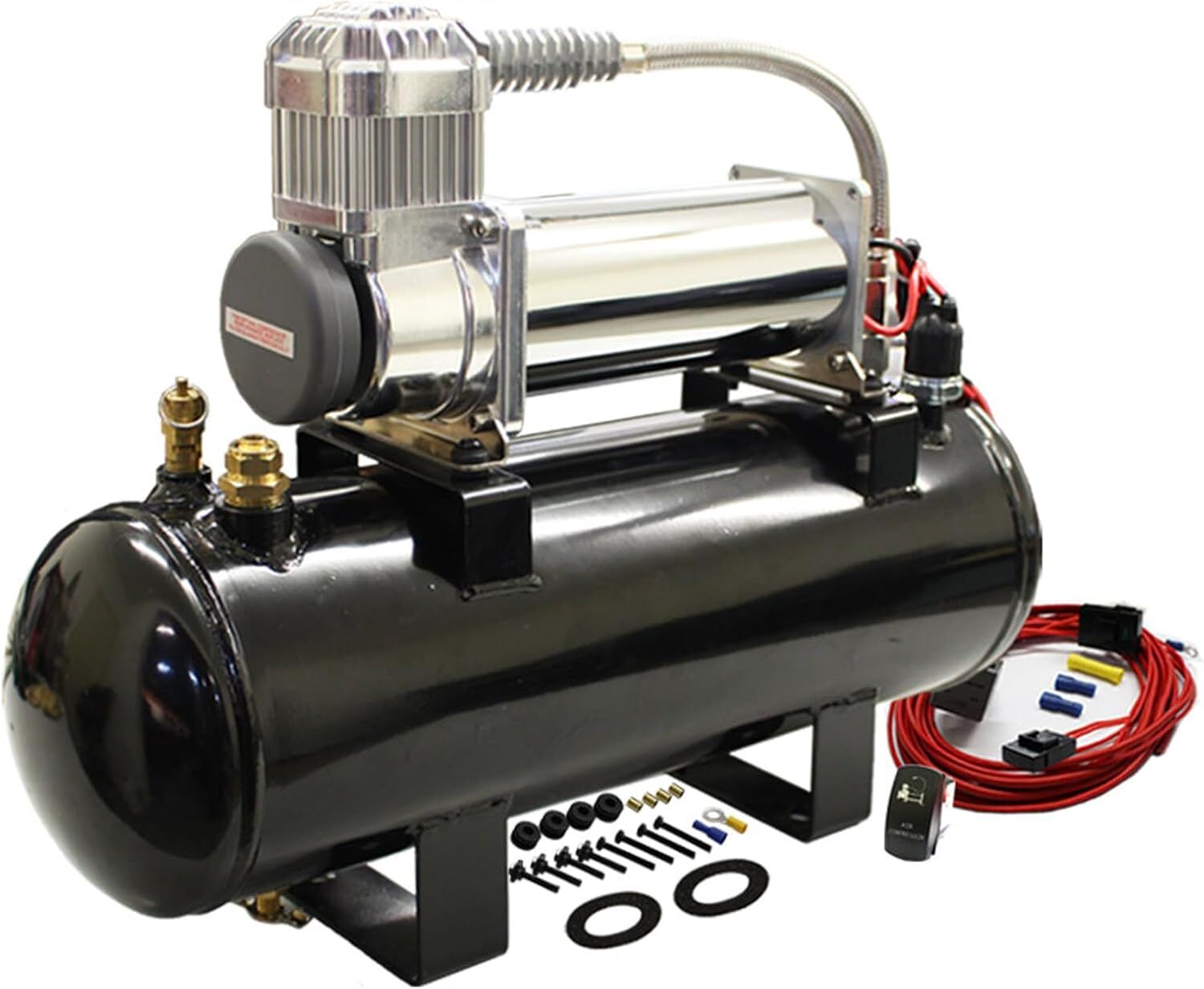

AOBCM500 All in one Compressor and Tank Kit

The kit comes with all the following items:

  • ''Air On Boards'' AOBCM400 compressor
  • 9 litre tank rated at 200psi
  • 120 Psi on / 150 Psi off heavy duty pressure switch
  • Drain valve
  • Safety valve
  • Mounting Bolts
  • Inline discharge check valve
  • Rubber bush compressor mount
  • Full wiring kit
  • Instruction Manual

It can be used to fill tires, run Air jacks, pump up mattresses and inflatable boats in good time, run your air lockers, air bags and train horns, even run small Pneumatic air tools all from your 4WD or car.

  • 12-Volt DC
  • Duty cycle: 100% @ 100psi
  • Max working pressure: 200 psi
  • Amp draw: 23 Amps
  • Dimension with Compressor: 485mm x 151mm x 365mm (L x W x H)
  • Dimension of Tank only: 485mm x 151mm x 195 mm (L x W x H)

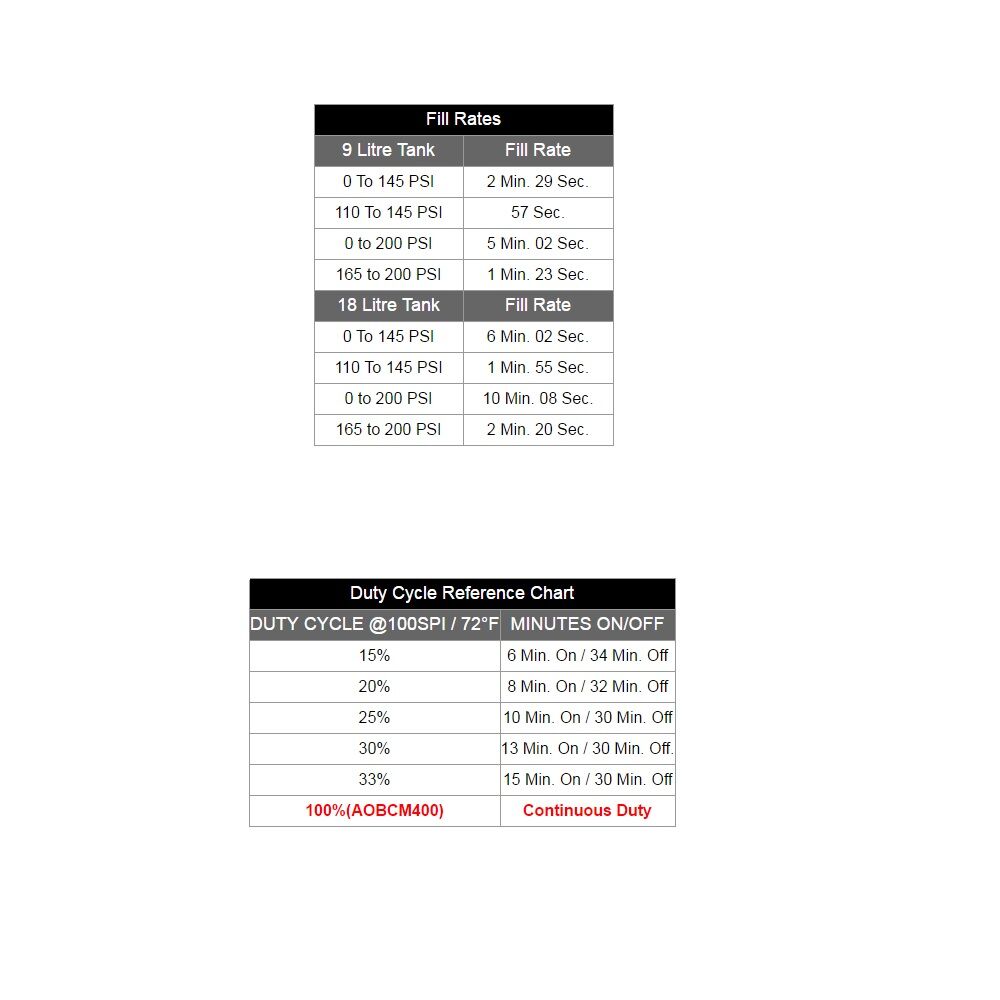

  • Fill time: 0 to 150psi = 3 minutes, 33 seconds.
  • Fill a 31/10.5/R15 Tyre from 16 psi to 34 psi in a 38 seconds
12V small air compressor AOBCM400

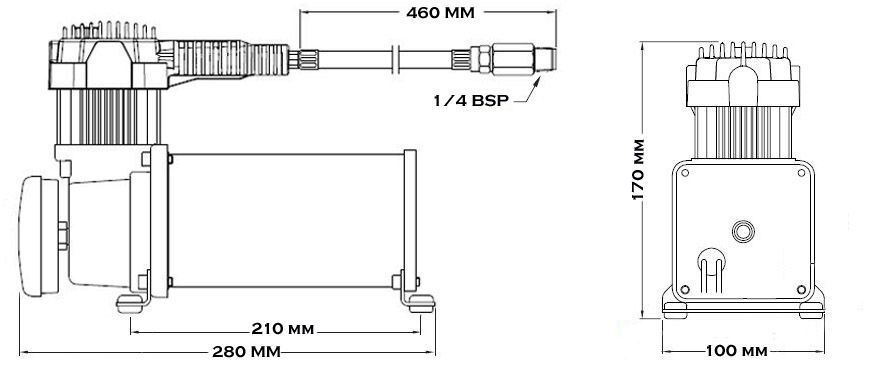

AOBCM400 COMPRESSOR

Sitting A-Top of this unit is ''Air ON Boards'' very impressive little 12 Volt compressor part number AOBCM400.

It has a full Steel body and out preforms all 12 volt compressors of its type on the market today. With a maximum output of 200 Psi and a duty cycle of 100% at 72 deg F and 100 Psi it will provide you with enough air for all your needs.

AOB air compressor drain valve

DRAIN VALVE

Drain valve comes with it and ready to be installed.

AOB air compressor pressure switch 120 psi on 150 psi off

PRESSURE SWITCH

Included on the compressor is a pressure switch that is preset to cycle your compressor on at 120 Psi and off at 150 Psi

AOB air compressor safety valve

SAFETY VALVE

A must for all compressor is this safety valve. It is set to release the tank pressure should it exceed 165 Psi

AOB 12v compressor AOBCM400 wiring kit

WIRING KIT

Everything you need to install and wire this compressor is include in the sale price. Don't get court by buying 12 volt compressors with out the CORRECT wiring kit. By buying it all included you can be assured that you will receive the correct size fuses, relays, switches and wire.

  1. 100 mm black earth cable.
  2. 12 volt 30 amp relay.
  3. 3mtr 4mm power cable.
  4. 3mtr 3mm power cable.
  5. low amp fuse holder.
  6. High amp fuse holder.
  7. 12 volt rocker switch.
  8. All connectors, pre-wired ready to install .
AOB portable air compressor AOBCM400 rubber mount

RUBBER MOUNT

The compressor is fixed to the tank by rubber vibration pads to protect the compressor from excessive vibration.

It is not recommended to mount any 12 volt compressor up side down. Whilst it will still run mounted in this position, the problem is caused by the heat generated by the compressor not escaping correctly and radiating back through the compressor body into the windings. This causing damage to the motor and premature failure of the compressor.

Length: 52cm Width: 18cm Height: 40cm

SKU AOBCM500B
Shipping Weight 10.6000kg
Shipping Width 0.180m
Shipping Height 0.400m
Shipping Length 0.520m
Assembled Length 0.580m
Assembled Height 0.430m
