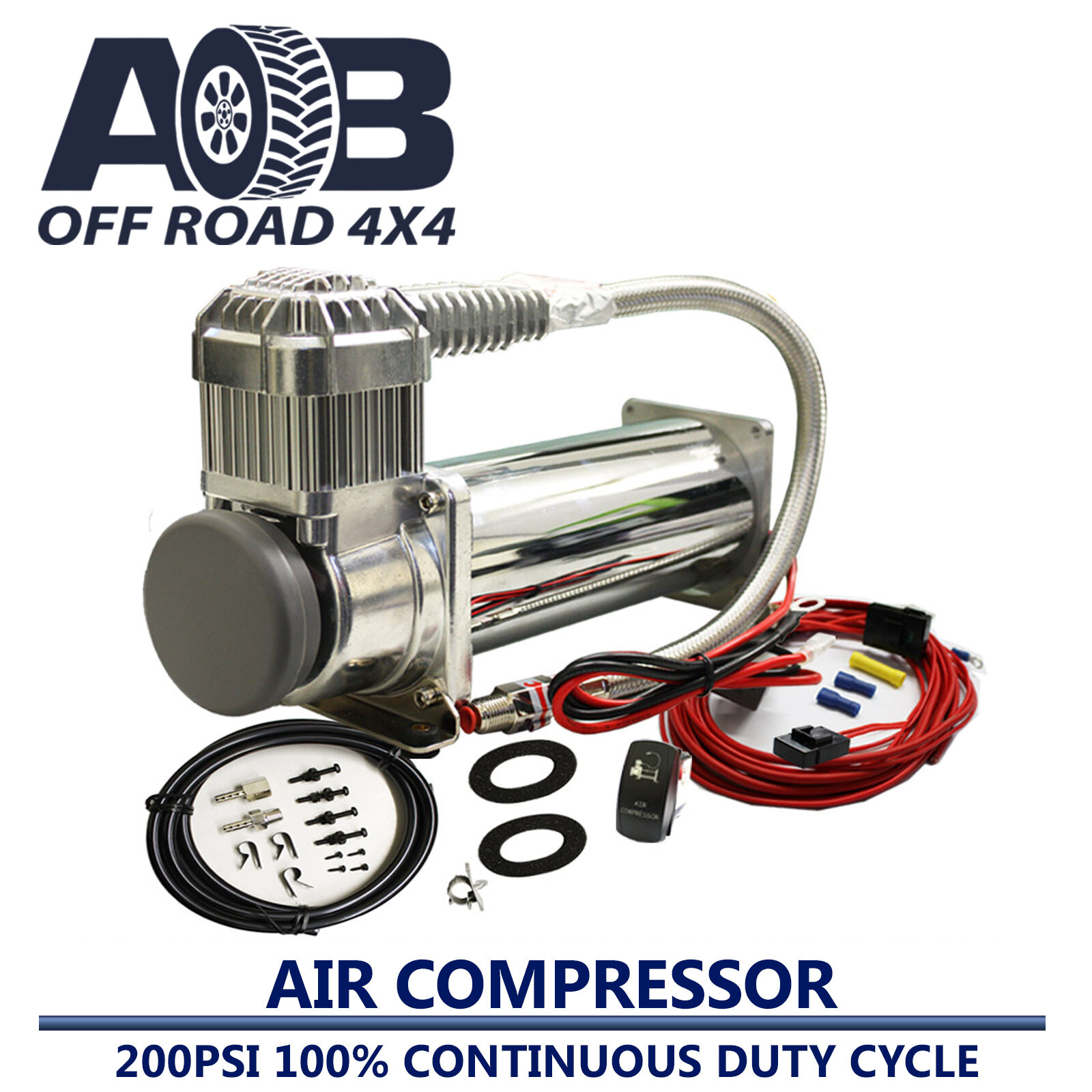

AOBCM40024 24 VOLT COMPRESSOR

This 24 volt compressor has A full Steel body and an output of 1.76 cfm. With a maximum output of 200 Psi and a duty cycle of 100% at 72 deg F&100 psi it will provide you with enough air for all your needs.

The Following Items included in the Package:

"AOB4x4-Air On Boards'' AOBCM40024 compressor

Mounting Hardware

Inline discharge check valve

Full wiring kit

Vibration Isolators

Stainless Steel Braided Leader Hose

Air Line for Remote Mount Air Filter

Remote Mount Air Filter Assembly

(2) Replacement Air Filter Elements

Installation Instructions

Fill tires, Run Air jacks, Pump up mattresses and inflatable boats in good time, run your air lockers, air bags and train horns, even run small Pneumatic air tools all from your 4WD or car.

Specifications:

The performance data
PSI CFM A
0 1.76 10
10 1.66 12
20 1.59 13
30 1.52 14
40 1.45 16
50 1.41 17
60 1.34 18
70 1.27 18
80 1.2 19
90 1.16 19
100 1.13 19
110 1.06 20
120 1.02 20
130 0.95 20
140 0.92 19
150 0.85 19
160 0.81 19
170 0.74 19
180 0.7 19
190 0.63 18
200 0.56 18



Fill Rates
9 Litre Tank Fill Rate
0 To 145 PSI 2 Min. 29 Sec.
110 To 145 PSI 57 Sec.
0 to 200 PSI 5 Min. 02 Sec.
165 to 200 PSI 1 Min. 23 Sec.
18 Litre Tank Fill Rate
0 To 145 PSI 6 Min. 02 Sec.
110 To 145 PSI 1 Min. 55 Sec.
0 to 200 PSI 10 Min. 08 Sec.
165 to 200 PSI 2 Min. 20 Sec.



Duty Cycle Reference Chart
DUTY CYCLE @100SPI / 72°F MINUTES ON/OFF
15% 6 Min. On / 34 Min. Off
20% 8 Min. On / 32 Min. Off
25% 10 Min. On / 30 Min. Off
30% 13 Min. On / 30 Min. Off.
33% 15 Min. On / 30 Min. Off
100%(AOBCM400) Continuous Duty



AOBCM40024 COMPRESSOR

  • 24-Volt DC
  • Permanent Magnetic Motor
  • Max Duty cycle(@72 deg F&100 psi ): 100%
  • Minutes On/Off(@72 deg F&100 psi ): Continuous
  • Max working pressure: 200 psi
  • Max Ambient Temperature: 158 deg F
  • Min Ambient Temperature: -40 deg F
  • Max. Air Tank Size: 18 Litre
  • Amp draw: 12 amps
  • Horse Power: 1/4
  • Auto Reset Thermal Protection: YES
  • Net Weight: 4.9kg

WIRING KIT

Everything you need to install and wire this compressor is include in the sale price. Don't get court by buying 24 volt compressors with out the CORRECT wiring kit. By buying it all included you can be assured that you will receive the correct size fuses, relays, switches and wire.

  1. 100 mm black earth cable.
  2. 24 volt 30 amp relay.
  3. 3mtr 4mm power cable.
  4. 3mtr 3mm power cable.
  5. low amp fuse holder.
  6. High amp fuse holder.
  7. 24 volt rocker switch.
  8. All connectors, pre-wired ready to install .

RUBBER MOUNT

The compressor is fixed to the tank by rubber vibration pads to protect the compressor from excessive vibration.

It is not recommended to mount any 24 volt compressor up side down. Whilst it will still run mounted in this position, the problem is caused by the heat generated by the compressor not escaping correctly and radiating back through the compressor body into the windings. This causing damage to the motor and premature failure of the compressor.

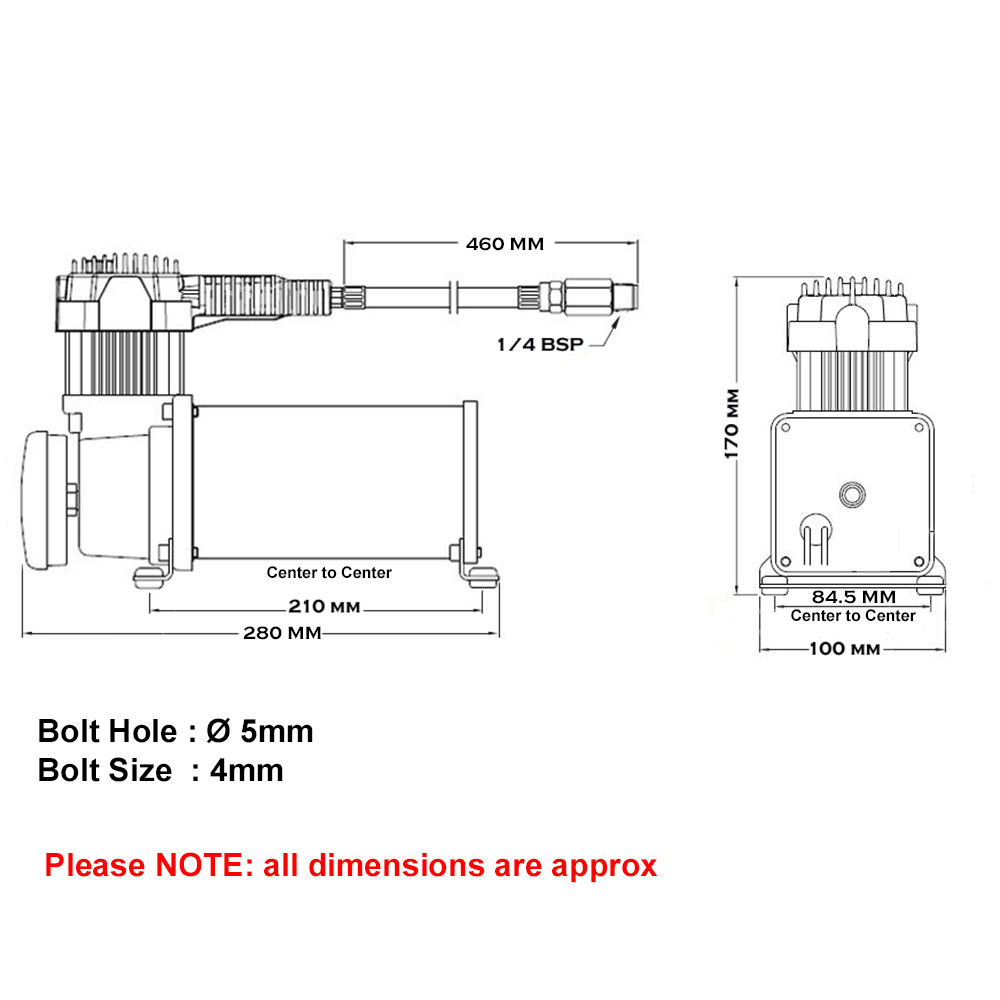

Length: 38cm Width: 17cm Height: 21cm

SKU AOBCM40024
Shipping Weight 5.6500kg
Shipping Width 0.170m
Shipping Height 0.210m
Shipping Length 0.380m
Assembled Length 0.400m
Assembled Height 0.230m
