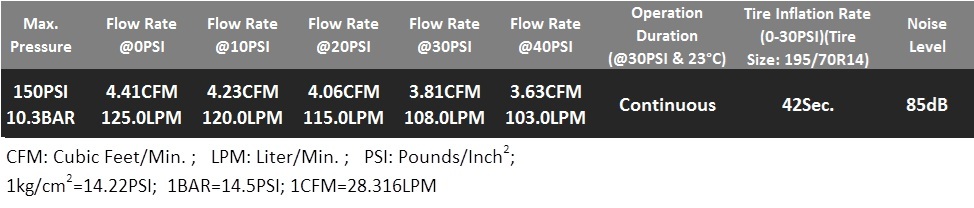

Compressor Test Result

Test Conditions

• All tested direct from battery with vehicle running
• charge voltage of 13.7
• All running directly to tank with 700 mm leader hose

12 VOLT 150PSI TWIN HIGH PERFORMANCE AIR COMPRESSOR

Specifications:

Features:

• Ultra compact twin motor,dual cylinder design, super powerful, never-falling function.

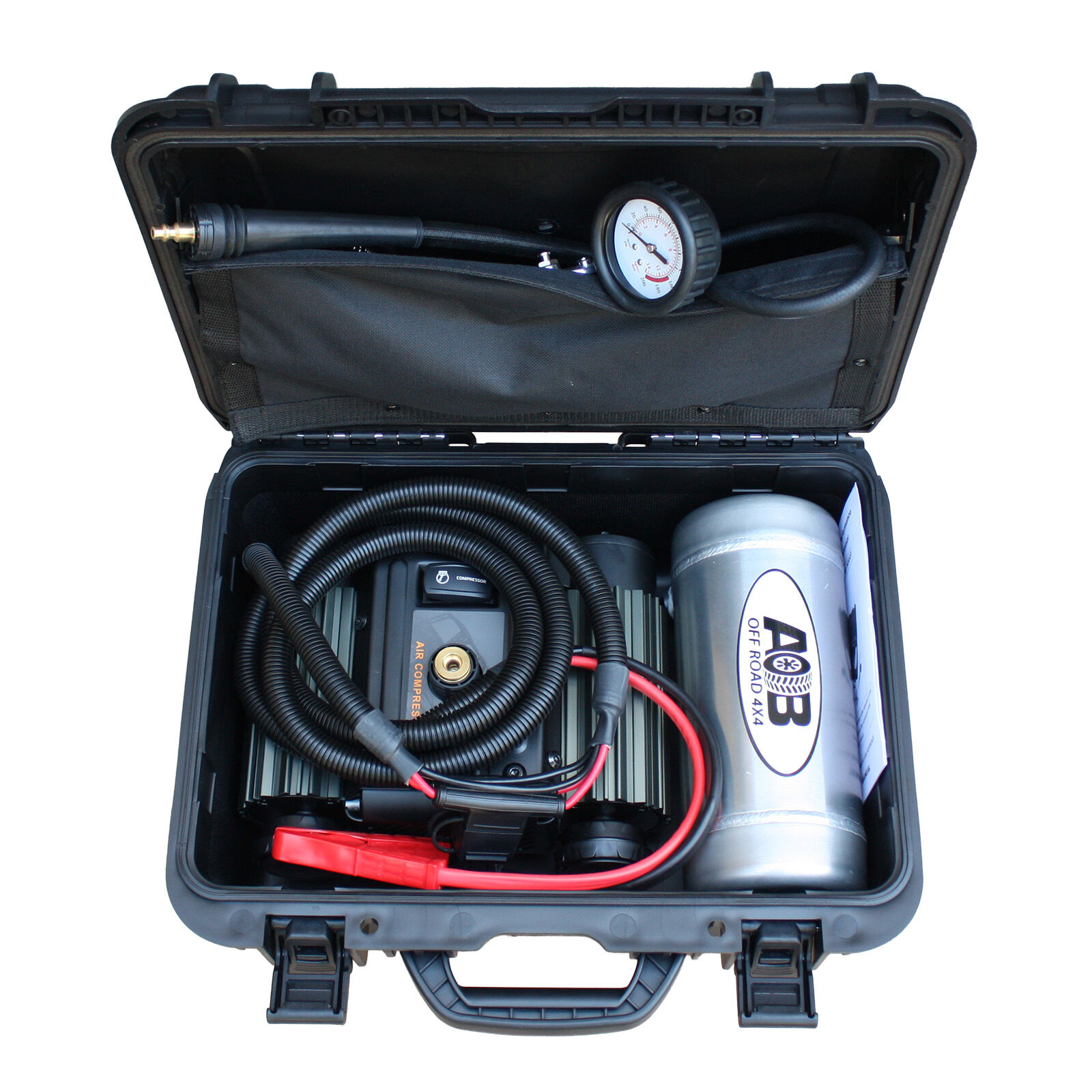

• For easy carrying and storage, this portable air compressor is mounted in a waterproof carry case.
• The carry case has convenient compartments for storing the air hose and other compressor accessories.
• Cooling fan and brackets effectively dissipate heat from the motors, heads and electronics allowing for a 100% duty cycle.
• Motors are thermal cut-out protected against damage caused by extreme temperature use.
• Pressure switch (120psi ON/150psi OFF) and relay equipped electrical system prevents run-on when not filling.

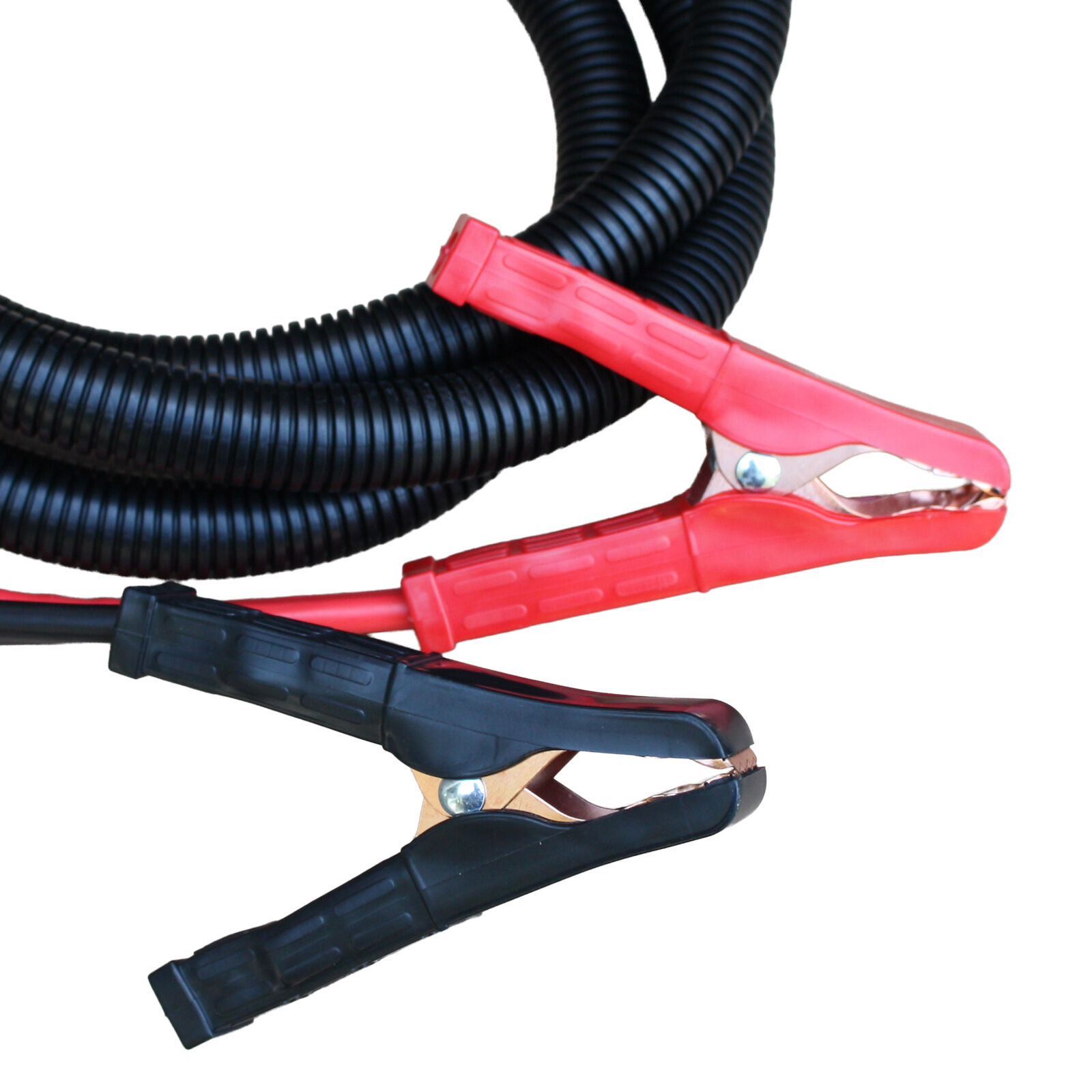

• llluminated isolating switch is easy to see at night, and protects the user from hazardous sparking when connecting the alligator clips to the battery terminals.
• Over-pressure safety valve equipped as a back-up protection from pressure switch failure.

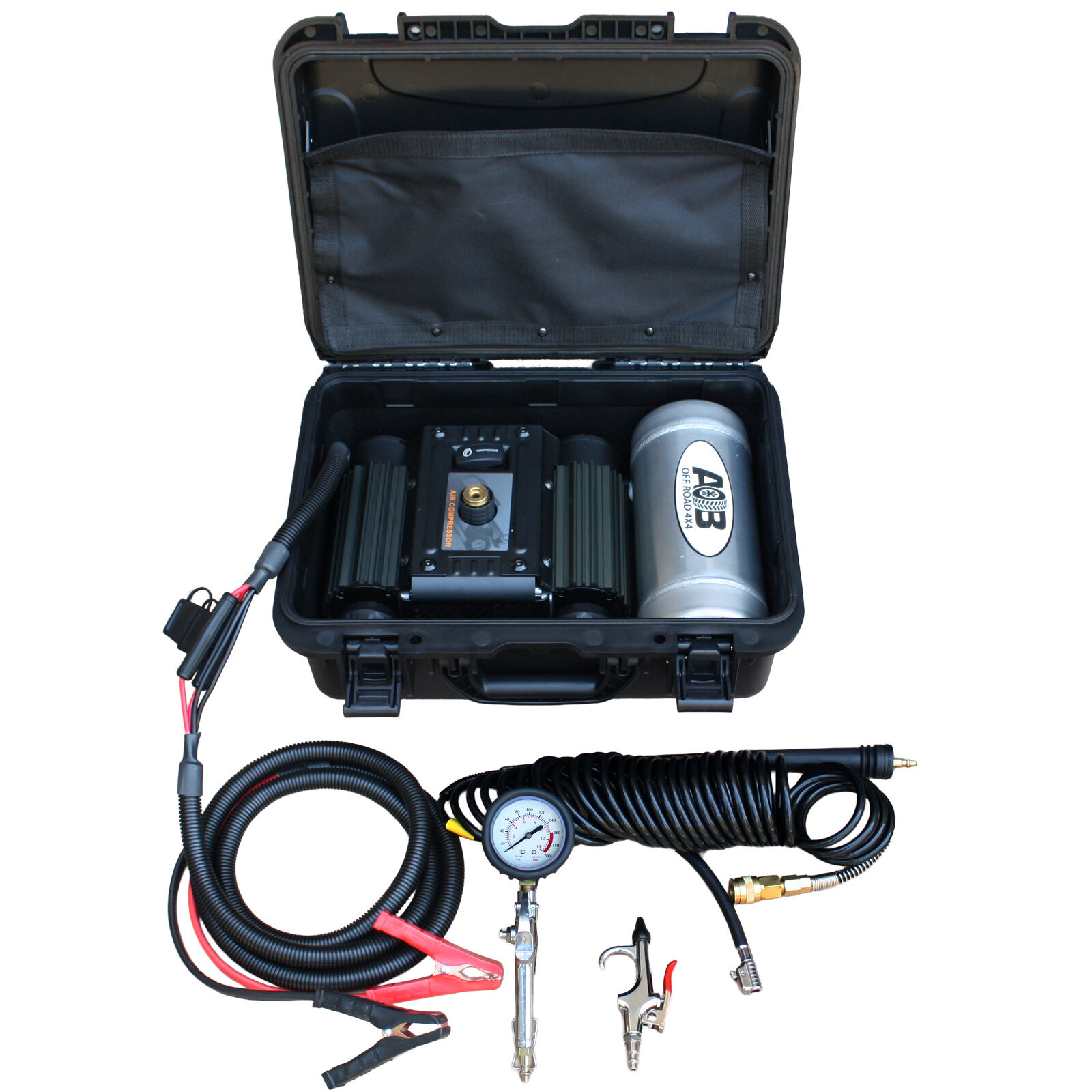

The Following Items included in the Package:

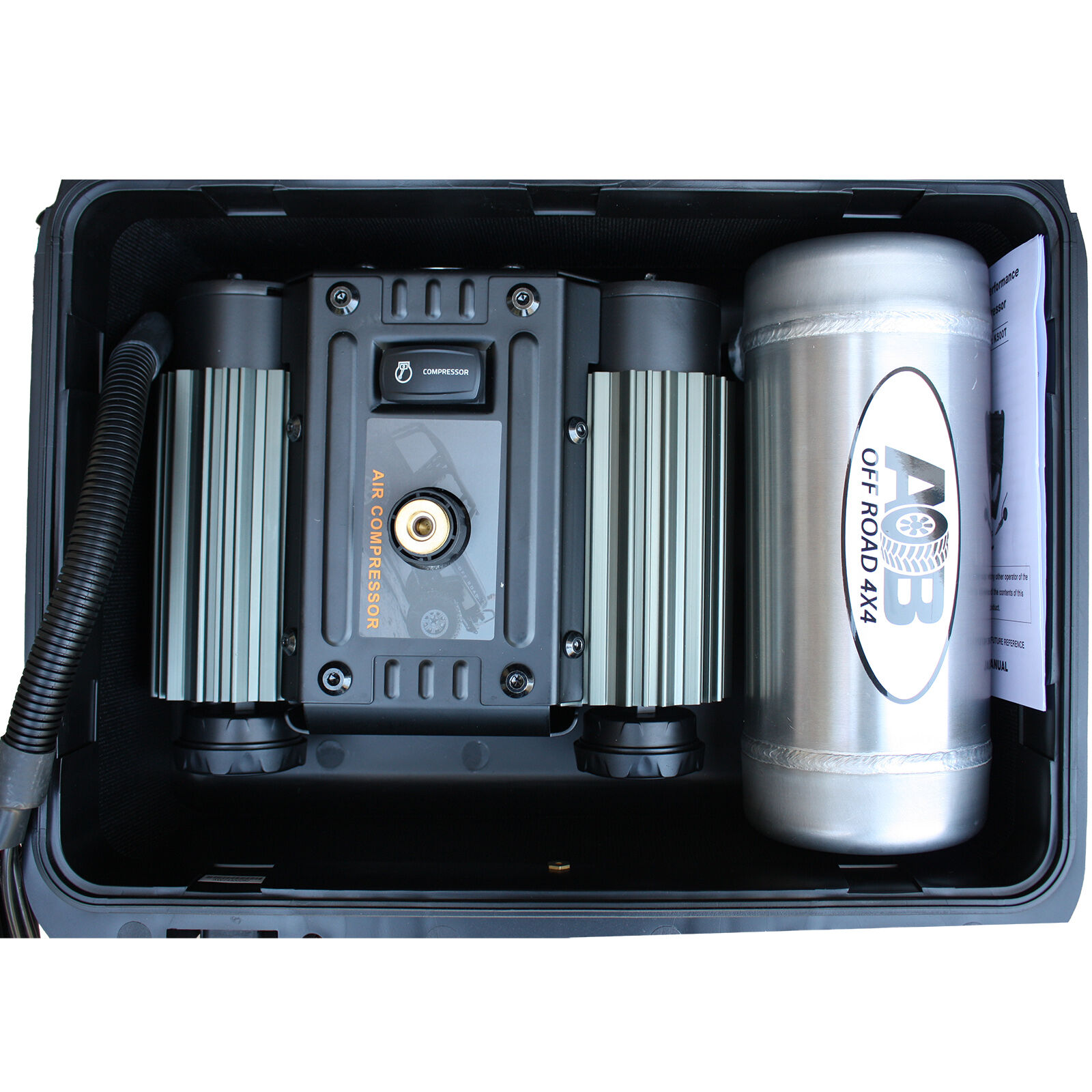

• 1 x 12V 150psi Twin Air Compressor
• 1 x 0.68GA/2.5L Alluminum Alloy Tank

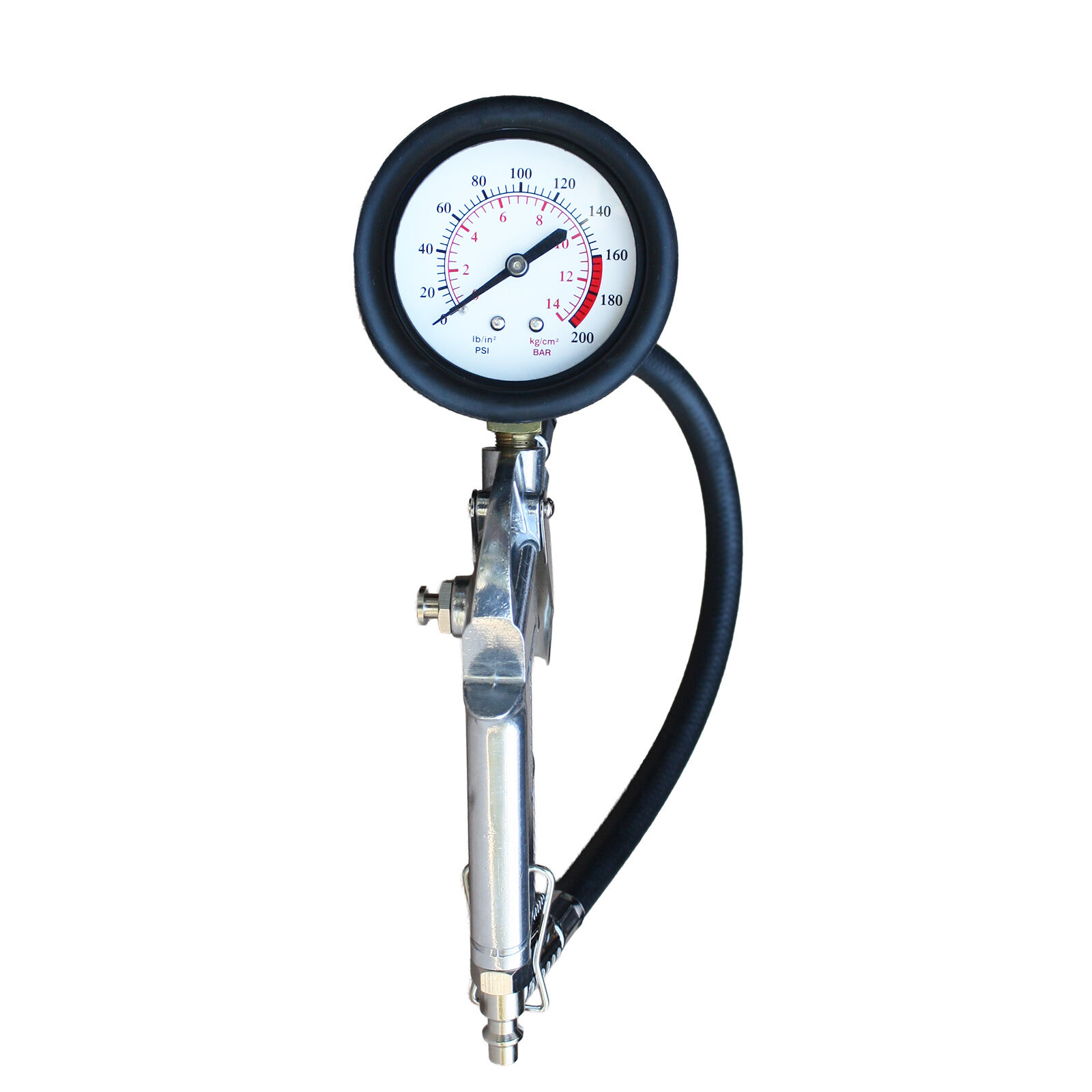

• 1 x Mechanical Pressure Gauge with Deflation
• 1 x Blow Gun Nozzle

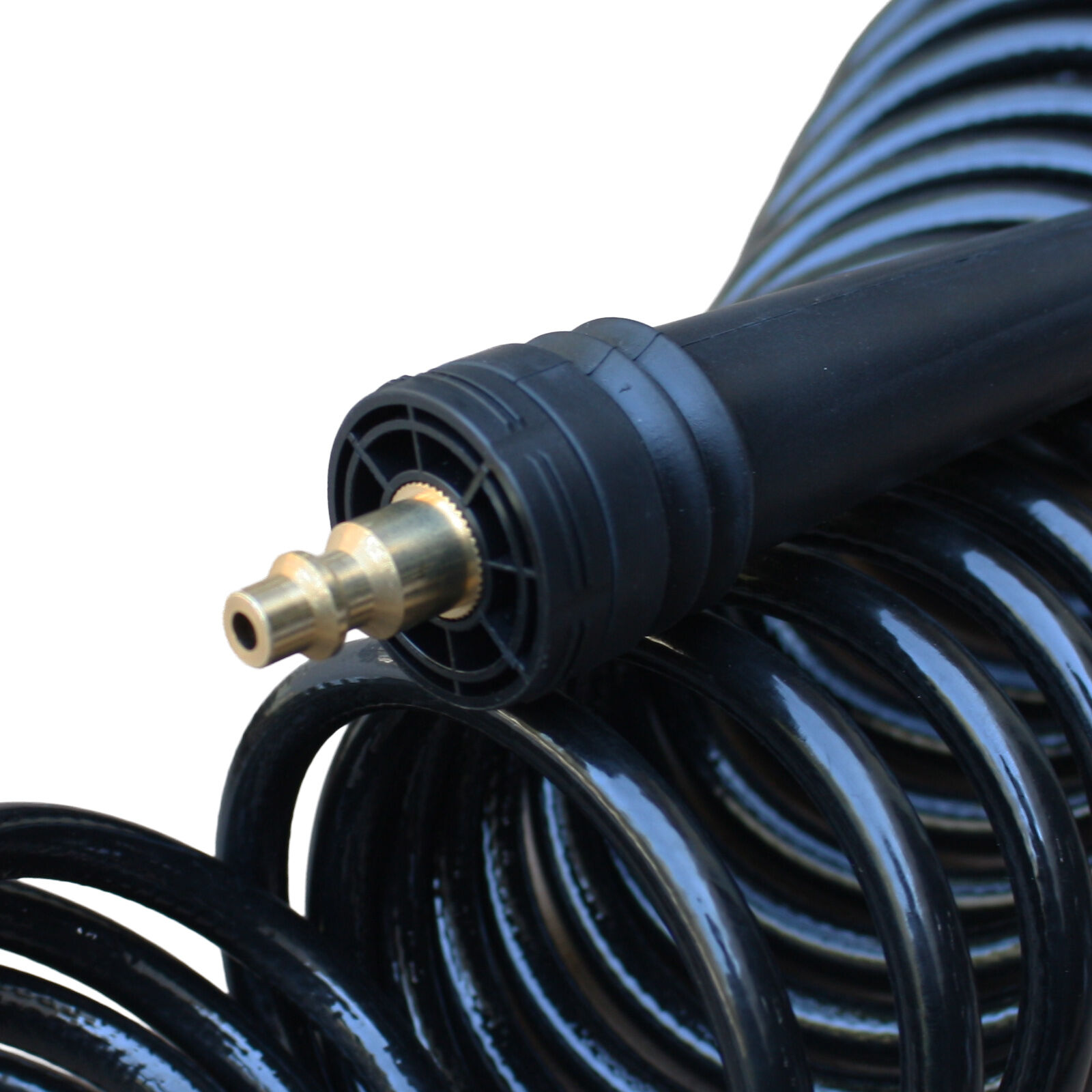

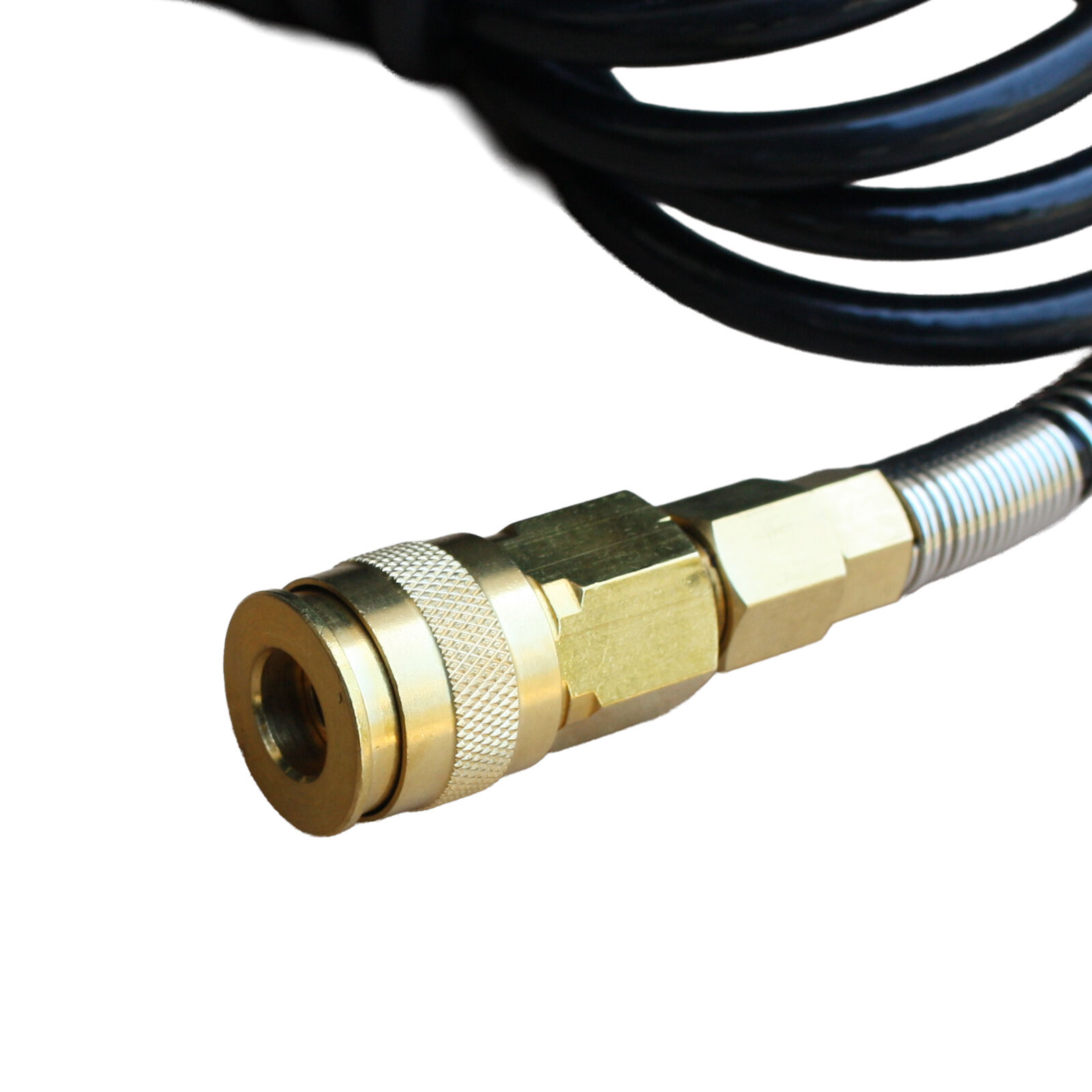

• 1 x 25ft Air Hose

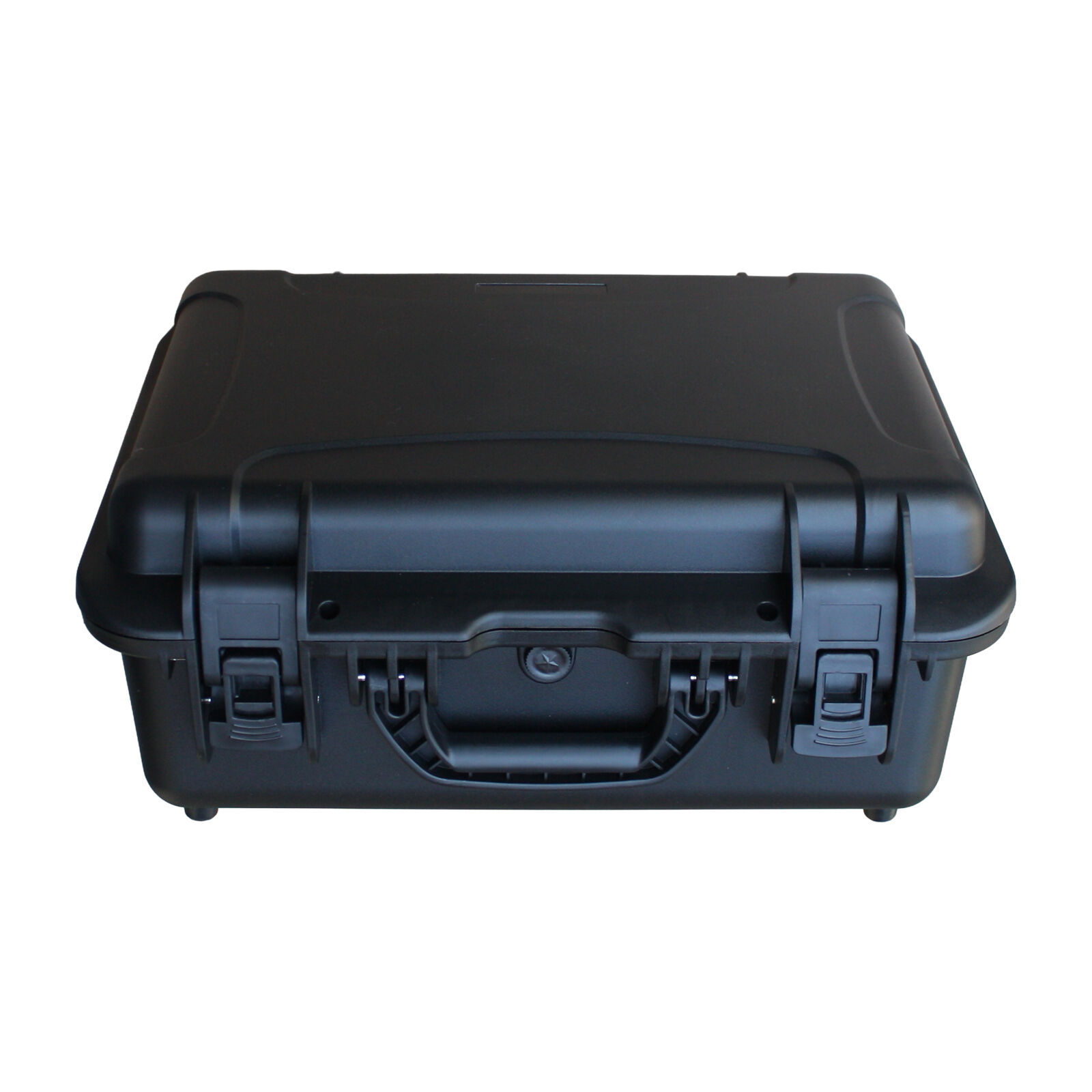

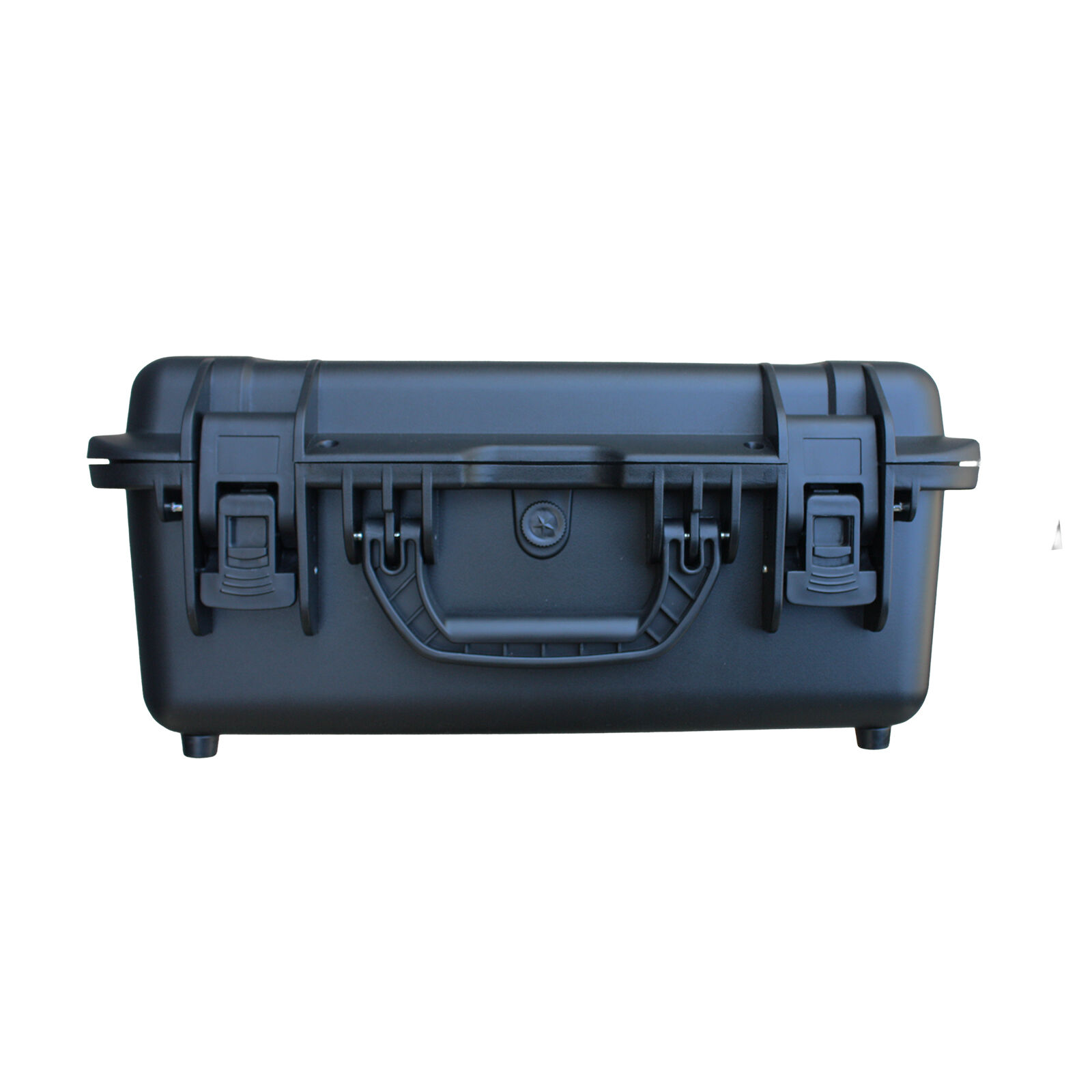

• 1 x Suitcase
