24V 200psi Portable Air Compressor for Car 4X4

Description
Specifications

AOB Complete Air System With 24 Volt 200 Psi Air Compressor & 4 Litre 200 Psi Air Tank

AOB Air Compressor Kit Install Into A 200-series LandCruiser YOUTUBE VIDEO

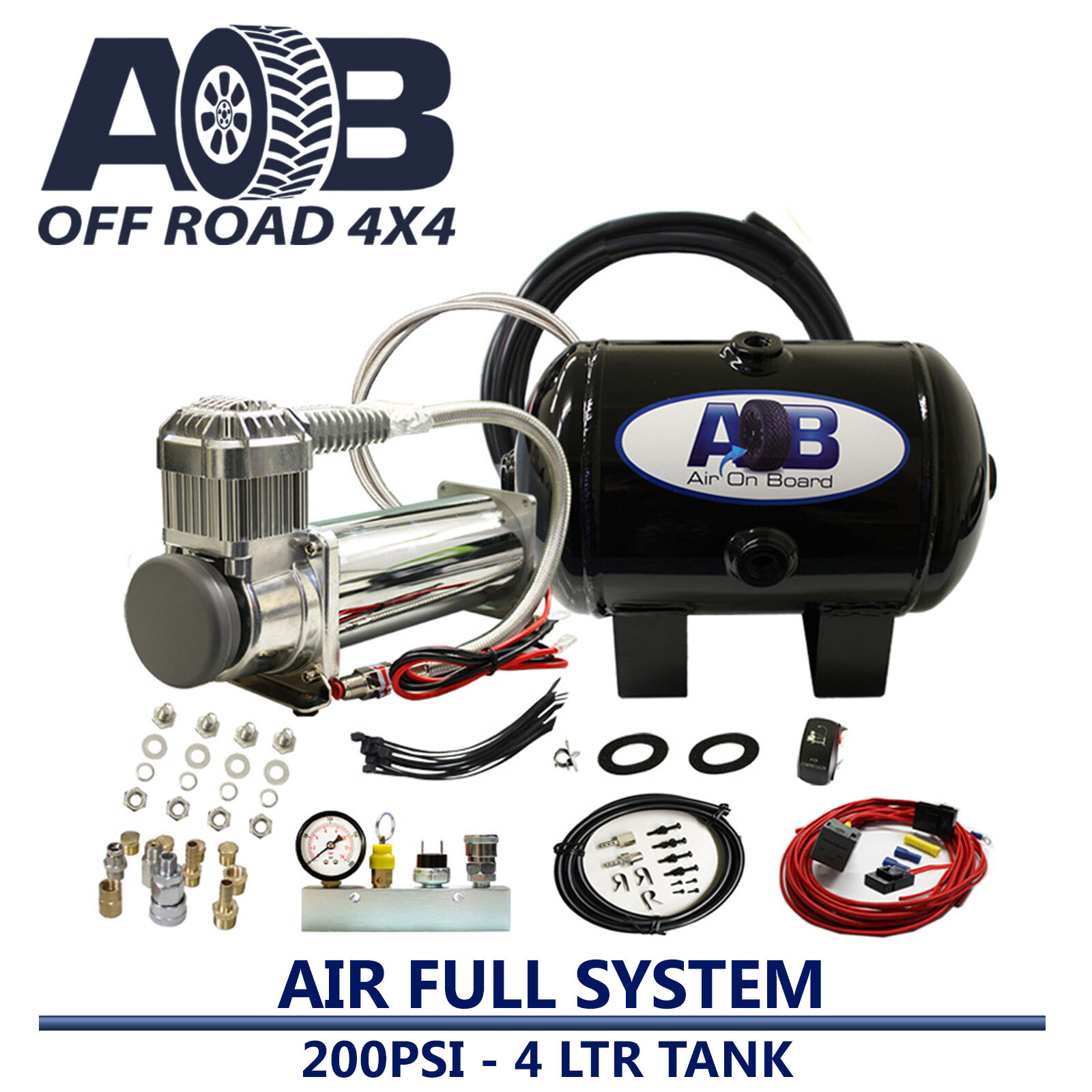

This system comes with all the following items:

24V 200psi AOBCM40024 compressor
4 litre tank rated at 200psi
1.5 meter High Temp Steel Braided Air Hose
3 meter Low Temp High Pressure Air Hose
Manifold Set
Rubber bush compressor mount
Full wiring kit
Installation instructions.

It can be used to fill tires, run Air jacks, pump up mattresses and inflatable boats in good time, run your air lockers, air bags and train horns, even run small Pneumatic air tools all from your 4WD or car.

24 Volt DC

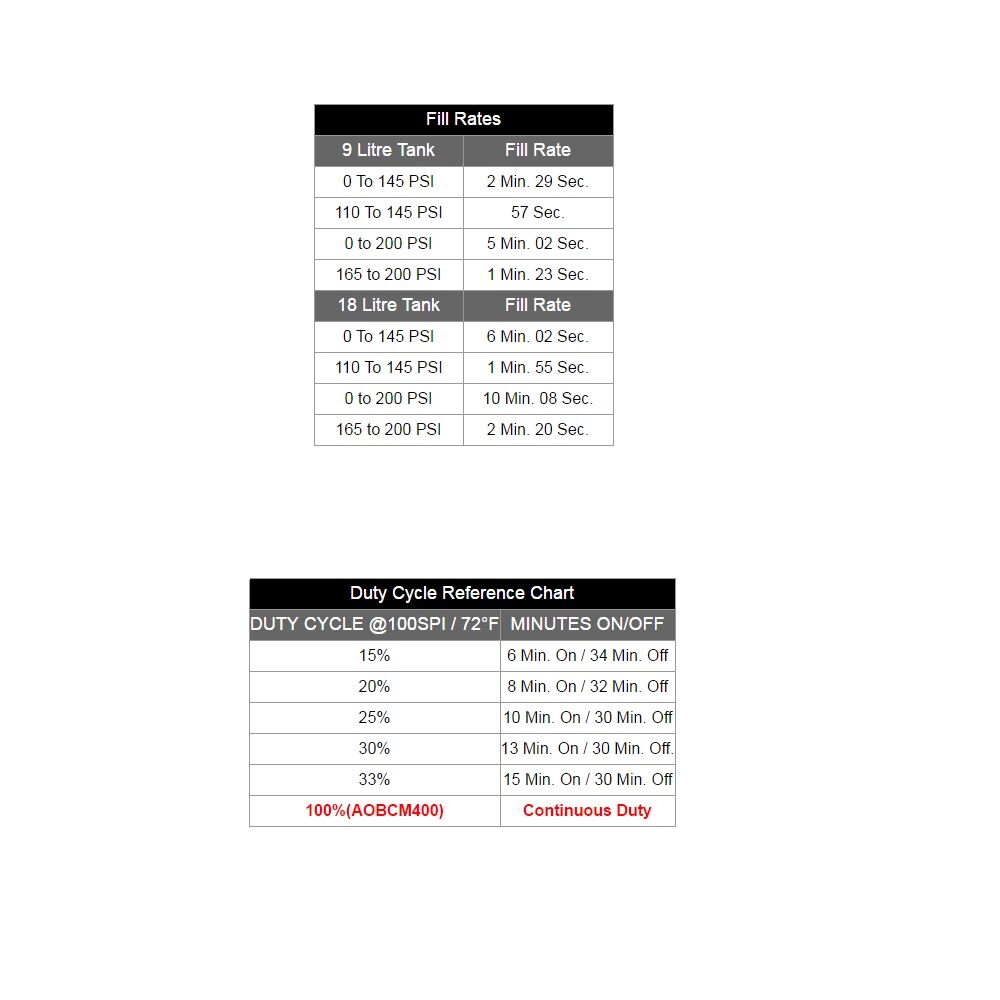

Duty cycle: 100% at 100psi
Max working pressure: 200 psi
Amp draw: 23Amps
Fill a 31/10.5/R15 Tyre from 16 psi to 34 psi in a 1 minuet 22 seconds

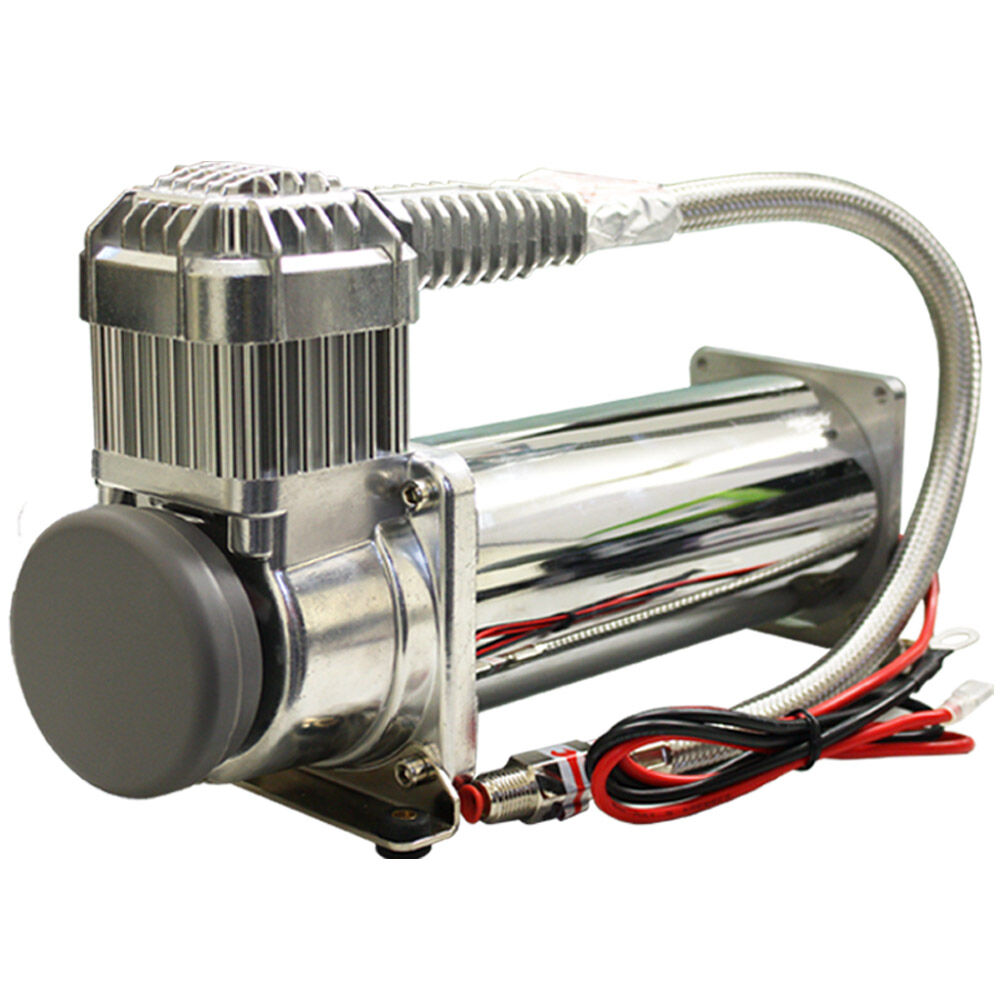

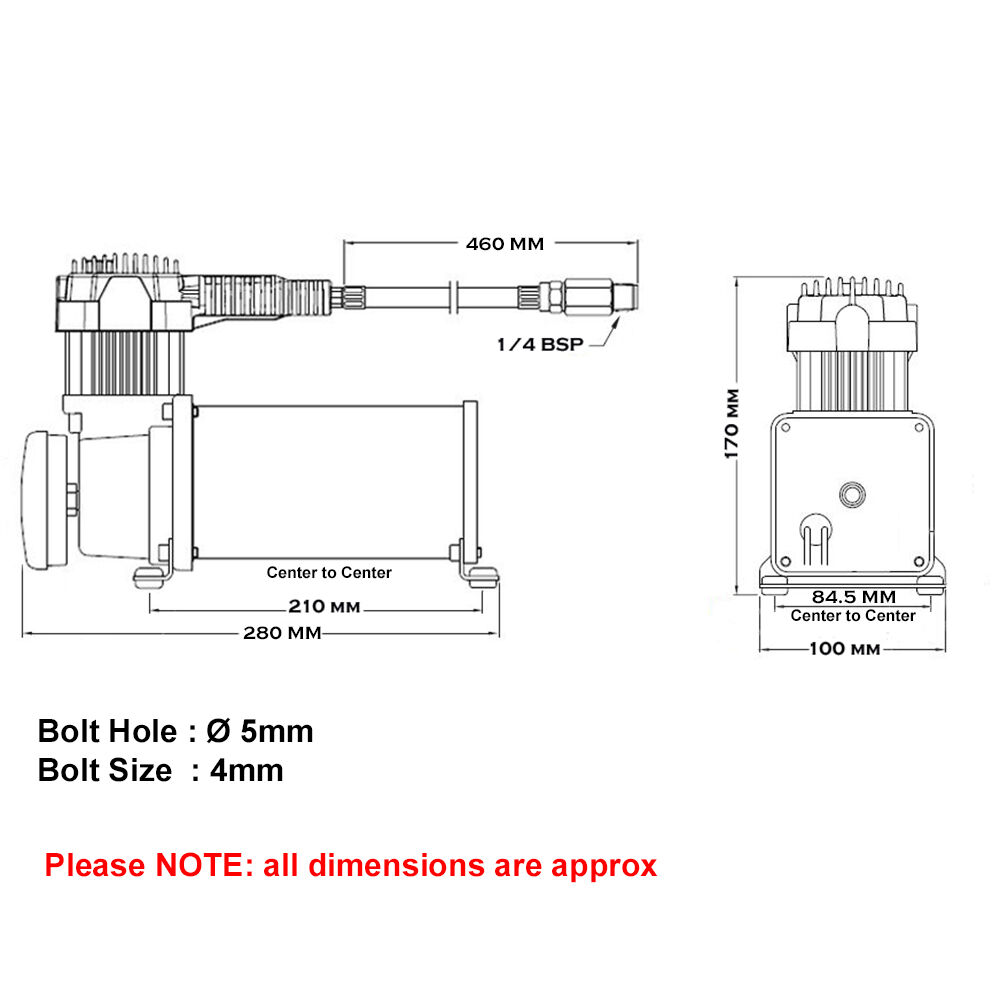

	AOBCM40024 COMPRESSOR 24-Volt DC Permanent Magnetic Motor Max Duty cycle(@72 deg F&100 psi ): 100% Minutes On/Off(@72 deg F&100 psi ): Continuous Max working pressure: 200 psi Max Ambient Temperature: 158 deg F Min Ambient Temperature: -40 deg F Max. Air Tank Size: 18 Litre Amp draw: 23 amps Horse Power: 1/4 Auto Reset Thermal Protection: YES Net Weight: 4.9kg Body Dimensions: 280mm x 170mm x 100mm
	AOBTK204 This is the smallest tank in our range and has been designed to fit the tightest area. The tank comes including a bottom a drain tap that is used to empty any condensate that is collected during the running cycle along with all the blanking plugs required to fit the full system.

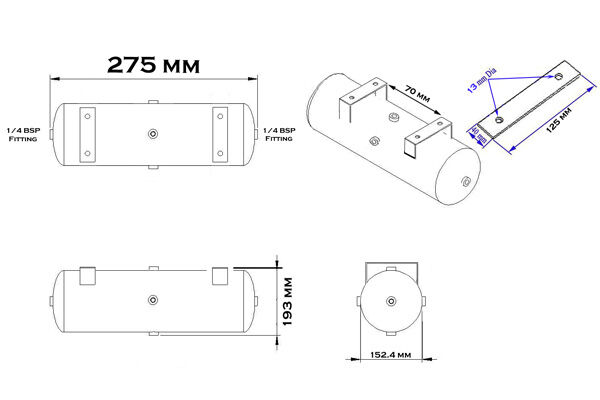

	AOBTK204 Dimensions 275mm x 193mm x 152.4mm. Ensure you have the room to fit this tank.
	AOBMB770 MANIFOLD SET Included with this system are all the air accessories needed for your system in this neat manifold block. Makes for easy installation.
	AOBHS202 High Temp Steel Braided Air Hose OD of hose is 8.8mm. 1/4'' BSP male fitting both ends. Temperature range of -40°C to 250°C. Excellent flexibility. Pressure range to 350 PSI. 1.5 meter in length.
	AOB Low Temp High Pressure Air Hose OD of hose is 14mm. ID of hose is 10mm. Pressure range to 200 PSI. 3 meter in length.
	WIRING KIT Everything you need to install and wire this compressor is include in the sale price. Don't get court by buying 24 volt compressors with out the CORRECT wiring kit. By buying it all included you can be assured that you will receive the correct size fuses, relays, switches and wire. 100 mm black earth cable. 24 volt 30 amp relay. 3mtr 4mm power cable. 3mtr 3mm power cable. low amp fuse holder. High amp fuse holder. 24 volt rocker switch. All connectors, pre-wired ready to install .
	RUBBER MOUNT The compressor is supplied with rubber vibration pads to protect the compressor from excessive vibration. It is not recommended to mount any 24 volt compressor up side down. Whilst it will still run mounted in this position, the problem is caused by the heat generated by the compressor not escaping correctly and radiating back through the compressor body into the windings. This causing damage to the motor and premature failure of the compressor.
