AOB Full Air Accessory Kit With
4.2 Litre 200 Psi Air Tank

This kit gives you all the components required for the mounting of the ''air on board'' system using your existing compressor. You can use this full accessory kit with your Viar or ARB compressor .

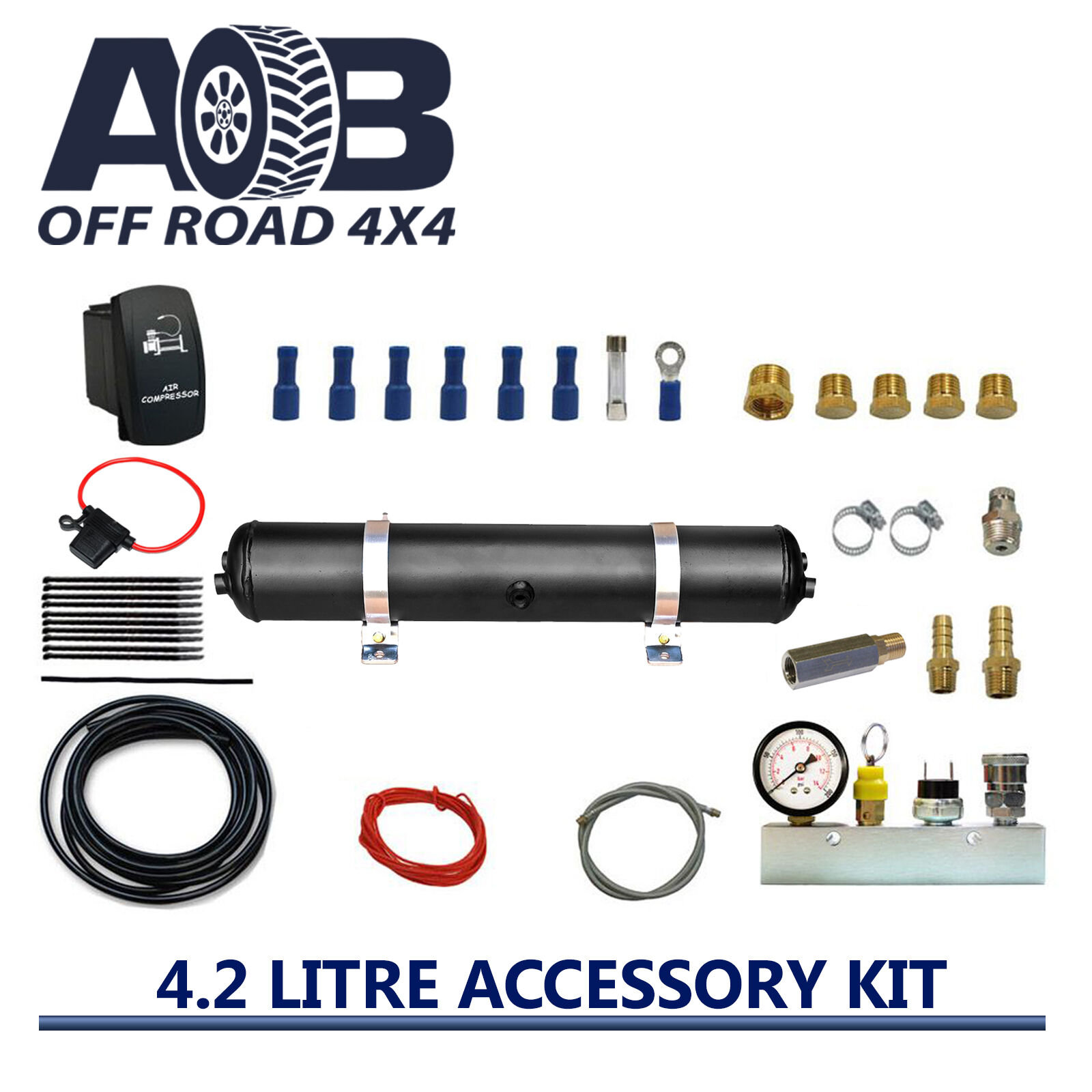

This system comes with all the following items:

  • 1 x Manifold block (6 port)
  • 1 x pressure gauge 0-200 Psi
  • 1 x pressure relief valve
  • 1 x pressure switch on 70psi off 100psi
  • 1 x 1/4 to 10mm barb straight fitting
  • 1 x 1/4 to 10mm barb 90 degree
  • 1 x Nitto connect coupling
  • 1 x 4.2 Litre Air Tank (100mm diameter; 600mm long)
  • 2 x hose clamps
  • 4 x 1/4 blanking plugs
  • 1 x 1/4 tank drain tap
  • 1 x 1/4 inline non return valve
  • 1 x 1.5 meter braided high temp hose
  • 3 meters low temp hose
  • 1 x 12 volt Rocker Switch
  • 1 x 10amp fuse holder and fuse
  • 5 meters 3mm red power cable
  • 1 x short black earth cable
  • 10 x long cable ties
  • 6 red insulated terminals
  • 1 x earth terminal

Please Note: Extra parts may be required to connect to your compressor.

AOBTKP042

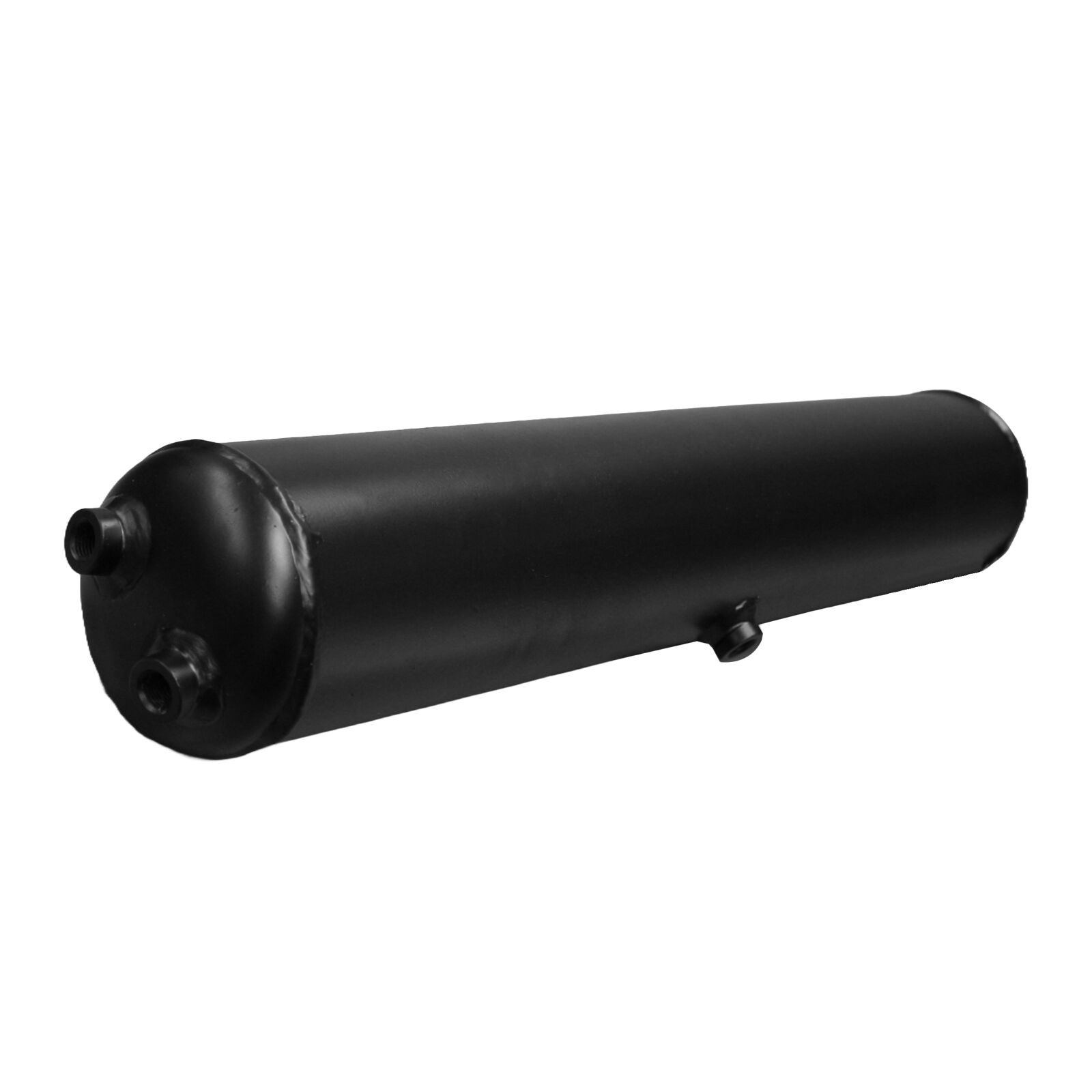

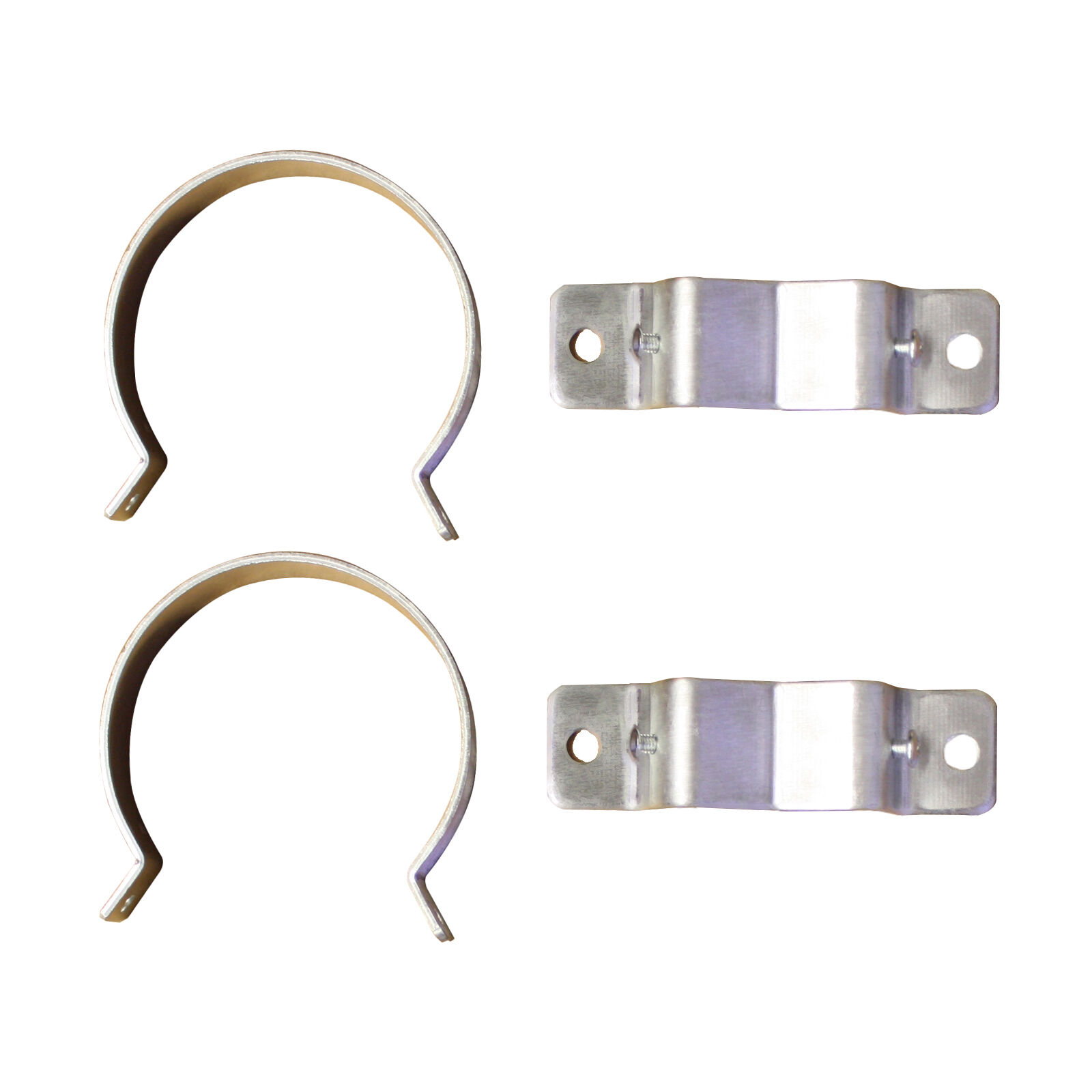

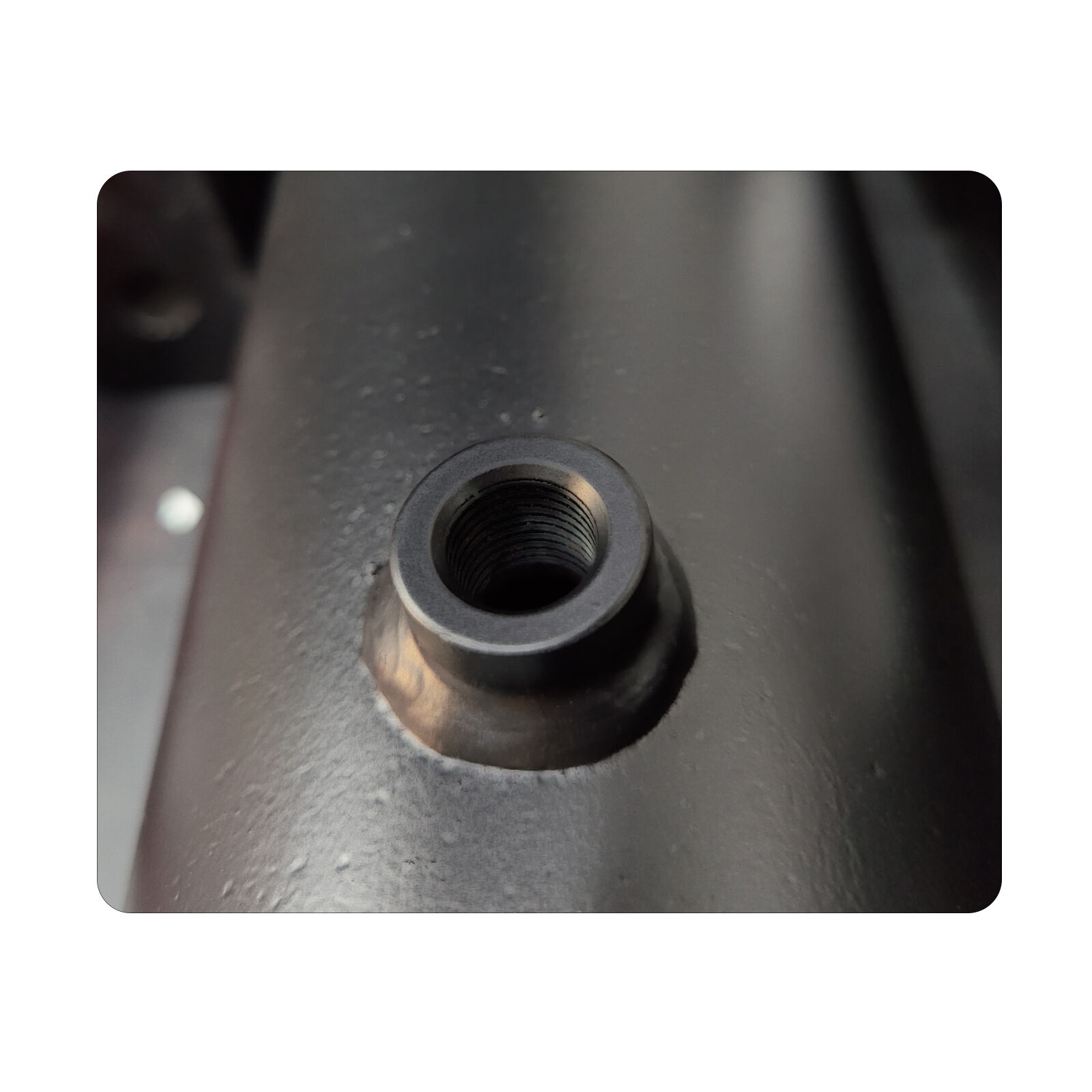

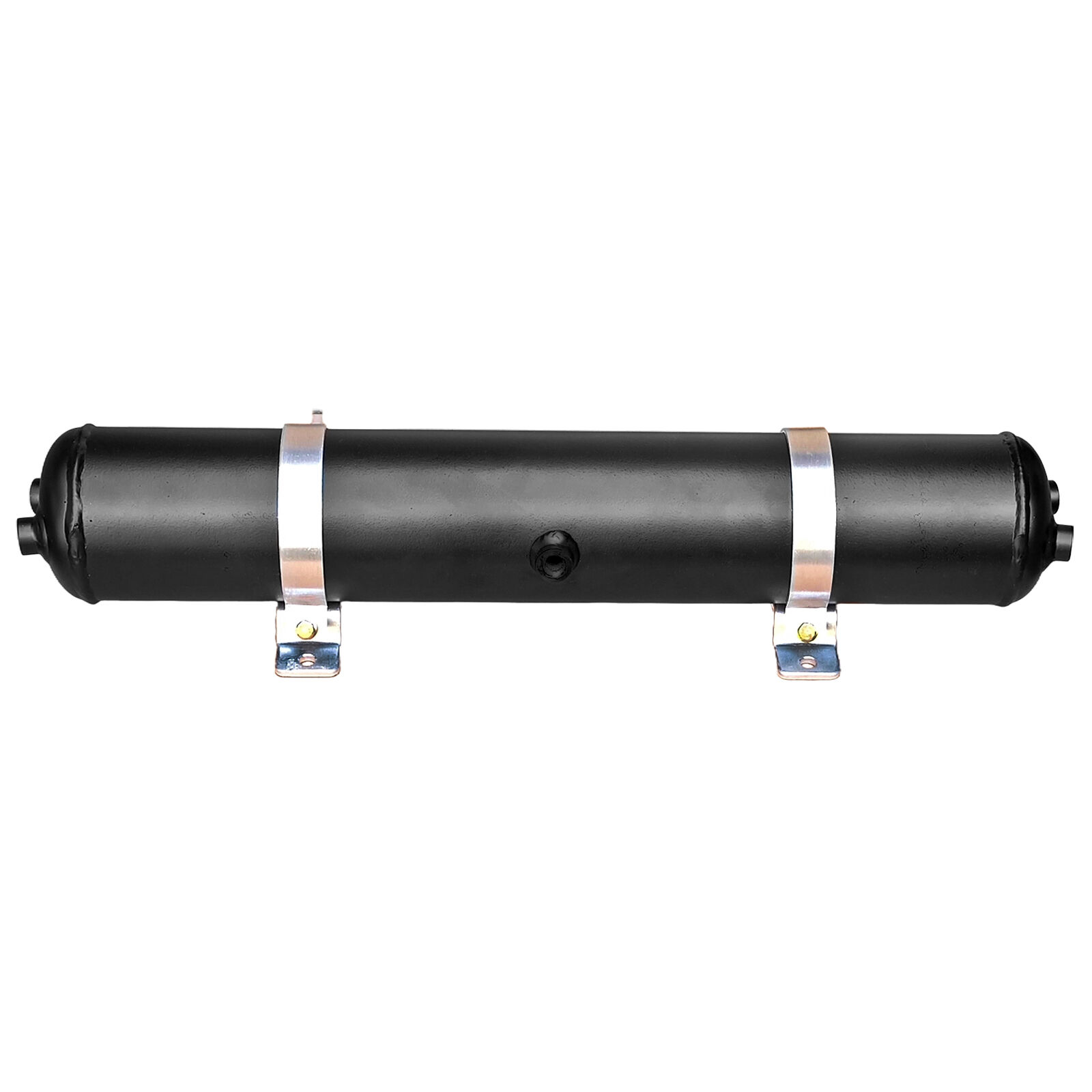

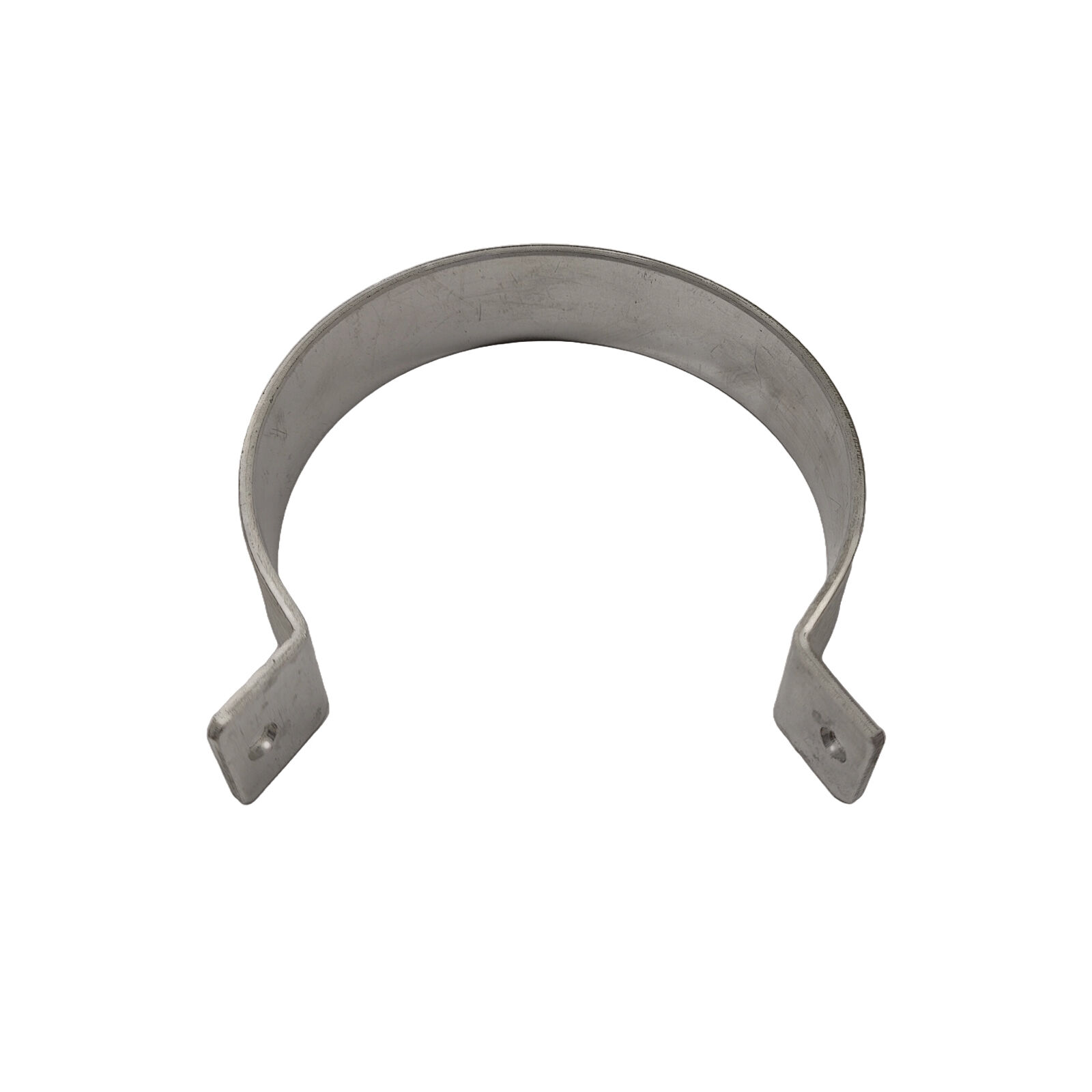

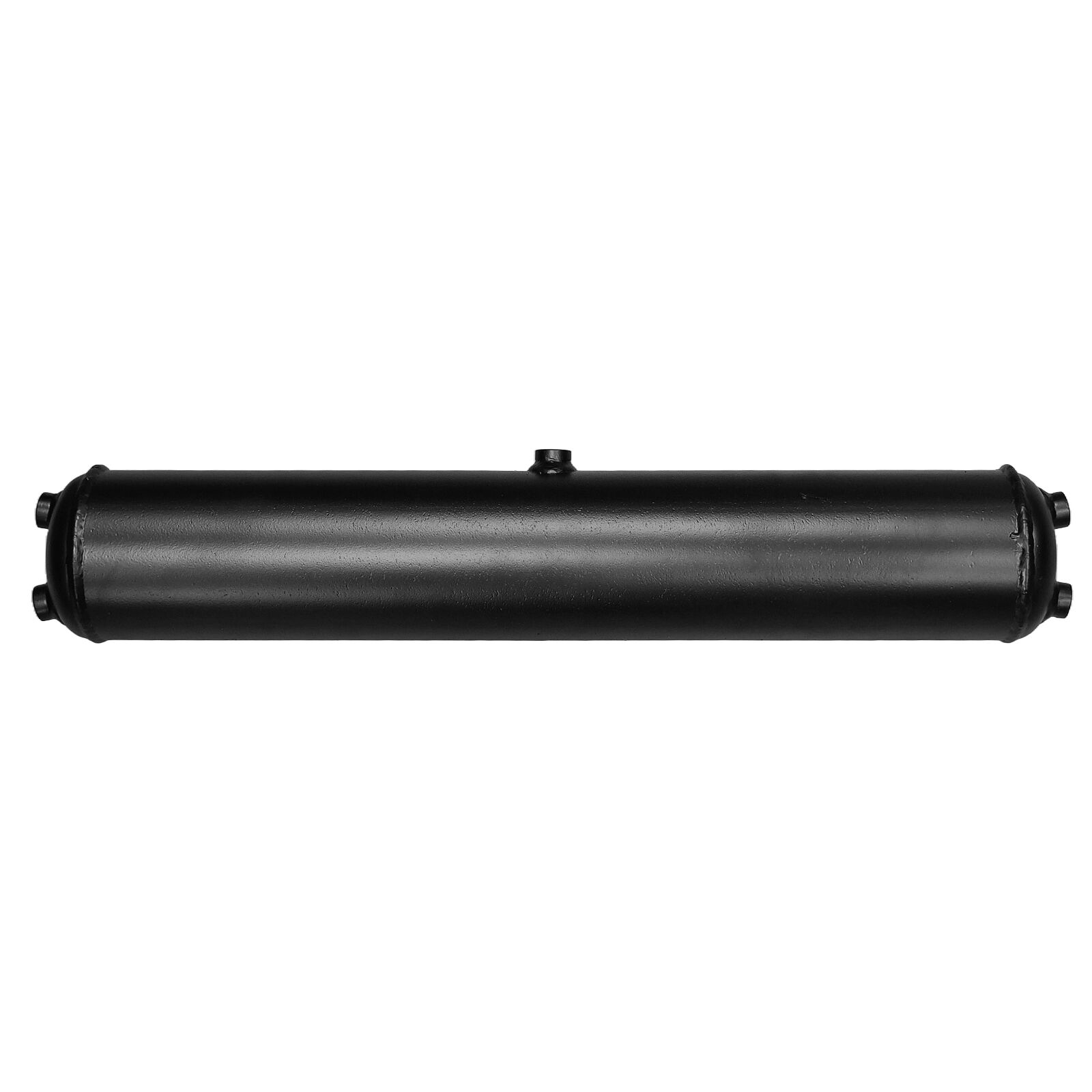

The 4.2-litre steel air tank is designed for under-vehicle mounting, particularly beside the chassis rail or in confined spaces. It features Adjustable mounting brackets designed for multiple fixing, supports up to 200 psi working pressure, and includes 5x 1/4 BSP female ports (2x each end and 1x center for drain tap). The tank measures 100 mm in diameter and 600 mm in length, weighs 4.3 kg, and comes with two mounting brackets and bolts.

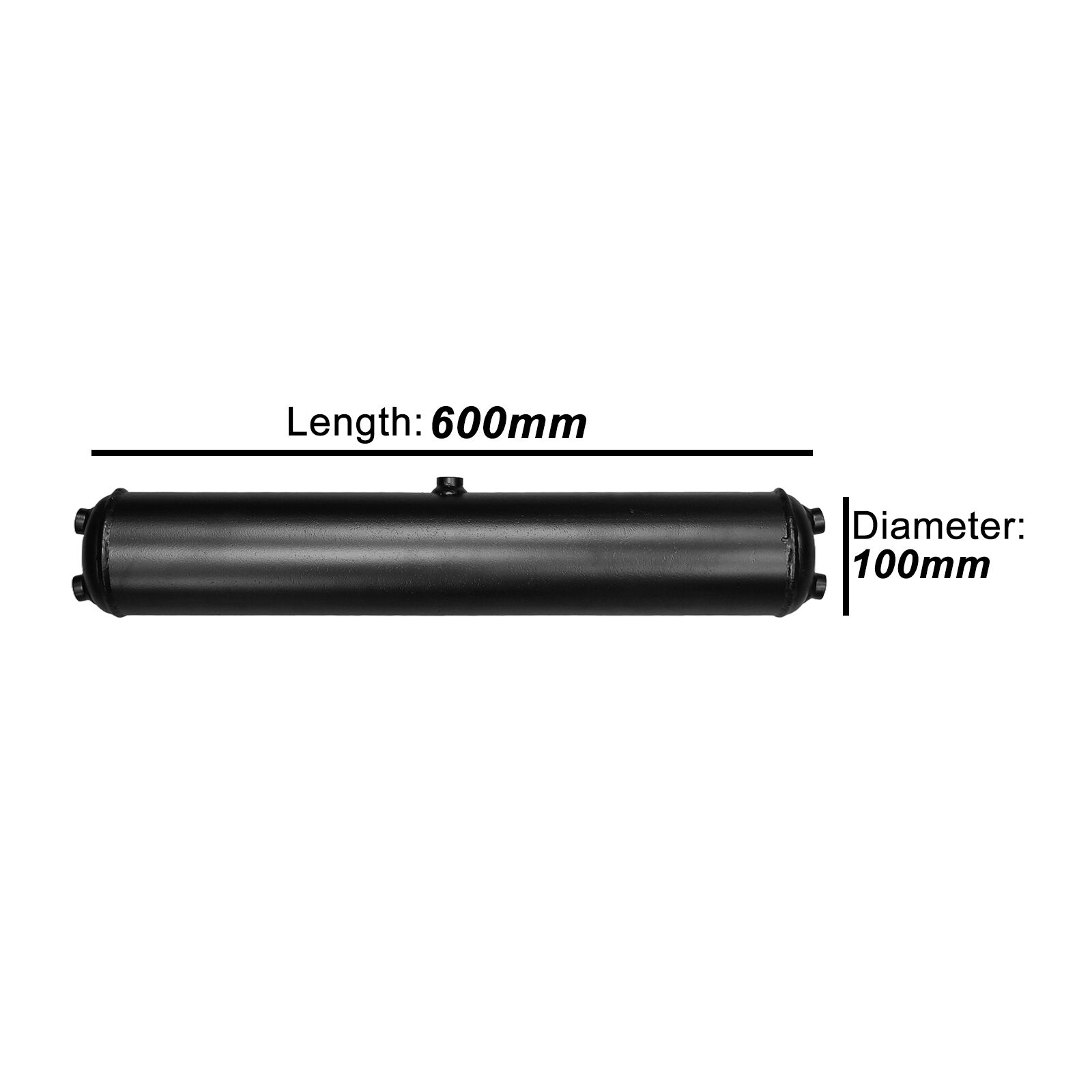

AOBTKP042 Dimensions

Ensure you have the room to fit this tank.

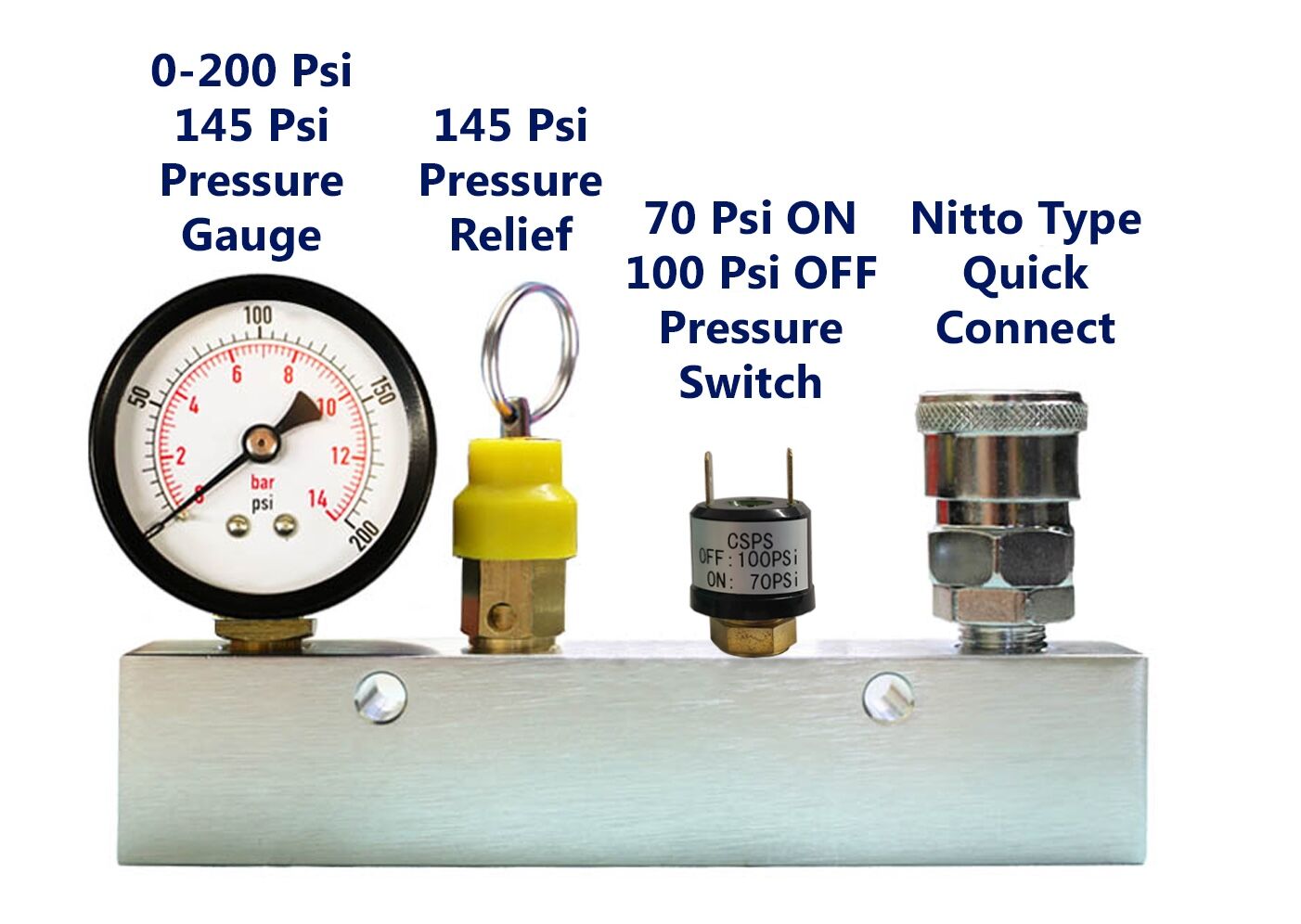

AOBMB770 MANIFOLD SET

This manifold block is made from a solid Aluminum block. It has 1 x 1/4 BSP female fitting in each end and 4 x ¼ BSP fittings on top. The two mounting holes in the side of the block makes for easy universal fitting in a variety of locations. This Manifold block comes fully loaded with the following accessories.

  • 0-200 Psi pressure gauge.
  • 145 Psi pressure relief valve.
  • 12 volt pressure switch on at 70 and off at 100.
  • Nitto type quick connect coupling.
Length: 52cm Width: 18cm Height: 41cm
SKU AOBAK1P42
Shipping Weight 4.6500kg
Shipping Width 0.180m
Shipping Height 0.410m
Shipping Length 0.520m
Type Kit
