24V 200psi Portable Air Compressor Full System for Car 4X4

Description
Specifications

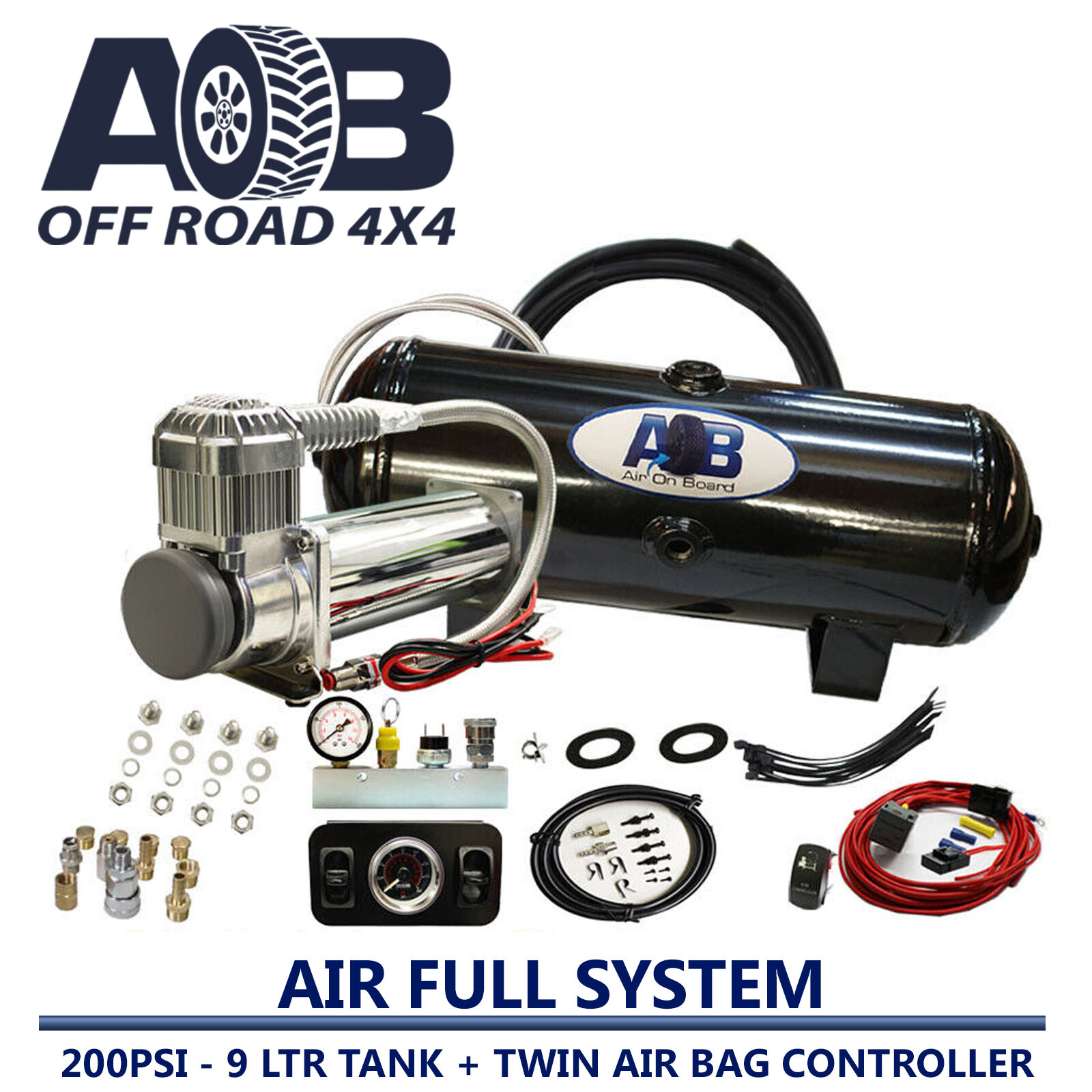

AOB Complete Air System With 24 Volt 200 Psi Air Compressor, 9 Litre 200 Psi Air Tank & Twin Toggle Air Bag Controllers

AOB Air Compressor Kit Install Into A 200-series LandCruiser YOUTUBE VIDEO

This system comes with all the following items:

''Air On Boards'' AOBCM40024 compressor
9 litre tank rated at 200psi
70 Psi on / 100 Psi off heavy duty pressure switch
Drain valve
Safety valve
Mounting Bolts
Inline discharge check valve
Rubber bush compressor mount
Full wiring kit
All hoses and accessories required.
Installation instructions.
AOBPG220 twin air bag controller with 10 meter 1/4 PU hose and fittings

It can be used to fill tires, run Air jacks, pump up mattresses and inflatable boats in good time, run your ARB air lockers, air bags and train horns, even run small Pneumatic air tools all from your 4WD or car.

Whilst this sort of compact 24 volt system will not give you the amount of air that our ''Air on Board'' engine belt driven system will, it still comes with an impressive set of figures:

24 Volt DC
Duty cycle: 100% at 100psi
Max working pressure: 200 psi
Amp draw: 29Amps

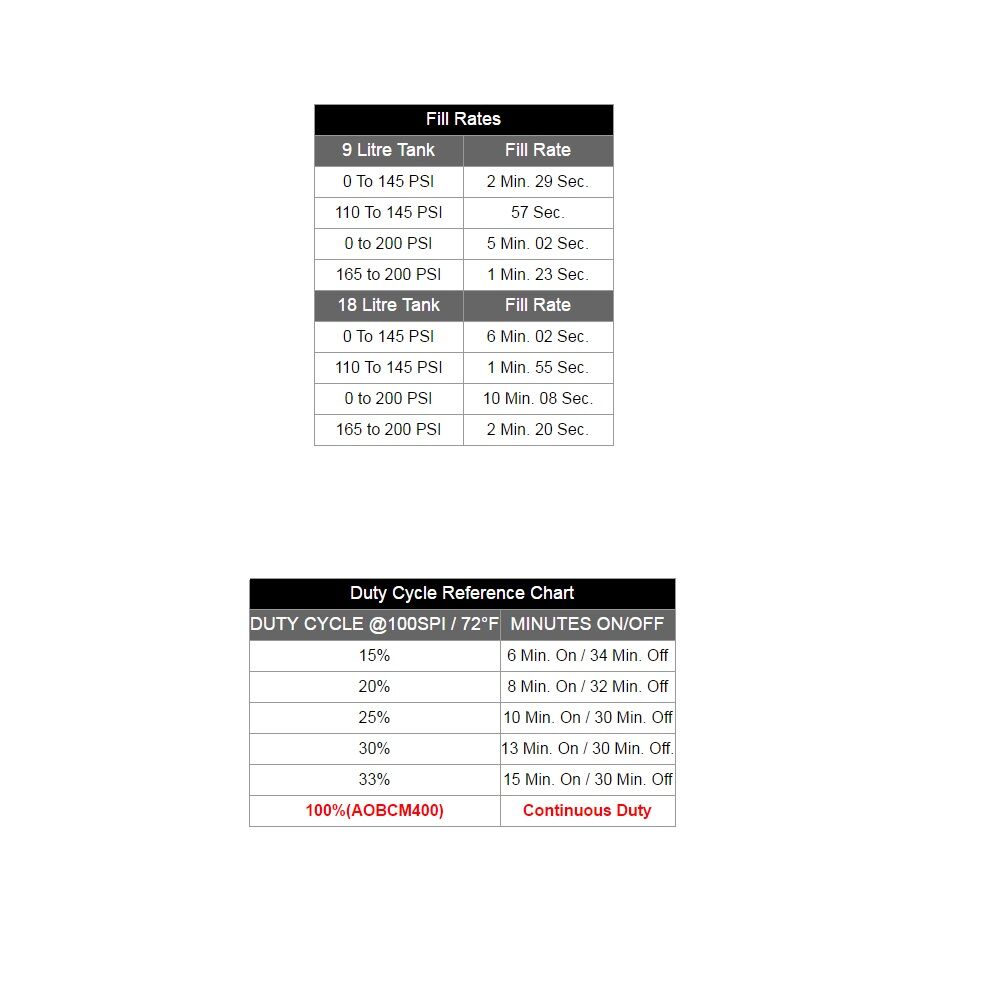

Fill time: 0 to 150psi = 1 minutes, 53 seconds.
Fill a 31/10.5/R15 Tyre from 16 psi to 34 psi in a 1 minuet 22 seconds

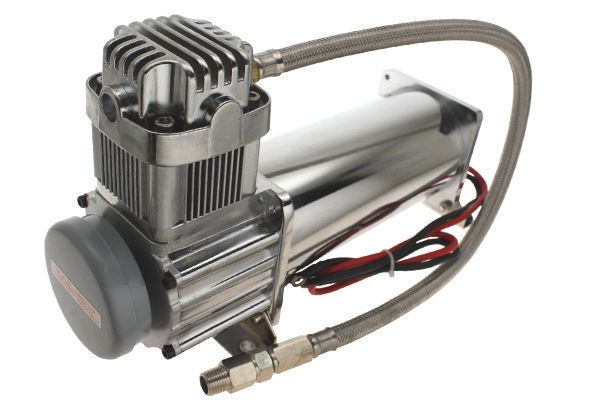

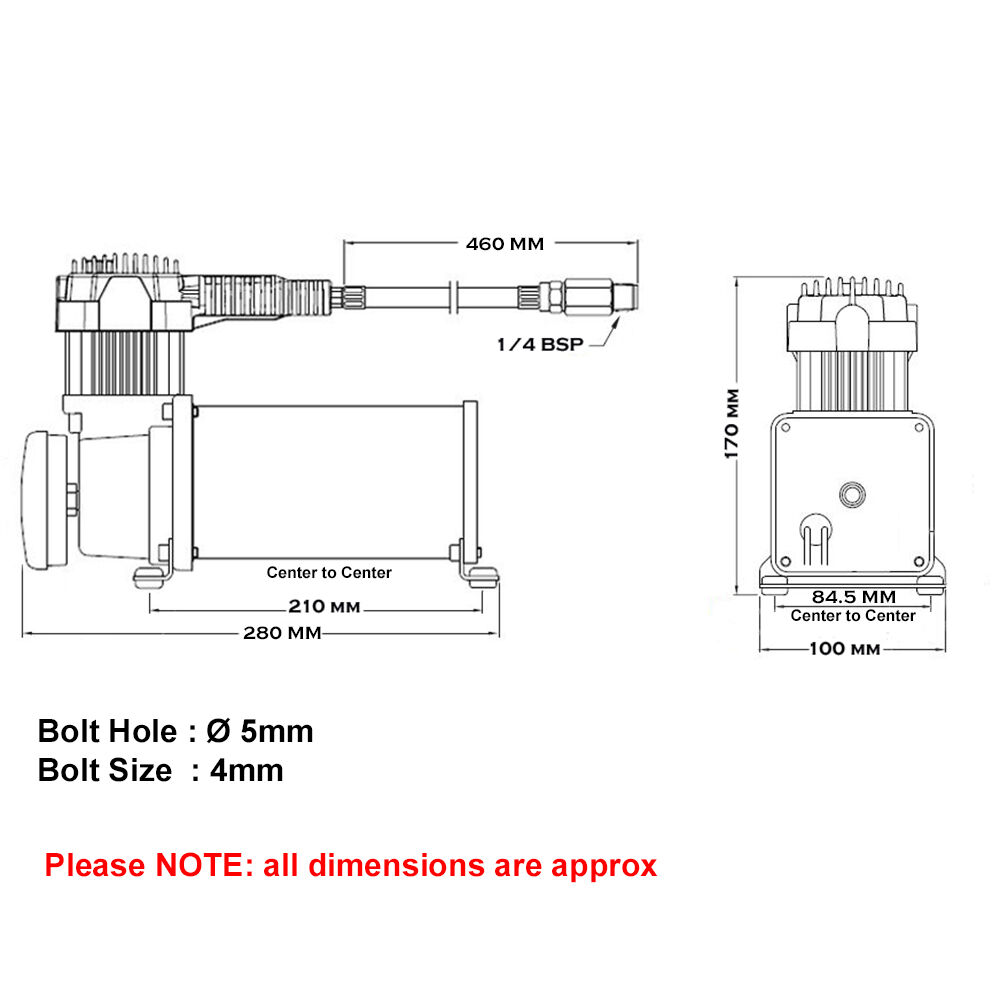

	AOBCM40024 COMPRESSOR 24-Volt DC Permanent Magnetic Motor Max Duty cycle(@72 deg F&100 psi ): 100% Minutes On/Off(@72 deg F&100 psi ): Continuous Max working pressure: 200 psi Max Ambient Temperature: 158 deg F Min Ambient Temperature: -40 deg F Max. Air Tank Size: 18 Litre Amp draw: 23 amps Horse Power: 1/4 Auto Reset Thermal Protection: YES Net Weight: 4.9kg Body Dimensions: 280mm x 170mm x 100mm
	AOBTK209 This is the medium tank in our range and has been designed to fit most vehicles. The tank comes including a bottom a drain tap that is used to empty any condensate that is collected during the running cycle along with all the blanking plugs required to fit the full system.

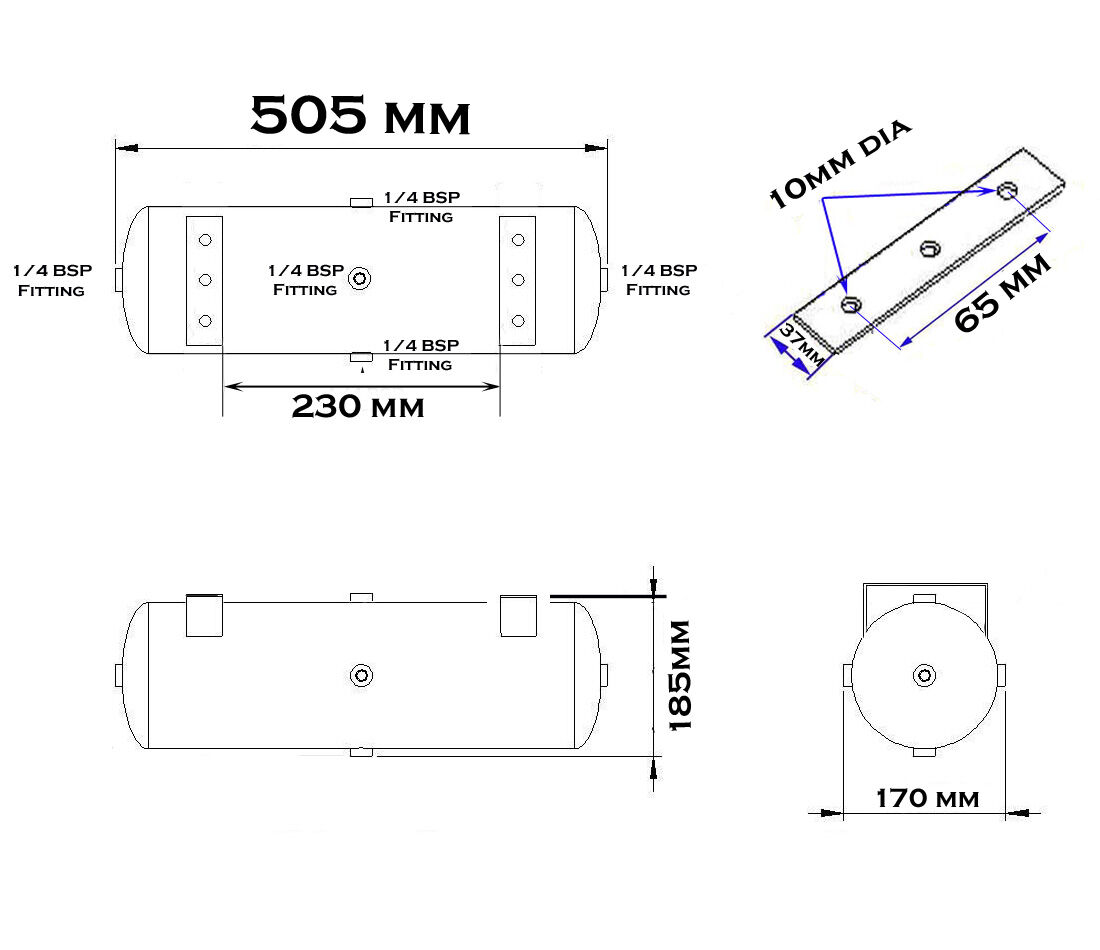

	AOBTK209 Dimensions 505mm x 185mm x 170mm. Ensure you have the room to fit this tank.
	AOBMB770 MANIFOLD SET Included with this system are all the air accessories needed for your system in this neat manifold block. Makes for easy installation.
	WIRING KIT Everything you need to install and wire this compressor is include in the sale price. Don't get court by buying 24 volt compressors with out the CORRECT wiring kit. By buying it all included you can be assured that you will receive the correct size fuses, relays, switches and wire. 100 mm black earth cable. 24 volt 30 amp relay. 3mtr 4mm power cable. 3mtr 3mm power cable. low amp fuse holder. High amp fuse holder. 24 volt rocker switch. All connectors, pre-wired ready to install .
	RUBBER MOUNT The compressor is supplied with rubber vibration pads to protect the compressor from excessive vibration. It is not recommended to mount any 24 volt compressor up side down. Whilst it will still run mounted in this position, the problem is caused by the heat generated by the compressor not escaping correctly and radiating back through the compressor body into the windings. This causing damage to the motor and premature failure of the compressor.

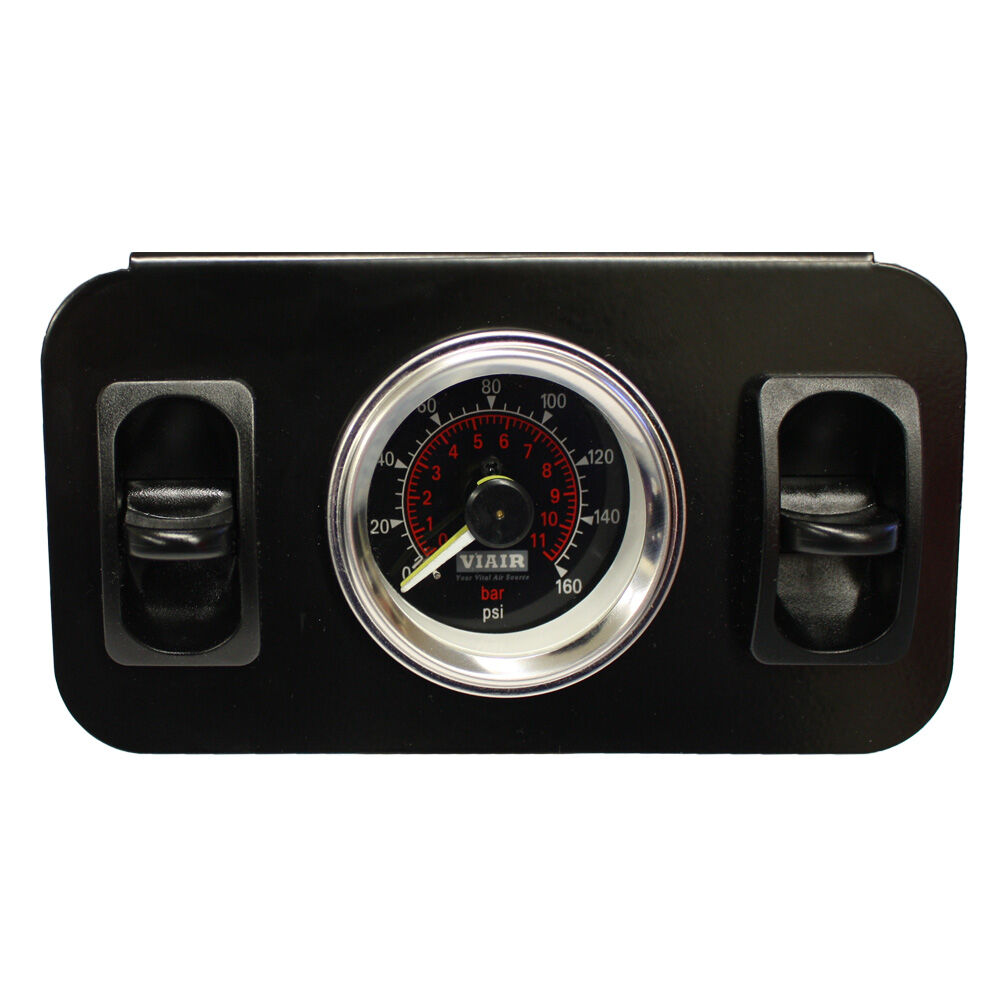

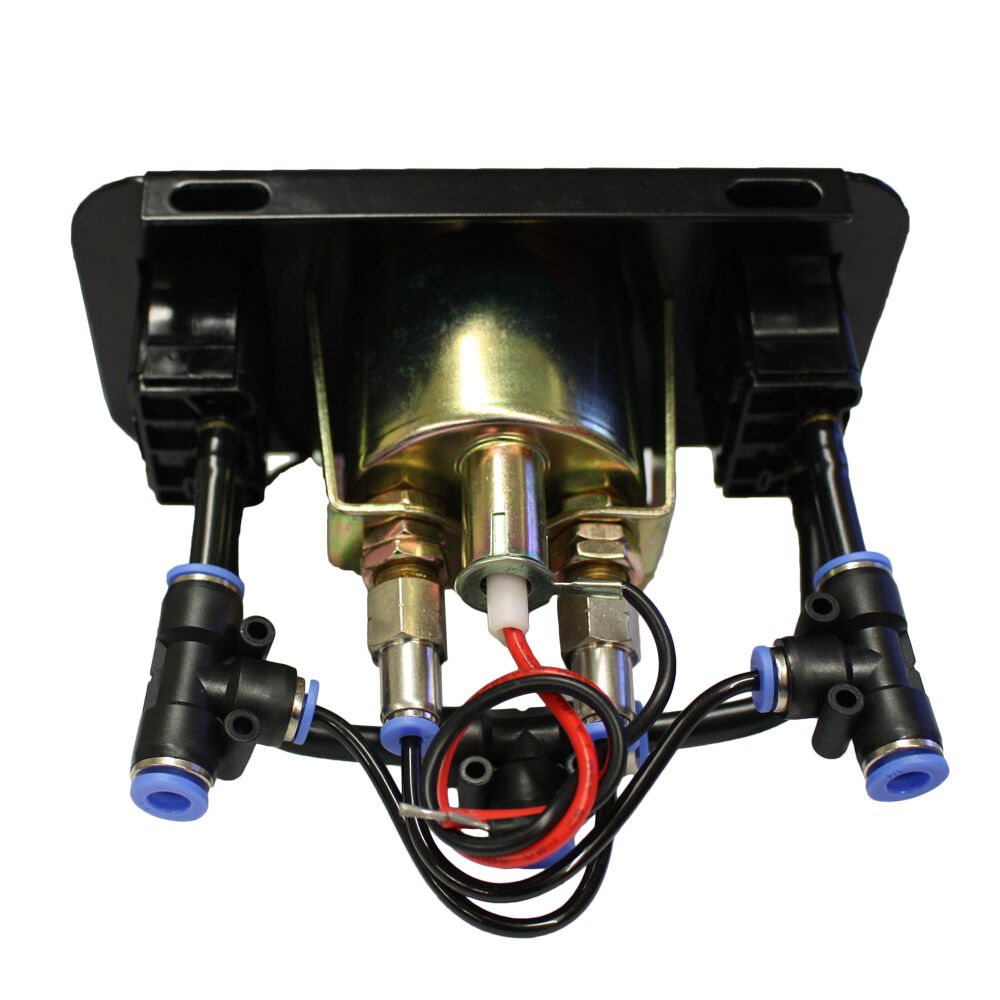

	AOBPG220 twin air bag controller This panel is fitted with one of GENUINE VIAIR Illuminated Twin needle gauge sets along with 2 AOB Air control paddle switches. This clever unit lets you control, with out the use of 24 volt solenoids This gauge and switch set comes completely assembled for easy installation using the best quality PU air fittings available. Inlet and outlet is by 1/4'' PU hose. The 2 air paddle switches allows air to flow to your airbags by pushing the switch down and allows air to escape to atmosphere from the air bags by pushing the switch up.The panel face measures 145mm wide 79mm high and 85mm deep however this can be shortened to 80mm if you have to fit it into a tight spot.
