AOB Full Air Accessory Kit With
6 Litre 200 Psi Air Tank

This kit gives you all the components required for the mounting of the ''air on board'' system using your existing compressor. You can use this full accessory kit with your Viar or ARB compressor .

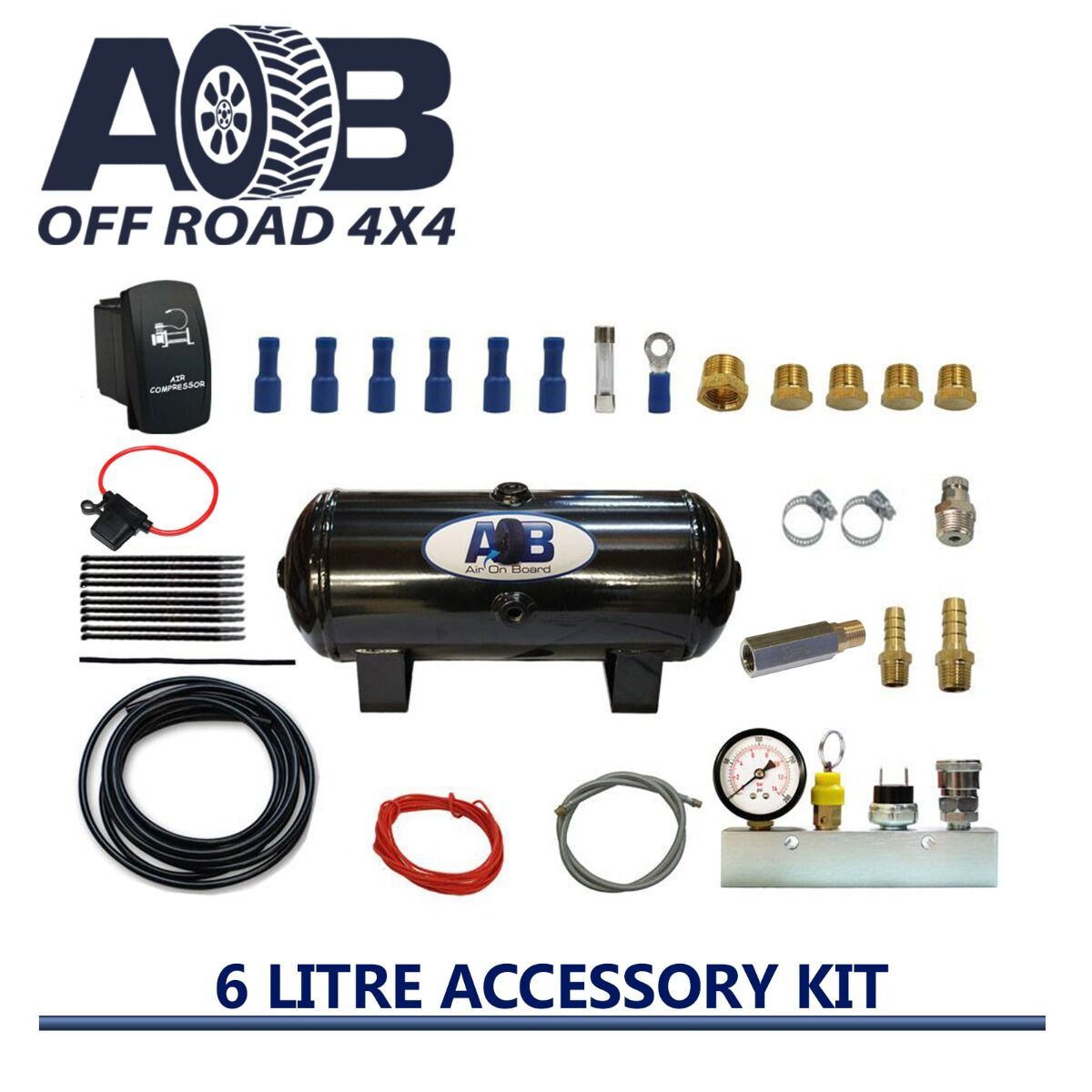

This system comes with all the following items:

• 1 x Manifold block (6 port)
• 1 x pressure gauge 0-200 Psi
• 1 x pressure relief valve
• 1 x pressure switch on 70psi off 100psi
• 1 x 1/4 to 10mm barb straight fitting
• 1 x 1/4 to 10mm barb 90 degree
• 1 x Nitto connect coupling
• 1 x 6 litre steel tank (410mm x 193mm x 173mm)
• 2 x hose clamps
• 4 x 1/4 blanking plugs
• 1 x 1/4 tank drain tap
• 1 x 1/4 inline non return valve
• 1 x 1.5 meter Steel braided high temp hose
• 3 meters low temp hose
• 1 x 12 volt Rocker Switch
• 1 x 10amp fuse holder and fuse
• 5 meters 3mm red power cable
• 1 x short black earth cable
• 10 x long cable ties
• 6 red insulated terminals
• 1 x earth terminal

Please Note: Extra parts may be required to connect to your compressor.

AOBTK206

This is our second smallest tank in the range and comes with 4 x 1/4''-18 BSP ports around the body and 1x1/4''-18 BSP port each end. It has low profile mounts and is made from rolled steel and painted with a black enamel. The mount is fixed and will allow mounting so that there is a drain plug at the bottom in any rotation.

With a 200 psi max working pressure it is sure to survive the most rigorous out back travel.

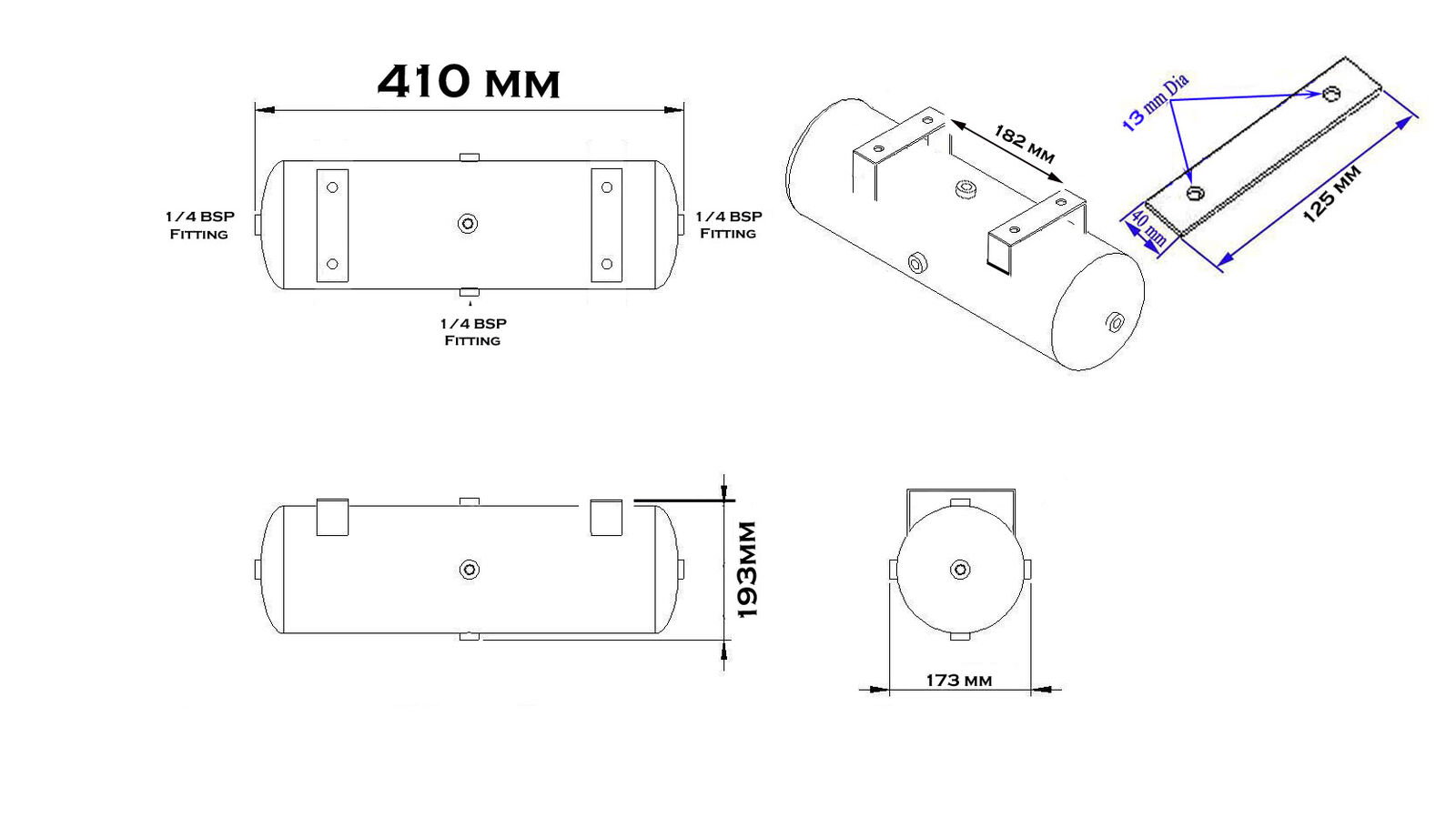

AOBTK206 Dimensions

Ensure you have the room to fit this tank.

AOBMB770 MANIFOLD SET

This manifold block is made from a solid Aluminum block. It has 1 x 1/4 BSP female fitting in each end and 4 x ¼ BSP fittings on top. The two mounting holes in the side of the block makes for easy universal fitting in a variety of locations. This Manifold block comes fully loaded with the following accessories.

• 0-200 Psi pressure gauge.
• 145 Psi pressure relief valve.
• 12 volt pressure switch on at 70 and off at 100.
• Nitto type quick connect coupling.
