12V 200psi Portable Air Compressor Full System for Car 4X4

Description
Specifications

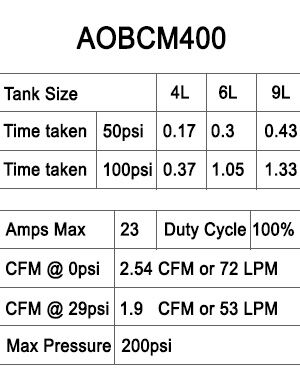

Compressor Test Result

Air On Board Double Ended Air Compressor

Test Conditions

All tested direct from battery with vehicle running
charge voltage of 13.7
All running directly to tank with 700 mm leader hose

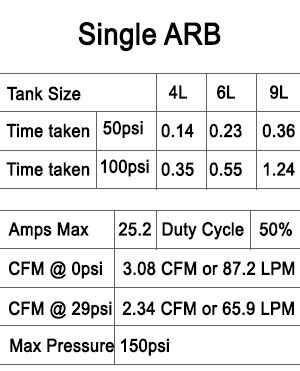

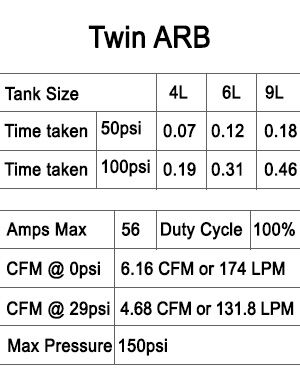

ARB single and twin doesn't run a oneway valve it just relies on the reed
ARB single and twin come with 70 to 100 psi pressure switch
ARB single and twin comes with own wiring loom and carling type switch
ARB single and twin have built in pressure relief valves into head assembly
ARB single and twin have max running pressure of 150 psi

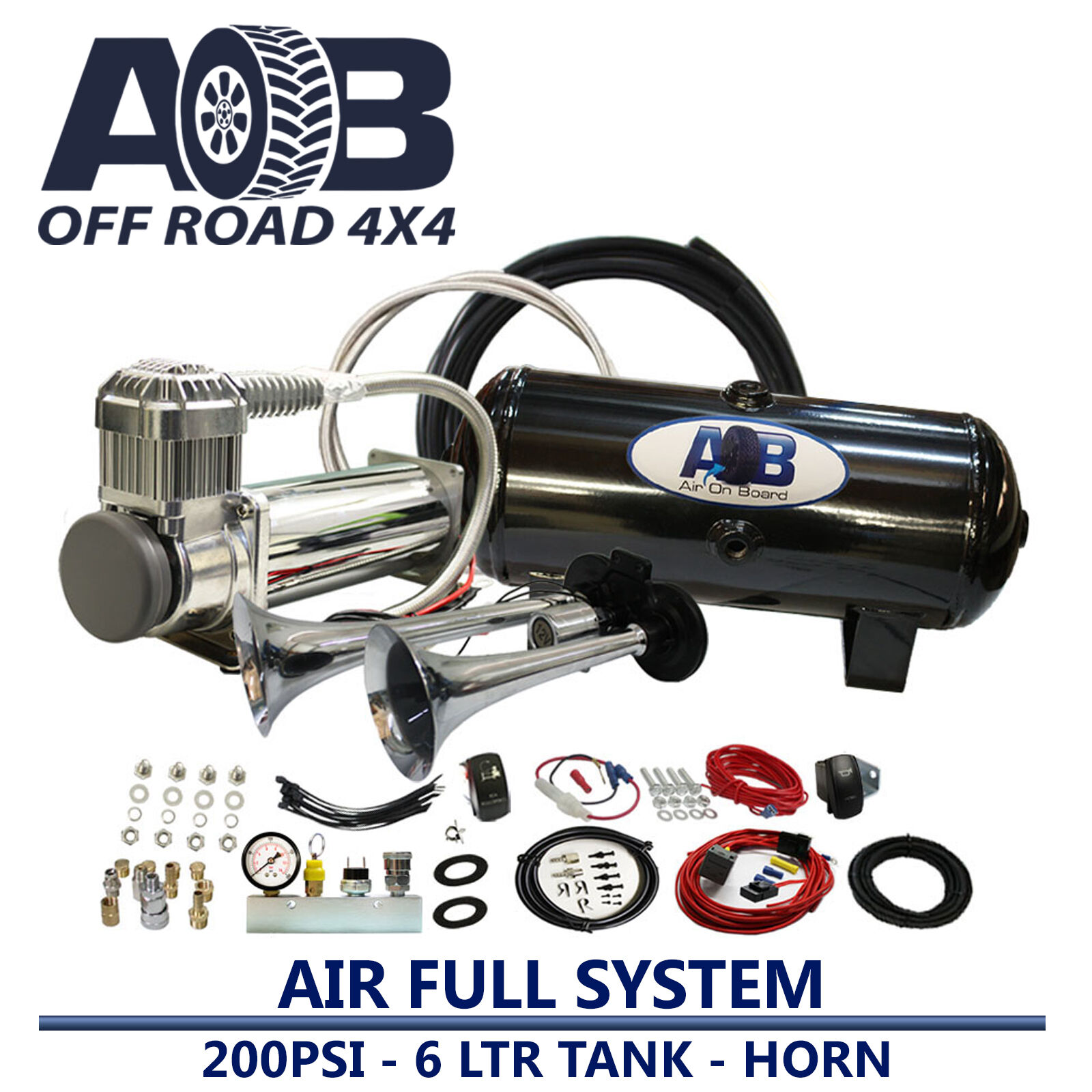

AOB Complete Air System With 12 Volt 200 Psi Air Compressor, 6 Litre 200 Psi Air Tank & 142DB 2 Trumpets Air Horn

AOB Air Compressor Kit Install Into A 200-series LandCruiser YOUTUBE VIDEO

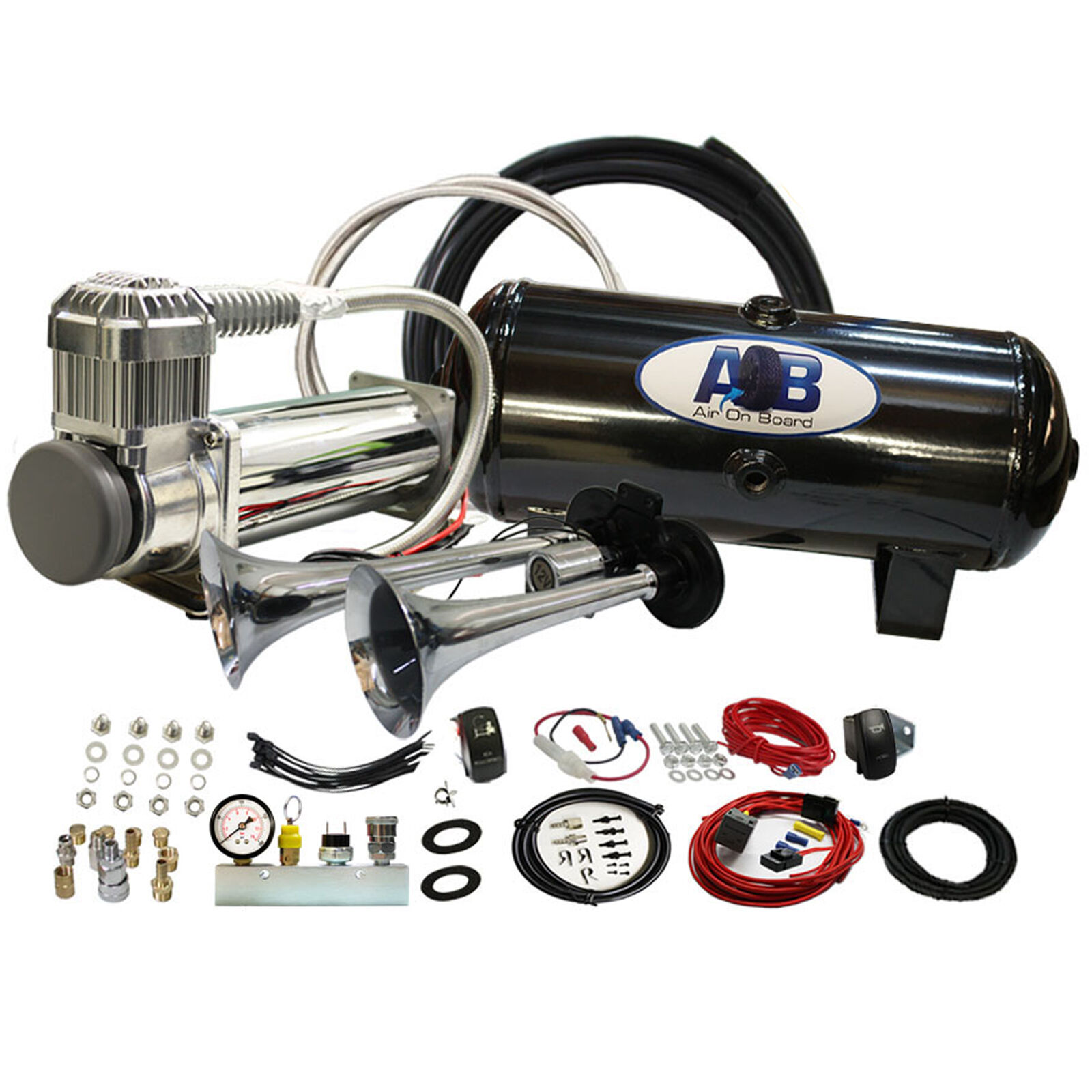

This full system comes with all the following items:

12V 200psi AOBCM400 compressor
6 litre tank rated at 200psi
142DB 2 Trumpets air Horn
1.5 meter High Temp Steel Braided Air Hose
3 meter Low Temp High Pressure Air Hose
Manifold Set
mounting fittings
Full wiring kit
Installation instructions.

It can be used to fill tires, run Air jacks, pump up mattresses and inflatable boats in good time, run your air lockers, air bags and train horns, even run small Pneumatic air tools all from your 4WD or car.

12 Volt DC

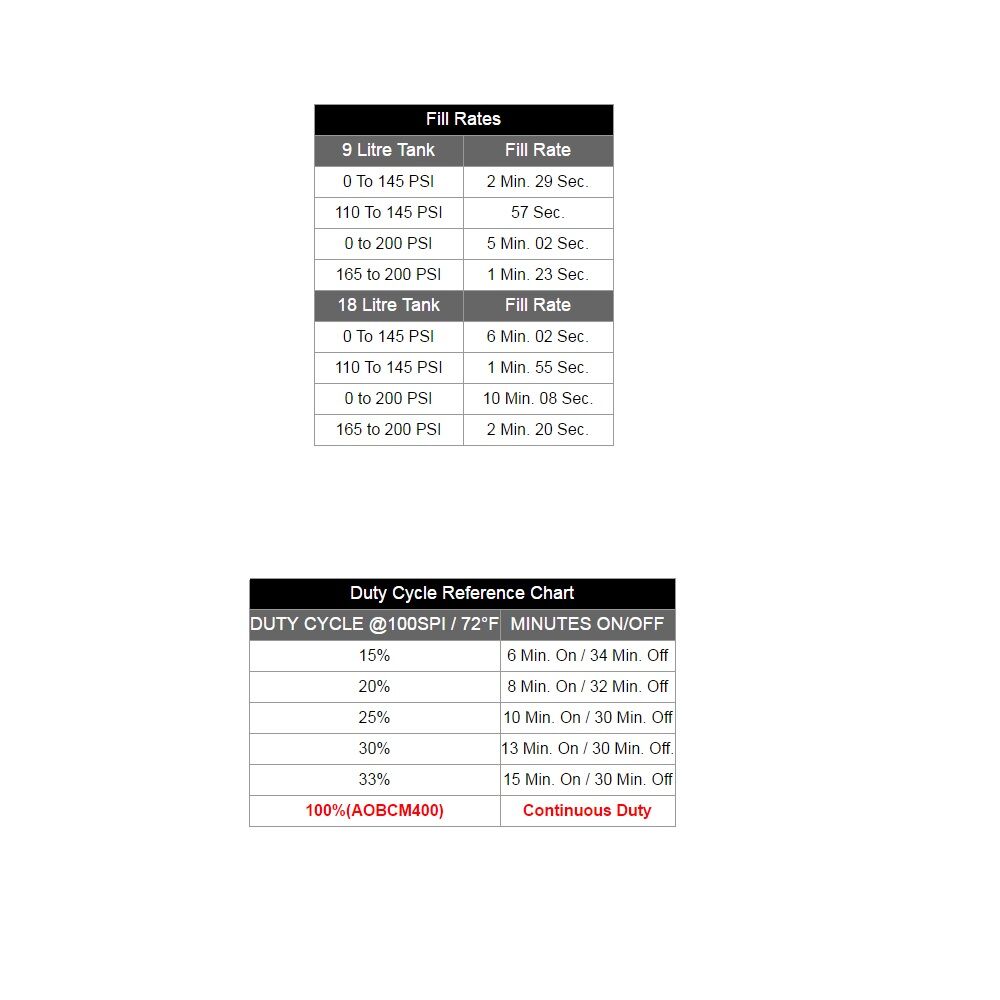

Duty cycle: 100% at 100psi
Max working pressure: 200 psi
Amp draw: 23Amps
Fill a 31/10.5/R15 Tyre from 16 psi to 34 psi in a 1 minuet 22 seconds

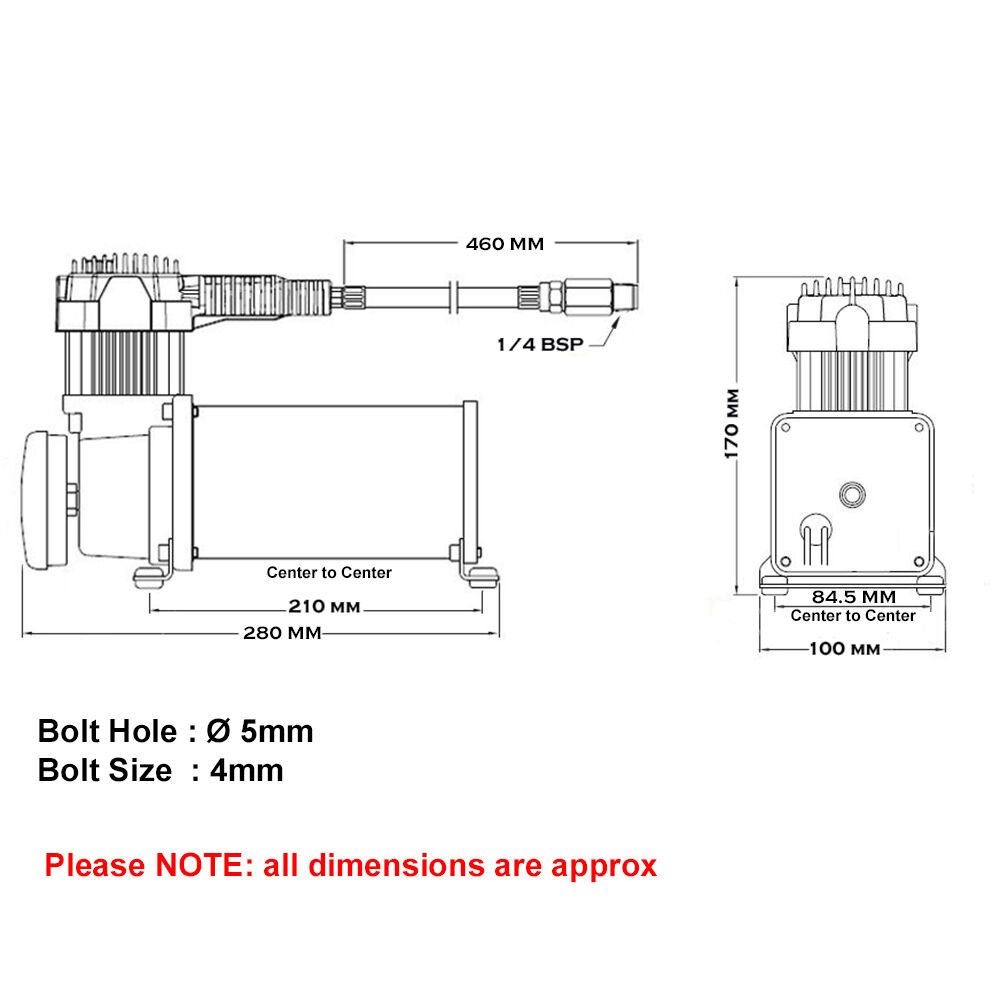

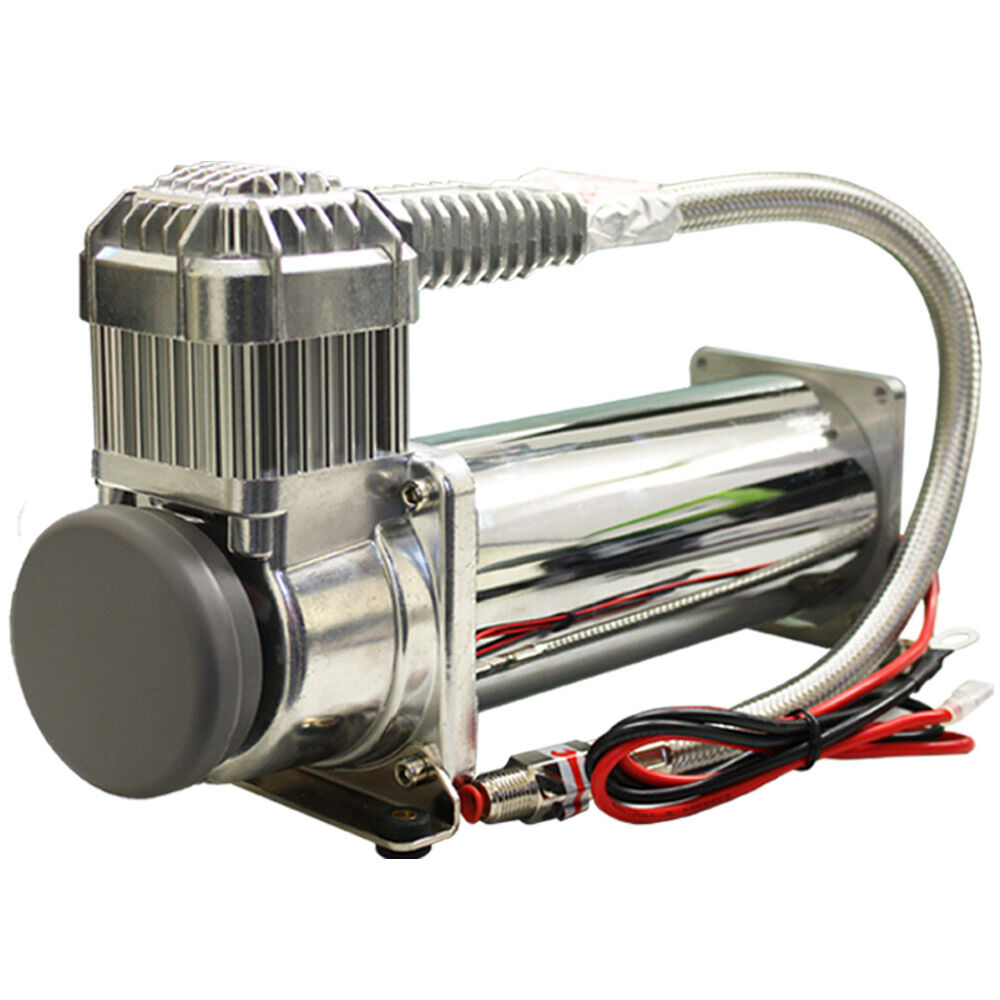

	AOBCM400 COMPRESSOR 12-Volt DC Permanent Magnetic Motor Max Duty cycle(@72 deg F&100 psi ): 100% Minutes On/Off(@72 deg F&100 psi ): Continuous Max working pressure: 200 psi Max Ambient Temperature: 158 deg F Min Ambient Temperature: -40 deg F Max. Air Tank Size: 18 Litre Amp draw: 23 amps Horse Power: 1/4 Auto Reset Thermal Protection: YES Net Weight: 4.9kg Body Dimensions: 280mm x 170mm x 100mm

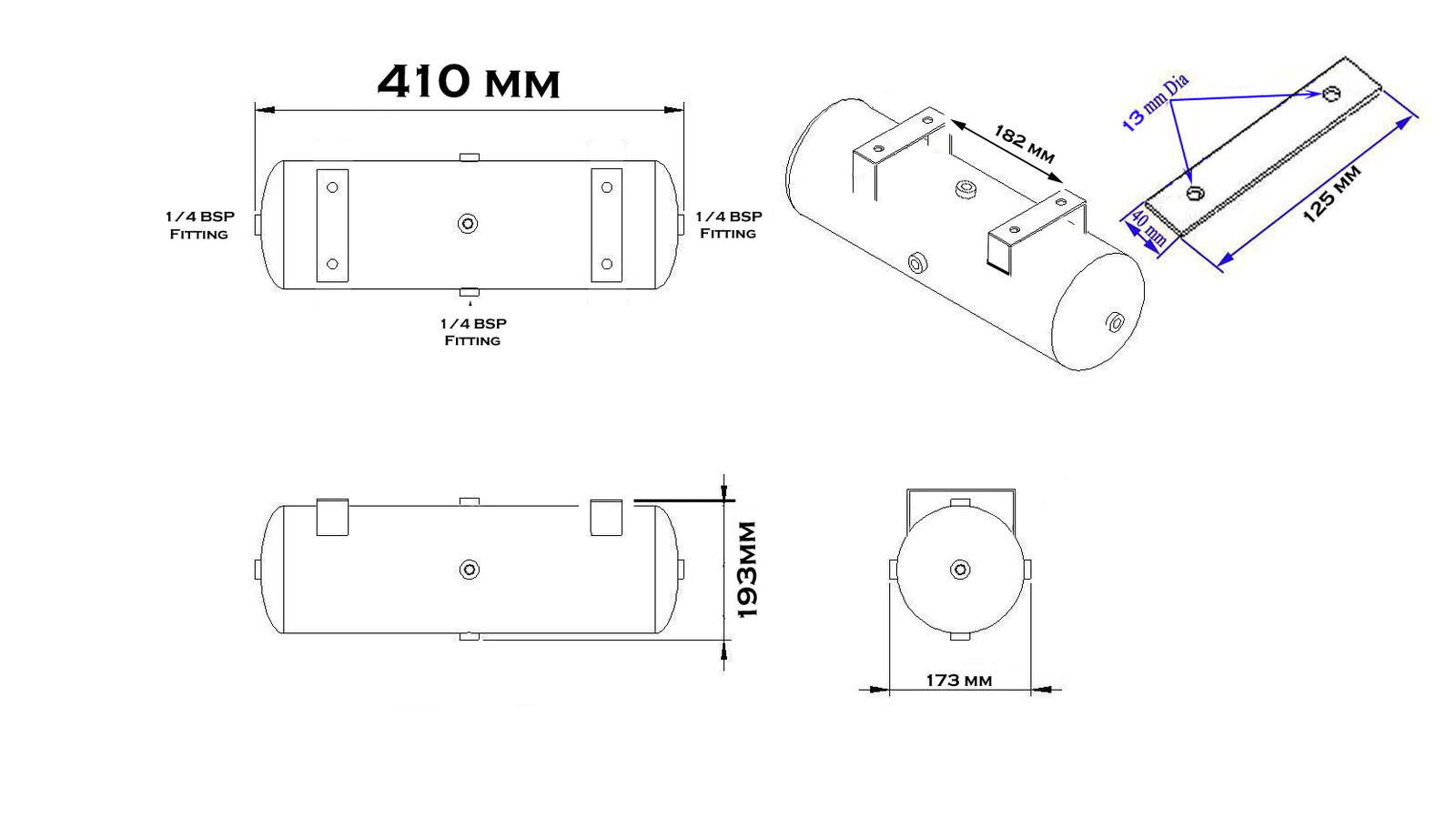

	AOBTK206 This is the second smallest tank in our range and has been designed to fit the tightest area. The tank comes including a bottom a drain tap that is used to empty any condensate that is collected during the running cycle along with all the blanking plugs required to fit the full system.
	AOBTK206 Dimensions 410mm x 193mm x 173mm. Ensure you have the room to fit this tank.
	AOBMB770 MANIFOLD SET Included with this system are all the air accessories needed for your system in this neat manifold block. Makes for easy installation.

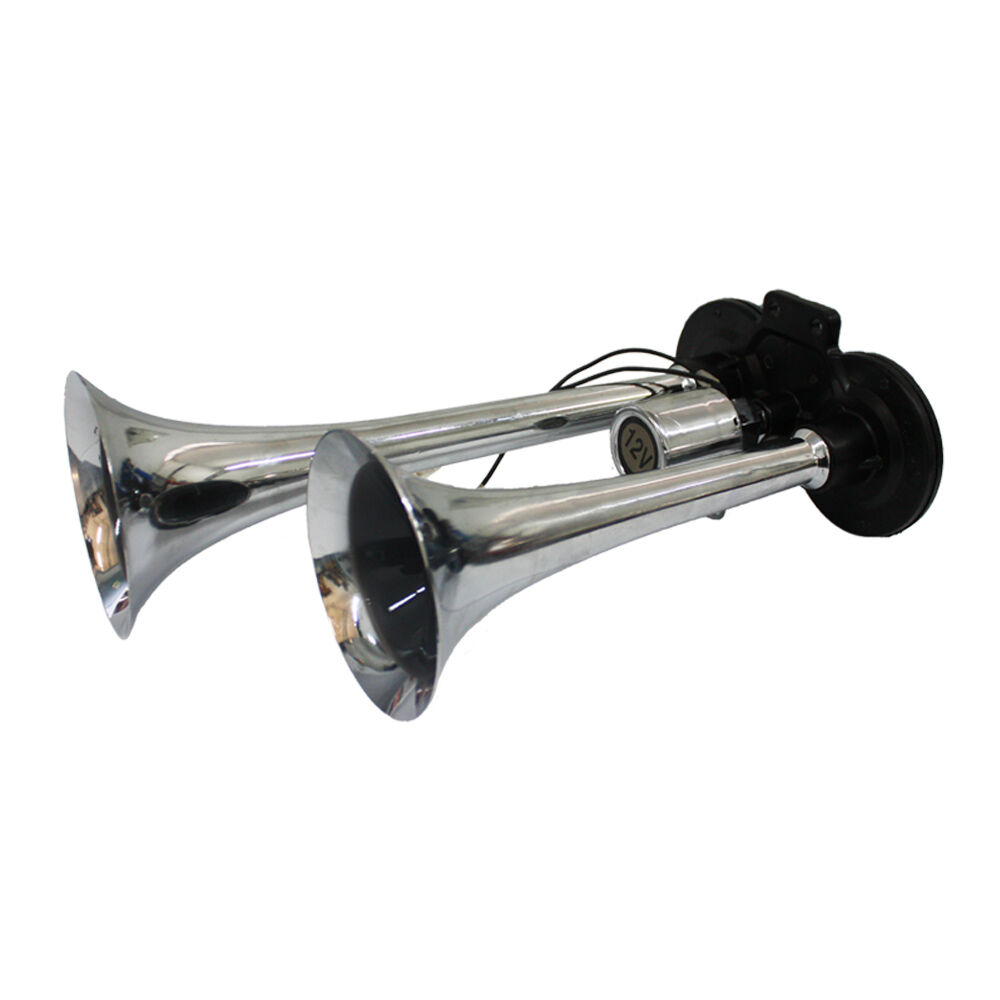

	AOBHN702 AIR HORN Horn Diameter: 93mm. Sound output: 142db / 150 Hz. Horn construction: ABS bright chrome plated finish. Mounting hardware: Plate Steel. Heavy duty. Easy set up by hooking up to the solenoid. 2 Trumpet Lengths : 250mm, 190mm.
	AOBHS104 High Temp Steel Braided Air Hose OD of hose is 12mm. 1/4'' BSP male fitting both ends. Temperature range of -40°C to 177°C. Excellent fexibility. Pressure range to 300 PSI. 1.5 meter in length.
	AOB Low Temp High Pressure Air Hose OD of hose is 14mm. ID of hose is 10mm. Pressure range to 200 PSI. 3 meter in length.
	WIRING KIT Everything you need to install and wire this compressor is include in the sale price. Don't get court by buying 12 volt compressors with out the CORRECT wiring kit. By buying it all included you can be assured that you will receive the correct size fuses, relays, switches and wire. 100 mm black earth cable. 12 volt 30 amp relay. 3mtr 4mm power cable. 3mtr 3mm power cable. low amp fuse holder. High amp fuse holder. 12 volt rocker switch. All connectors, pre-wired ready to install .
	RUBBER MOUNT The compressor is supplied with rubber vibration pads to protect the compressor from excessive vibration. It is not recommended to mount any 12 volt compressor up side down. Whilst it will still run mounted in this position, the problem is caused by the heat generated by the compressor not escaping correctly and radiating back through the compressor body into the windings. This causing damage to the motor and premature failure of the compressor.
