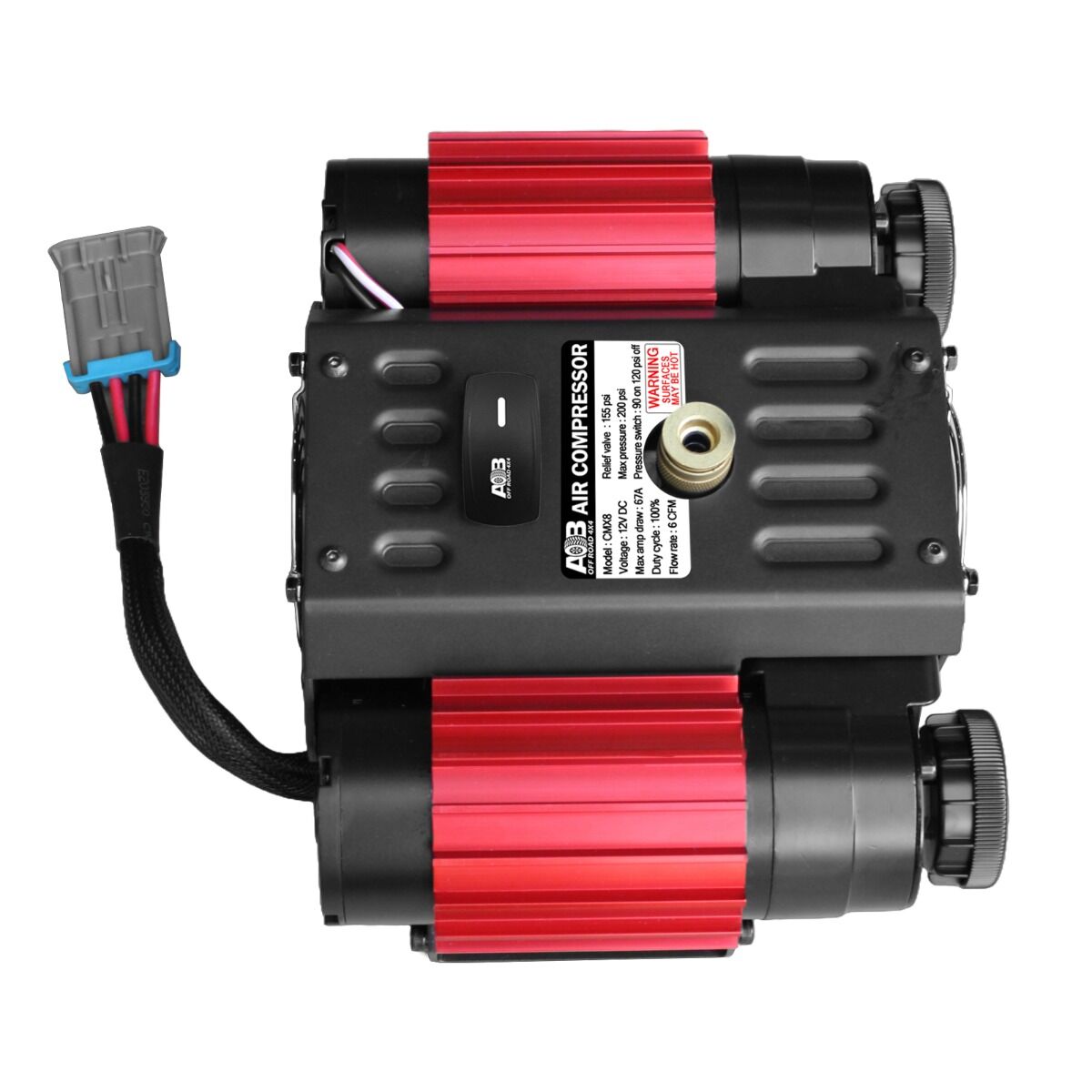

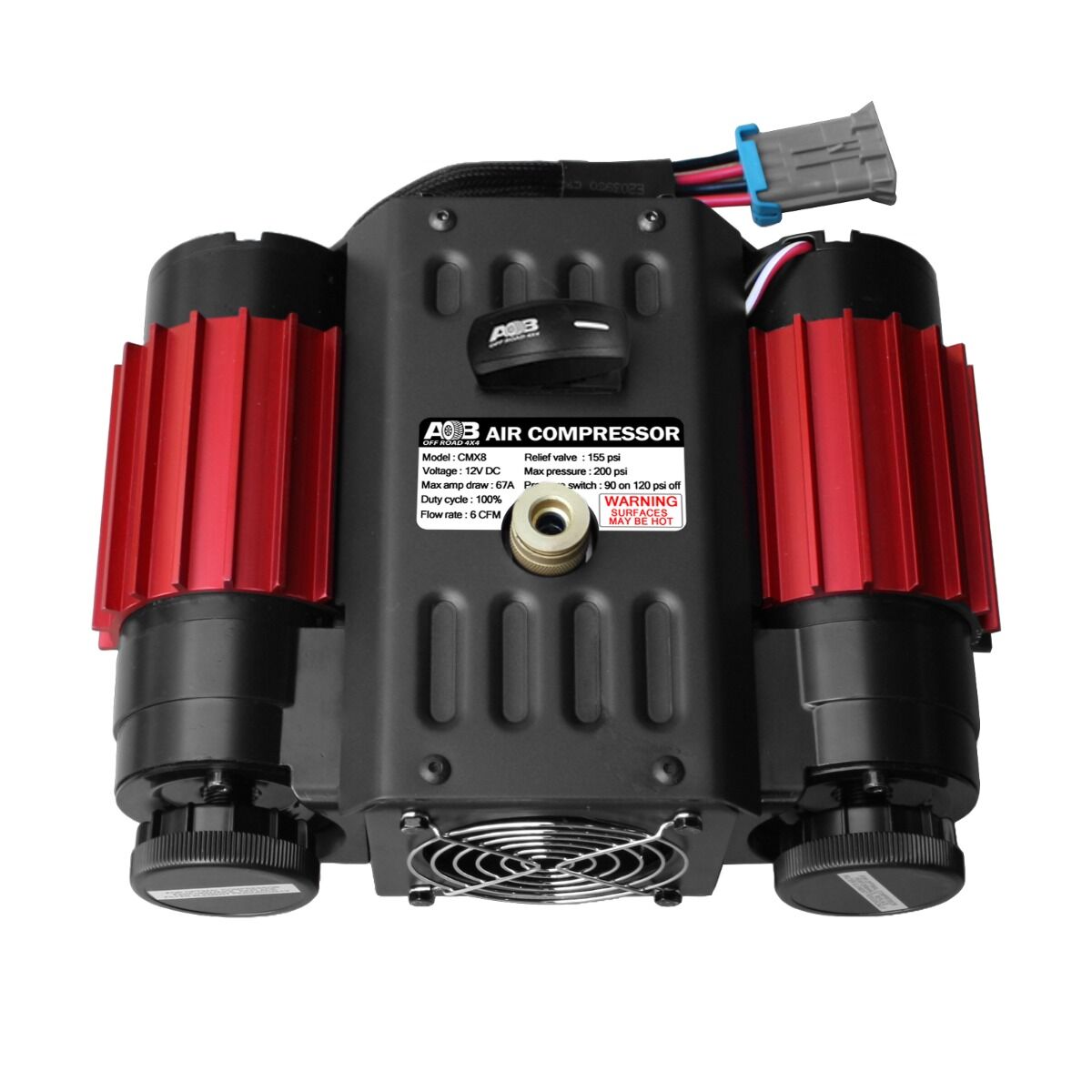

AOBCMX8 COMPRESSOR

This 12 volt compressor has A full Steel body. With a maximum output of 200 Psi and a duty cycle of 100% at 72 deg F&100 psi it will provide you with enough air for all your needs.

• 12-Volt
• Permanent Magnetic Motor

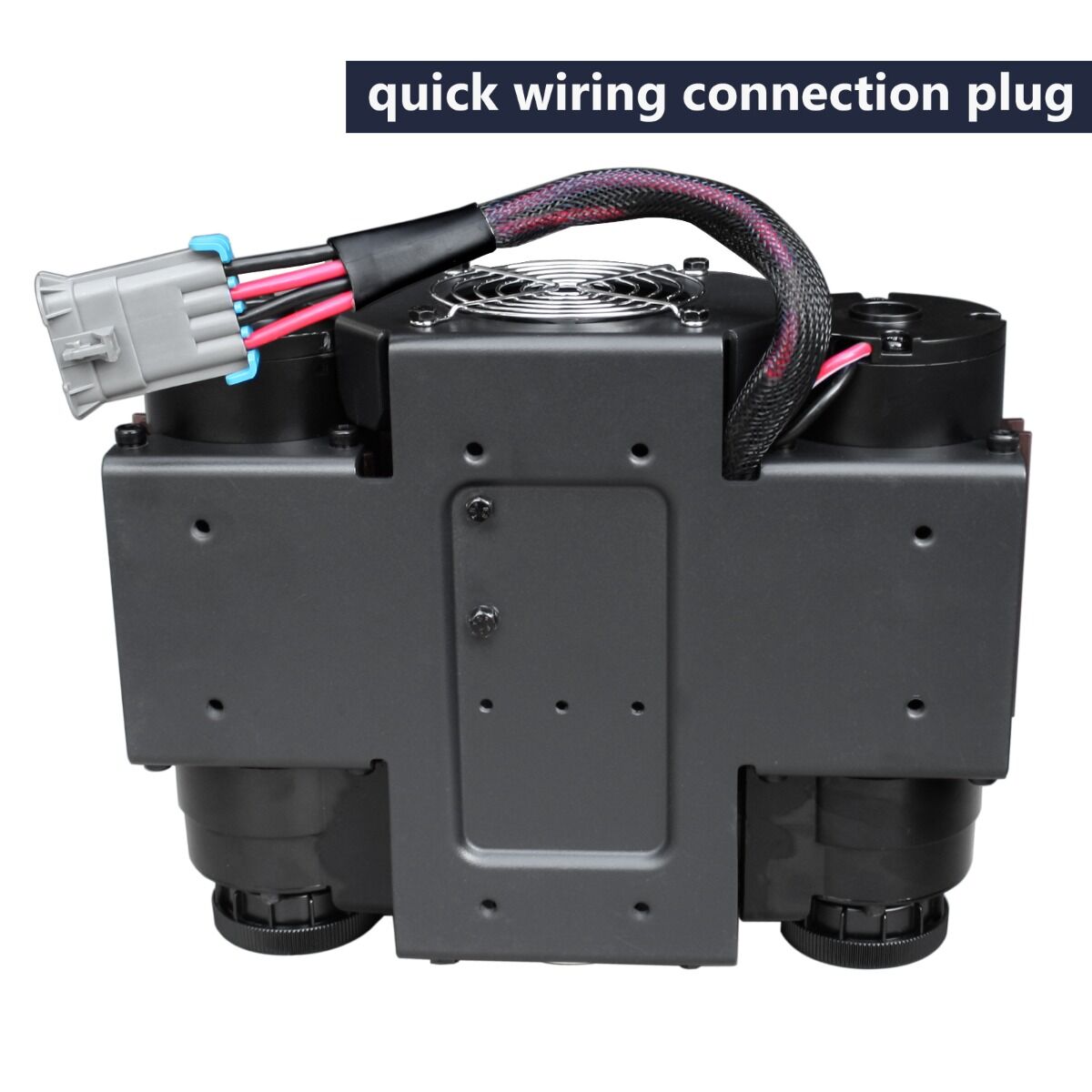

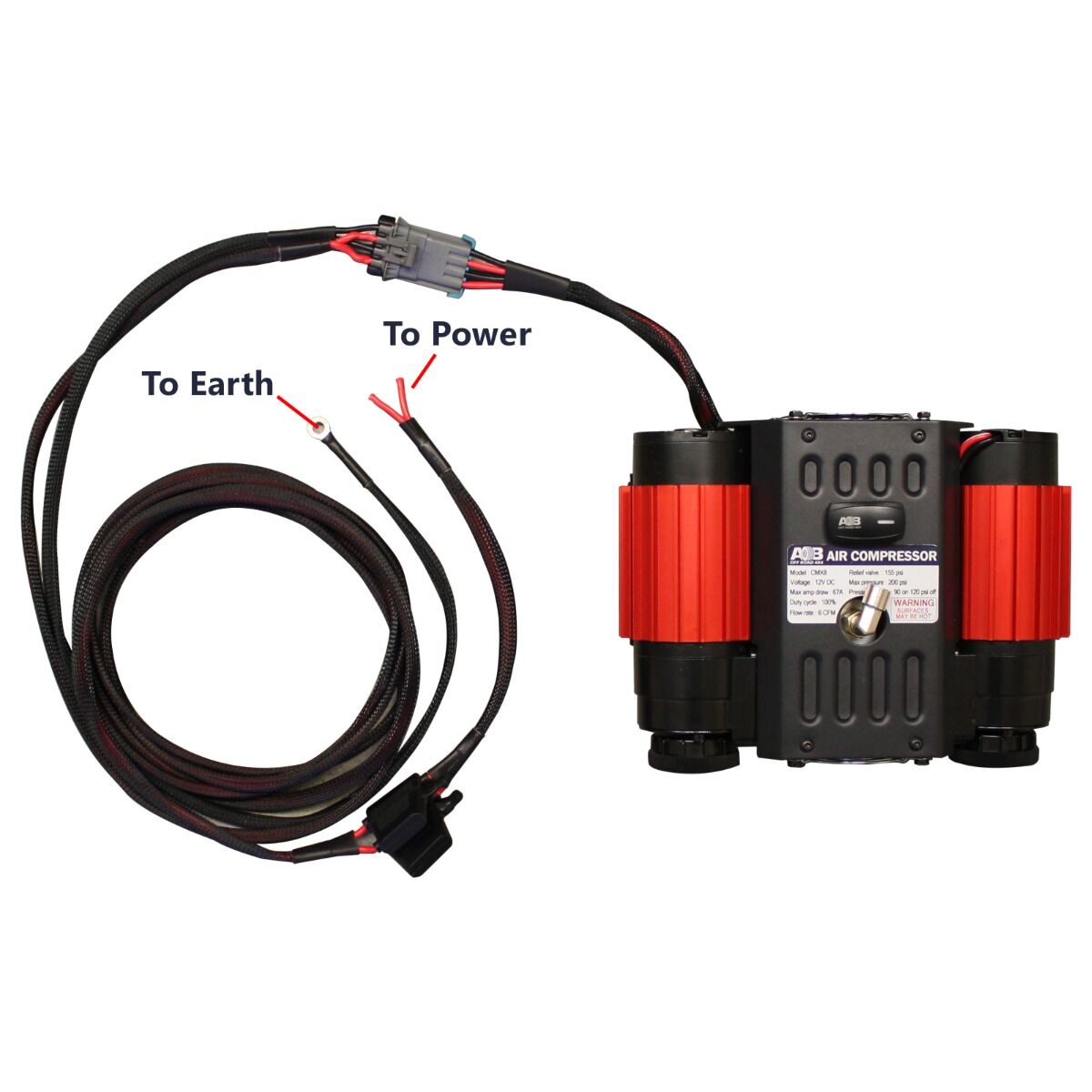

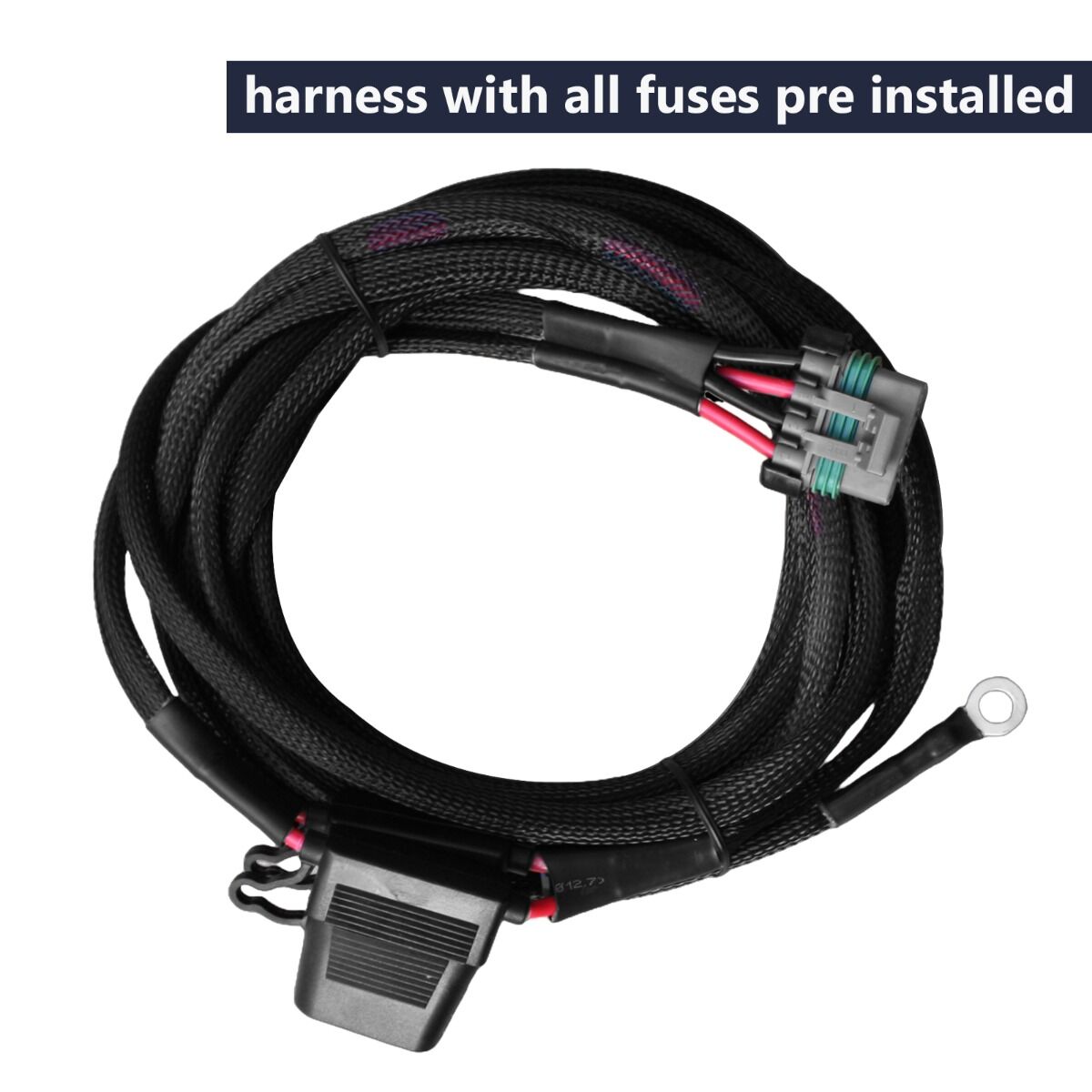

• Independent power output: Dual fuses and relays allows compressor to operate independently if 1 fails the other continues running
• Mounting: Vertical or Horizontal
• Cooling: Cooling fan cooled
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 200 PSI
• Pressure switch: 90 on 120 psi Off
• Max. Air Tank Size: 5 gallon
• Ingress Protection Rating: IP67
• Dimensions: 300mm(L) x 232mm(W) x 140mm(H)
• Net Weight: 13KG

AOBTK204

This is the smallest tank in our range and has been designed to fit the tightest area. The tank comes including a bottom a drain tap that is used to empty any condensate that is collected during the running cycle along with all the blanking plugs required to fit the full system.

AOBTK204 Dimensions

275mm x 193mm x 152.4mm

Ensure you have the room to fit this tank.

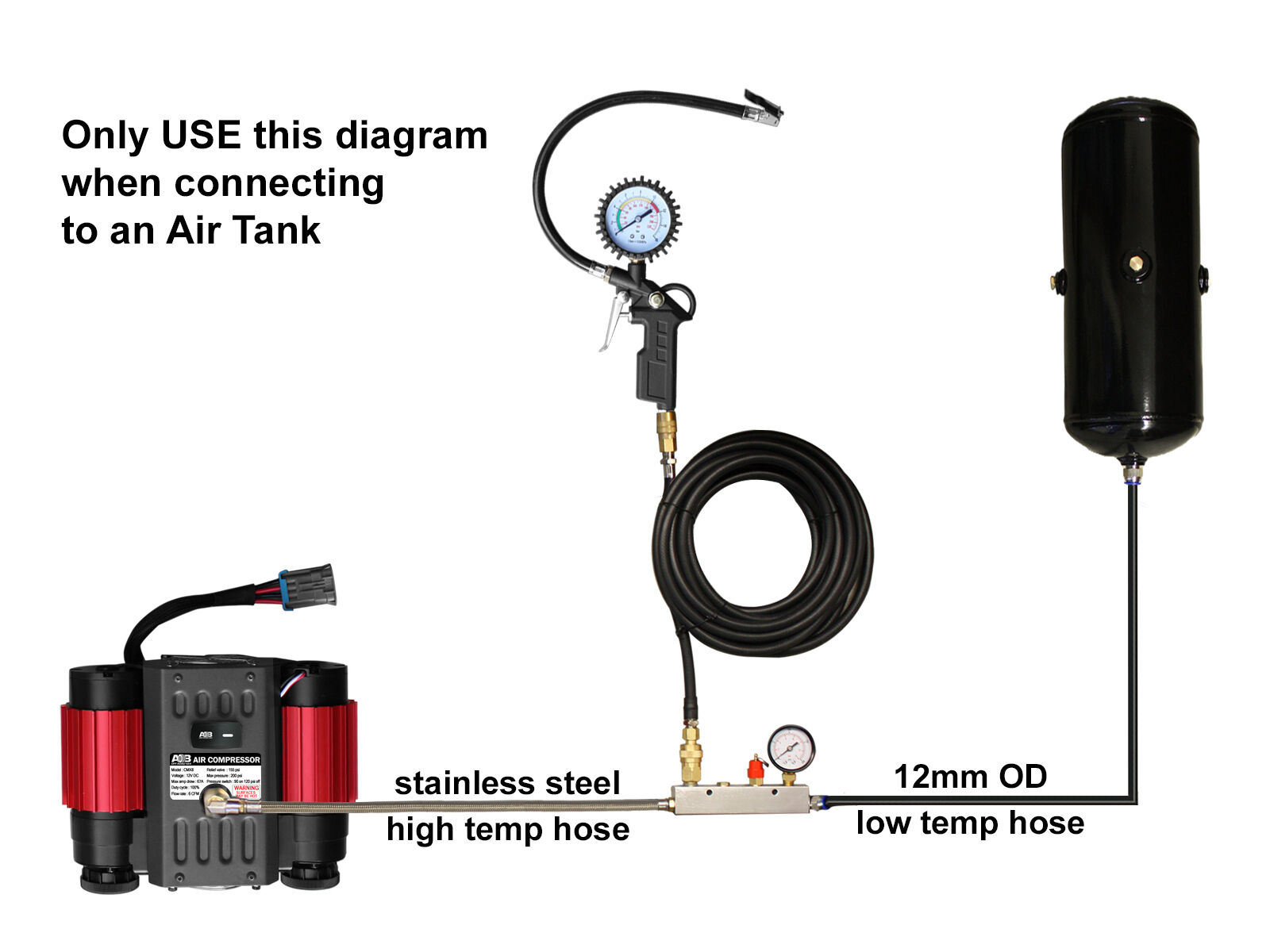

AOBMB770 MANIFOLD SET

Included with this system are all the air accessories needed for your system in this neat manifold block. Makes for easy installation.

AOBHS202 High Temp Steel Braided Air Hose

• OD of hose is 8.8mm.
• 1/4'' BSP male fitting both ends.
• Temperature range of -40°C to 250°C.
• Excellent flexibility.
• Pressure range to 350 PSI.
• 1.5 meter in length.

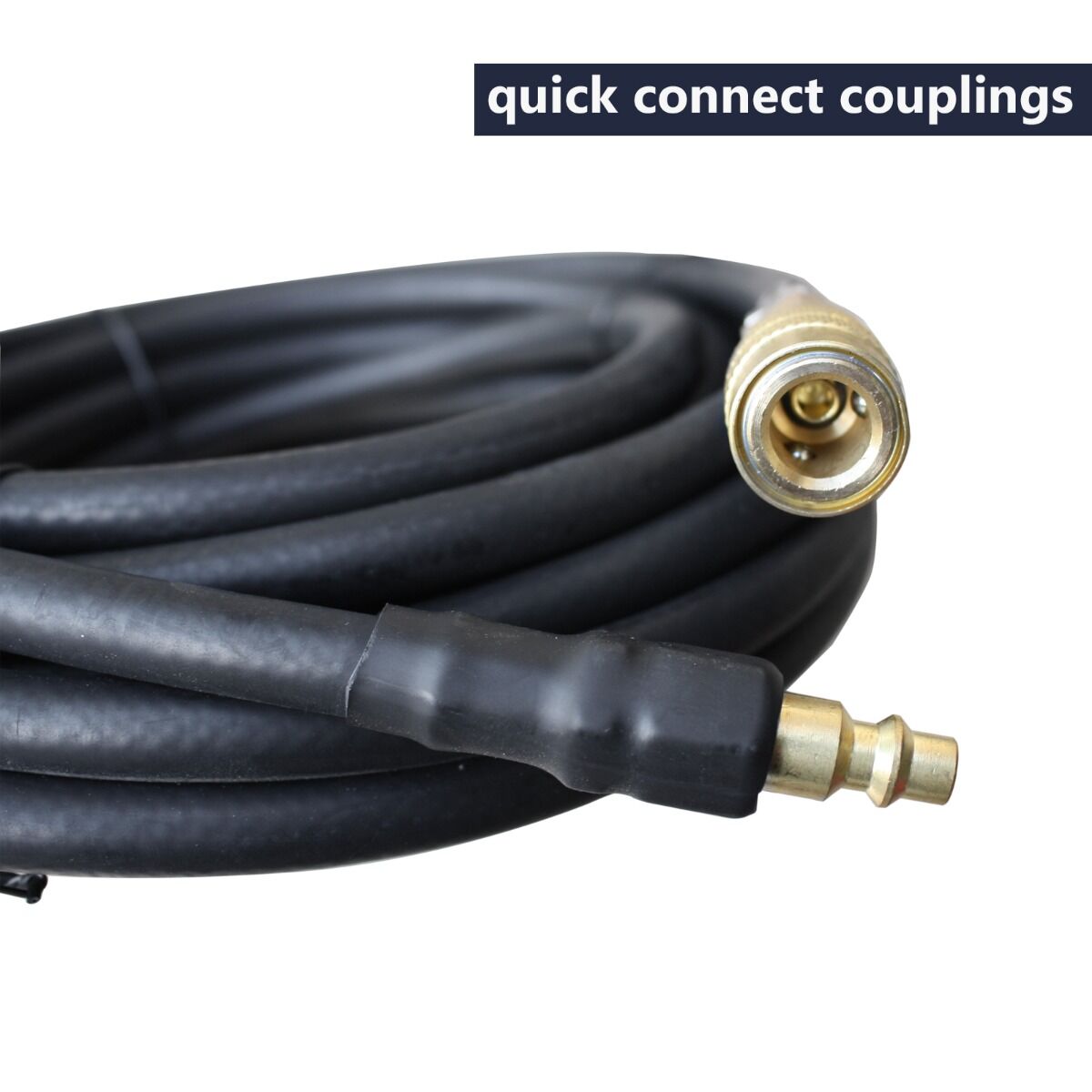

AOB Low Temp High Pressure Air Hose

• OD of hose is 14mm.
• ID of hose is 10mm.
• Pressure range to 200 PSI.
• 3 meter in length.
