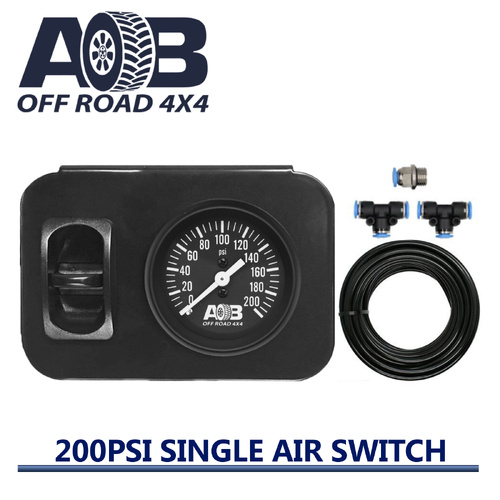

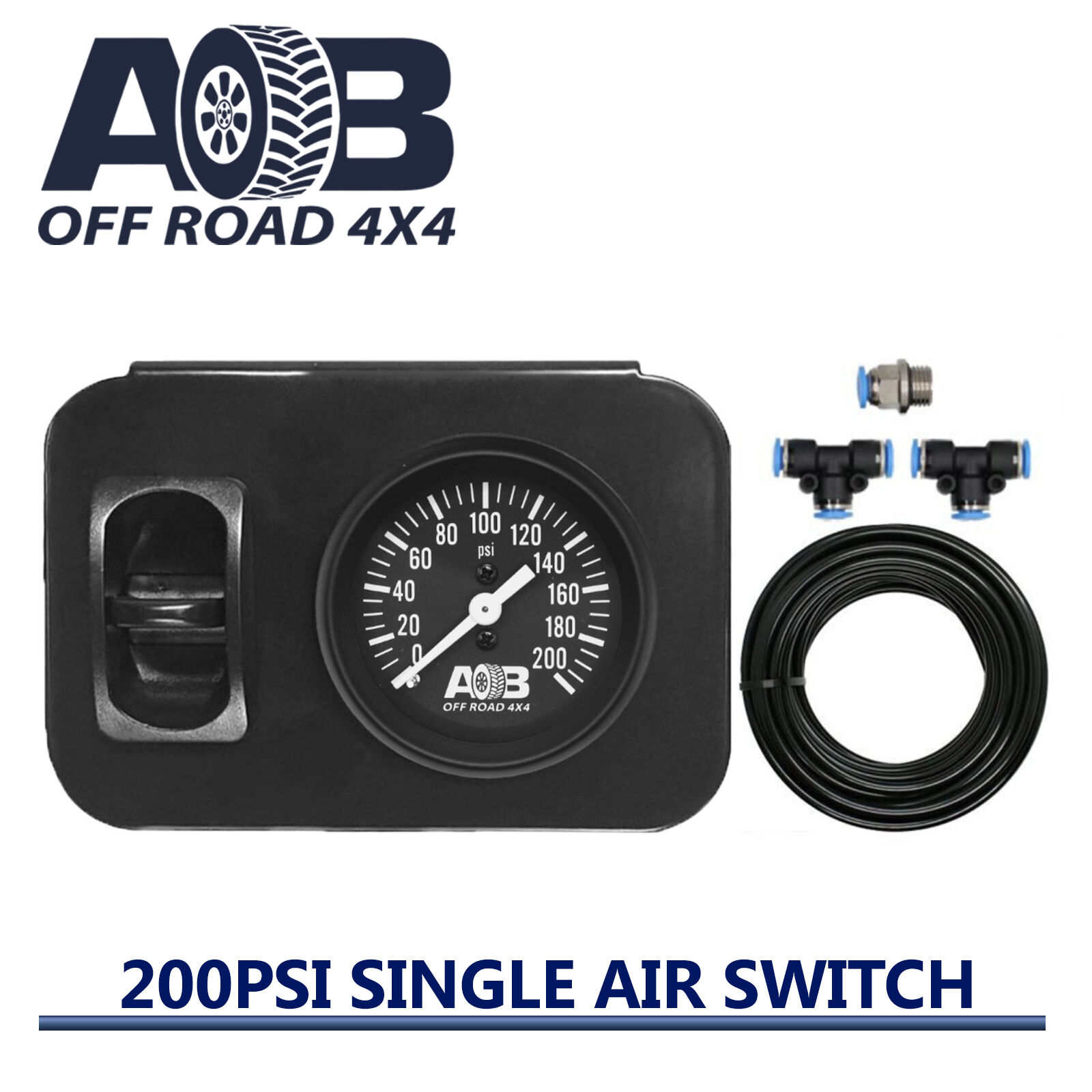

Single Pneumatic Switch Control Panel Kit

Kits include:

  • 1 x Gauge Panel

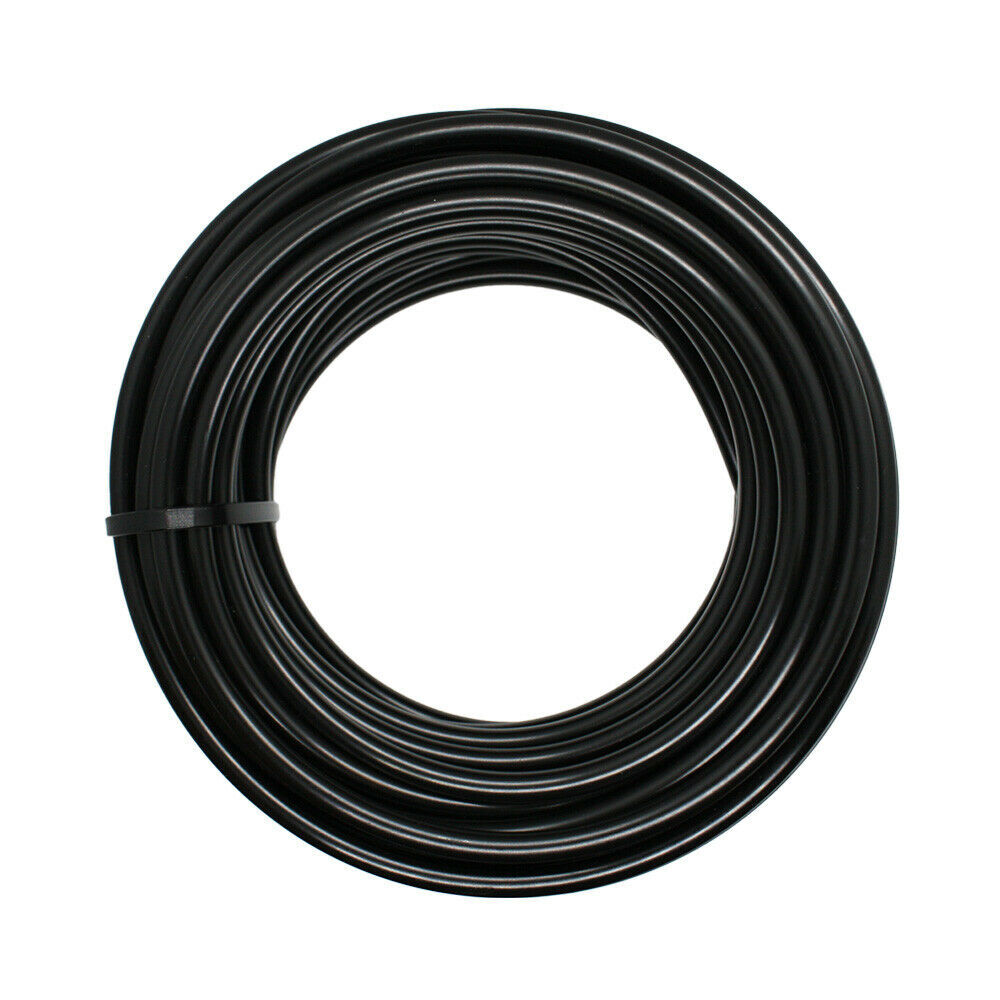

  • 1 x 12m air hose

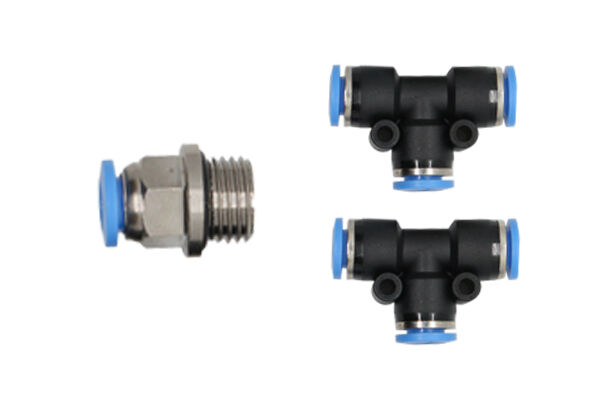

  • 2 x 1/4 PU T Piece
  • 1 x 1/4 PU TO 2/4 BSP Male Fitting

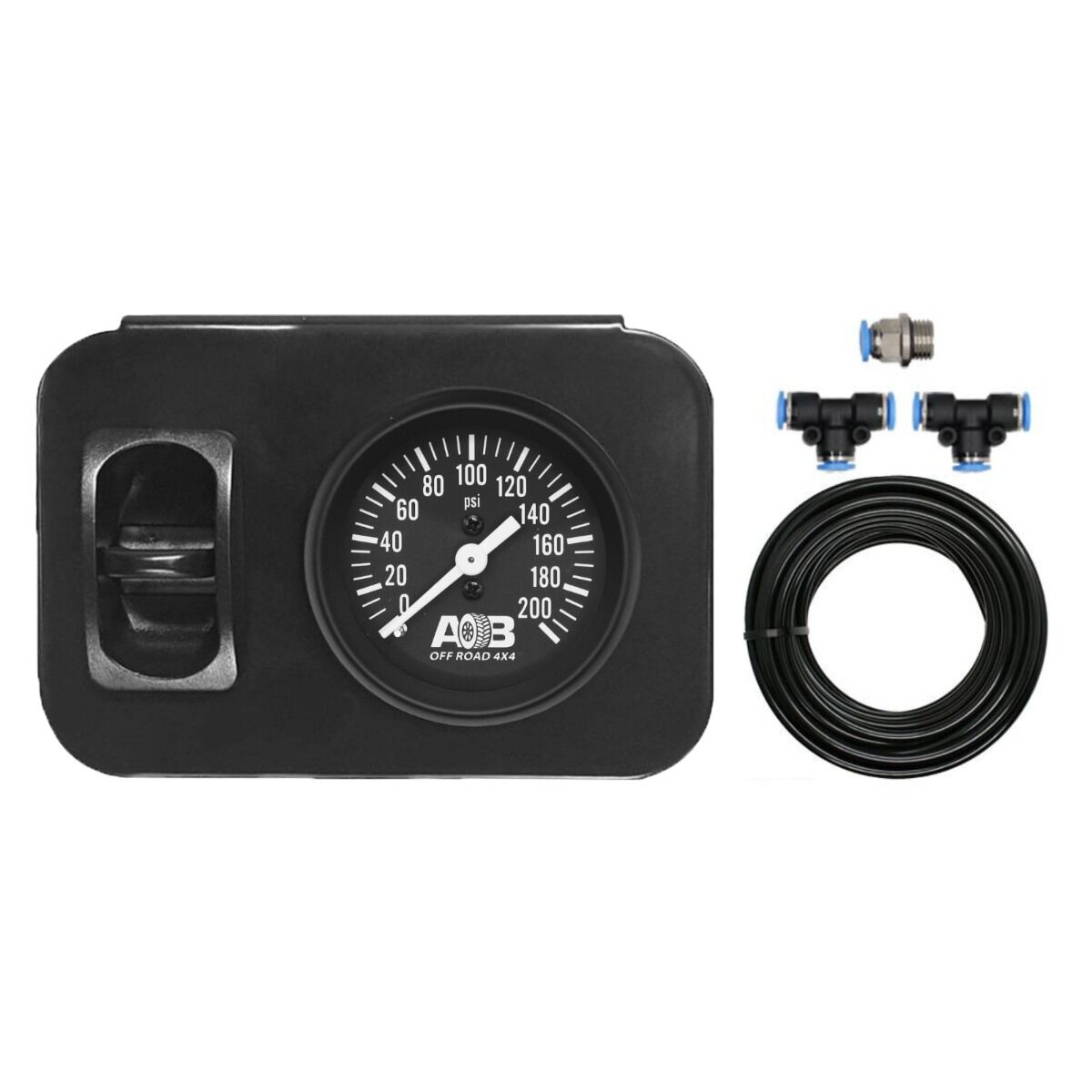

This panel is fitted with one of AOB's high quality 52mm 200 psi Illuminated Single needle gauge sets along with 1 AOB Air control paddle switch. This clever unit lets you control your front or rear air bags with out the use of 12 volt solenoids.

Both rear or front airbags off the one switch

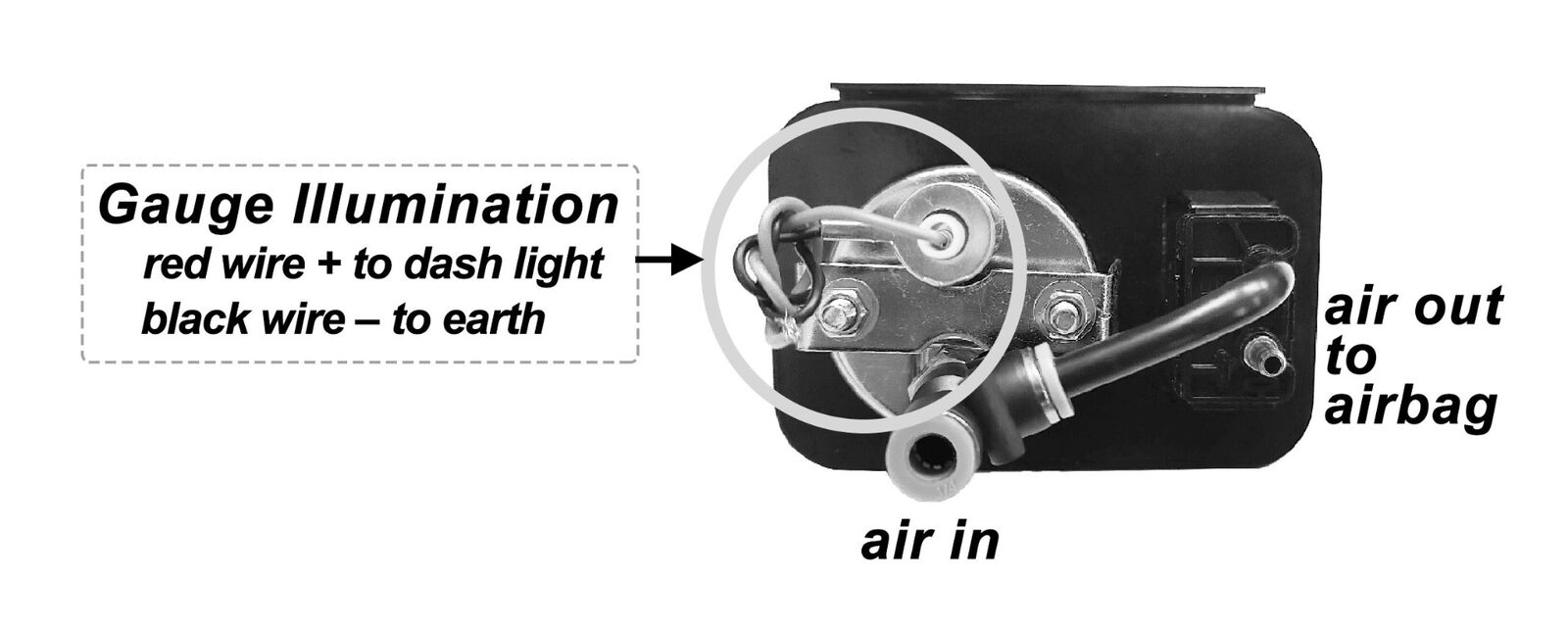

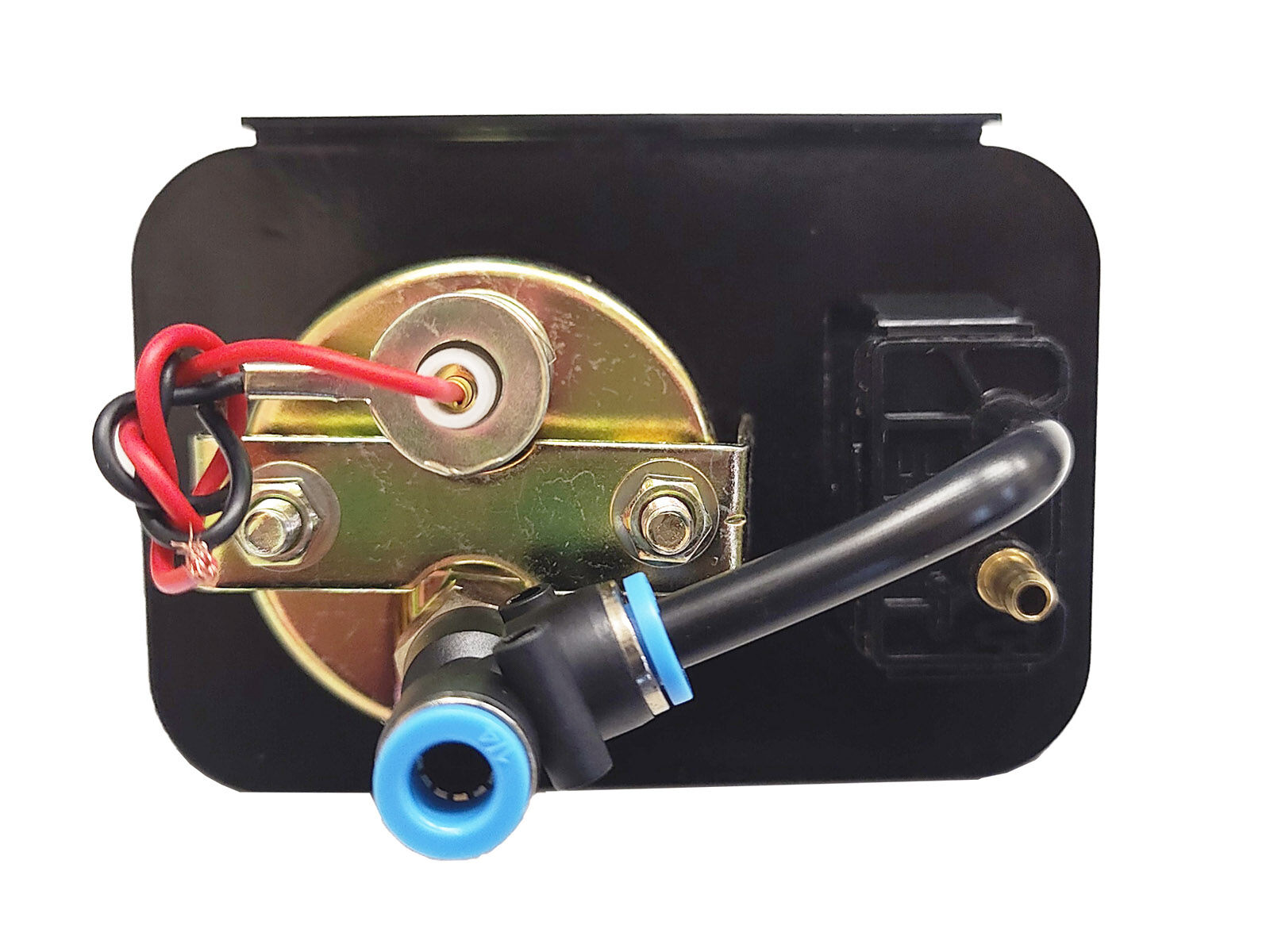

This gauge and switch set comes completely assembled for easy installation using the best quality PU air fittings available. Inlet and outlet is by 1/4'' PU hose.

The air paddle switch allows air to flow to your airbags by pushing the switch down and allows air to escape to atmosphere from the air bags by pushing the switch up. The maximum pressure of the air paddle switch is 110 psi.

The panel face measures 112mm wide 79mm high and 85mm deep..

With a 200 psi max working pressure it is sure to survive the most rigorous out back travel

(Air compressor is needed to operate this switch set, not included)

Length: 14mm Width: 14mm Height: 8mm
SKU PG110K
Shipping Weight 0.4500kg
Shipping Width 0.140m
Shipping Height 0.080m
Shipping Length 0.140m
Assembled Length 0.220m
Assembled Height 0.140m
