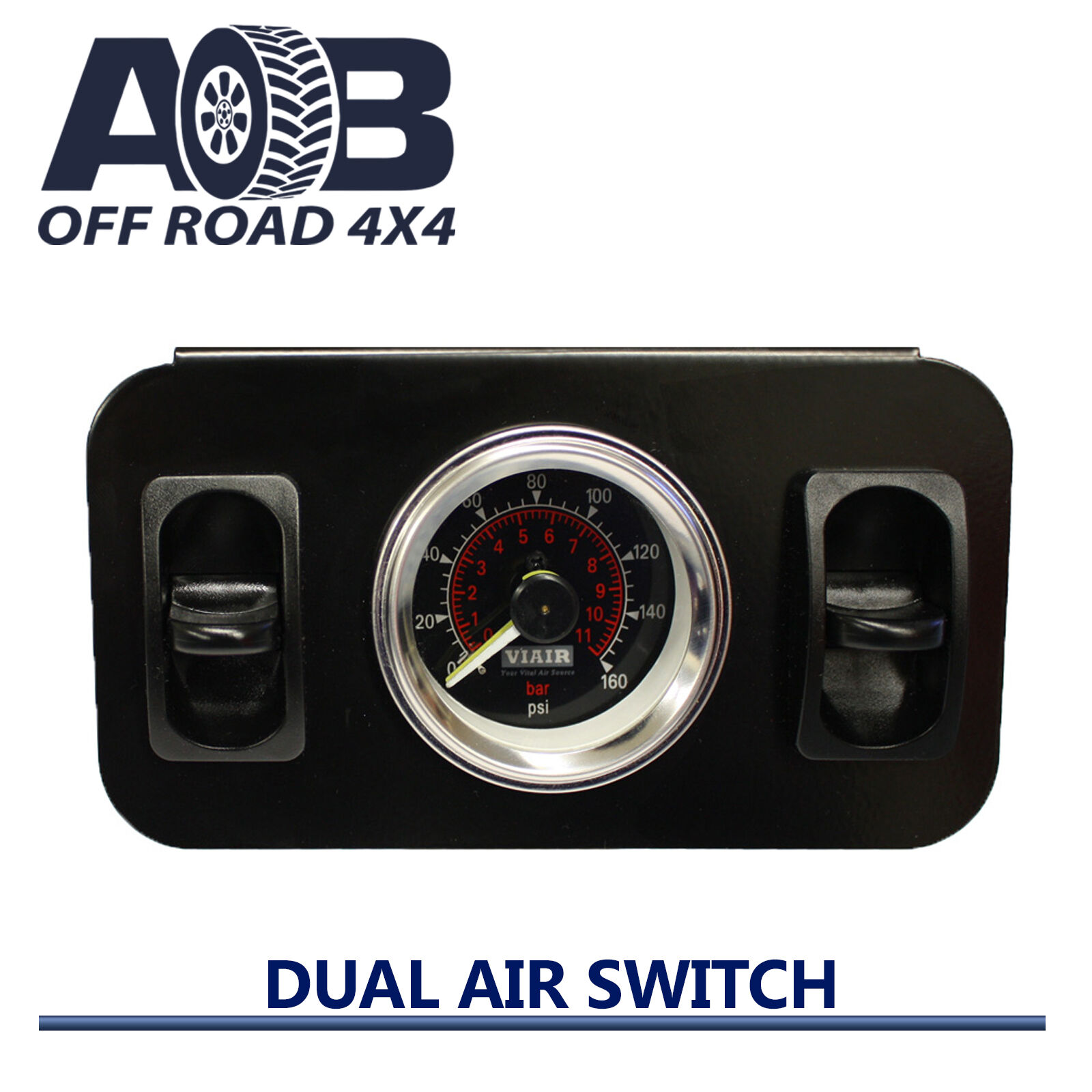

Dual Pneumatic Switch Control Panel

This panel is fitted with one of Genuine VIAIR 160psi Twin needle gauge sets along with 2 AOB Air control paddle switches. This clever unit lets you control, with out the use of 12 volt solenoids, any of the following combinations of your air bags.

  • Both rear off one switch and Both front off the other.
  • Both left off one switch and both right off the other.
  • Left rear off one switch and Right rear off the other.
  • Left front off one switch and right front off the other.

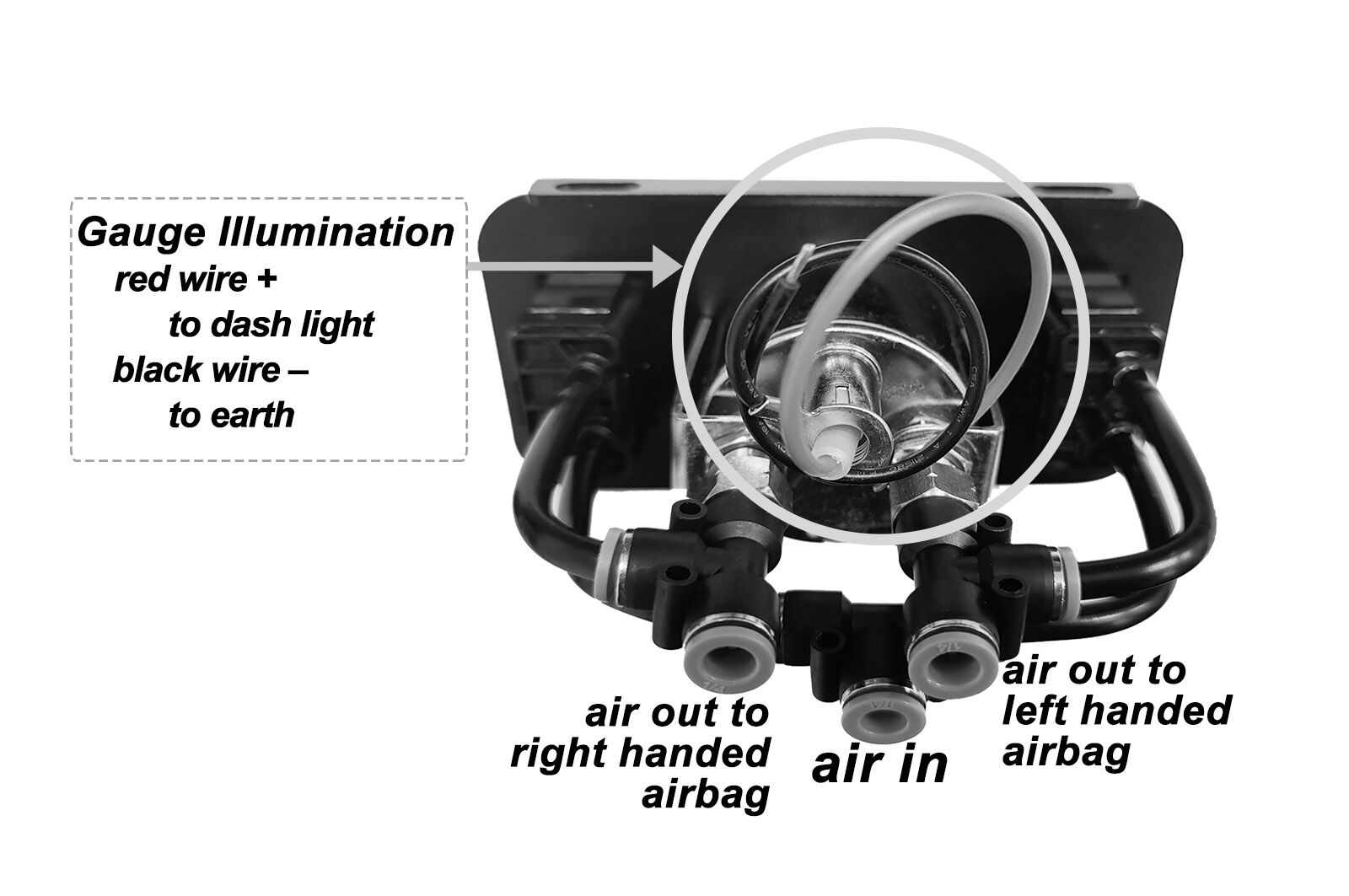

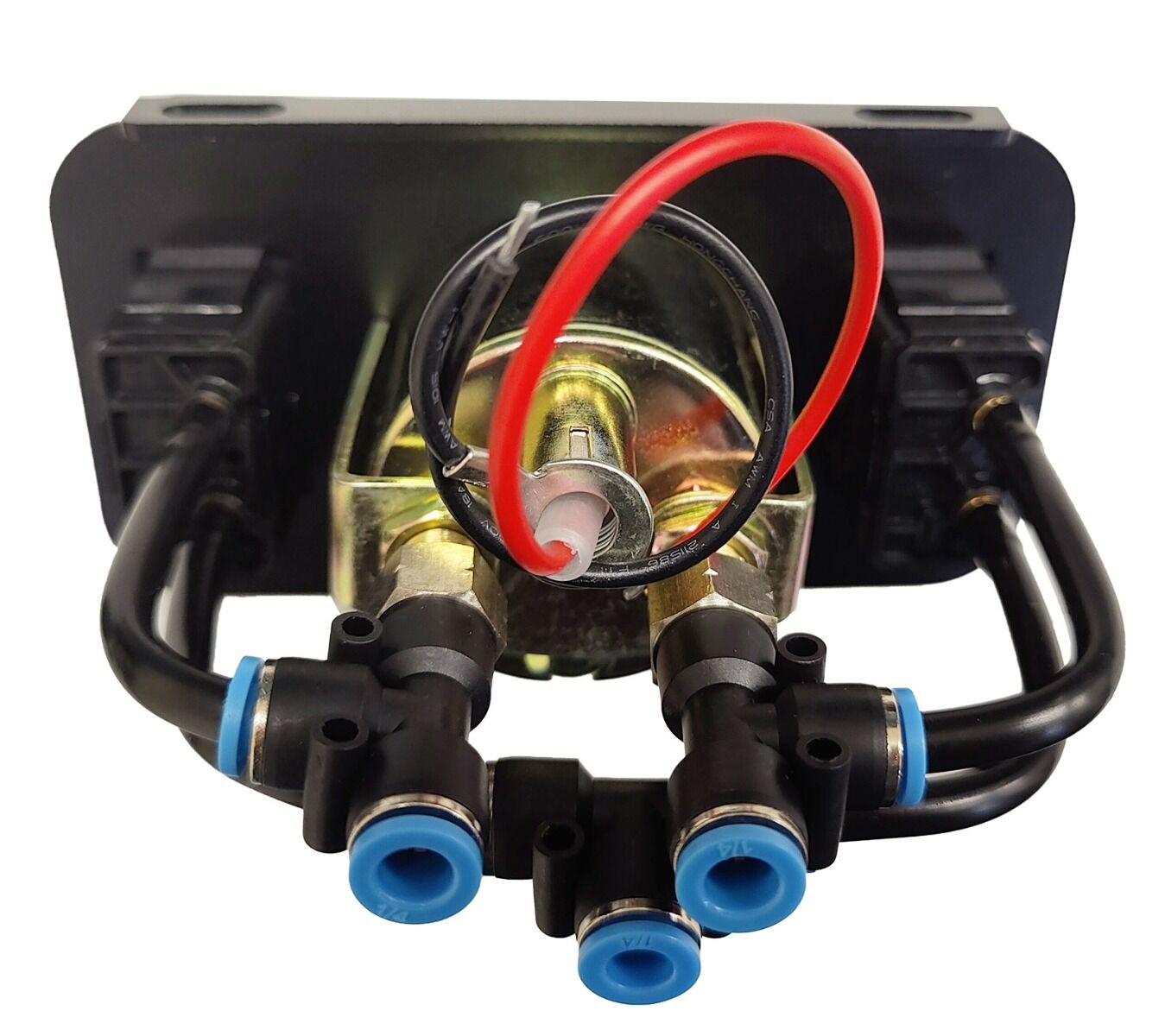

This gauge and switch set comes completely assembled for easy installation using the best quality PU air fittings available. Inlet and outlet is by 1/4'' PU hose.

The 2 air paddle switches allows air to flow to your airbags by pushing the switch down and allows air to escape to atmosphere from the air bags by pushing the switch up.The maximum pressure of the air paddle switch is 110 psi.



The panel face measures 145mm wide 79mm high and 85mm deep.

With a 160 psi max working pressure it is sure to survive the most rigorous out back travel

(Air compressor is needed to operate this switch set, not included)

Length: 17mm Width: 13mm Height: 8mm
SKU PG220
Shipping Weight 0.4000kg
Shipping Width 0.130m
Shipping Height 0.080m
Shipping Length 0.170m
Assembled Length 0.200m
Assembled Height 0.080m
Type Kit
