Dual Pneumatic Switch Control Panel

This panel is fitted with one of AOB's high quality 52mm Twin needle gauge sets along with 2 AOB Air control paddle switches. This clever unit lets you control, with out the use of 12 volt solenoids, any of the following combinations of your air bags.

• Both rear off one switch and Both front off the other.
• Both left off one switch and both right off the other.
• Left rear off one switch and Right rear off the other.
• Left front off one switch and right front off the other.

The gauge goes up to 60 psi.

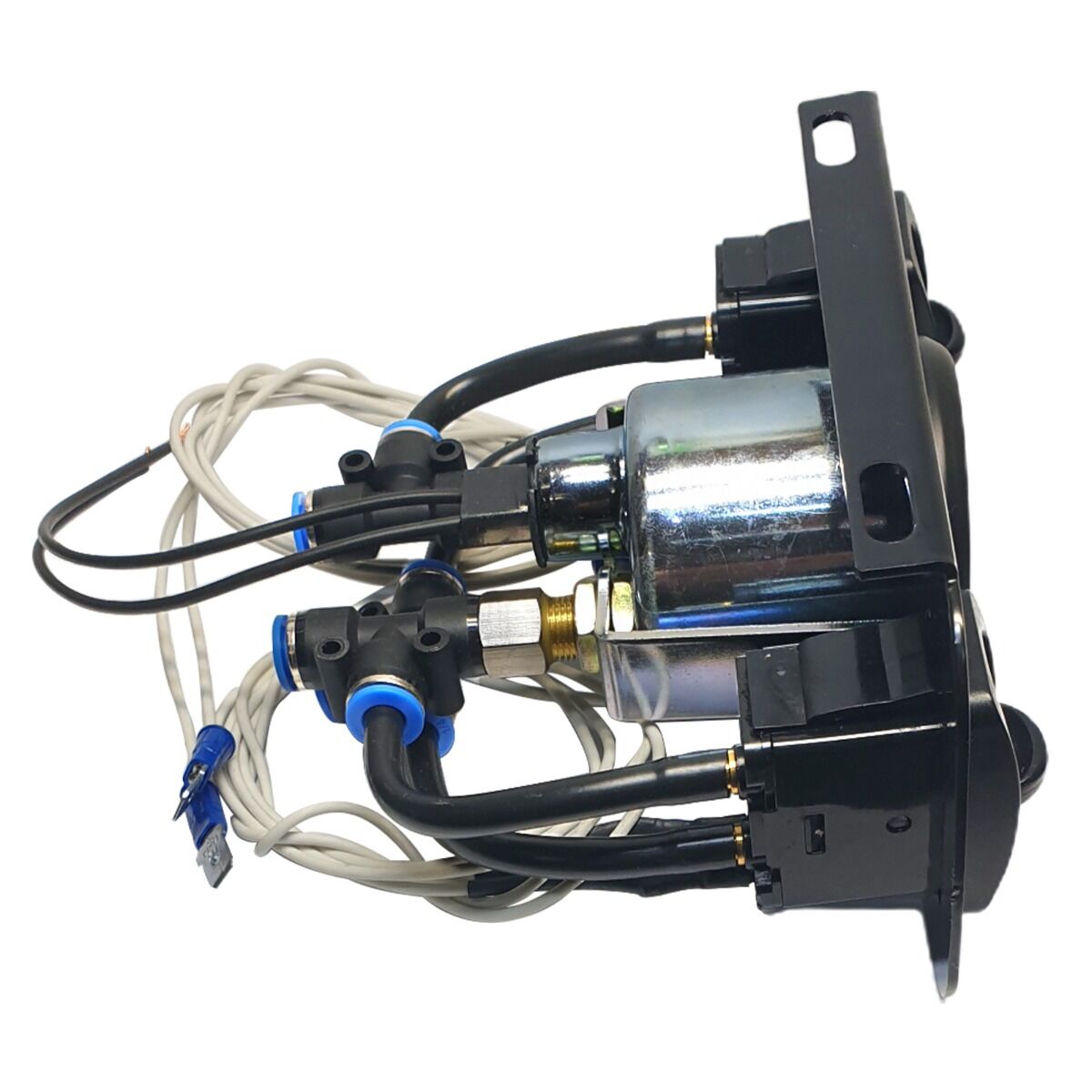

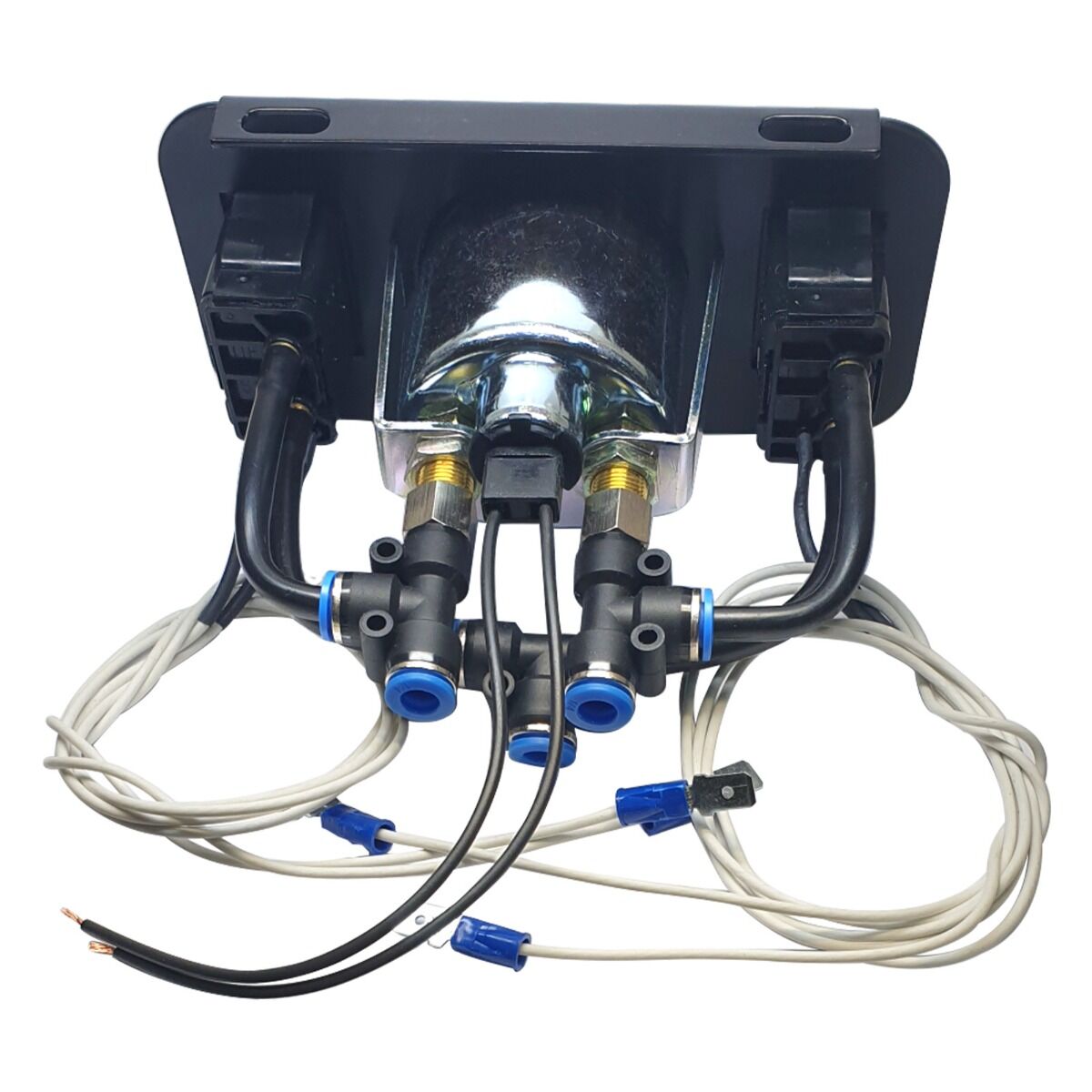

This gauge and switch set comes completely assembled for easy installation using the best quality PU air fittings available. Inlet and outlet is by 1/4'' PU hose.

The 2 air paddle switches allows air to flow to your airbags by pushing the switch down and allows air to escape to atmosphere from the air bags by pushing the switch up.The maximum pressure of the air paddle switch is 110 psi.

The panel face measures 145mm wide 79mm high and 85mm deep.

With a 60 psi max working pressure it is sure to survive the most rigorous out back travel

Manual Paddle Valve/Switch with Electric On/Off Switch

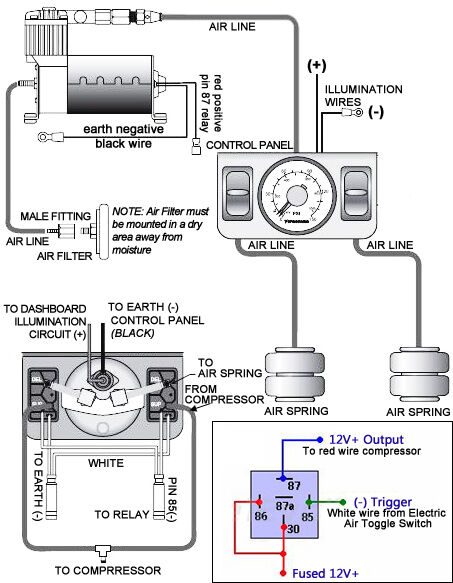

The Manual Paddle Valve Switch incorporates an electric ON/ OFF switch. When the Paddle Switch is Pushed Up and Down, this will turn your compressor relay ON and OFF. These are suitable for motorcycle, car, truck or any vehicle that operates airbag suspension with Pneumatic adjustment. The average fill time on bags will be 8-12 Seconds depending upon the size of Air Compressor and the amount of pressure required in each airbag.

WARNING

MUST be used to activate a fused relay and not wired directly to the Air Compressor Failure to do so will result in damage or even worst fire and under no circumstances will this be covered under warranty due to improper wiring or fitment

(Air compressor is needed to operate this switch set, not included)
