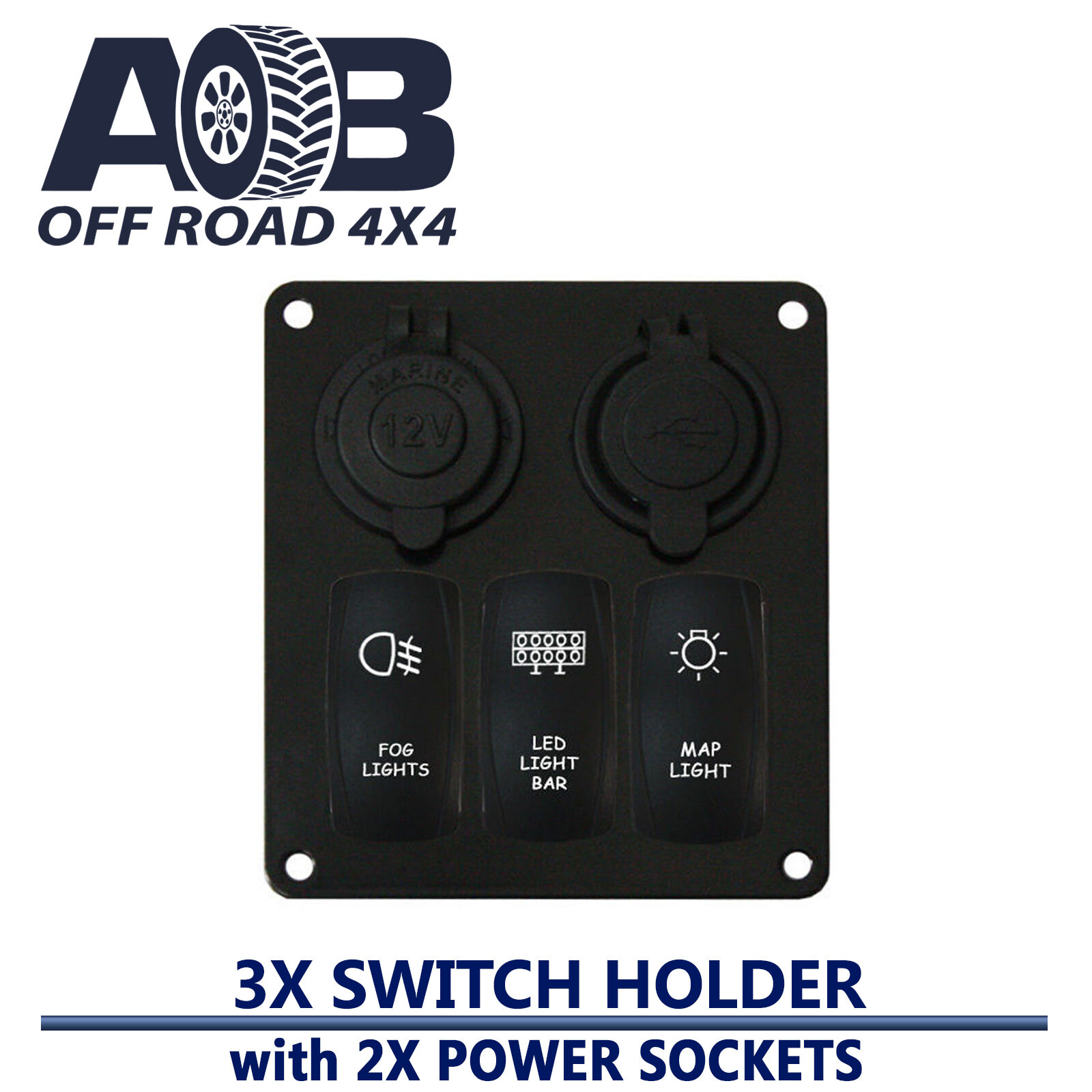

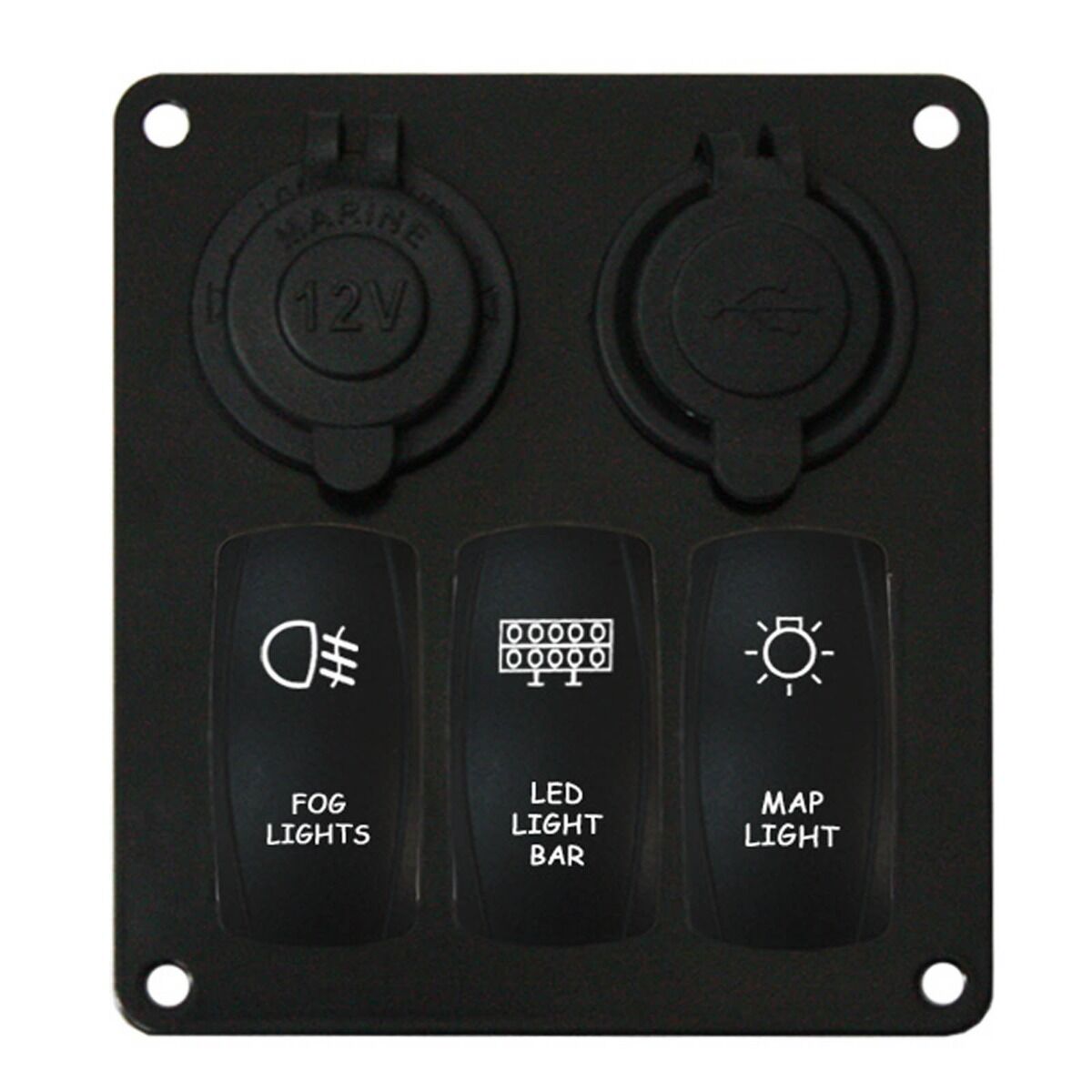

Power Outlet Panel
with 2 Sockets and 3 Switches Included

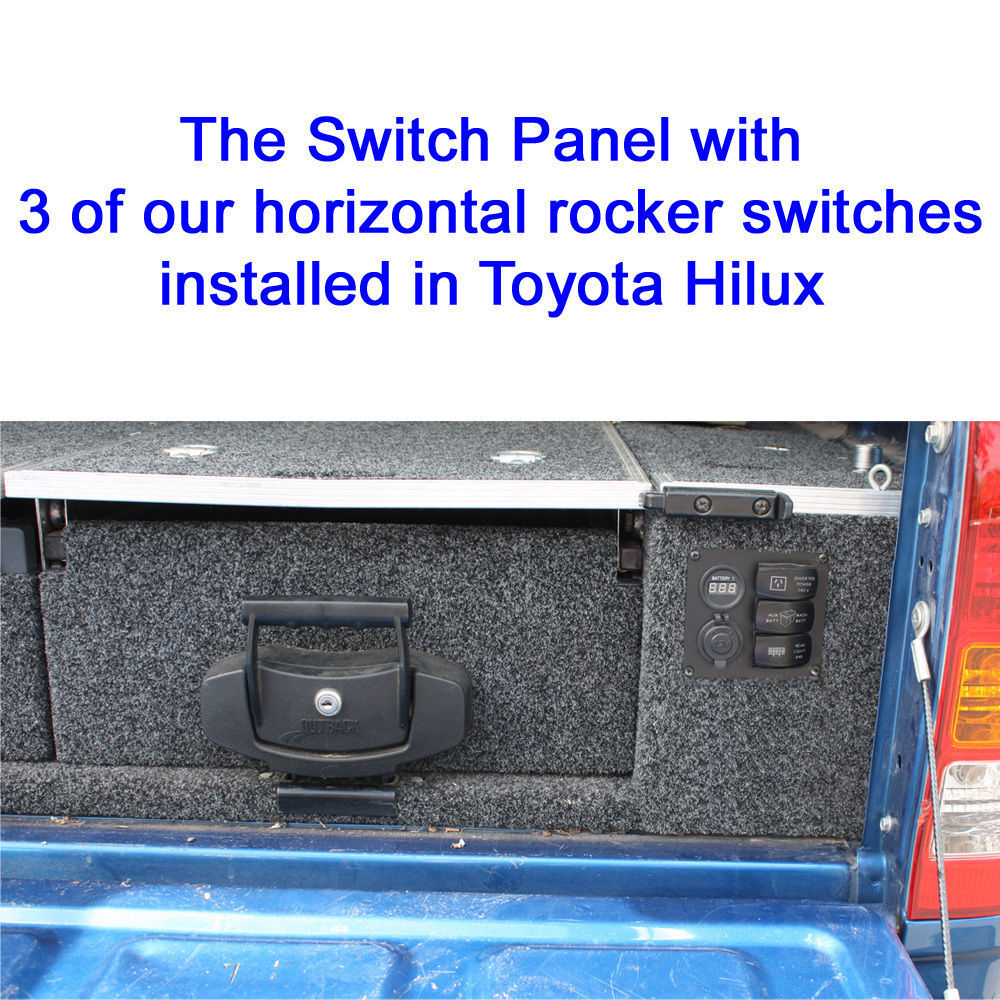

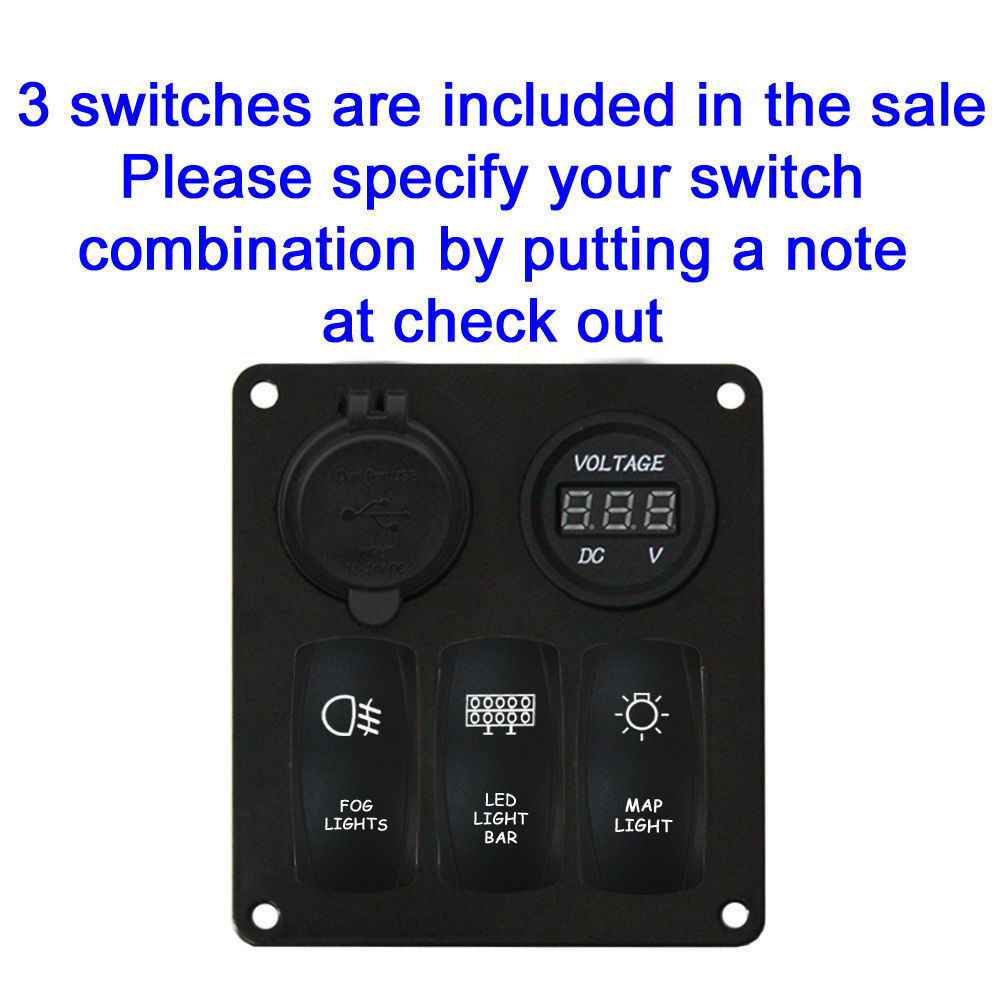

This high quality Rocker switch mounting bracket from AOB is a steel powder coated bracket. Included with the sale comes 2 of power sockets that you can choose from the drop box above and 3 of our laser etched rocker switches which you can find from our Rocker Switches category. Please put the switch number in the input field . Our vertical switches suit best if you like to mount the bracket horizontally and our horizontal switches are the best choice for your vertical mounted bracket.

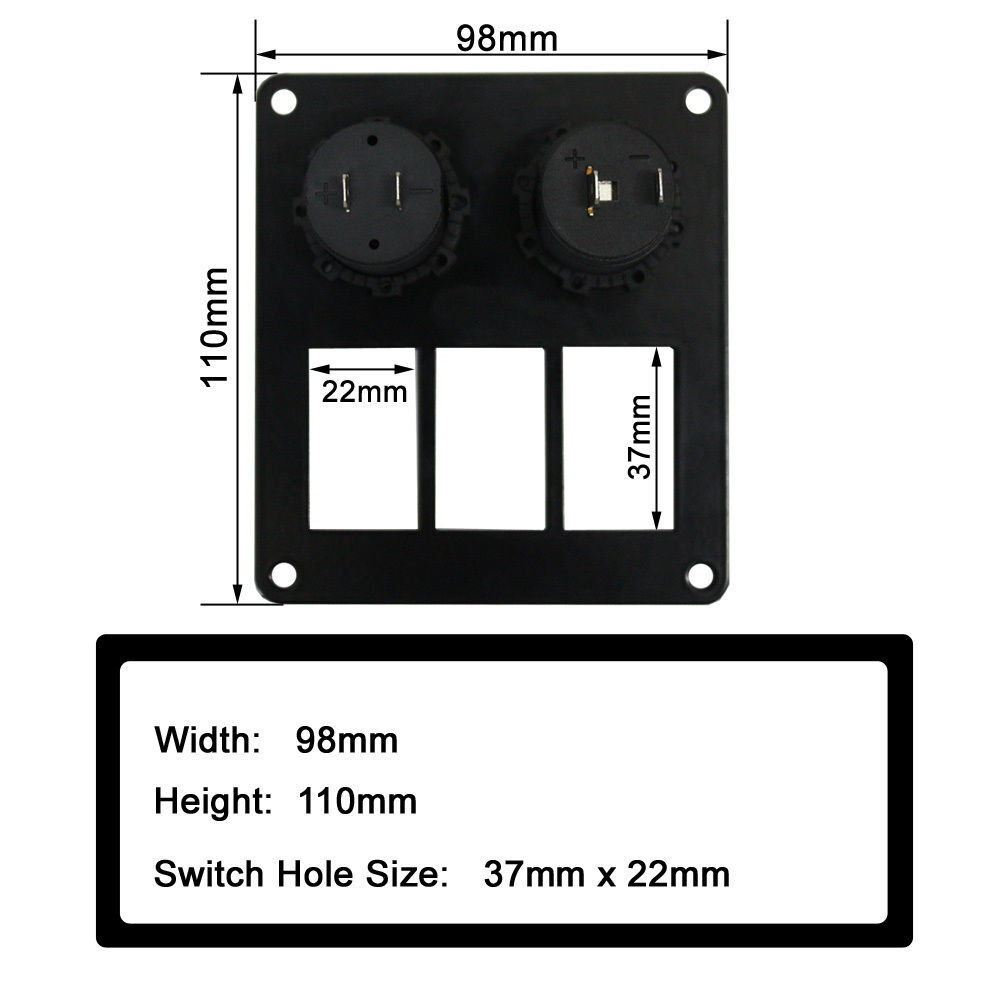

Dimensions

• Width: 98mm
• Height: 110mm
• Switch Hole Size: 37mm x 22mm

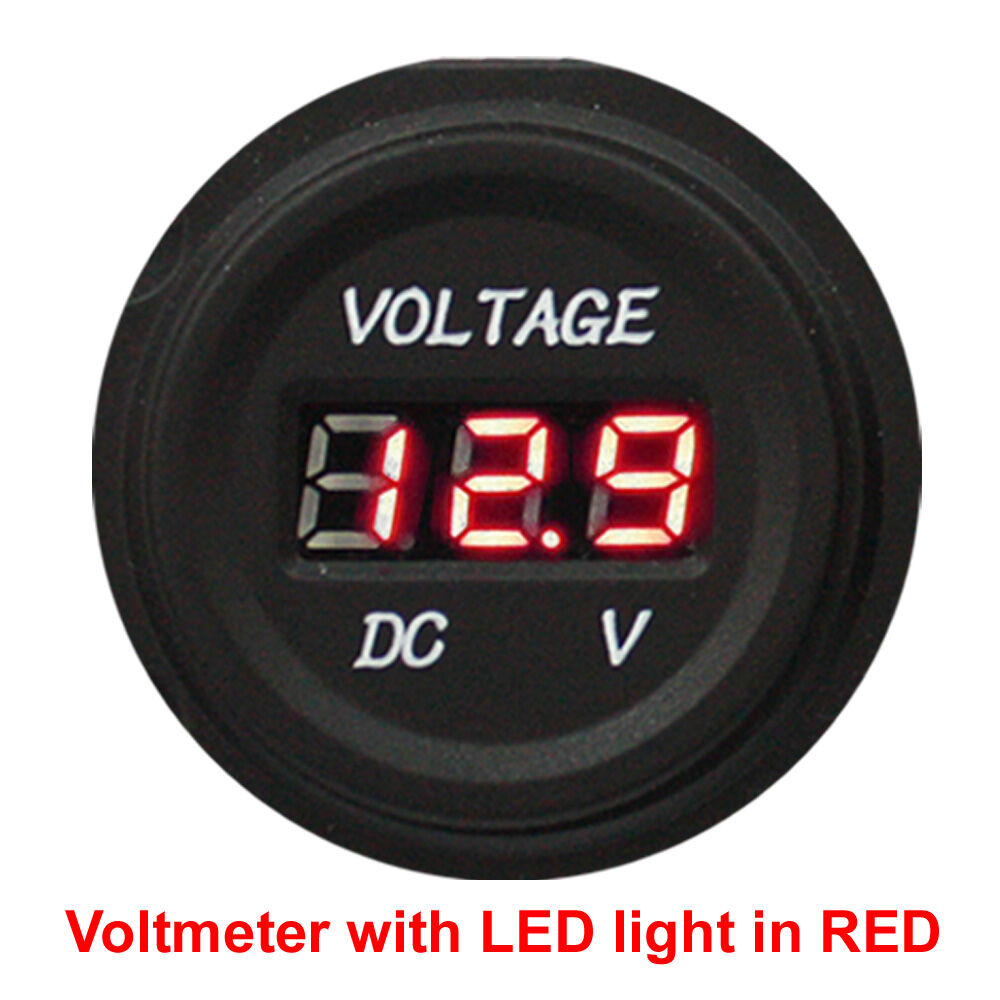

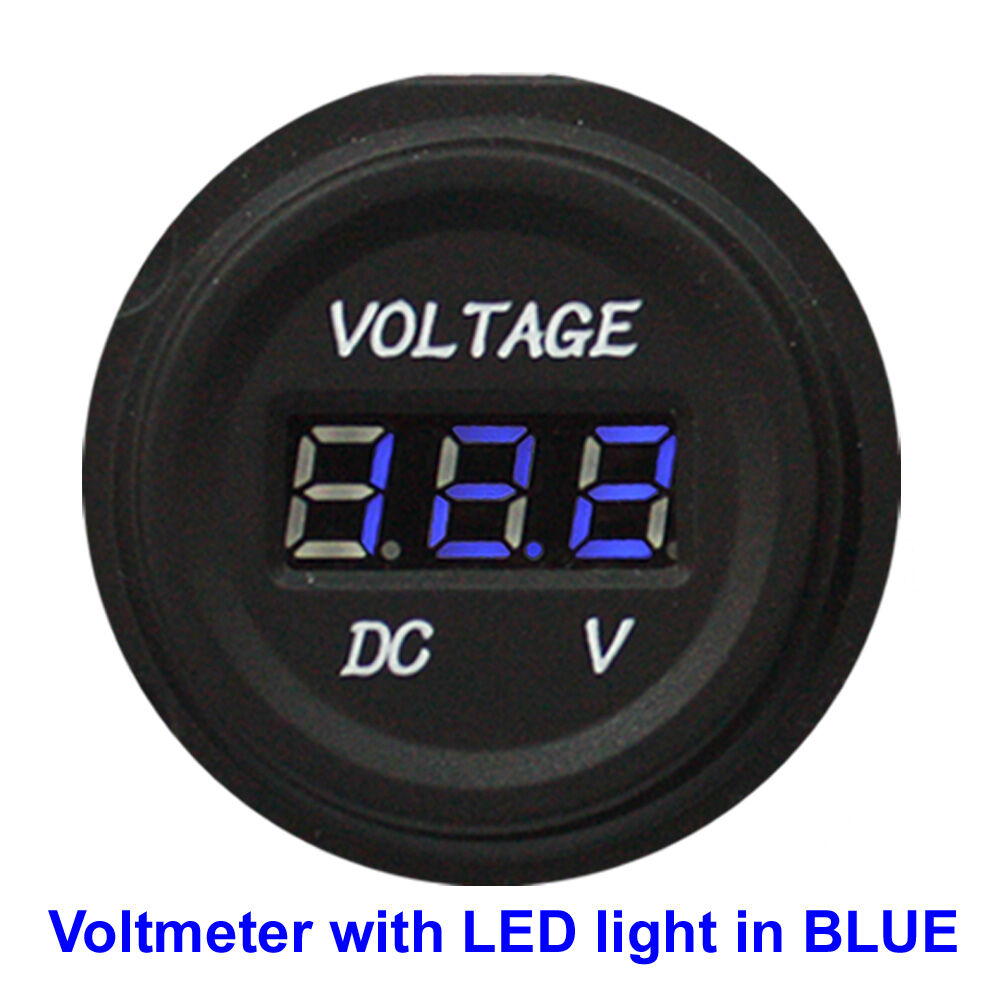

Volt Meter

Specifications:

• Material: UV stabilised PVC
• Width: 36mm
• Depth: 15mm
• Interface Type: Anode and Cathode
• Housing: Black
• Cutout Diameter: 29mm
• Light: LED BLUE / LED RED
• Warranty: 1 Year
• Input Volt: 12V / 24V
• Measure Volt: 6 ~ 30V
• Mounting: Flush
• Accessories: gasket supplied with the sale

Merit Socket

Specifications:

• Material: UV stabilised PVC
• Depth: 40mm
• Housing: Black
• Cutout Diameter: 27mm
• Outer Diameter: 37mm
• Warranty: 1 Year
• Input Volt: 12V / 24V
• Amps: 20 / 10
• Mounting: Flush

DUAL USB Charger

This charger is rated for 2.4A for each port at 5 V DC output and can accept two USB devices same time.

Specifications:

• Material: UV stabilised PVC
• Depth: 55mm
• Housing: Black
• Cutout Diameter: 27mm
• Outer Diameter: 37mm
• Warranty: 1 Year
• Input Volt: 12V / 24V
• Output Volt: 5V 2.4A/ 5V 2.4A
• Mounting: Flush

Cigarette Lighter

Specifications:

• Material: UV stabilised PVC
• Width: 60mm
• Depth: 55mm
• Height: 42mm
• Housing: Black
• Cutout Diameter: 27mm
• Inner Diameter: 22mm
• Warranty: 1 Year
• Input Volt: 12V / 24V
• Amps: 20 / 10
• Mounting: Flush
• Accessories: Water resistant rubber cap and gasket supplied with the sale
