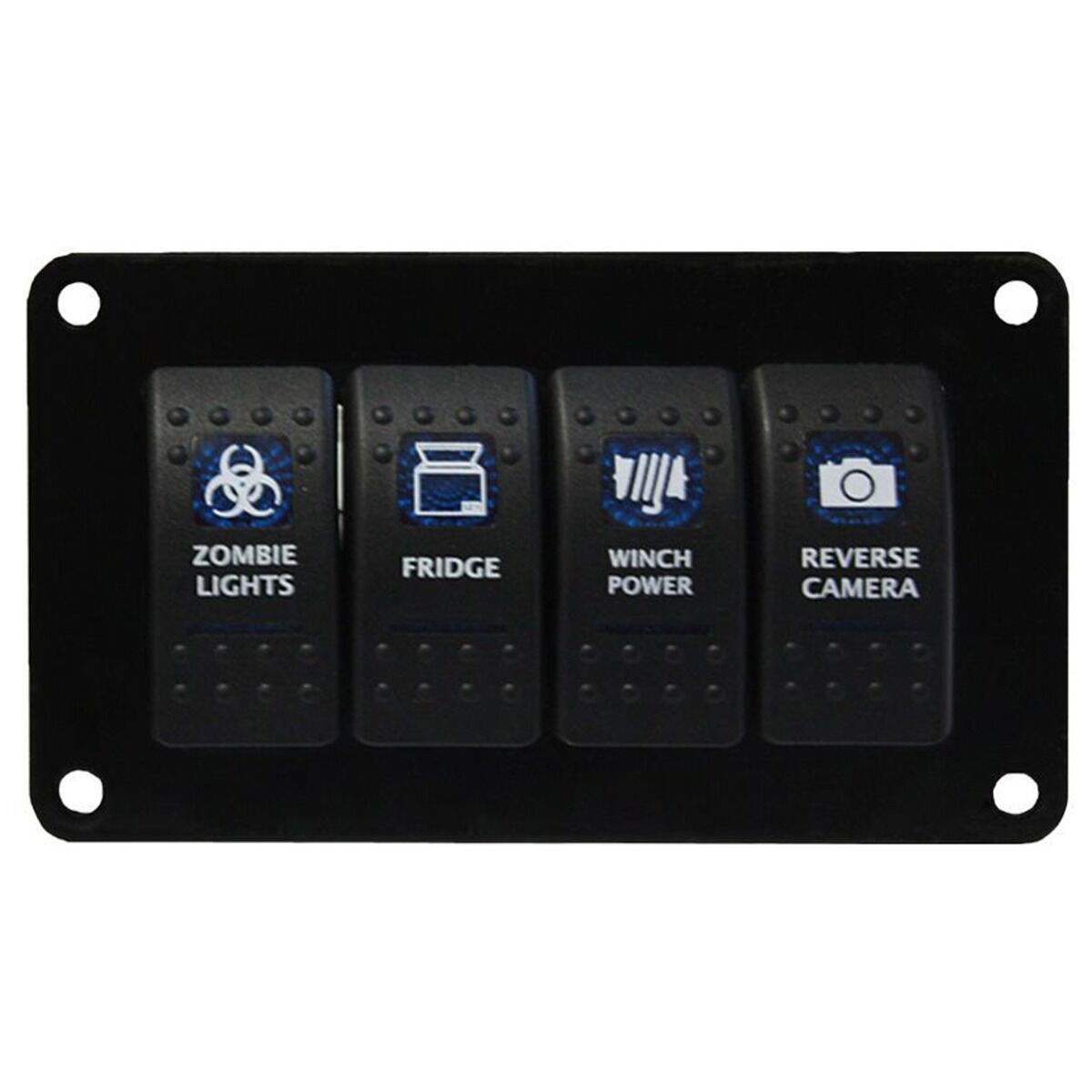

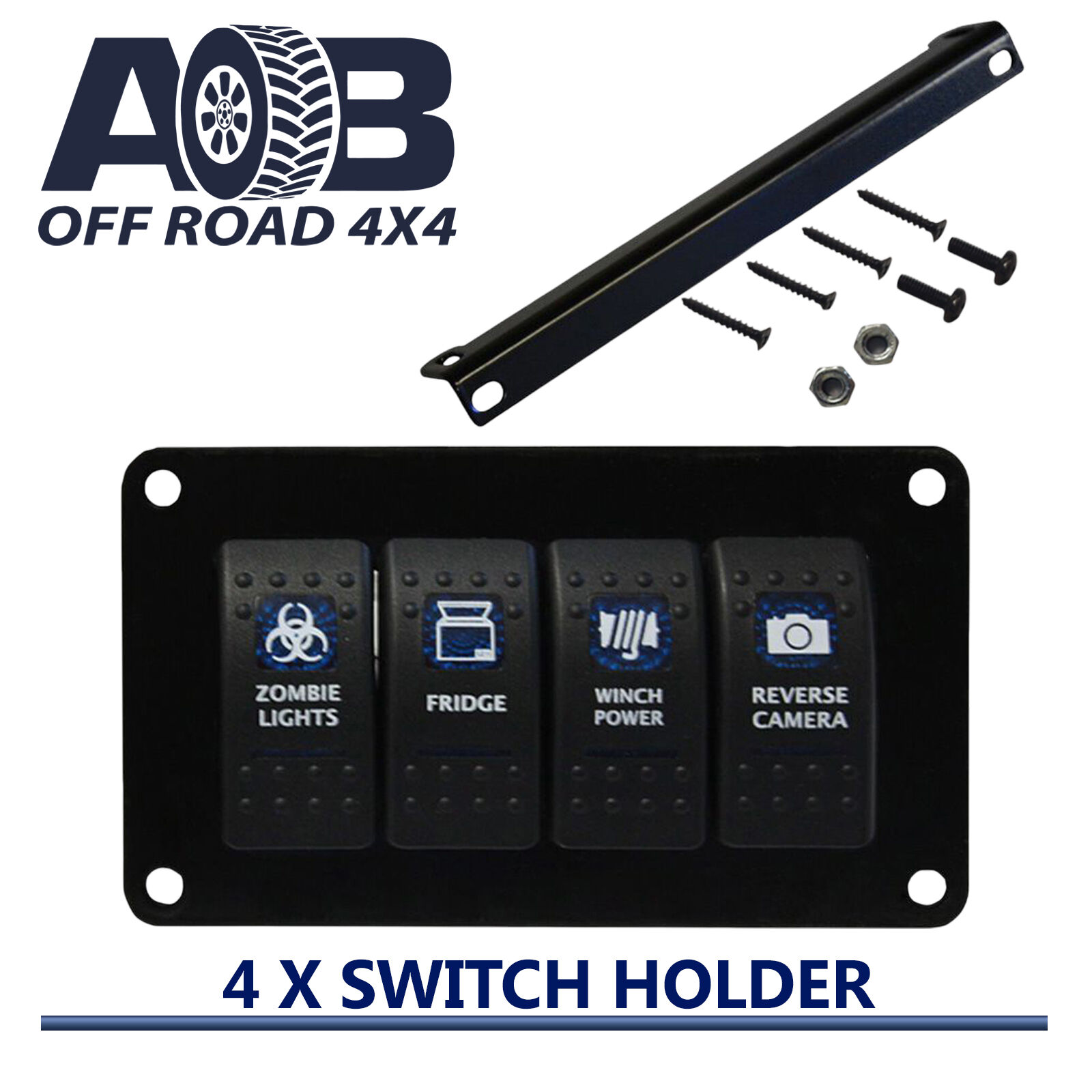

MOUNTING BRACKET for 4 x CARLING TYPE ROCKER SWITCHES
TO SUIT OUR 500 SERIES SWITCHES ONLY

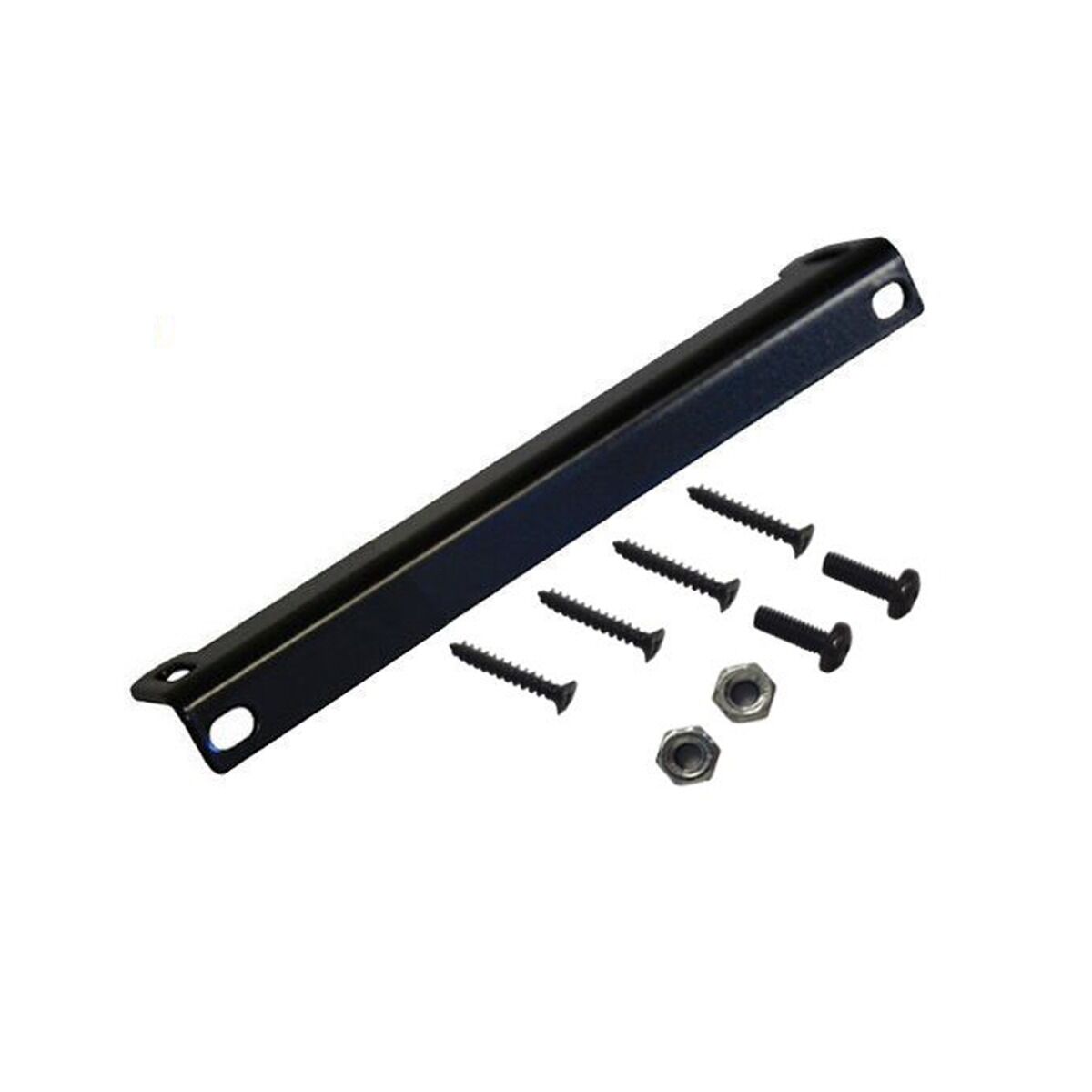

This high quality Rocker switch mounting bracket from AOB is a steel powder coated bracket. included with the sale comes a right angle bracket which will allow you to mount the switch bracket as an under dash assembly or use the flat panel to mount directly to a dash position. This strong bracket gives you unlimited options to mount many extra switches to your vehicle. Included with this sale is also the bolts and screws as shown in the picture.

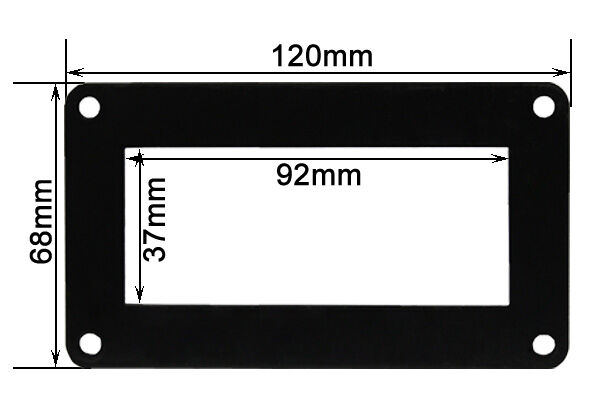

Dimensions

  • Length: 120mm
  • Height: 68mm
  • Switch Hole Size: 92mm x 37mm
  • Screw Hole Diameter: 5mm

Please note the switches are NOT included in this sale.

 2 different options to mount the switch panel

This Image shows two different options to mount the switch panel.

As shown the bottom switches are mounted as an under dash version with the aid of the right angle bracket.

The top switches are cut directly into the dash.

For 500s Carling Type Rocer Switches, please CLICK HERE


Length: 70mm Width: 90mm Height: 1mm
SKU AOBSP4500
Shipping Weight 0.1600kg
Shipping Width 0.090m
Shipping Height 0.010m
Shipping Length 0.070m
Assembled Length 0.160m
Assembled Height 0.010m
