Direct OEM Replacement ON-OFF/MOMENTARY Push Switch

Small Square Push Latching type Switch Designed FOR:

Toyota LandCruiser 300s 2022 - Onwards

 Hilux 2025 - Onwards

Toyota LandCruiser 70s 2024 - Onwards

Toyota Prado 150s 08/2017 - Onwards

Toyota Prado 250s 2024 - Onwards

Toyota RAV4 & RAV4 Hybrid 01/2019 - Onwards

Toyota Camry 70 Series 09/2017- Onwards

Toyota Hiace 02/2019 - Onwards

Toyota Corolla 06/2018 - Onwards

Please check the hole size before purchase

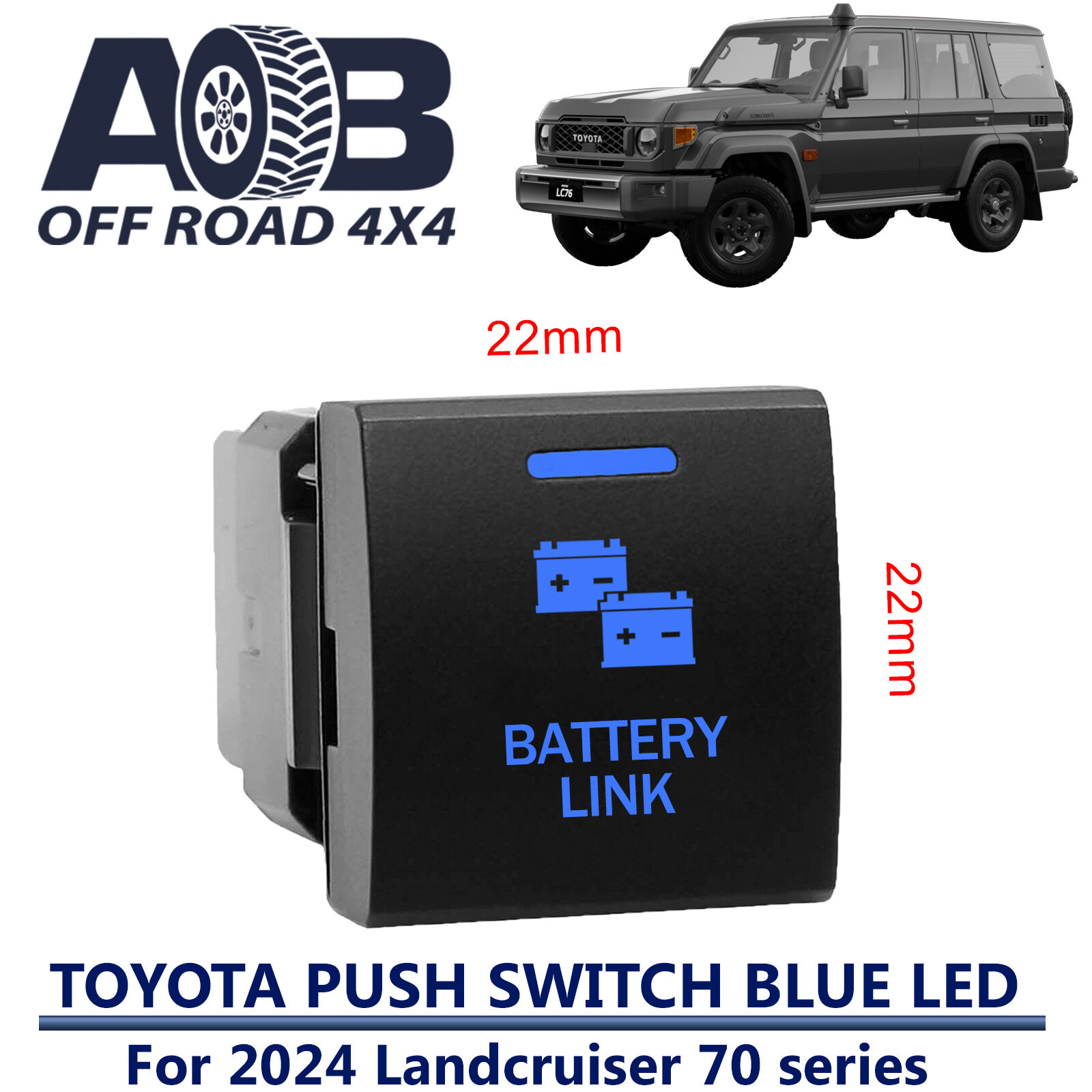

This 12 volt push switch from AOB is a single throw ON-OFF/MOMENTARY switch designed to operate your 12 volt accessories. It has a face surface size of 22 mm x 22 mm and uses the original mounting hole of the vehicle.

This switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.

  • Single Pole Single Throw ON-OFF/MOMENTARY PUSH switch
  • Laser etched Logo & text
  • Upper light is ON when the switch is pressed IN.
  • Lower light can be wired to separate dash light circuit.
  • Rated at 3Amp 12V.
  • Wiring diagram supplied with switch.

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. MUST be wired through a fused relay.

Rear picture of AOBSWT100 series TOYOTA & Push Button Switch

T100s Push Switches

Rear picture showing terminals. Wiring harness and wiring diagram are supplied with switch purchase.

Light Illumination effect of AOBSW900 series HILUX, PRADO & HIACE Push Button Switch with dual LED LIGHTS in BLUE

T100s Switches Illumination

When switch is turned on the top light illuminates.

The bottom light (bar) has an Independent wiring circuit to connect to your dash lights. You can connect it to the dash light circuit or leave off, your choice.

(sample image with the LED LIGHT BAR logo)

Face size 22mm x 22mm | Cut out hole size 20.5mm (W) x 20.5mm (H) | 12volt 3 Amp

SKU SWT1B63
Shipping Weight 0.0240kg
Shipping Width 0.095m
Shipping Height 0.030m
Shipping Length 0.160m
Shipping Cubic 0.000456000m3
Unit Of Measure Each
