Direct OEM Replacement ON-OFF Push Switch
With Dual LED lights in AMBER/WHITE

Mitsubishi Switch Designed FOR:

Triton MV - 2024 - Onwards
Outlander - 2021 - Onwards
Please check the hole size before purchase

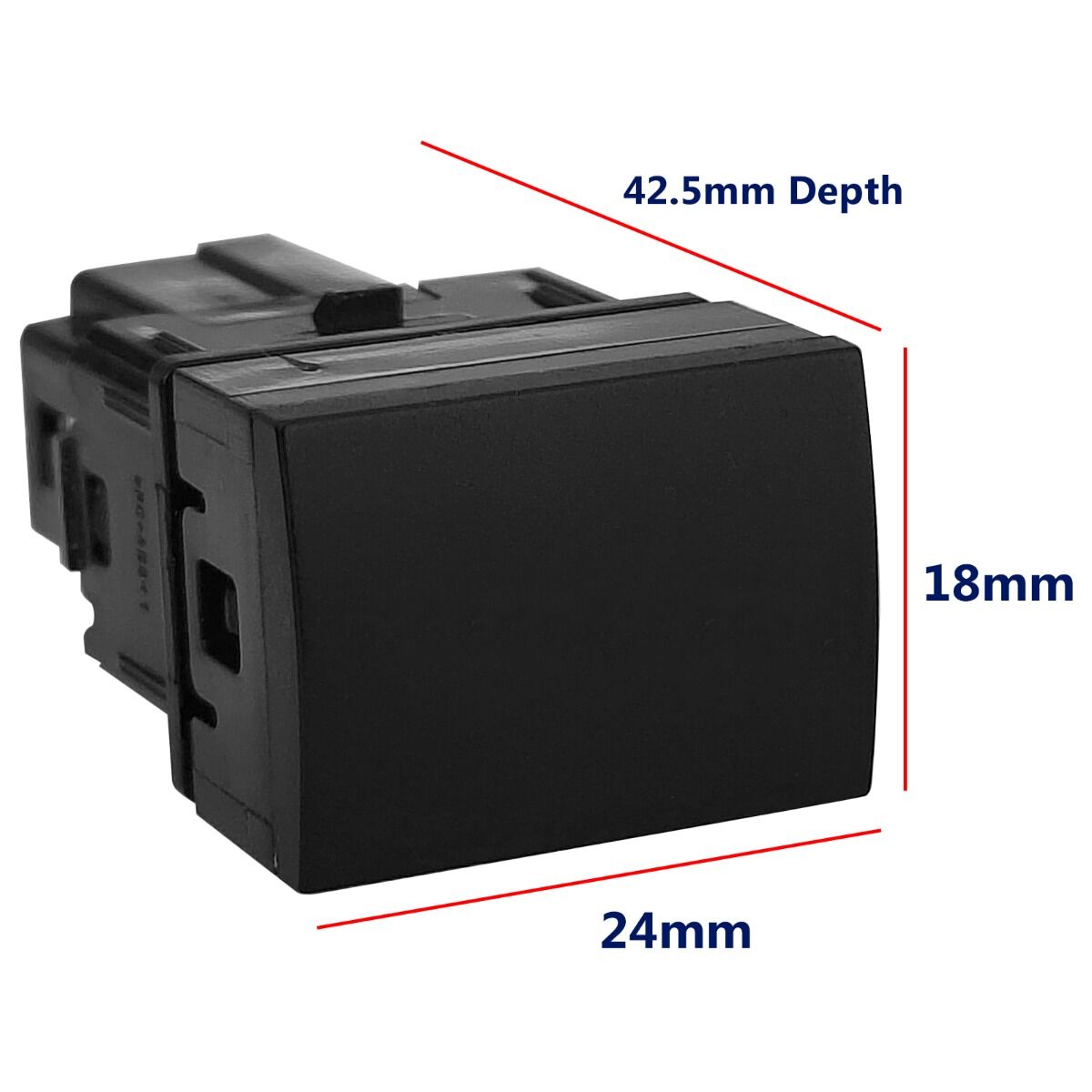

This 12 volt push switch from AOB is a single throw ON - OFF switch designed to operate your 12 volt accessories. It has a face surface size of 24 mm x 18 mm and 42.5 mm Depth no wiring plug or 52 mm Depth with wiring.

This Switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. Accessory MUST be wired through a fused relay.

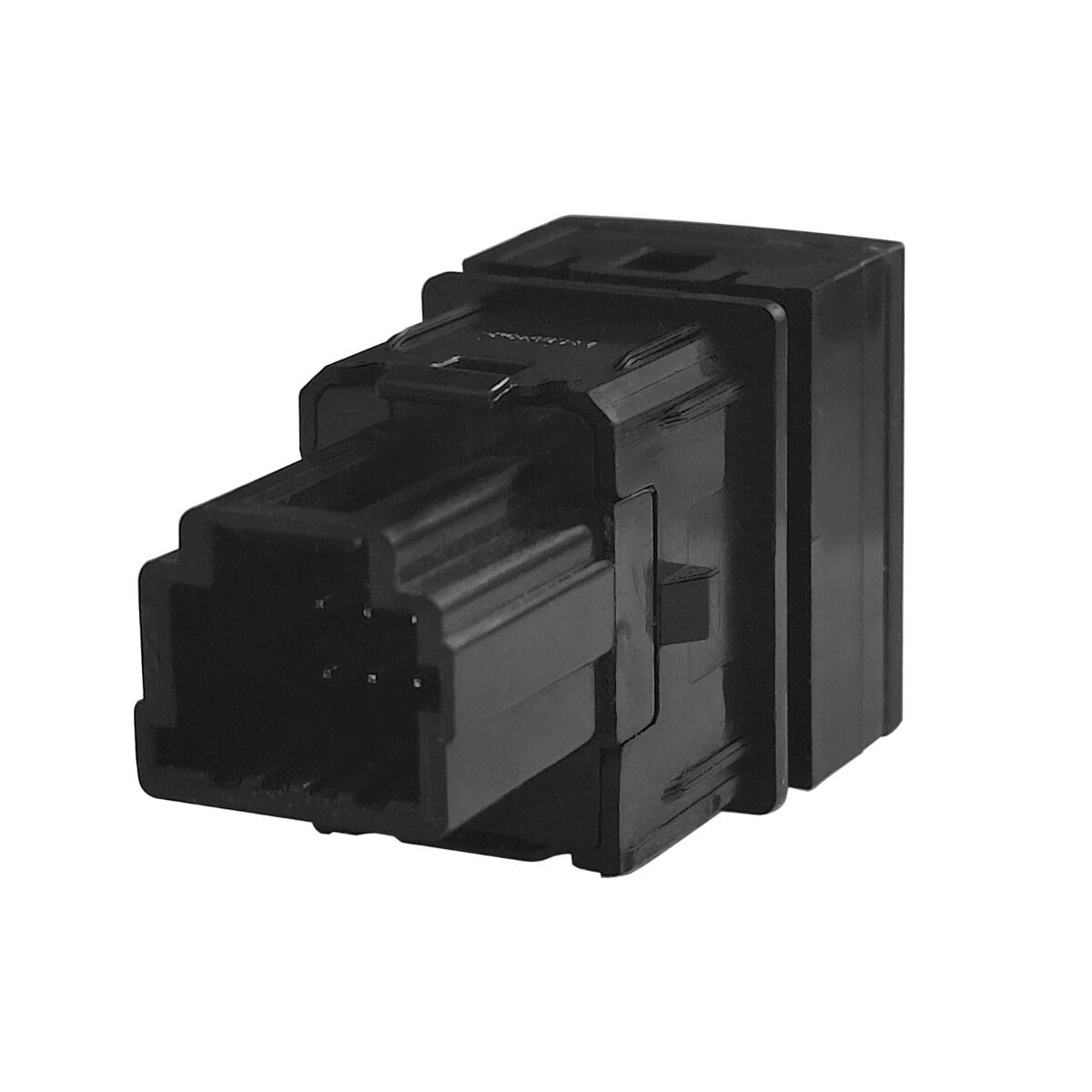

Rear picture of AOBSWT100 series TOYOTA Push Button Switch

Rear picture showing terminals and wiring harness supplied with switch Wiring diagram will be supplied with switch.

Light Illumination effect of AOBSWT100 series TOYOTA Push Button Switch with dual LED LIGHTS in WHITE

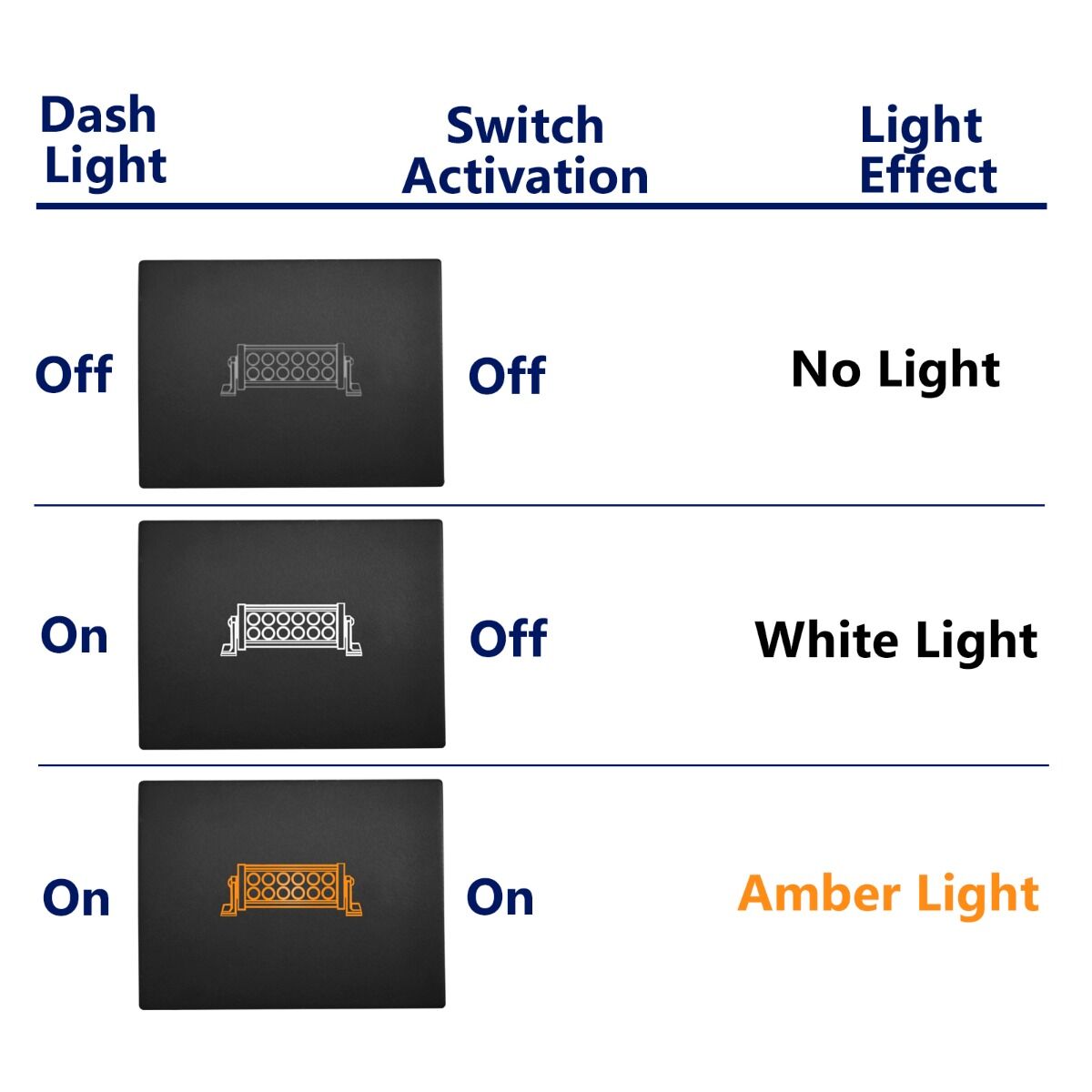

AOBSWM300 series Illumination

  • With dash lights switched on light illuminates WHITE matching the factory illumination
  • When switch is activated the light changes from WHITE to AMBER
  • The WHITE light has an Independent wiring circuit to connect to your dash lights. Optional dash light circuit .
  • The AMBER light is dependent of switch operation

(this is a sample image with the LED LIGHT BAR logo)

Face Size 23.7mm (W) x 17.7mm (H) | Cut Out size 22.05mm (W) x 16.15mm (H) | 12V 3A
SKU SWM321AW
Shipping Weight 0.0220kg
Shipping Width 0.020m
Shipping Height 0.035m
Shipping Length 0.070m
Unit Of Measure Each
