Direct OEM Replacement ON-OFF Push Switch
With Dual LED lights in AMBER/WHITE

NEW Mitsubishi Switch Designed FOR:

Triton MV
2024 - Onwards
Outlander
2021 - Onwards

Please check the hole size before purchase

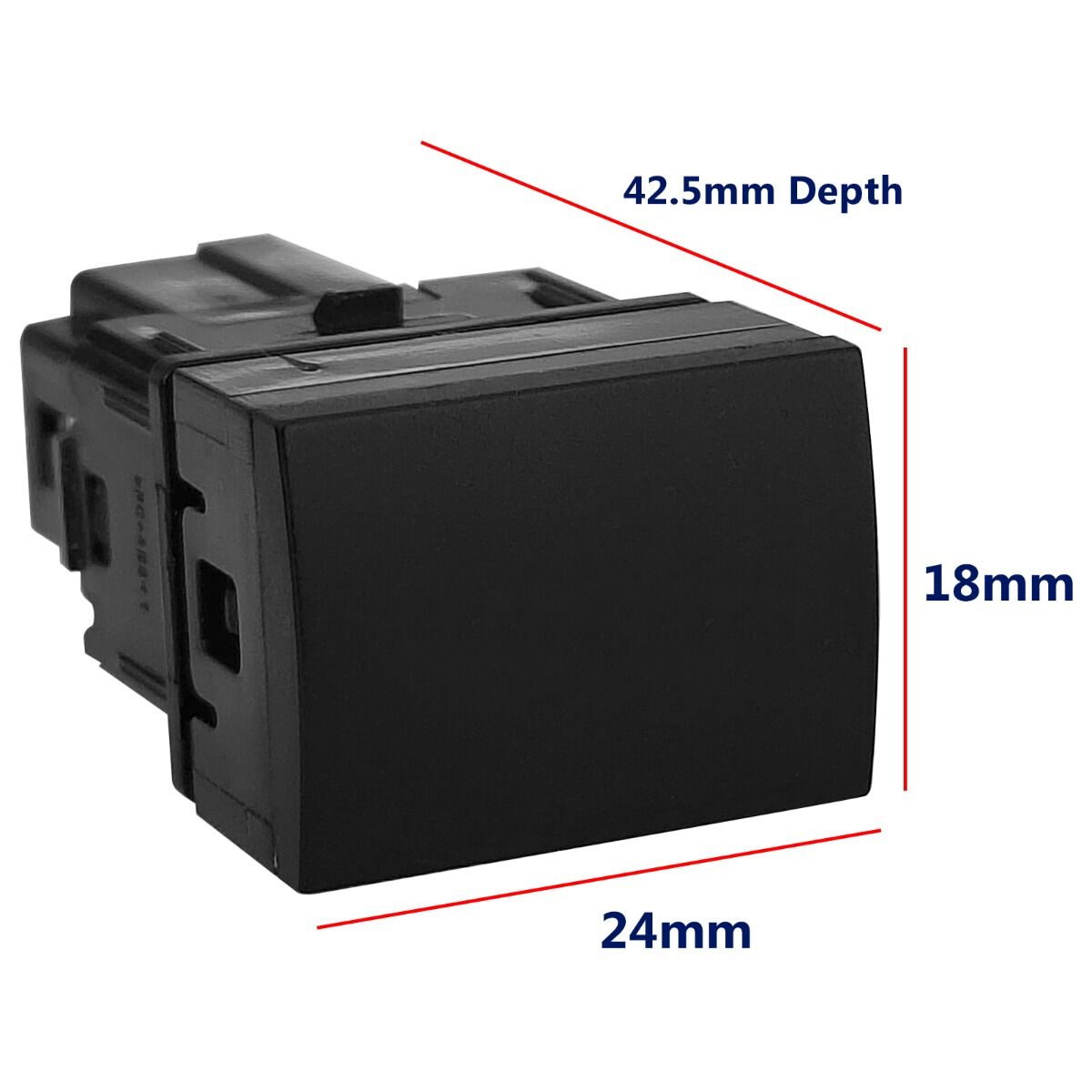

This 12 volt push switch from AOB is a single throw ON - OFF switch designed to operate your 12 volt accessories. It has a face surface size of 24 mm x 18 mm and 42.5 mm Depth no wiring plug or 52 mm Depth with wiring.

This Switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. Therefore in ALL cases the accessory MUST be wired through a fused relay.



Rear picture of AOBSWT100 series TOYOTA Push Button Switch

AOBSWM300 series

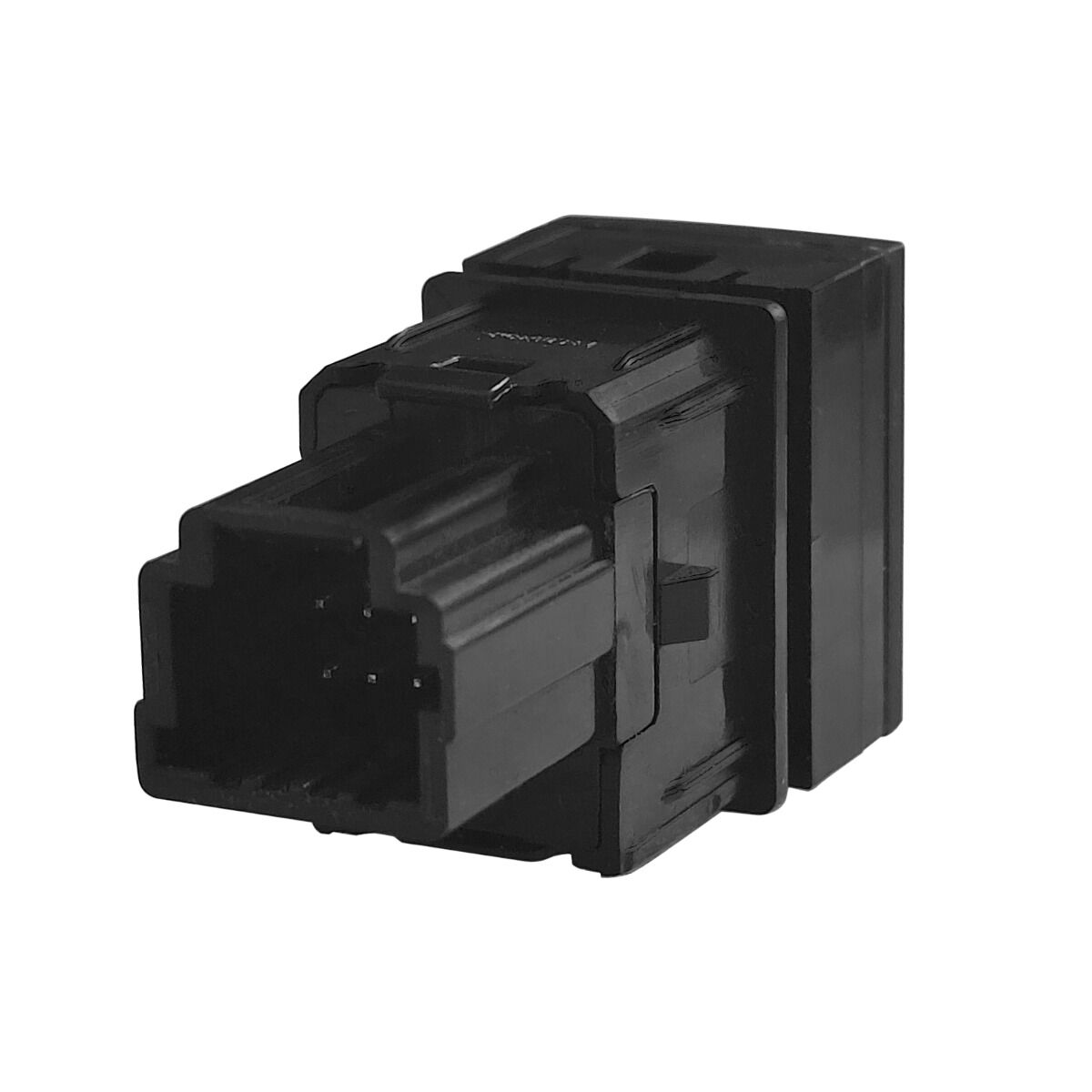

Rear picture showing terminals and wiring harness supplied with switch

Wiring diagram will be supplied with switch purchase.

Light Illumination effect of AOBSWT100 series TOYOTA Push Button Switch with dual LED LIGHTS in WHITE

AOBSWM300 series Illumination

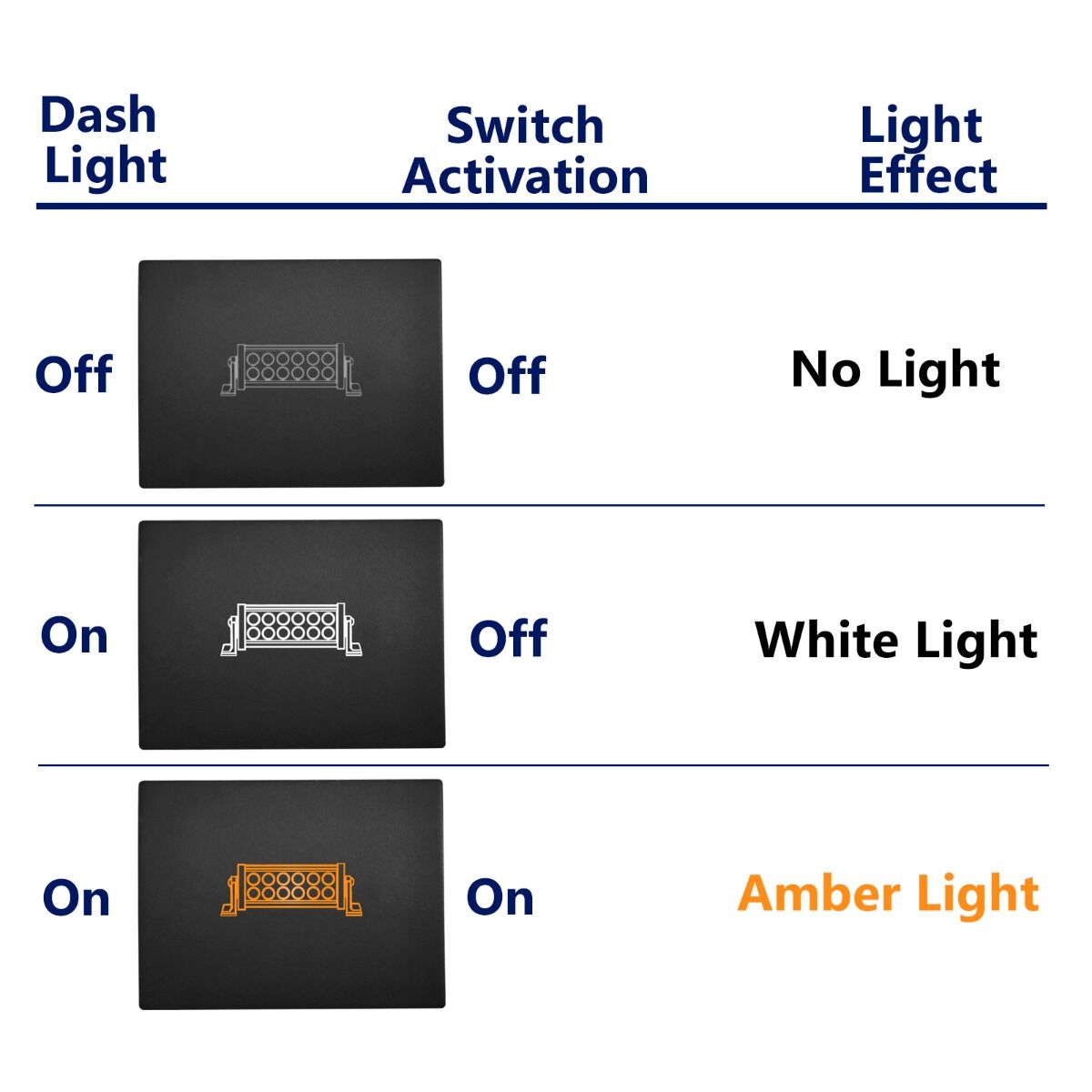

  • With dash lights switched on light illuminates WHITE matching the factory illumination
  • When switch is activated the light changes from WHITE to AMBER
  • The WHITE light has an Independent wiring circuit to connect to your dash lights. You can connect it to the dash light circuit or leave off, it's your choice.
  • The AMBER light is dependent of switch operation

(this is a sample image with the LED LIGHT BAR logo)

Length: 70mm Width: 20mm Height: 35mm

SKU SWM3B54
Shipping Weight 0.0220kg
