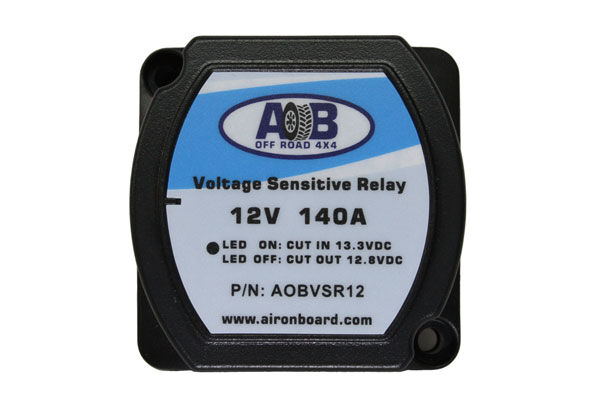

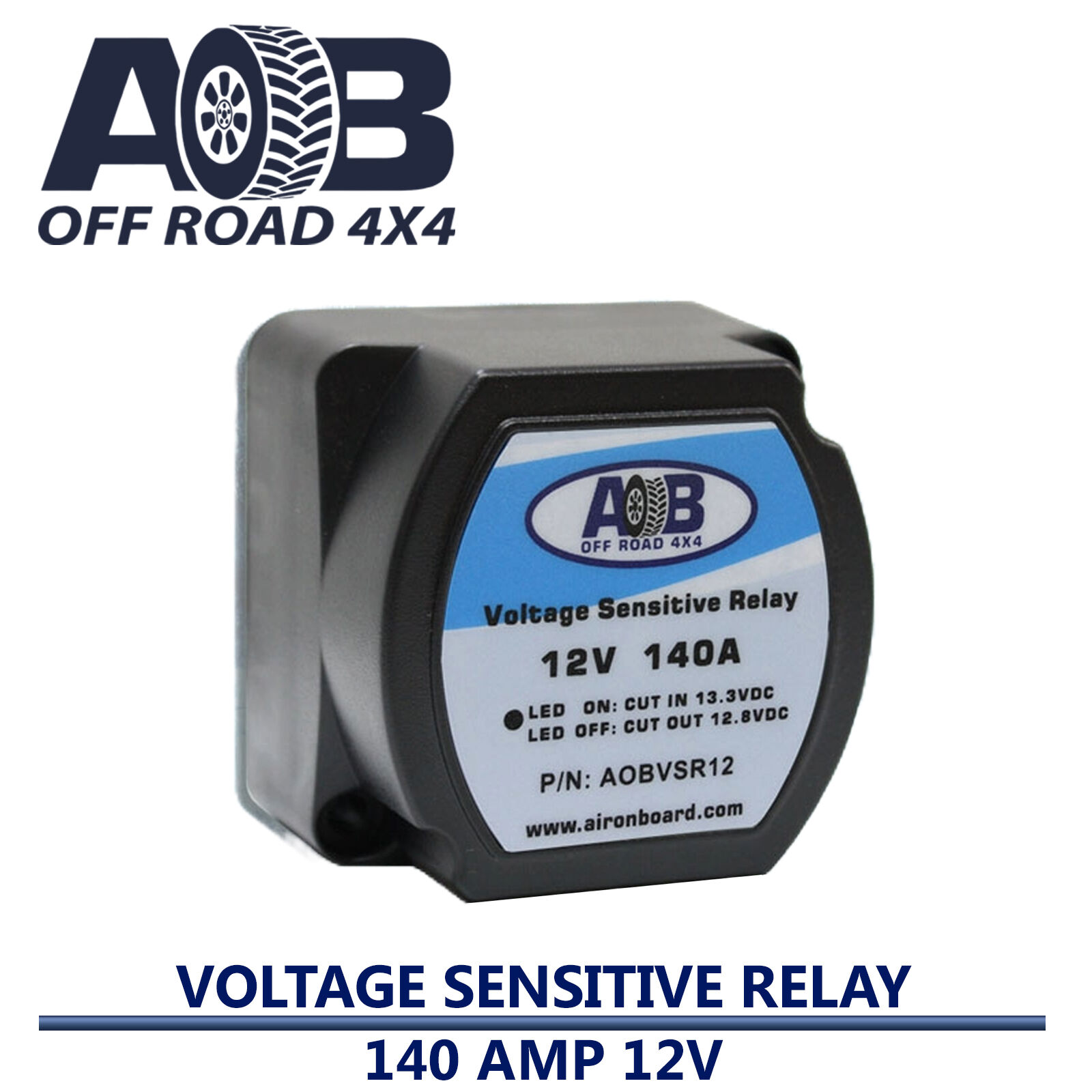

Voltage Sensitive Relay (VSR)

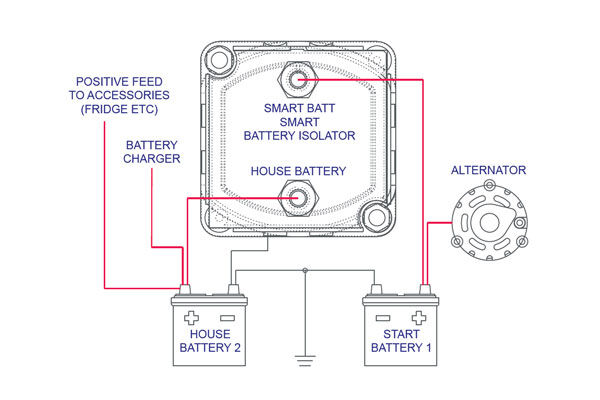

Our AOB VSR allows automatic separation and connection of the main (starting) battery in parallel with auxiliary battery according to the voltage level of the main battery. This isolator will constantly scan the main battery voltage level for connection and charging of the auxiliary battery to the main battery for charging.

Features:

  • Easy Installation
  • For Dual Battery Systems
  • Surge Protection
  • L.E.D Indicator
  • Suits 4X4, Caravan & Marine

VSR Specifications:

  • Dimensions: 66mm x 66mm x 51mm
  • Weight: 200gms
  • Voltage: 12 Volt
  • Cut in Voltage: 13.3
  • Cut out Voltage: 12.8
  • Amps: 140
Length: 70mm Width: 70mm Height: 50mm
SKU AOBVSR12
Shipping Weight 0.2000kg
Shipping Width 0.070m
Shipping Height 0.050m
Shipping Length 0.070m
Assembled Length 0.280m
Assembled Height 0.060m
