Dual Battery Kit

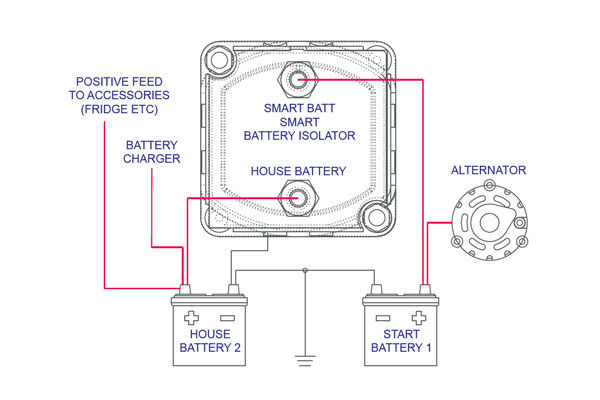

Our AOB Dual Battery Kit allows two batteries to be charged at the same time. When the engine is started and the start battery reaches cut in voltage level, the VSR engages, allowing two battery banks (start and house) to be charged simultaneously. When the voltage drops below cut out voltage level (eg the engine is stopped), the VSR disengages & isolates the batteries. This system eliminates the possibility of draining the start battery and protects sensitive electronic equipment powered from the house battery from harmful engine start up spikes.

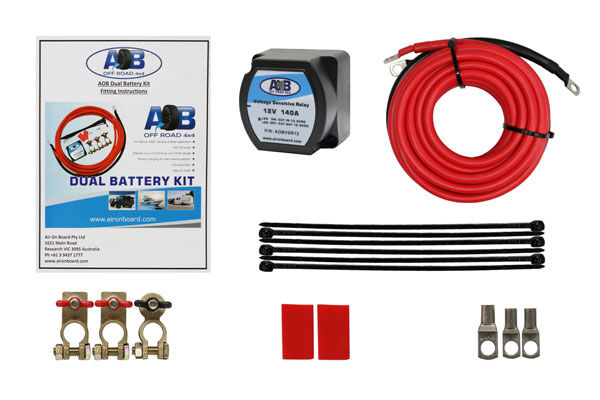

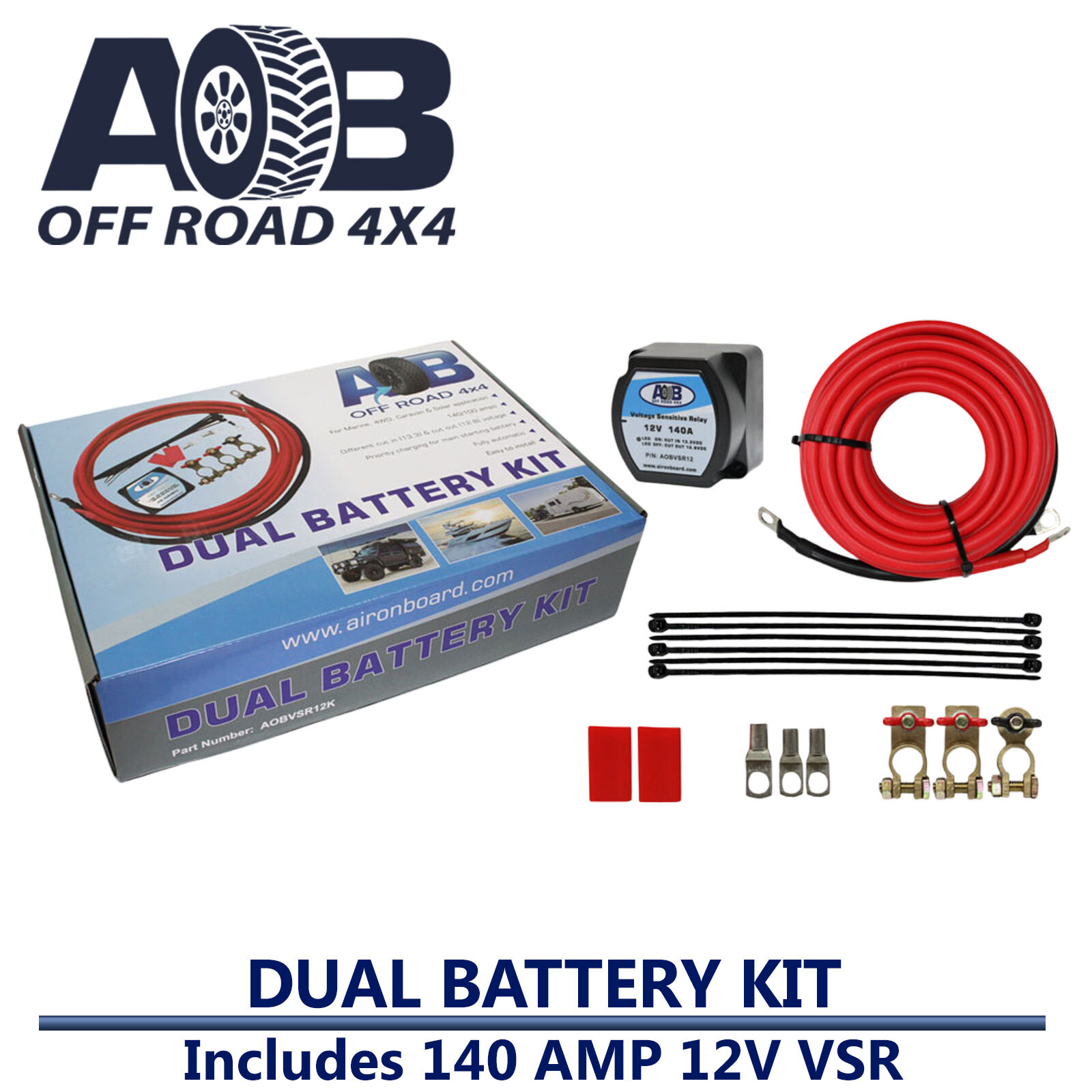

Kit Includes:

• 1 x Smart Battery Isolator with mounting screws
• 1 x 6 meters length of 10mm sq red cable terminated at both ends
• 1 x 61cm (24”) black earth cable
• 1 x Negative Marine battery terminal
• 1 x SC25-10 Copper crimp lug
• 1 x Insulated blue ring terminal
• 2 x 16-8 Copper crimp lugs
• 2 x Red heat shrink
• 2 x Positive Marine battery terminals
• 6 x 200mm cable ties

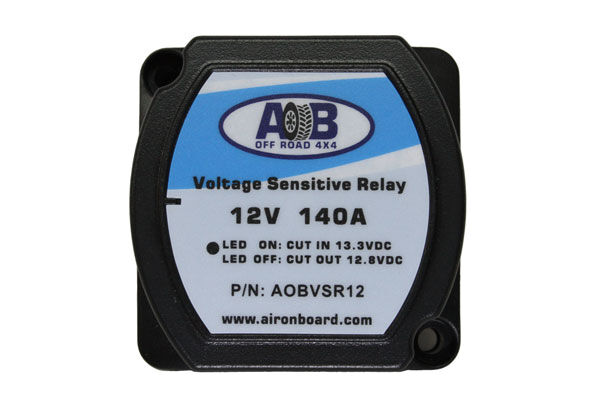

VSR Specifications:

• Dimensions: 66mm x 66mm x 51mm
• Weight: 200gms
• Voltage: 12 Volt
• Cut in Voltage: 13.3
• Cut out Voltage: 12.8
• Amps: 140
• 1 year Warranty
