10 Sets of DEUTSCH DTP SERIES 2-WAY CONNECTORS

Features

AOB Deutsch DTP series connectors are perfect for your power application requirements. DTP builds on the design strengths of the DT and DTM series of connector. Being a more rugged design and capable of higher amperage, taking multiple size 12 contacts each capable of 25-amp continuous capacity.

  • 100% Brand New and High Quality
  • Accepts size 12 contacts
  • 10-14 AWG cable
  • Operating temperature -55C to +125C
  • Strong thermoplastic housing
  • Integrated latch for mating

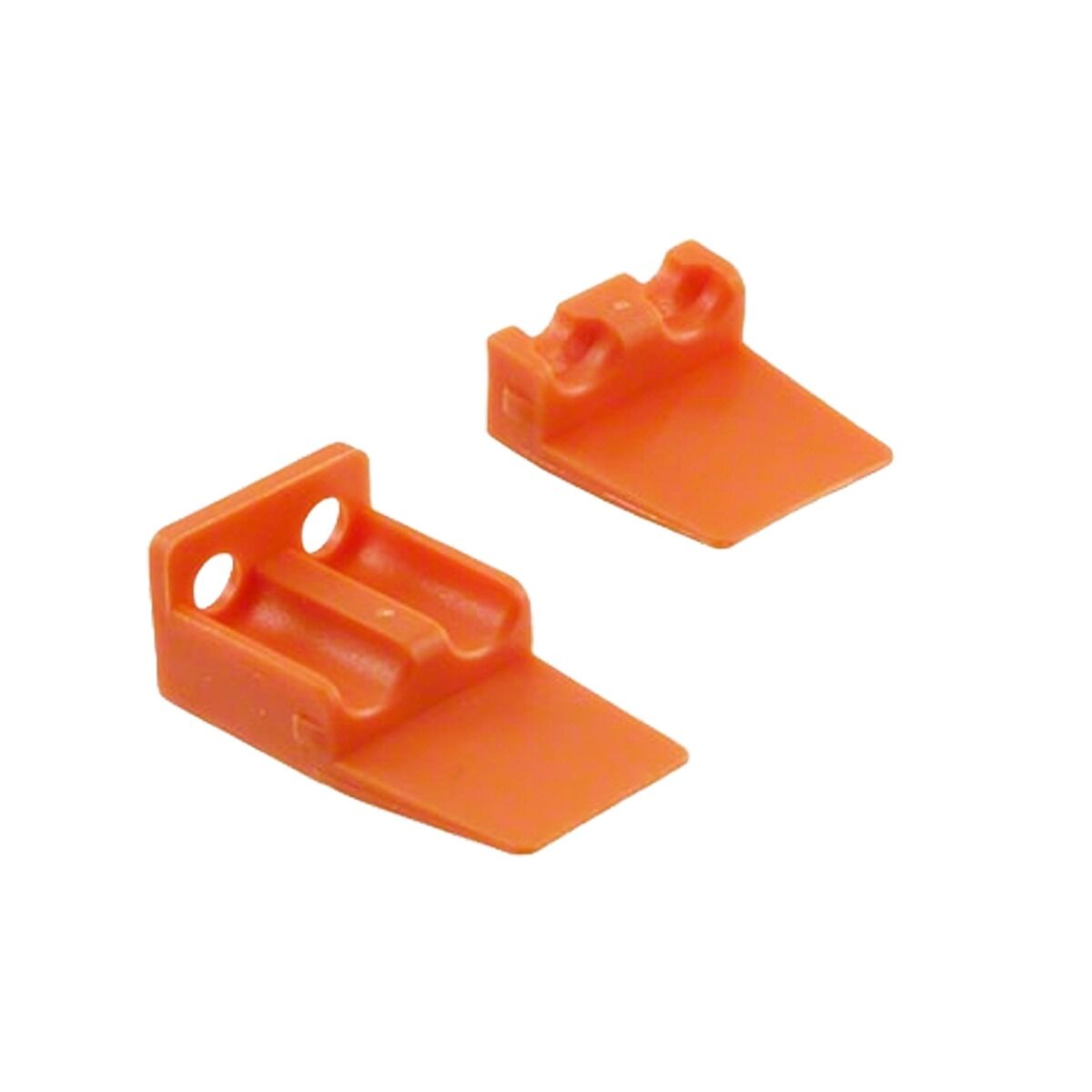

  • Wedge locks to assure contacts aligned and retained
  • Silicone seals
  • Material:
    Grommet material: Silicone rubber
    Receptacle seal: Silicone rubber
    Housing: Thermoplastic
    Insert retainer: Thermoplastic
    Wedge locks: thermoplastic

Deutsch DTP connectors stand up to harsh environments common in Industrial, Marine, Automotive, 4x4 and Heavy equipment applications.

Package

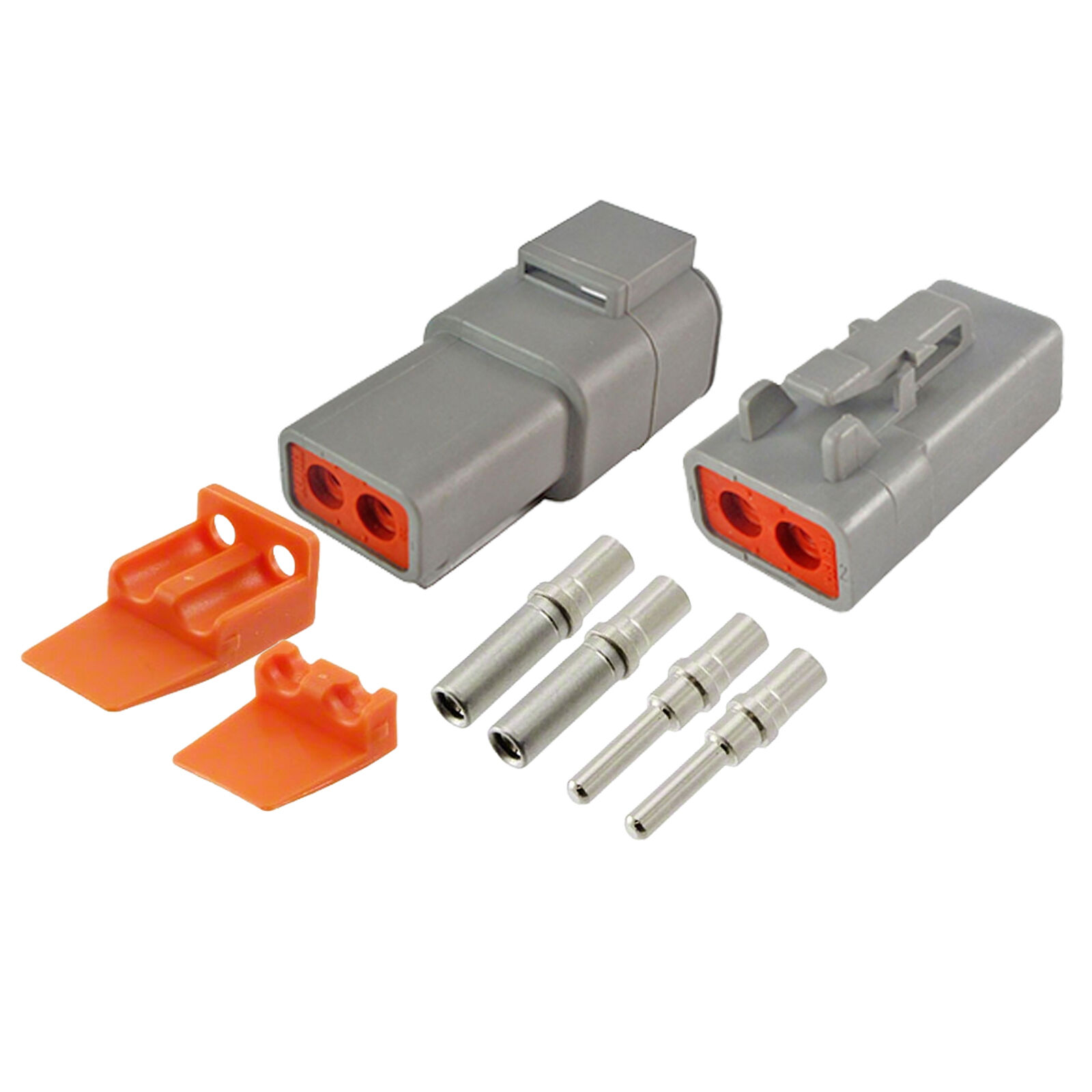

You will receive 10 sets of connectors including:

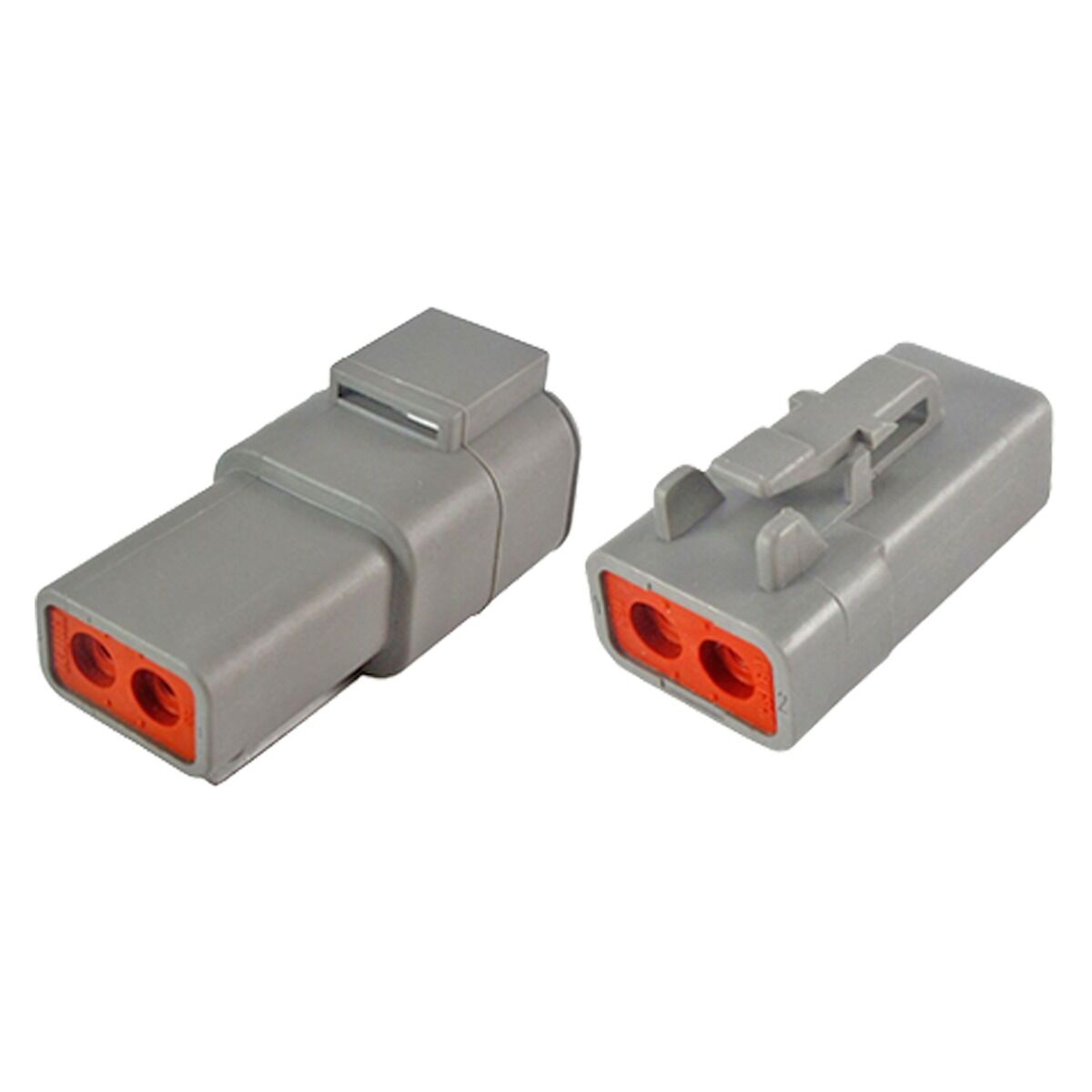

  • 10 X DTP 2-way Male Receptacle with wedge lock
  • 10 X DTP 2-way Female Receptacle with wedge lock

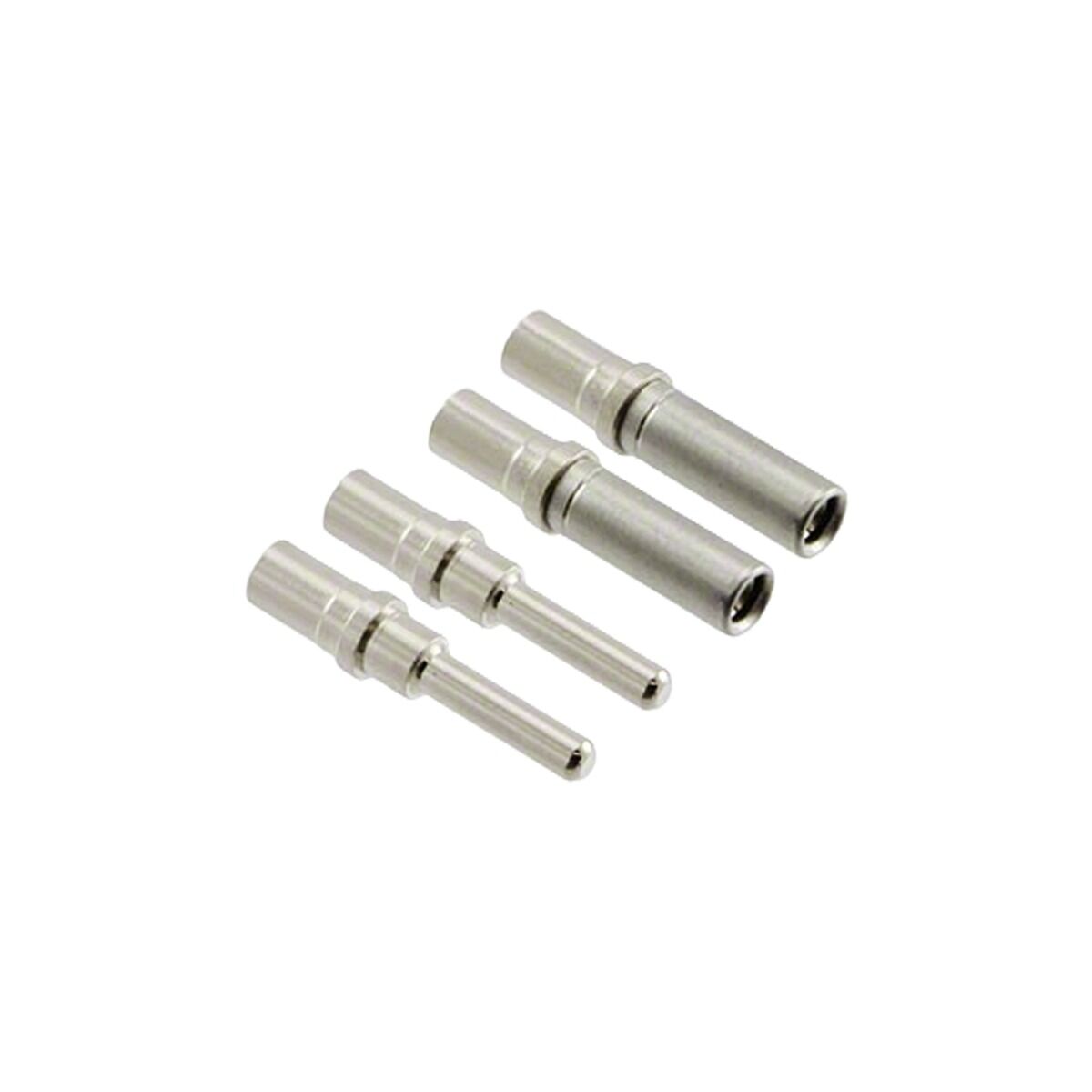

  • 20 X #12 Pin Male contacts 10-14AWG
  • 20 X #12 Pin Female contacts 10-14AWG

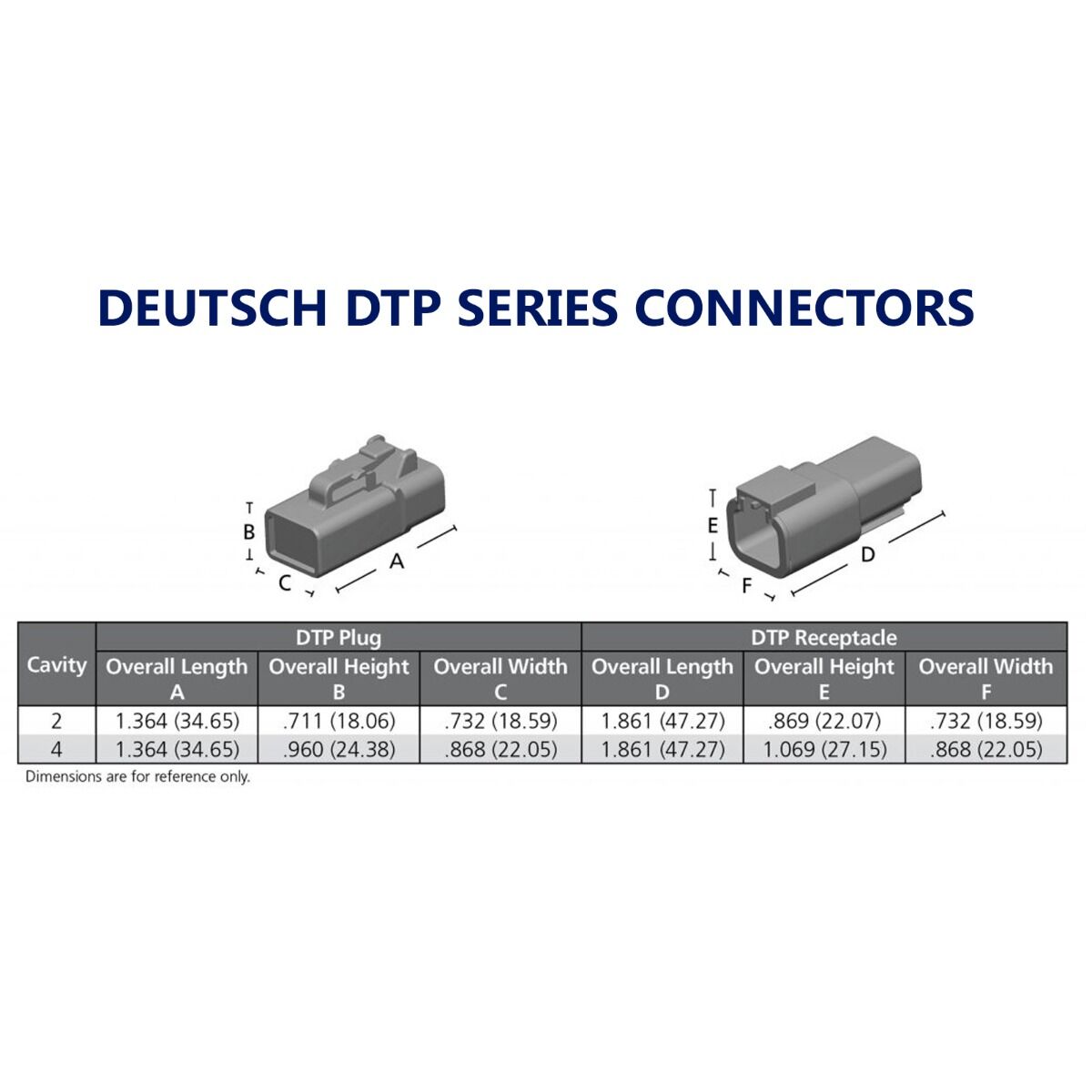

Length: 17mm Width: 3mm Height: 12mm
SKU DTP010
Shipping Weight 0.2480kg
Shipping Width 0.030m
Shipping Height 0.120m
Shipping Length 0.170m
