Complete Air Manifold Set

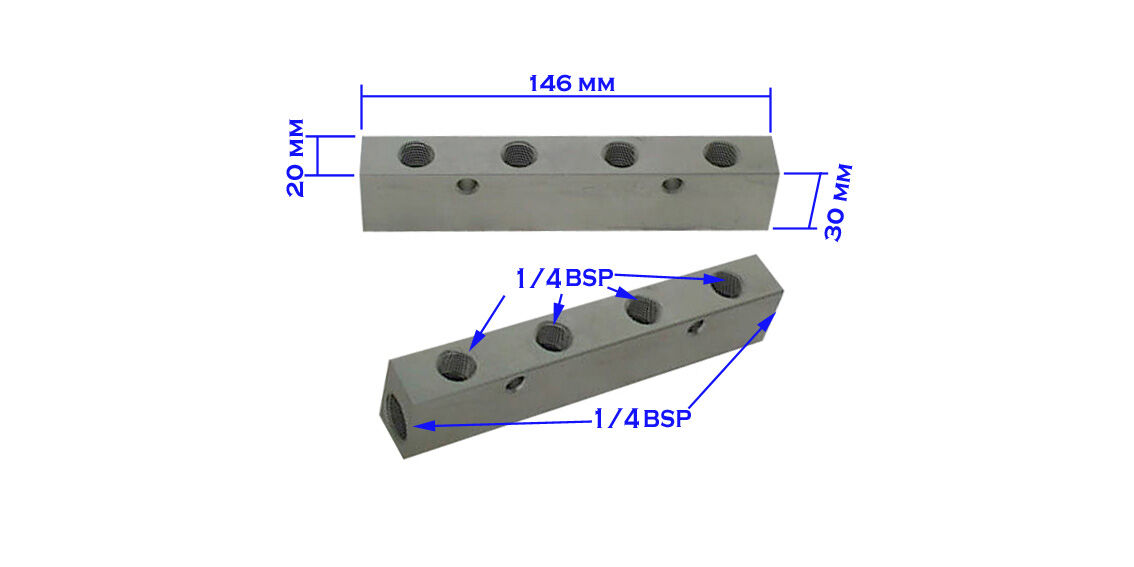

The manifold block is made from a solid Aluminum block. It has 1 x 1/4 BSP female fitting in each end and 4 x ¼ BSP fittings on top. The two mounting holes in the side of the block makes for easy universal fitting in a variety of locations.

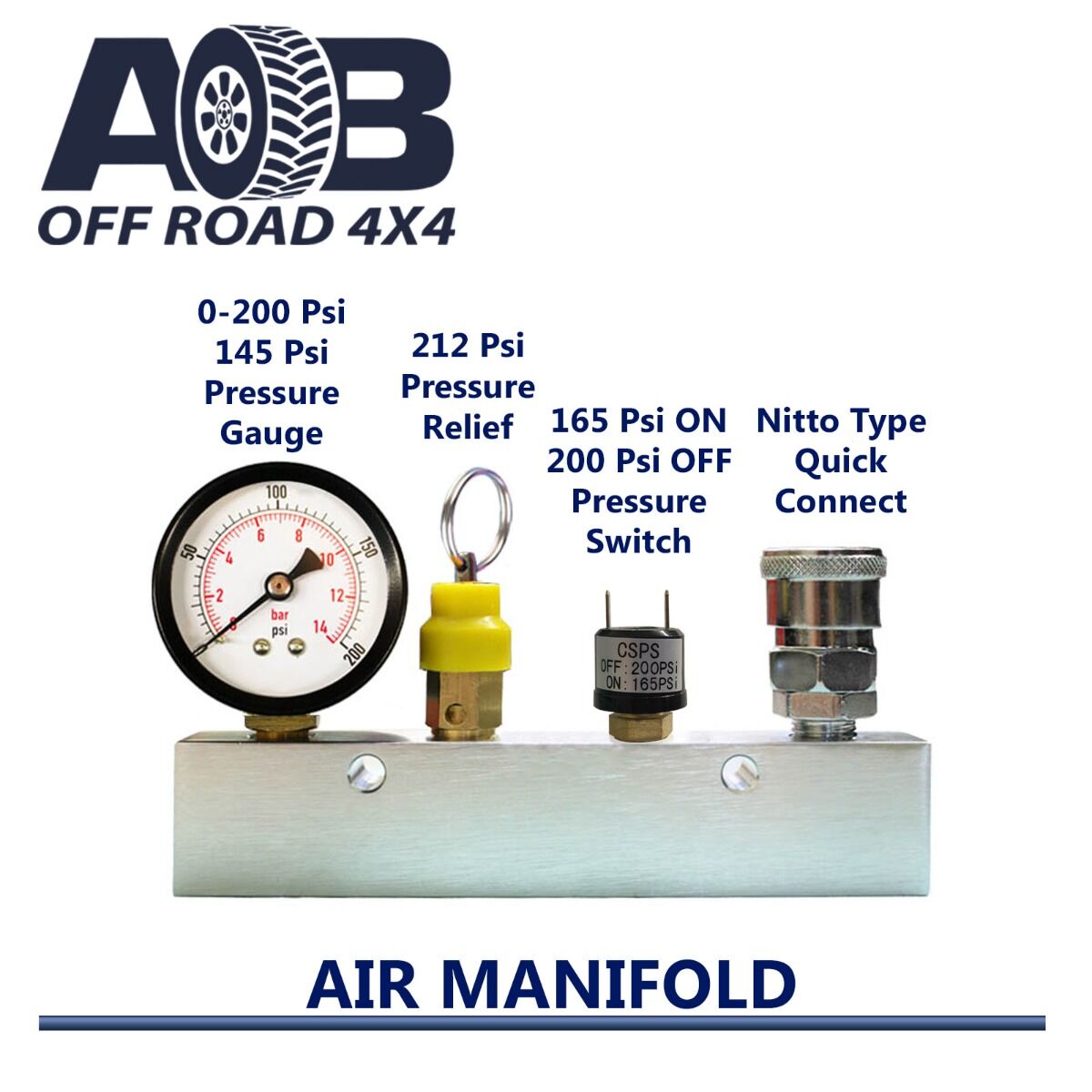

The Manifold block comes fully loaded with the following accessories:

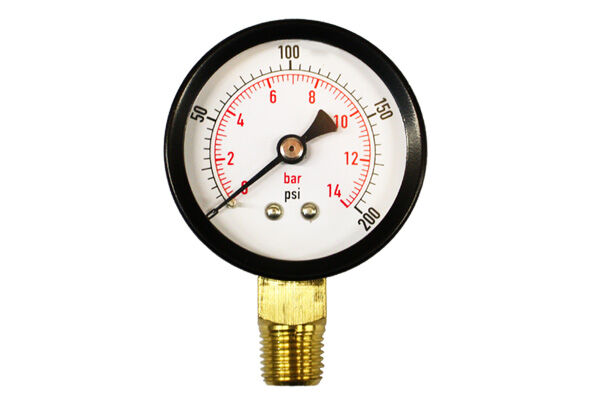

  • 0-200 PSI pressure gauge
  • 212 PSI pressure relief valve

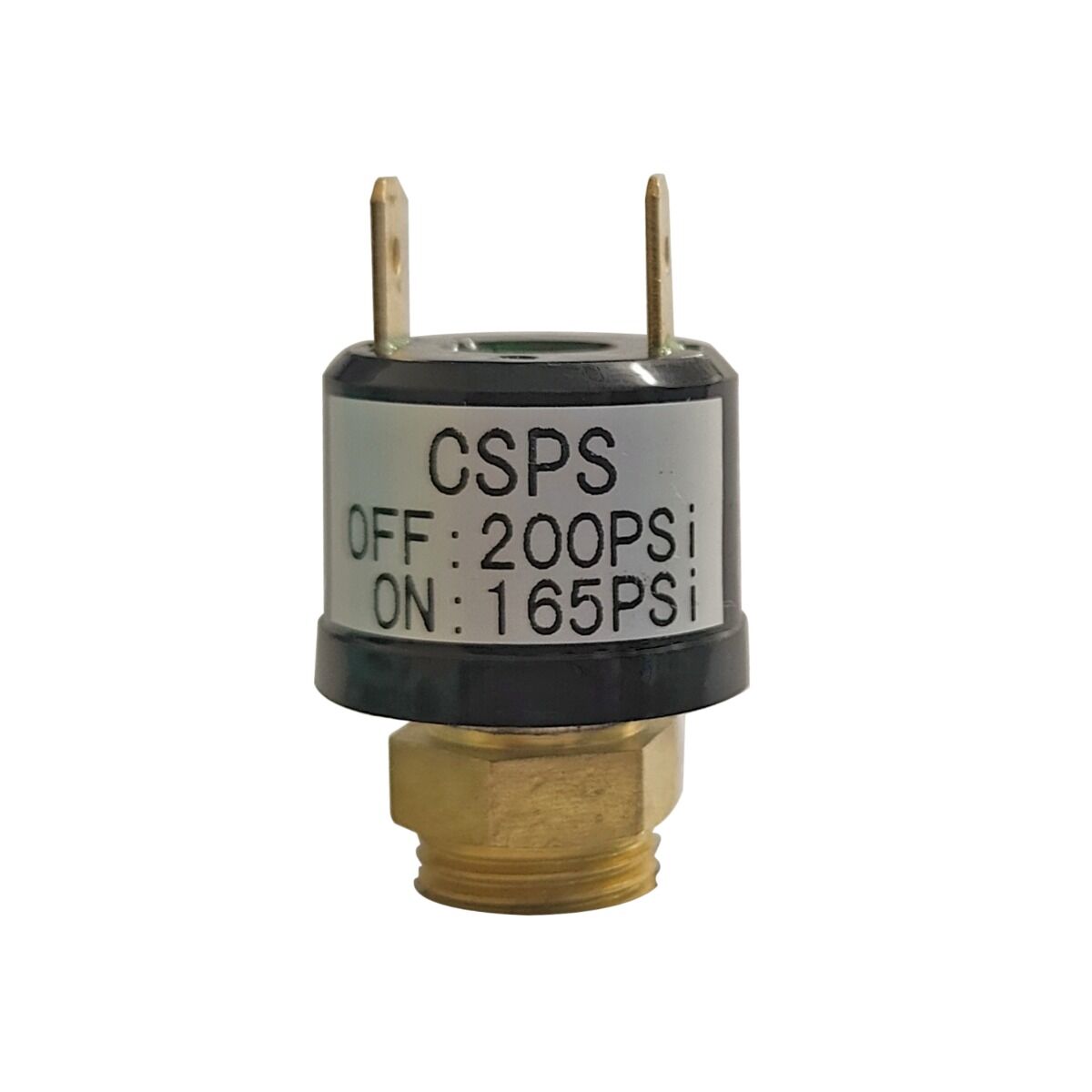

  • 12 volt pressure switch on at 165 psi and off at 200 psi
  • Nitto type quick connect coupling

Fittings might vary depend on availability.

Extra fittings can be purchased separately.

Running up to 200 psi max working pressure it is sure to survive the most rigorous out back travel. (Pressure switch upgrade required)

Length: 90mm Width: 11mm Height: 20mm
SKU MB7165
Shipping Weight 0.4220kg
Shipping Width 0.110m
Shipping Height 0.020m
Shipping Length 0.090m
Type Kit
