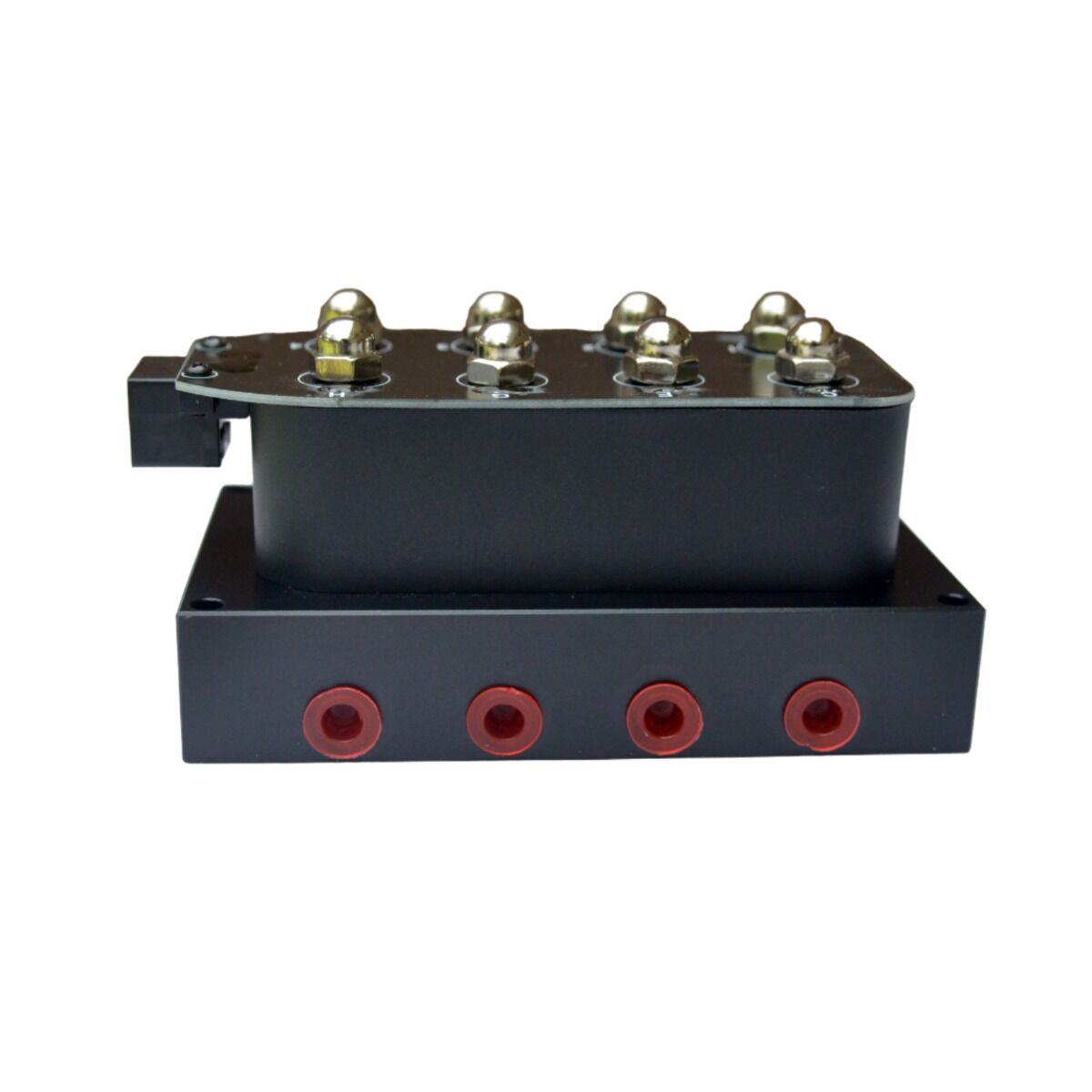

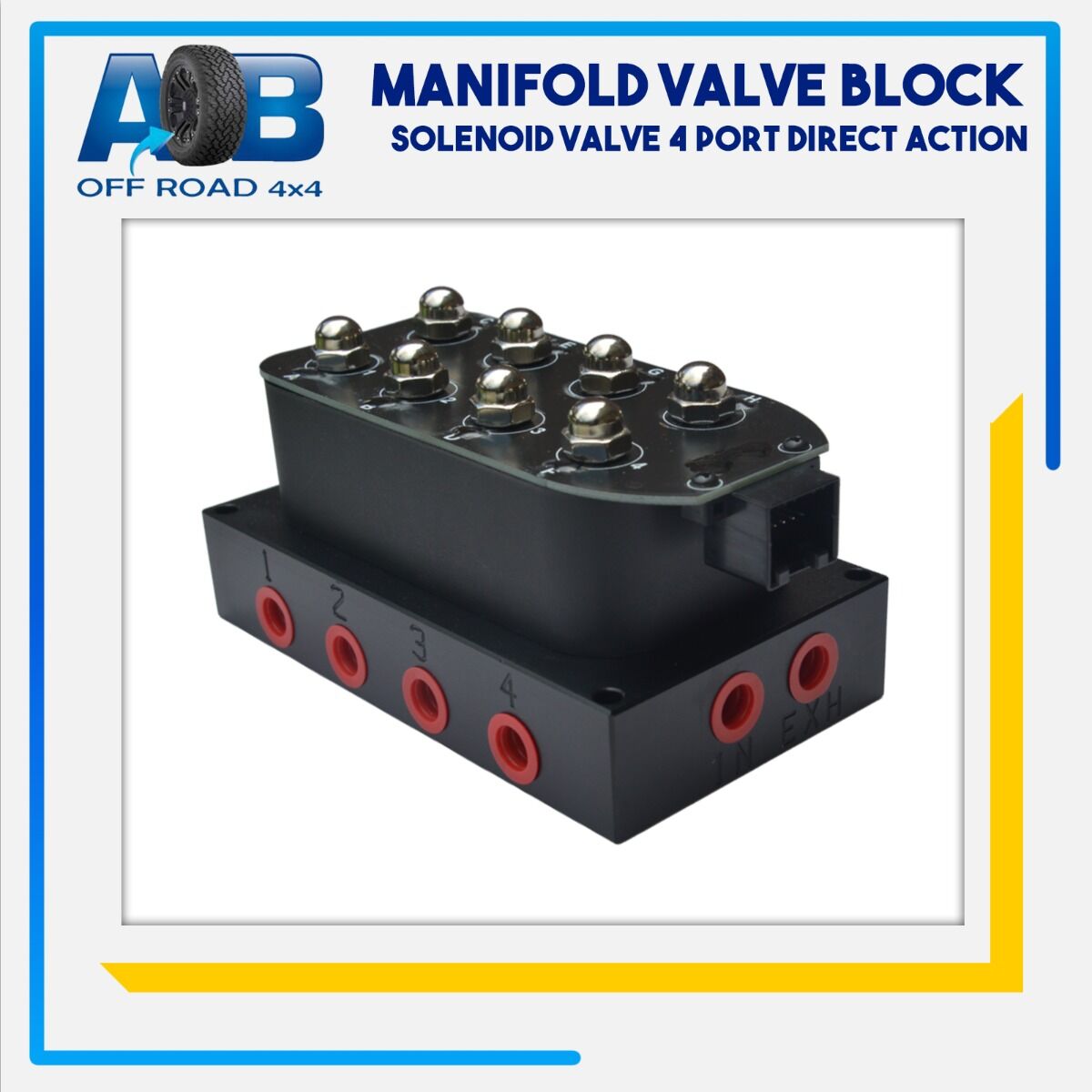

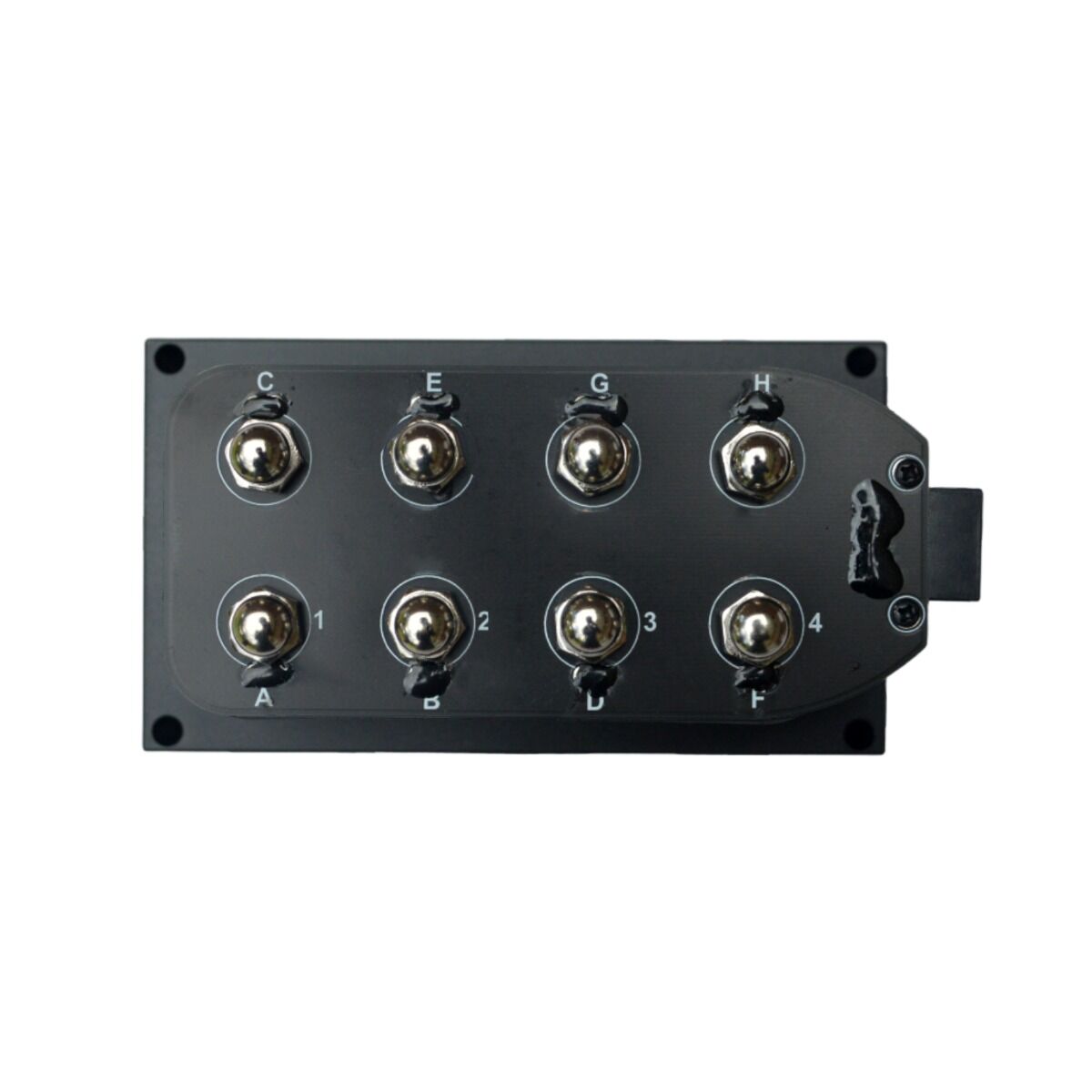

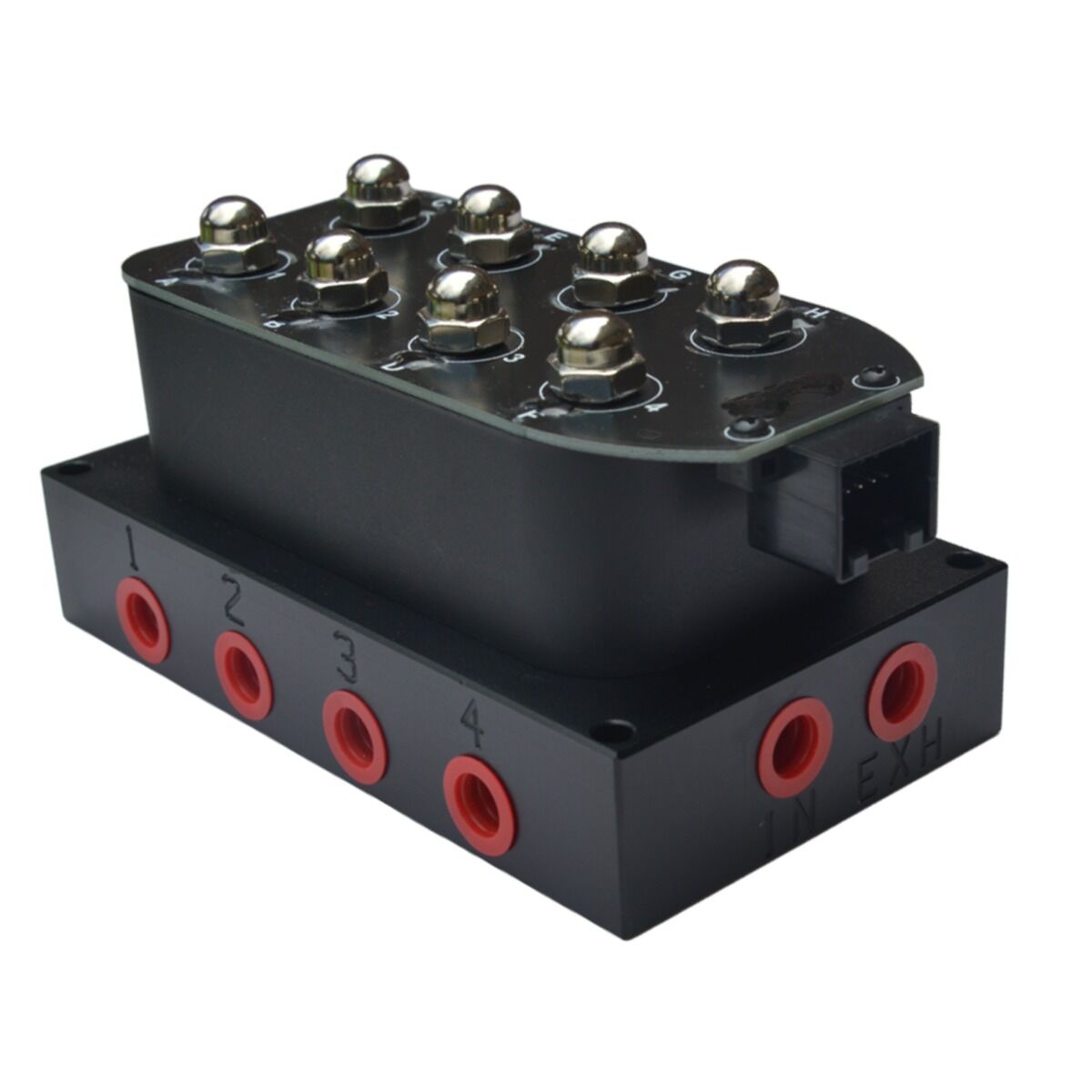

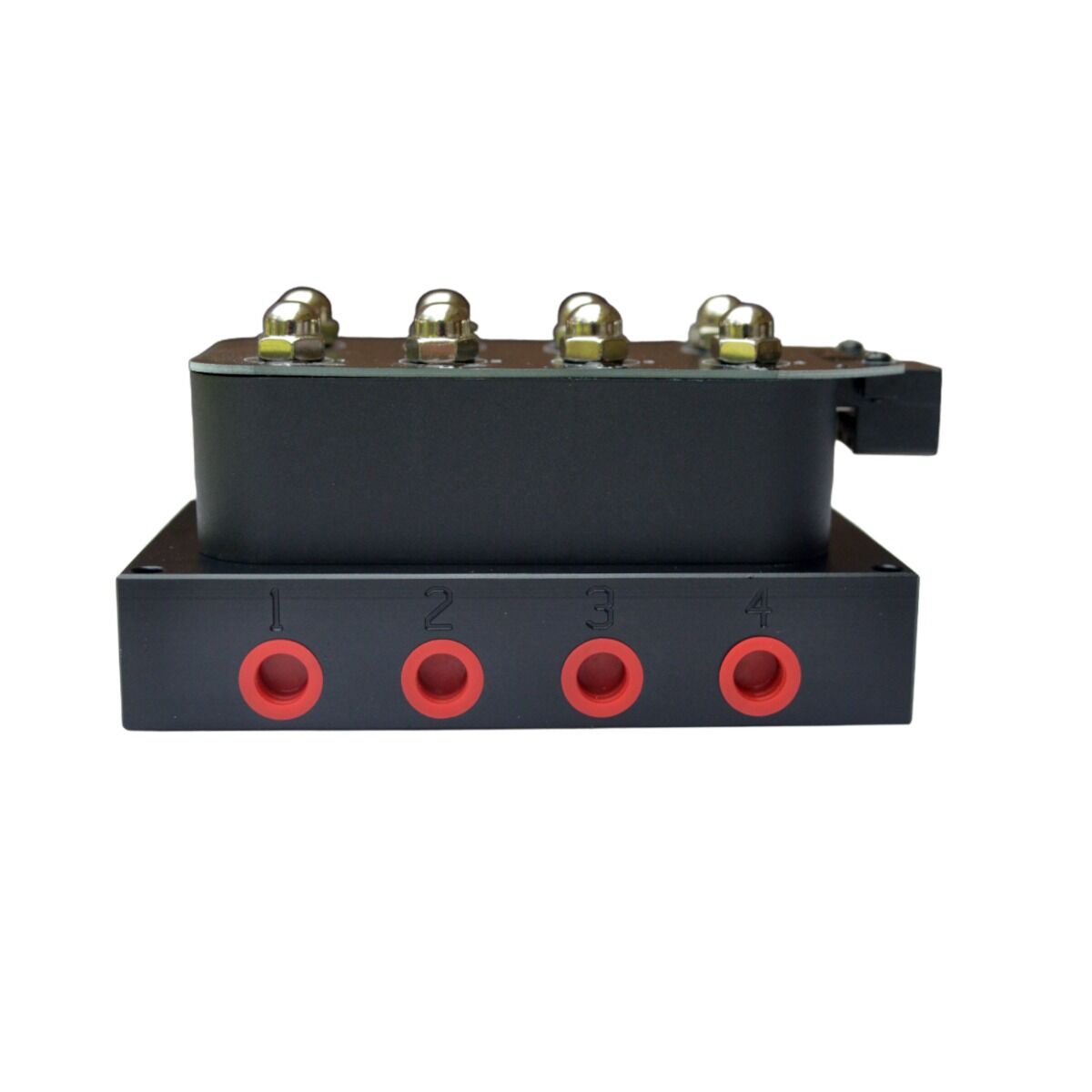

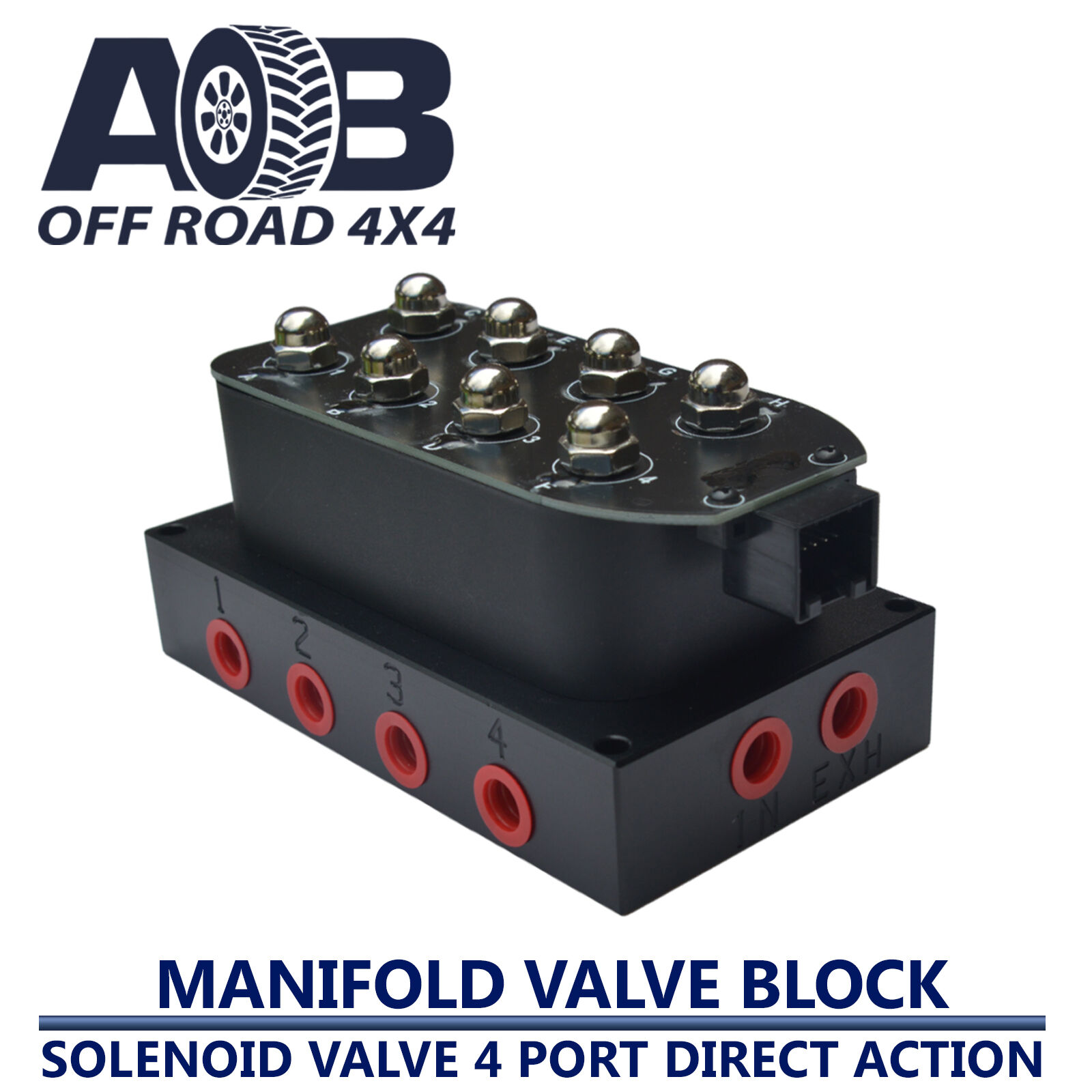

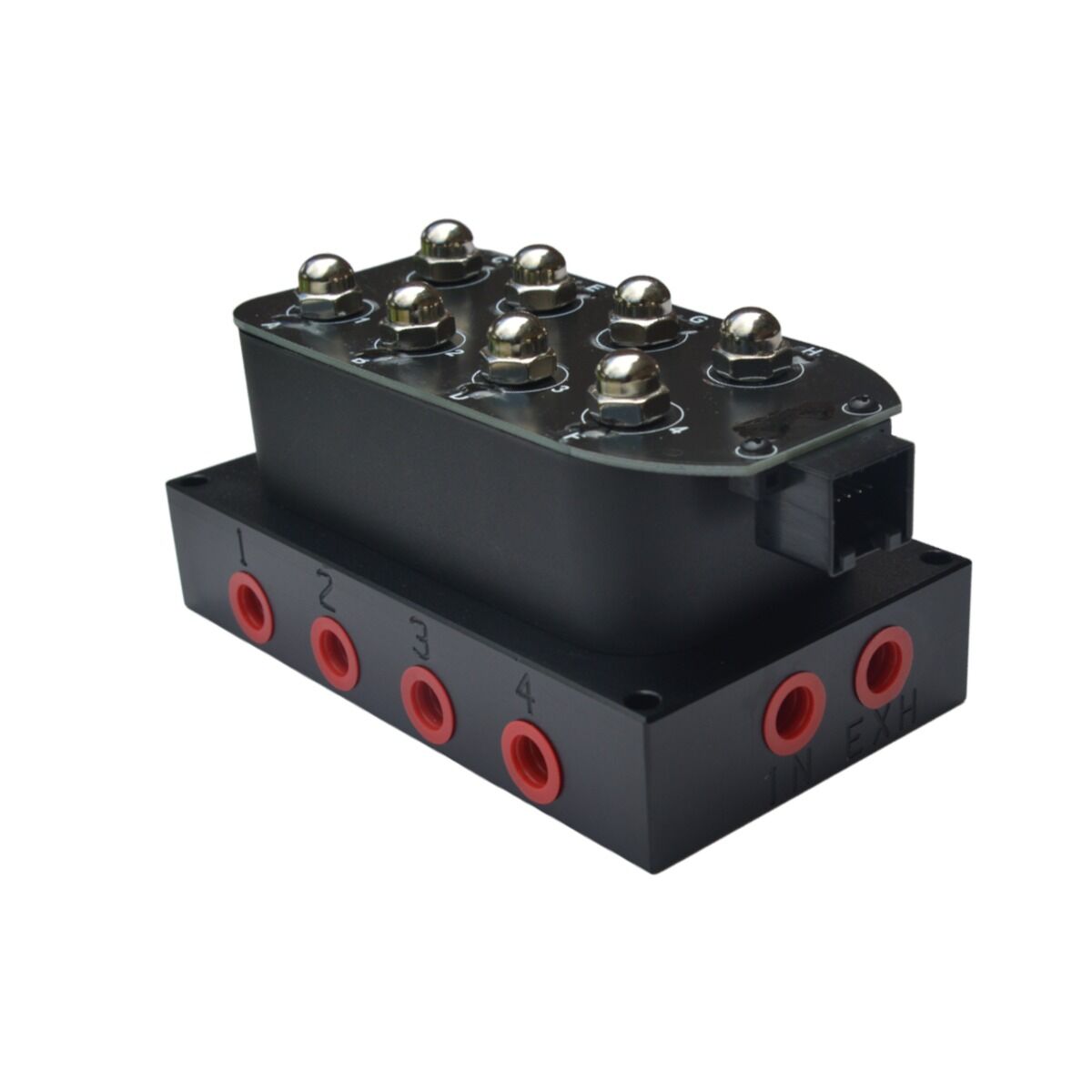

Air Ride Suspension Valve Block Solenoid Valve 4 Port Direct Action

Features

• 100% Brand New and High Quality
• For use with electronic level controller or any other brand of controller or switches.
• Prewired and numbered port to reduce installation time.
• 1/4" NPT ports for more flexibility of installation.
• High Pressure Rated for operation up to 200 psi.
• Dual Inlet & Exhaust ports for maximum flow (Plug extra inlet if not required).
• Compact Layout for minimal space usage.
• Anodized Aluminum Manifold to prevent corrosion.
• 100% Weather Resistant for harsh under vehicle environments.
• No tee fittings needed to run analog or digital gauges.
• No tee fittings needed between inflate and deflate valve.
• Using less fittings means quickest response times and fewer places to leak.
• Controls 4 bags independently.

Specification

• Item Type: Manifold valve block
• Material: alloy
• Color: As pictures shown
• Total Power: 12.6W
• Working Voltage: 12V
• Minimum Open Voltage: 8V
• Grade of Coil Insulation: H/180 C
• Ambient Temperature: -40℃ - +85℃
• Test of Fatigue Life: 10 million times
• Vibration Resistance: 10g/500HZ
• Working Pressure: 0-200 psi
• IN PORT: tank air pressure in port 1/4 NPT x 2 (if only 1 required blank the 2nd)
• OUT PORT: EXHAUST PORT OUT 1/4 NPT x 2 (if only 1 required blank the 2nd)
• Gauge Pressure Sensor Ports: 4 x 1/8 NPT
• Airbag Ports: 4 x 1/4 NPT

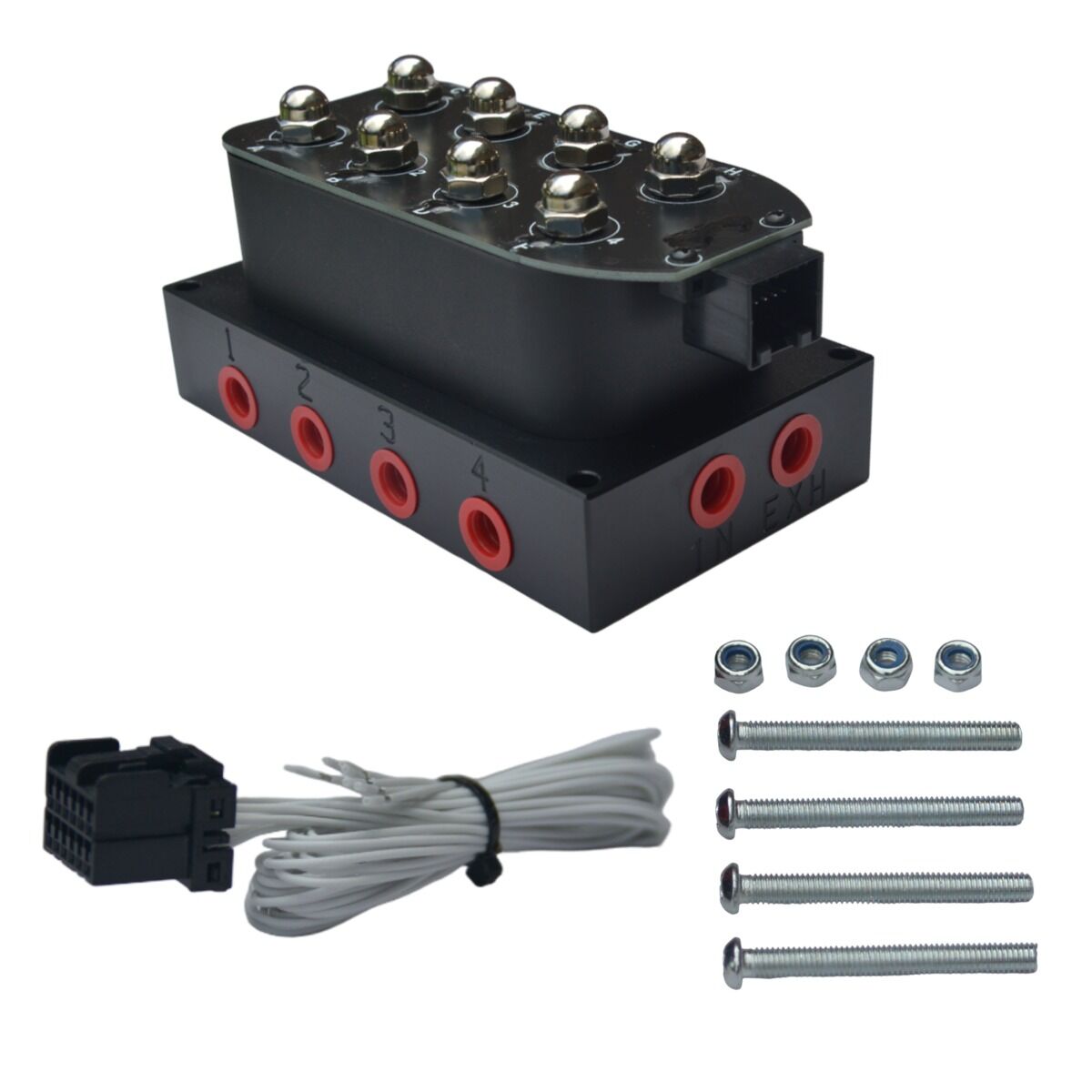

Package

• 1 x Valve Block

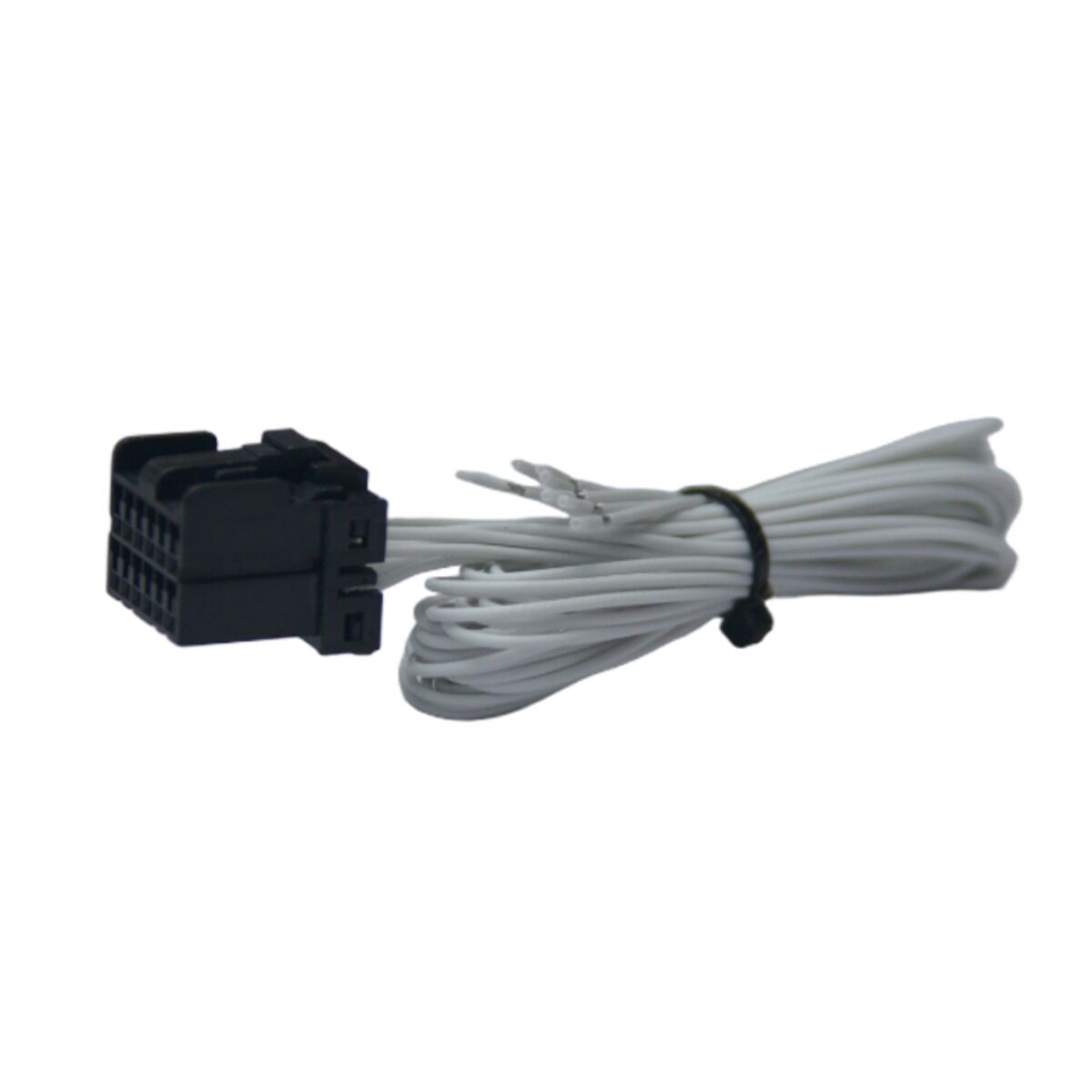

• 1 x Harness
• 1 x Mounting Screws
• 1 x Instruction Sheet
