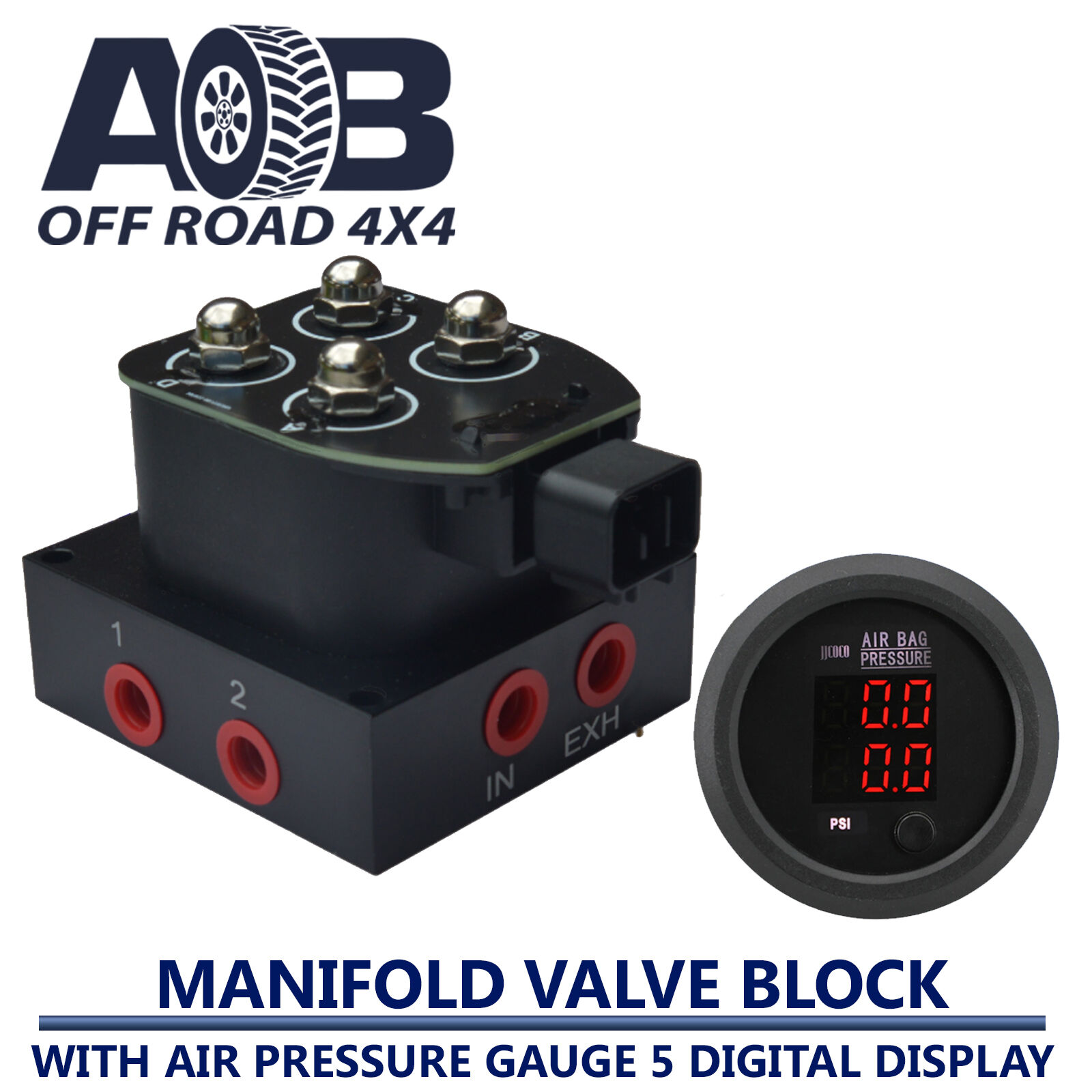

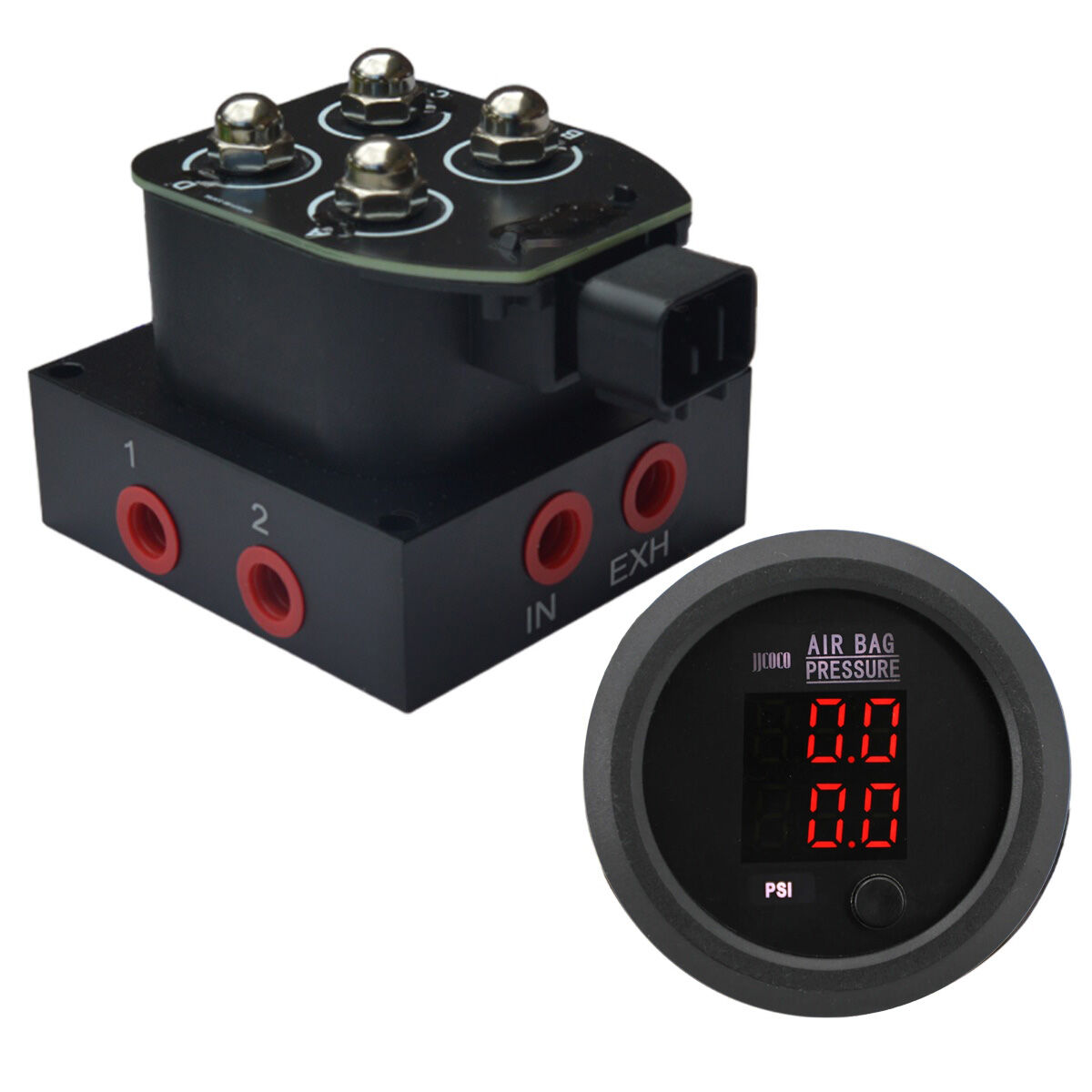

Air Ride Suspension Valve Block Solenoid Valve 2 Port Direct Action + Air Pressure Gauge Dual Digital Display

Features

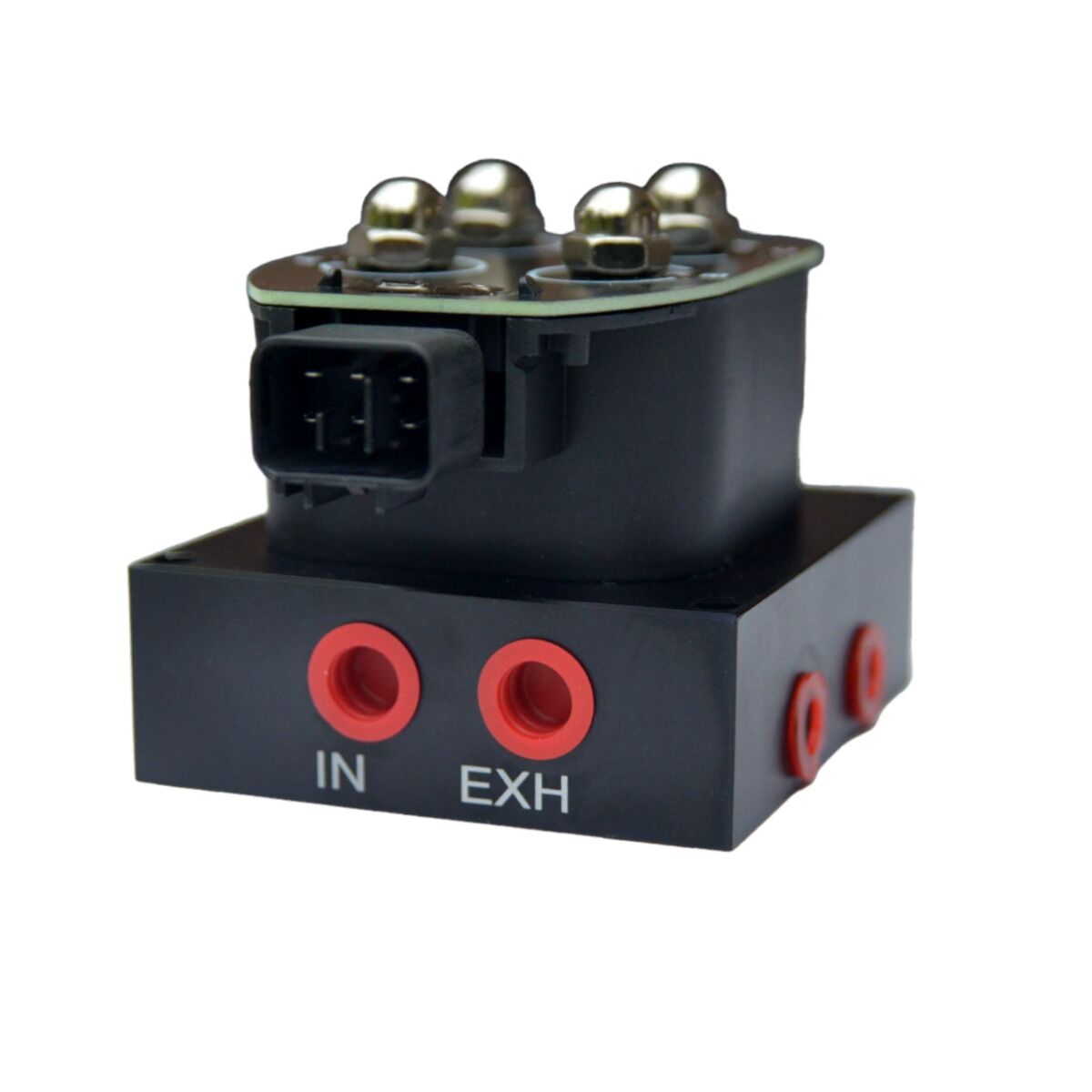

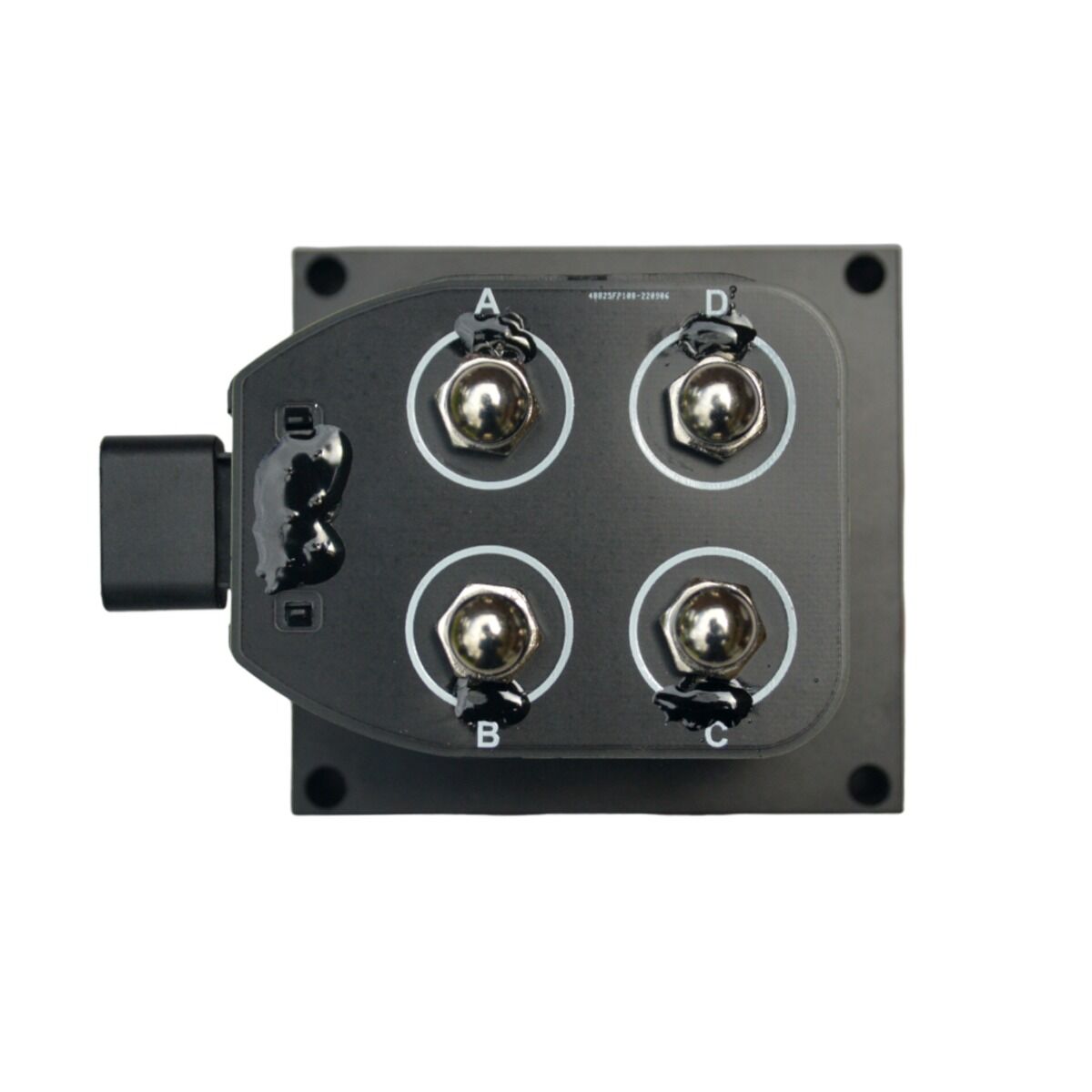

Air Ride Suspension Valve Block

• 100% Brand New and High Quality
• For use with electronic level controller or any other brand of controller or switches.
• Prewired and numbered port to reduce installation time.
• 1/4" NPT ports for more flexibility of installation.
• High Pressure Rated for operation up to 200 psi.
• Dual Inlet & Exhaust ports for maximum flow (Plug extra inlet if not required).
• Compact Layout for minimal space usage.
• Anodized Aluminum Manifold to prevent corrosion.
• 100% Weather Resistant for harsh under vehicle environments.
• No tee fittings needed to run analog or digital gauges.
• No tee fittings needed between inflate and deflate valve.
• Using less fittings means quickest response times and fewer places to leak.
• Controls 2 bags independently.

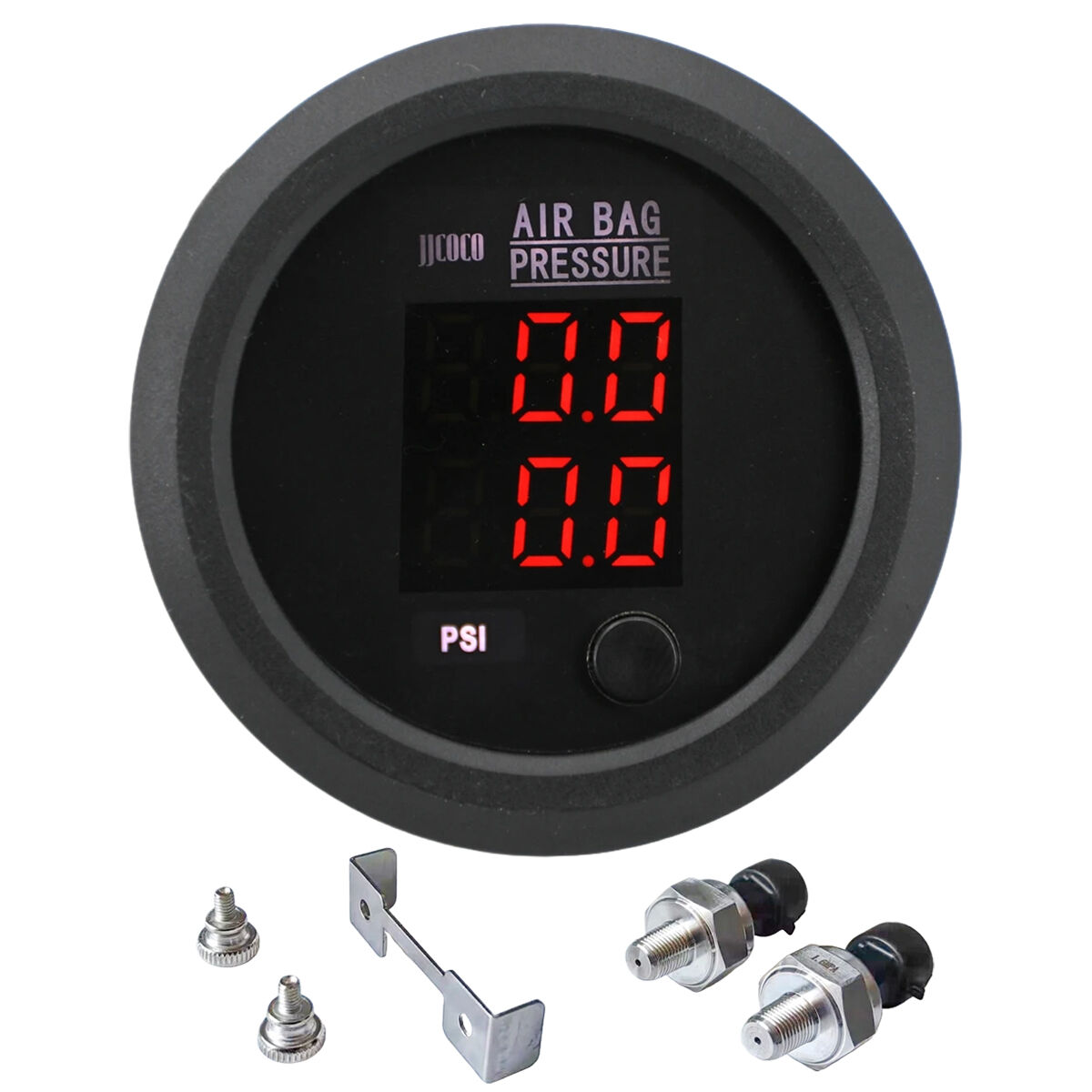

Air Pressure Gauge Dual Digital Display

• 100% Brand New and High Quality
• Easy to use and install, seamlessly integrates with the vehicle interior
• 52mm dual air pressure gauge with Red LED readings of pressure, rapid and accurate response, easy to read.
• High contrast PMVA LCD screen and high quality sensors with heat-resistant.
• The sensors are full electronic, so there is no chance of a leak occurring in tubing going to inside your cab, as there is none! Only wiring.
• Try to avoid having the sensors located where water can accumulate, best place is the top of any air reservoir.

Specification

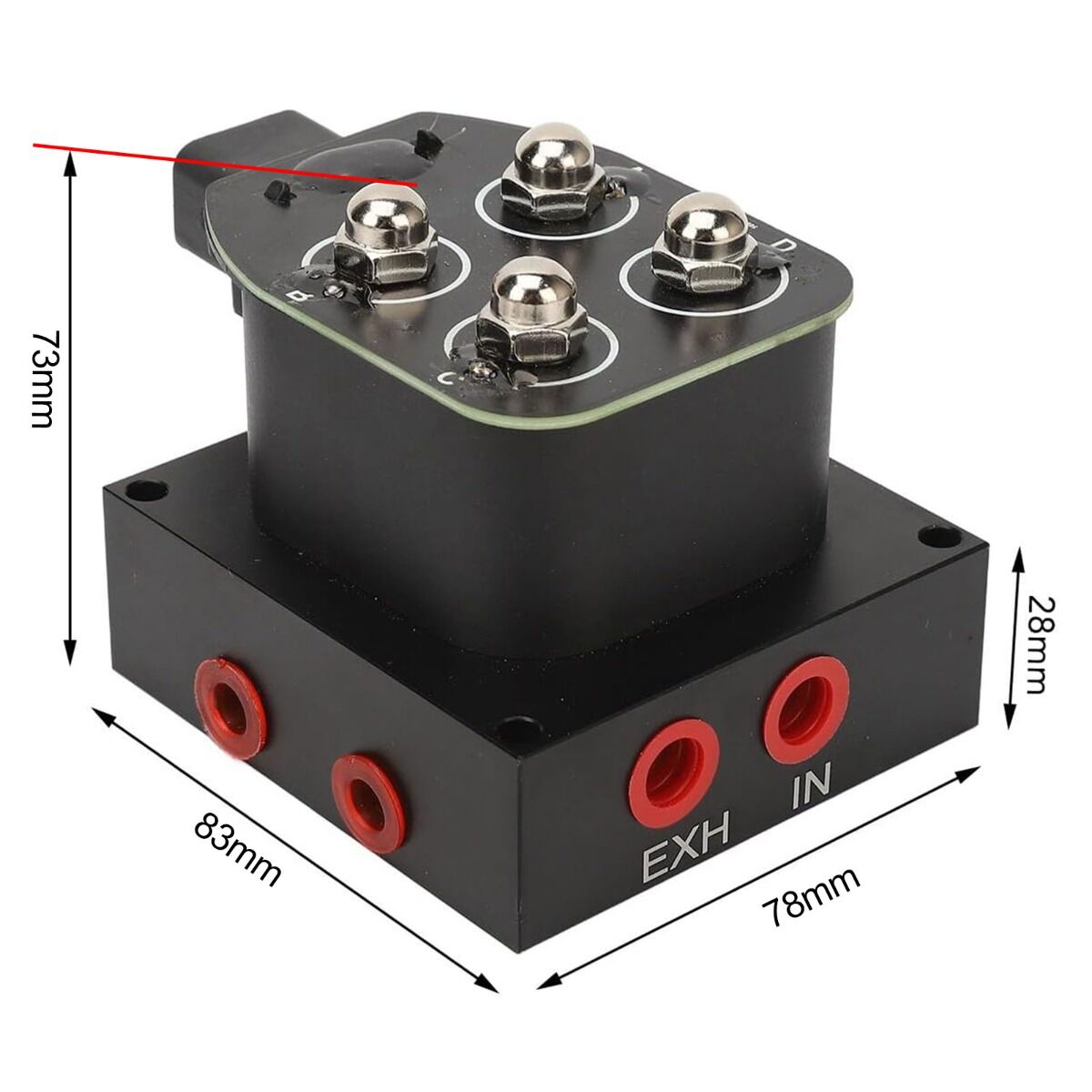

Air Ride Suspension Valve Block

• Item Type: Manifold valve block
• Material: alloy
• Color: As pictures shown
• Total Power: 12.6W
• Working Voltage: 12V
• Minimum Open Voltage: 8V
• Grade of Coil Insulation: H/180 C
• Ambient Temperature: -40℃ - +85℃
• Test of Fatigue Life: 10 million times
• Vibration Resistance: 10g/500HZ
• Working Pressure: 0-200 psi

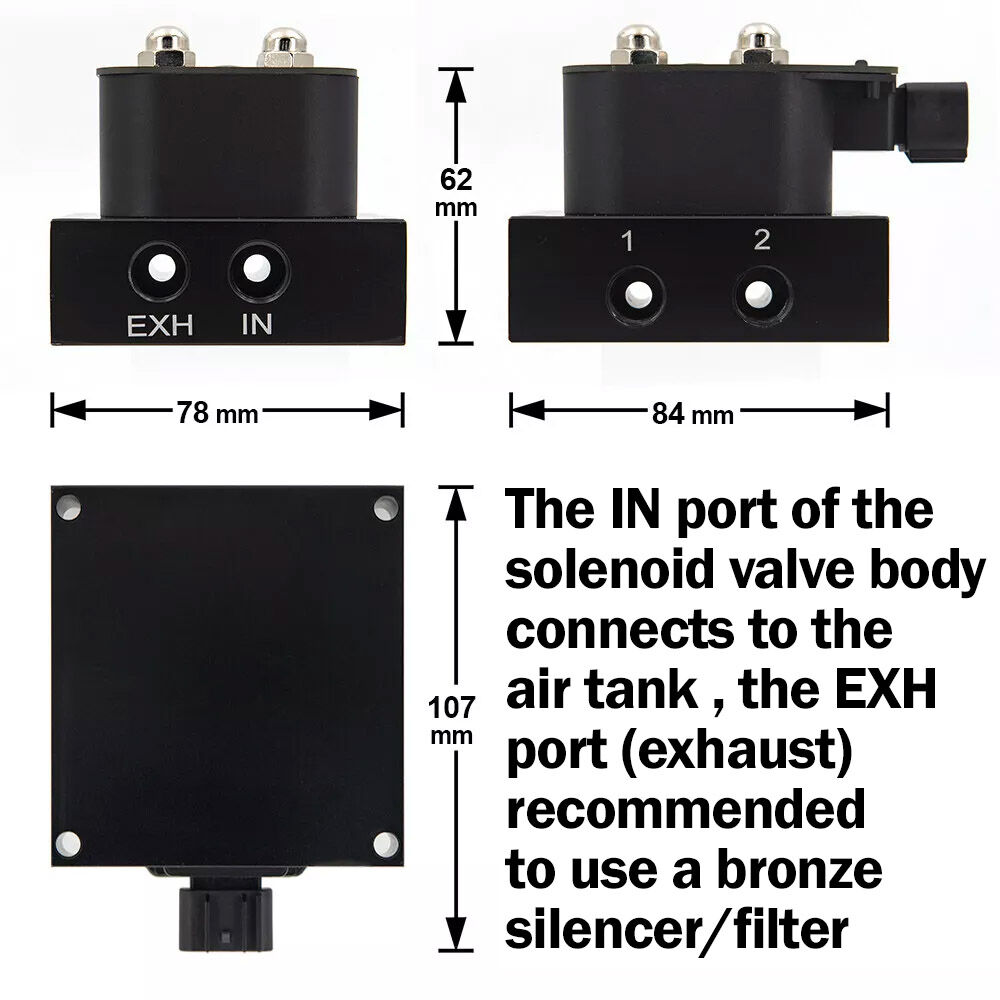

• IN PORT: tank air pressure in port 1/4 NPT x 2 (if only 1 required blank the 2nd)
• OUT PORT: EXHAUST PORT OUT 1/4 NPT x 2 (if only 1 required blank the 2nd)
• Gauge Pressure Sensor Ports: 2 x 1/8 NPT
• Airbag Ports: 2 x 1/4 NPT

Air Pressure Gauge Dual Digital Display

• Voltage: DC12V-24V
• Diameter Size: 2" (52mm)
• Material: Aluminum Alloy & Plastic
• Current: IGN Maximum 0.3A ILM 0.3A
• Color: Black
• Light Color: Red
• Unit: PSI
• Display range: 0-200 psi
• Electronic Sensors: 1/8NPT
• Sensor three core wire:
  Red-sensor 5V input
  Black-sensor GND input
  Yellow-sensor signal output
• Power supply two core wire:
  Red-positive pole (ACC)
  Black-negative pole (grounding)

Package

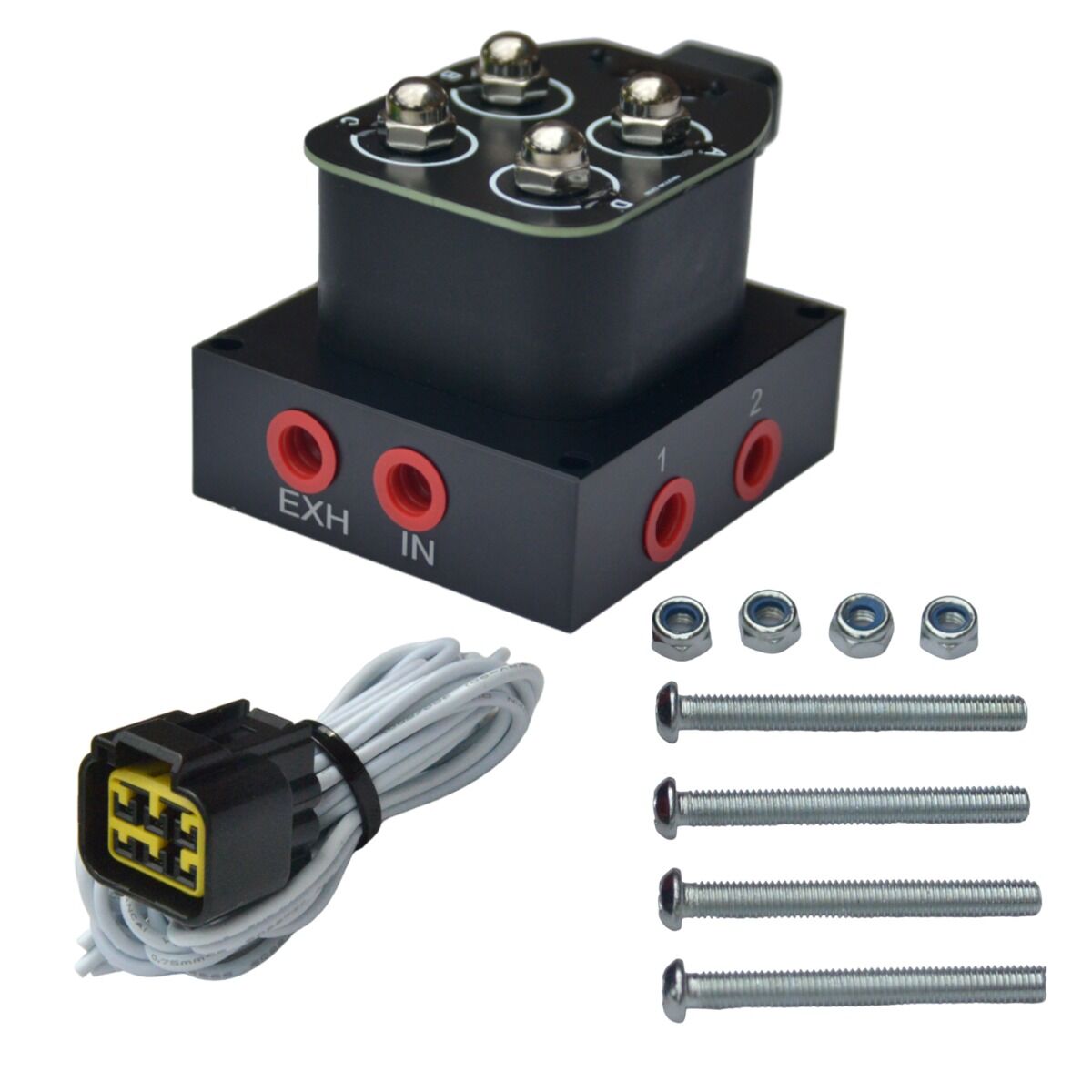

• 1 x Valve Block

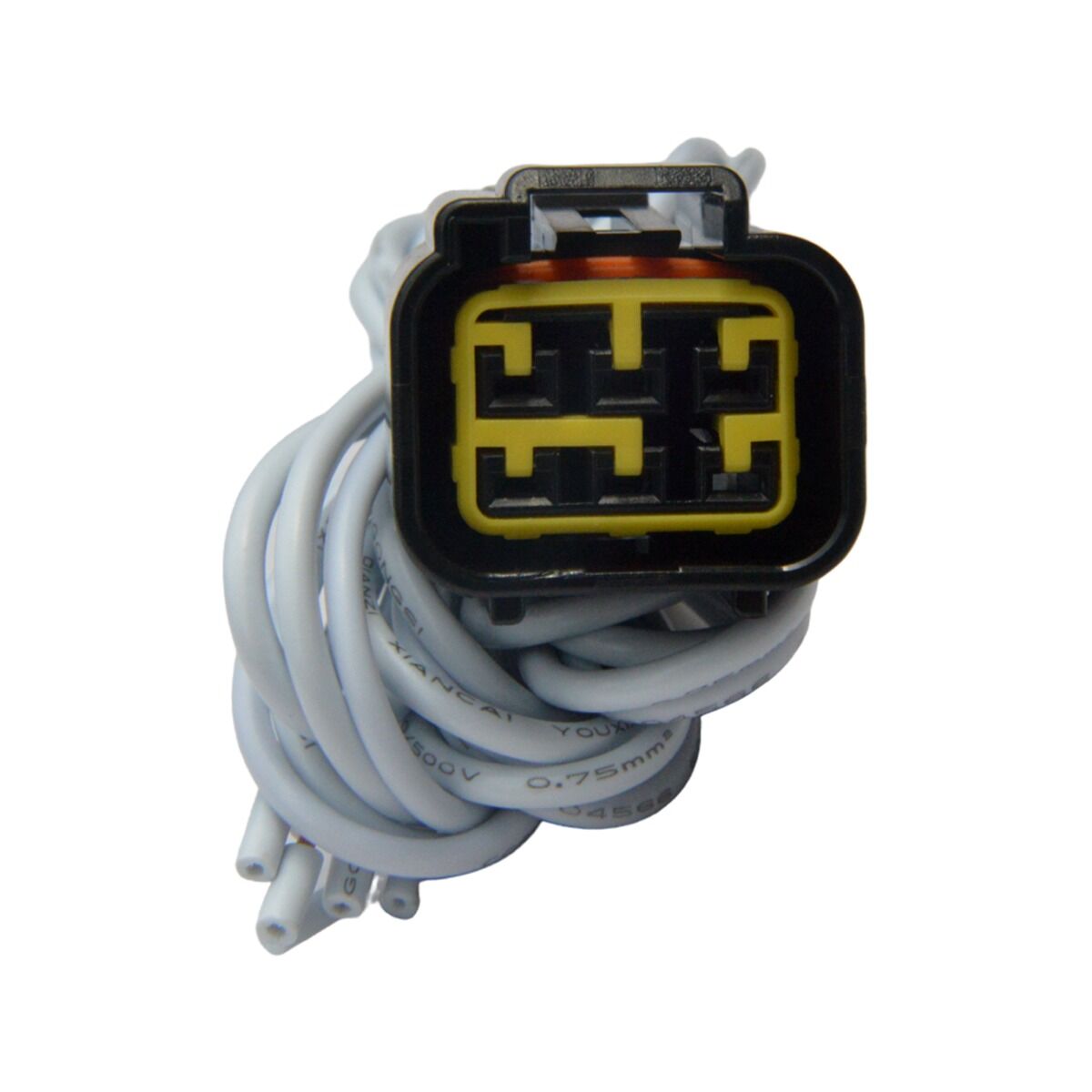

• 1 x Harness
• 1 x Mounting Screws
• 1 x 2-1/16” (52mm) Dual Digital Air Pressure Gauge
• 2 x 1/8-27 NPT Electronic Pressure Sensors with wiring harness
• Mounting Bracket
• Mounting Bracket Hardware
• Installation Instructions

Caution

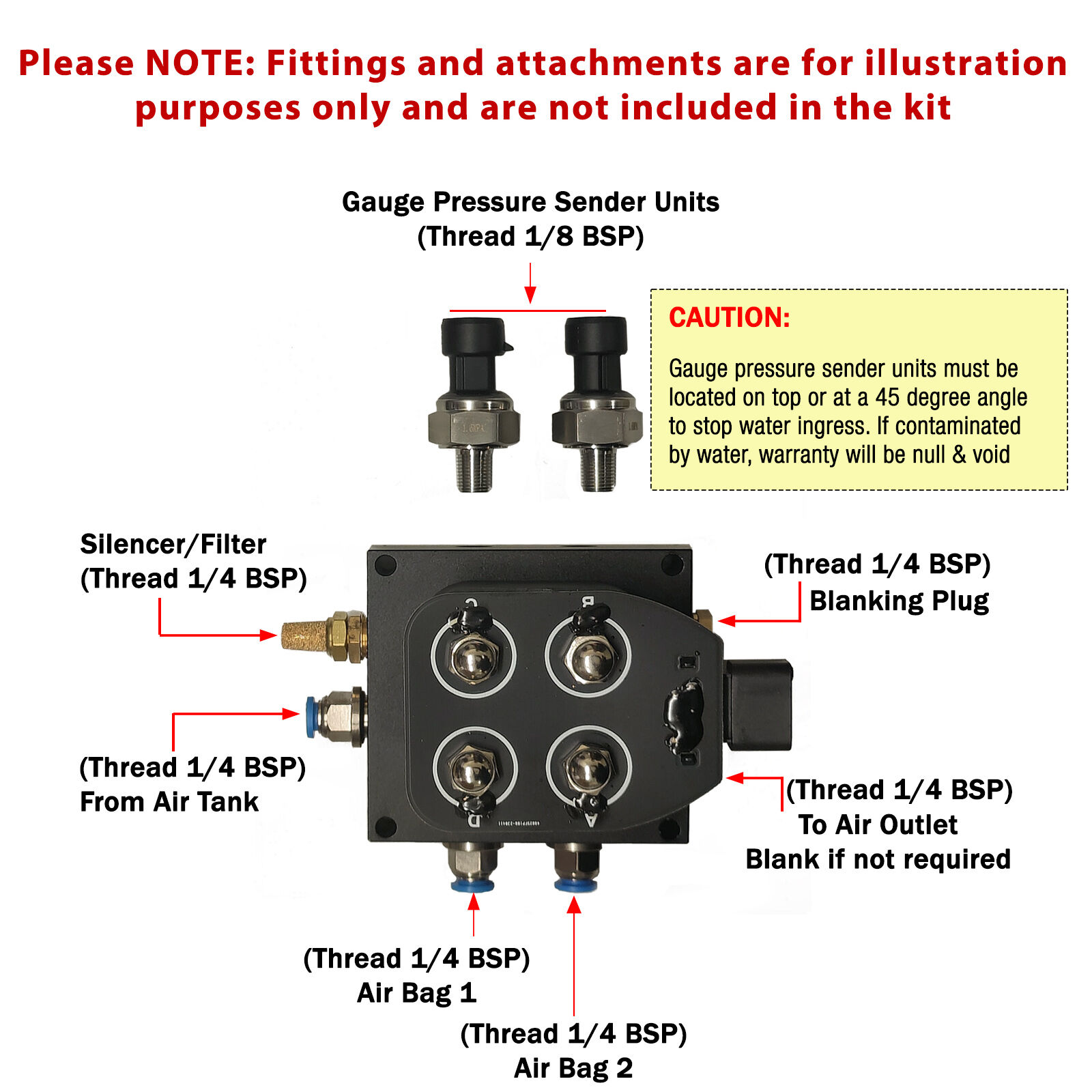

• Sensors MUST be placed in a dry area to prevent water ingress, where possible mount the sensors upright or at a 45 degree angle to reduce further risk (see images above).
• Water ingress will cause the sensors to become faulty. Water damage to the sensors will not be covered under warranty.
