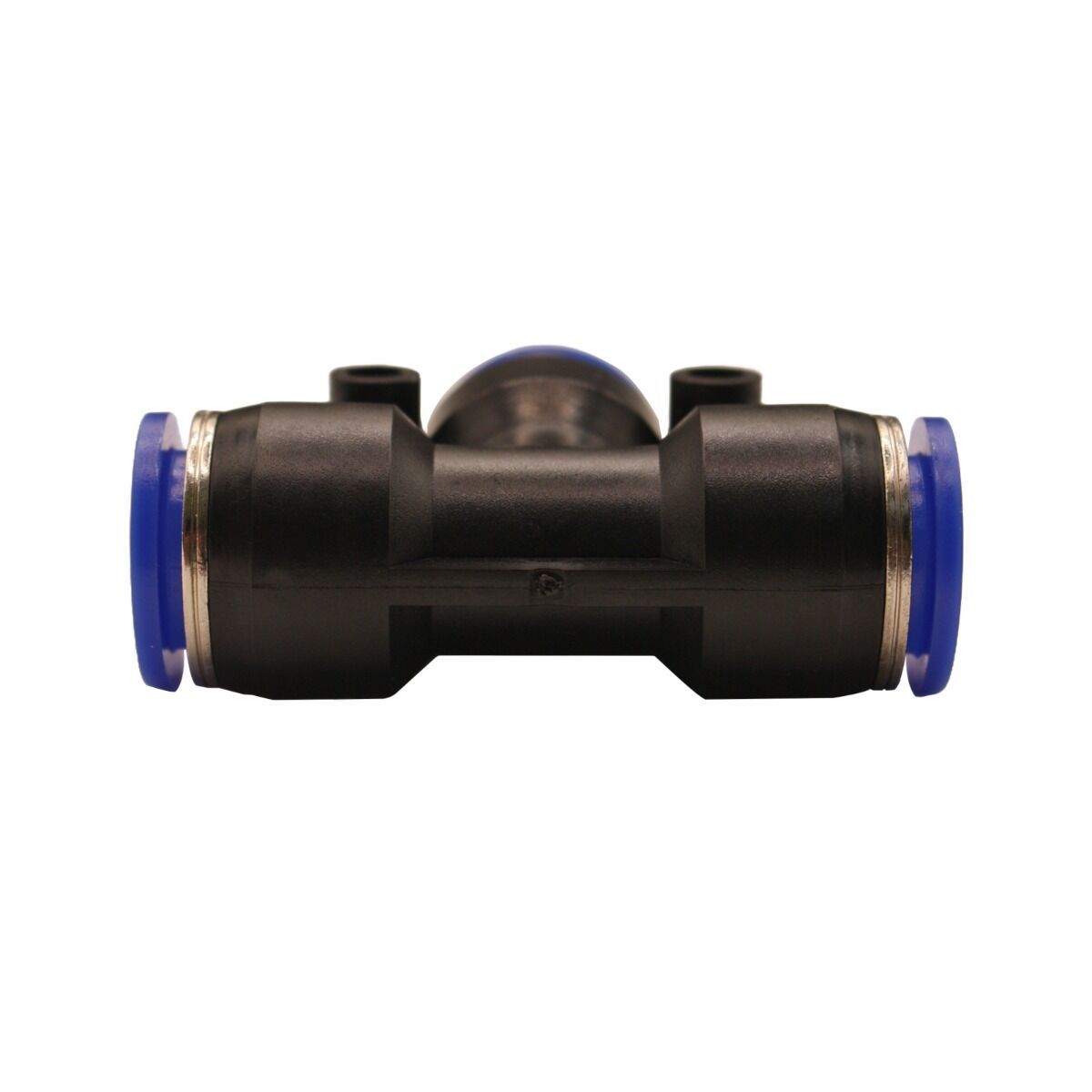

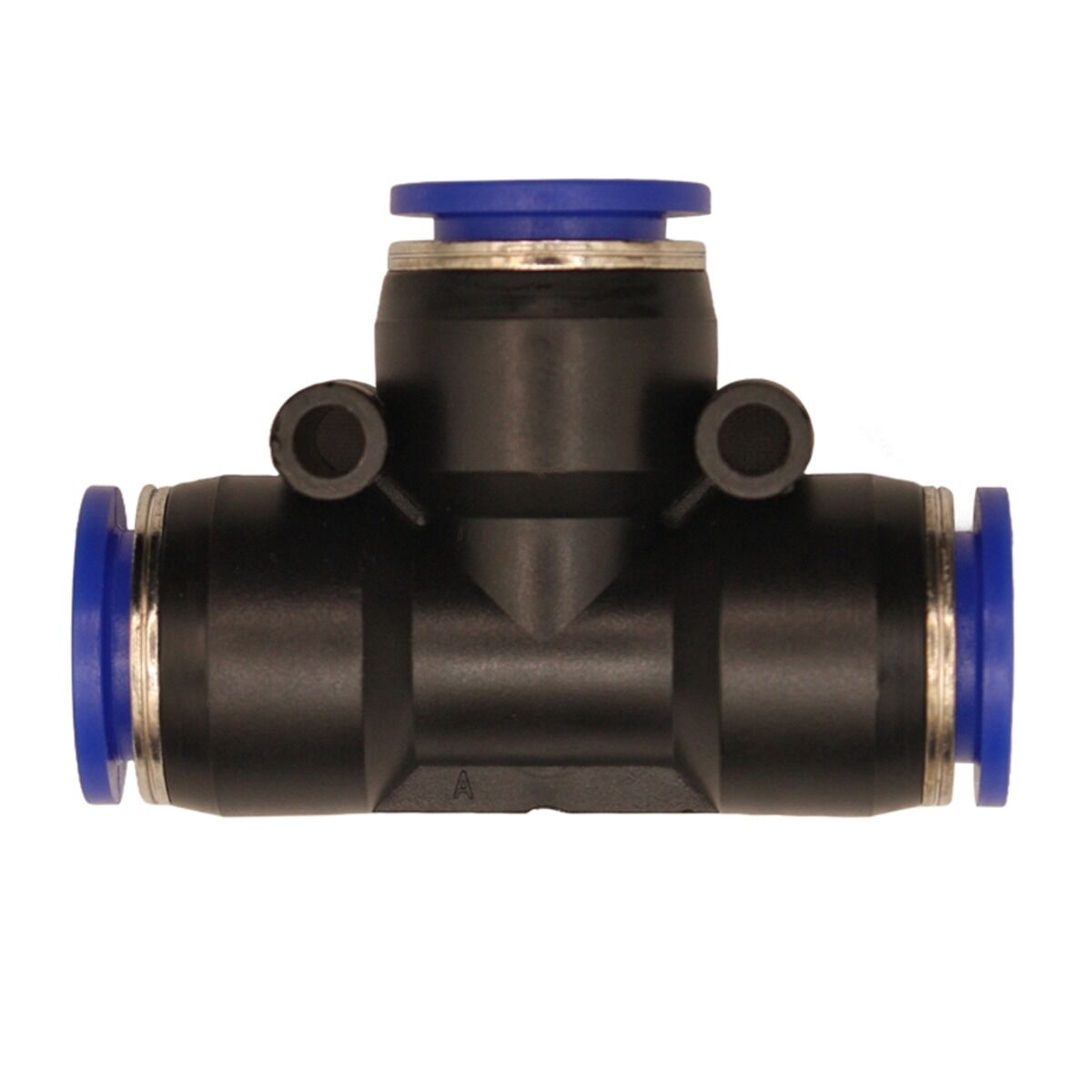

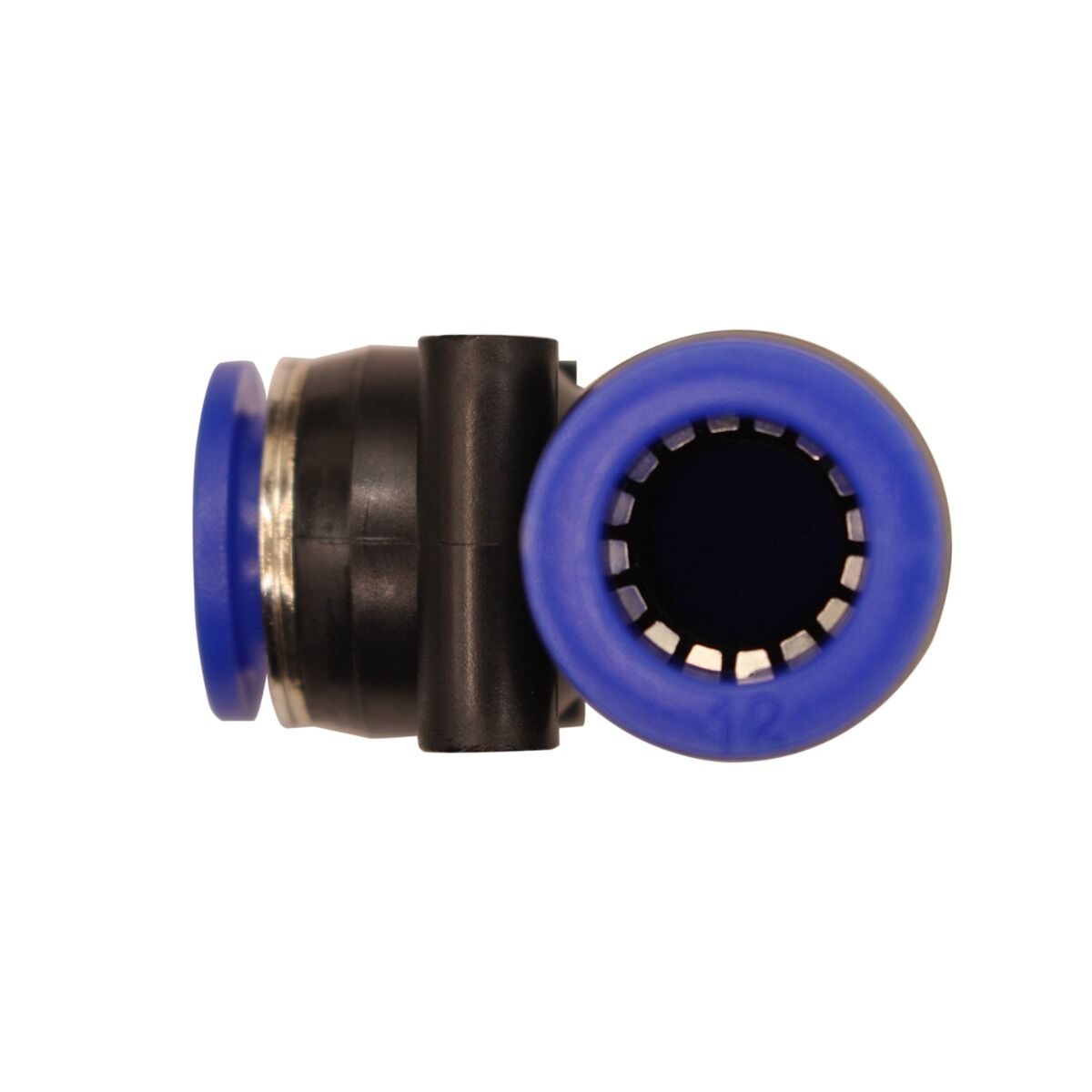

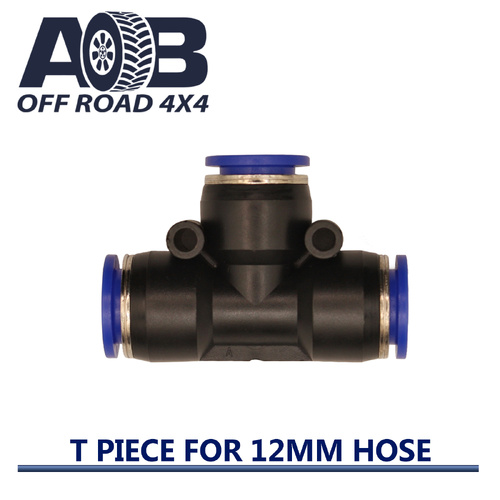

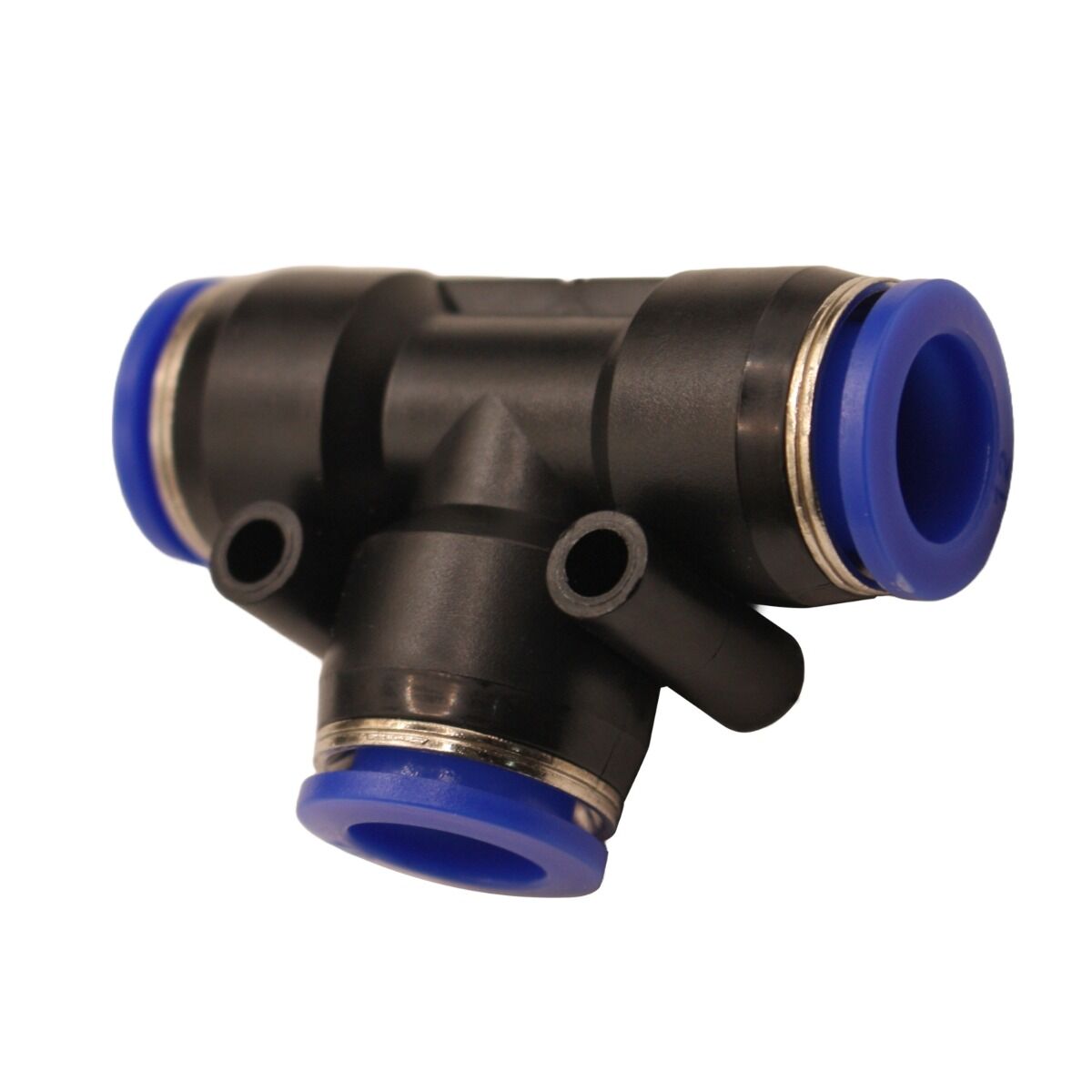

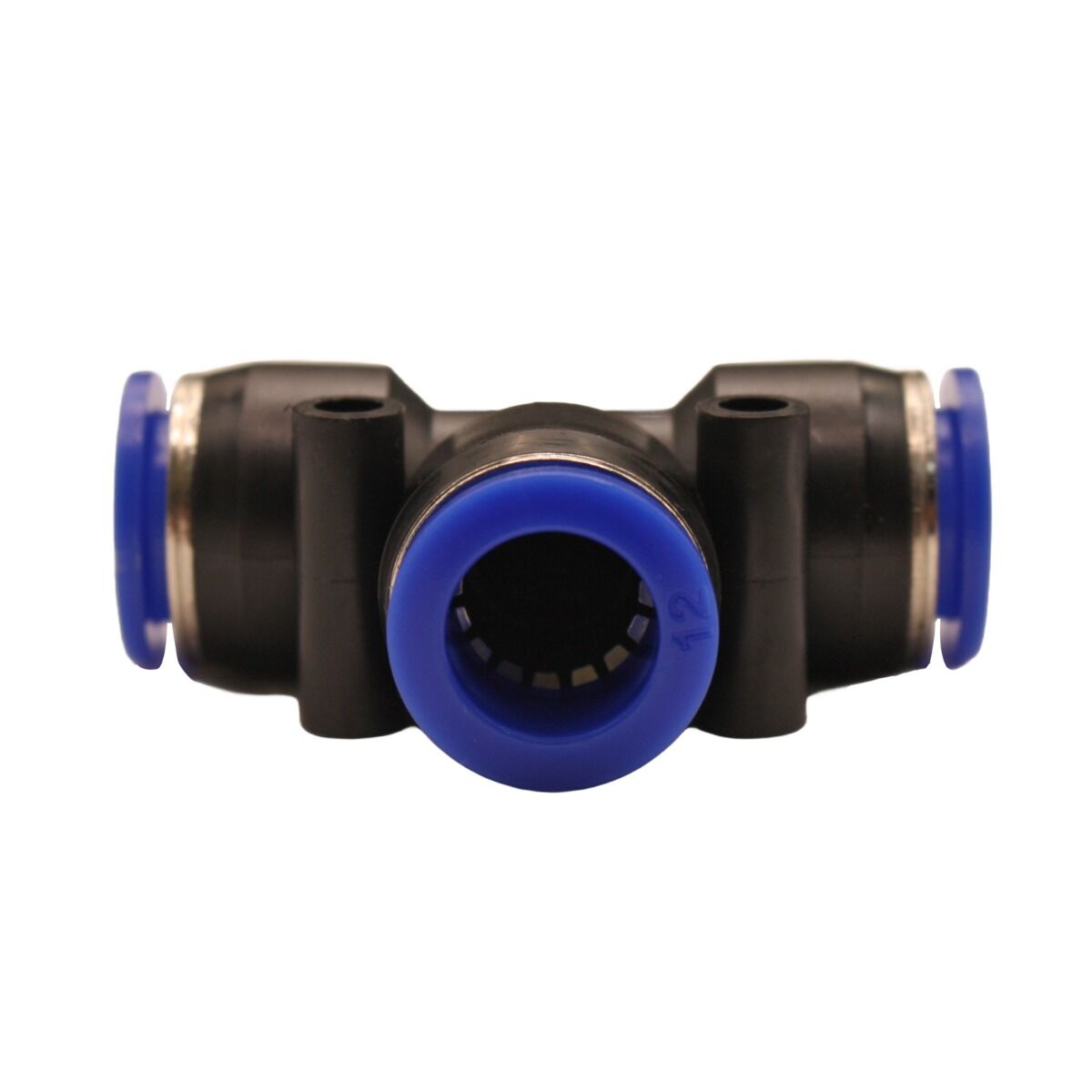

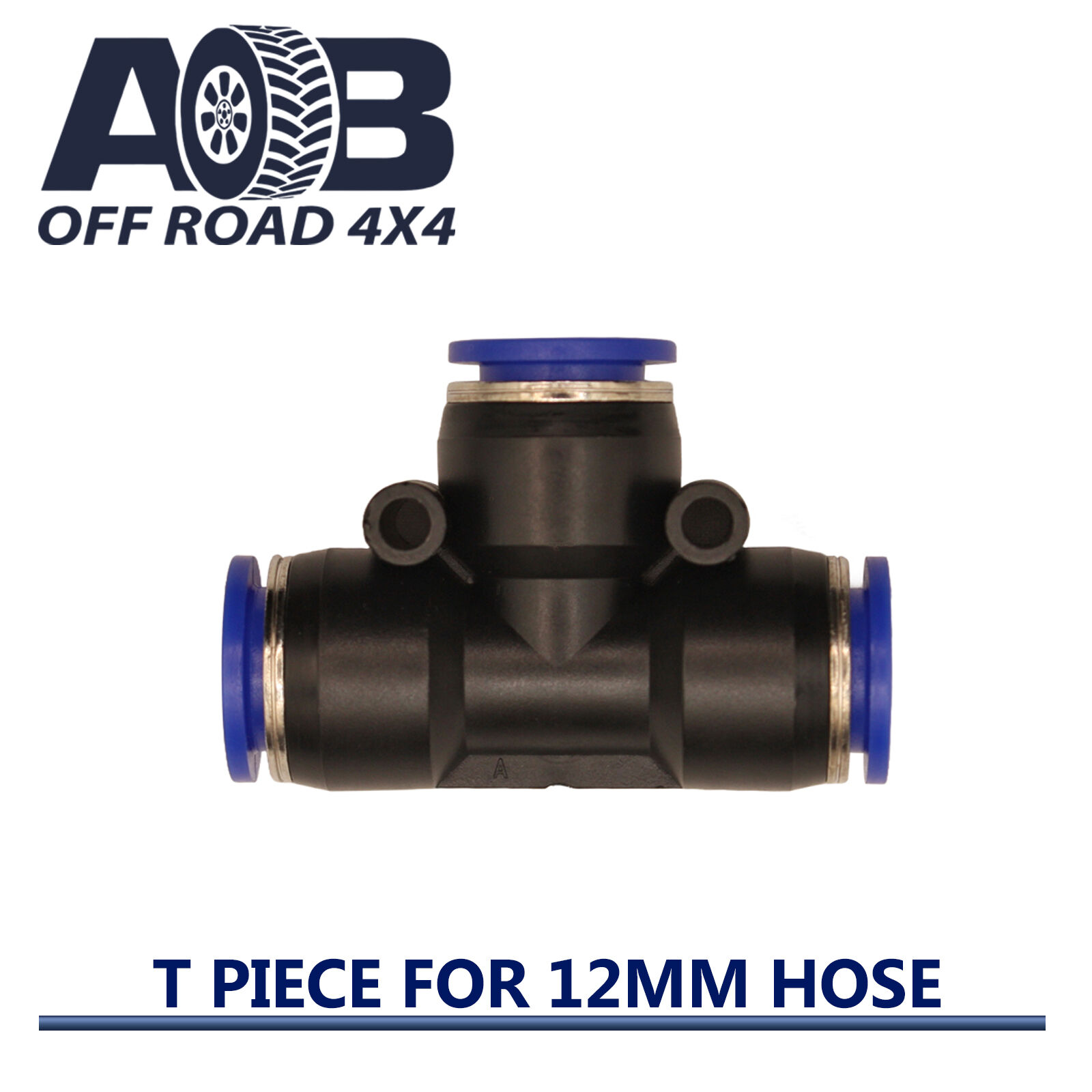

T piece to 12mm hose
for an on board air system

Push-in fittings for pneumatics

Used for a quick and simple connection between any 2 components like air tank to nitto outlets or tank to tank. We don't recommend using them from the air compressor due to the high heat generated

Pneumatic push-in fittings are the standard on the pneumatic fittings market and are very widely used. What sets them apart is the easy release function for the tube, i.e. by pressing a releasing ring. These fittings are used with the standard O.D. tubing that is commonly available on the market.

Specifications

  • Working environment: 0-10 bar/0 to 145 PSI. Working temperature: 0-60°C. Applicable hose: PU/nylon/PE
  • These fittings are made of high-quality plastic/polyurethane, durable and without air leakage for long-term use. Built-in stainless steel locking claw and NBR O-ring
  • Easy to install: no additional sealing is required, just a simple push to connect . Elliptical release rings at both ends making it easy to disassemble without additional tools.
  • Highly recommend using a hose cutter as end of hose must be cut square to have a perfect seal

Other pneumatics push-in fittings are also available, inlcuding our Joiner for 12mm hose , 1/4 BSP Female to 12mm hose and 1/4 BSP male to 12mm hose.

Length: 50mm Width: 20mm Height: 20mm

SKU FT033
Brand AOB4x4
Shipping Weight 0.0250kg
Shipping Width 0.020m
Shipping Height 0.020m
Shipping Length 0.050m
Shipping Cubic 0.000028000m3
