UNIVERSAL 6 SWITCH PANEL
TO SUIT Our 200,400 AND 600 SERIES ROCKER SWITCHES

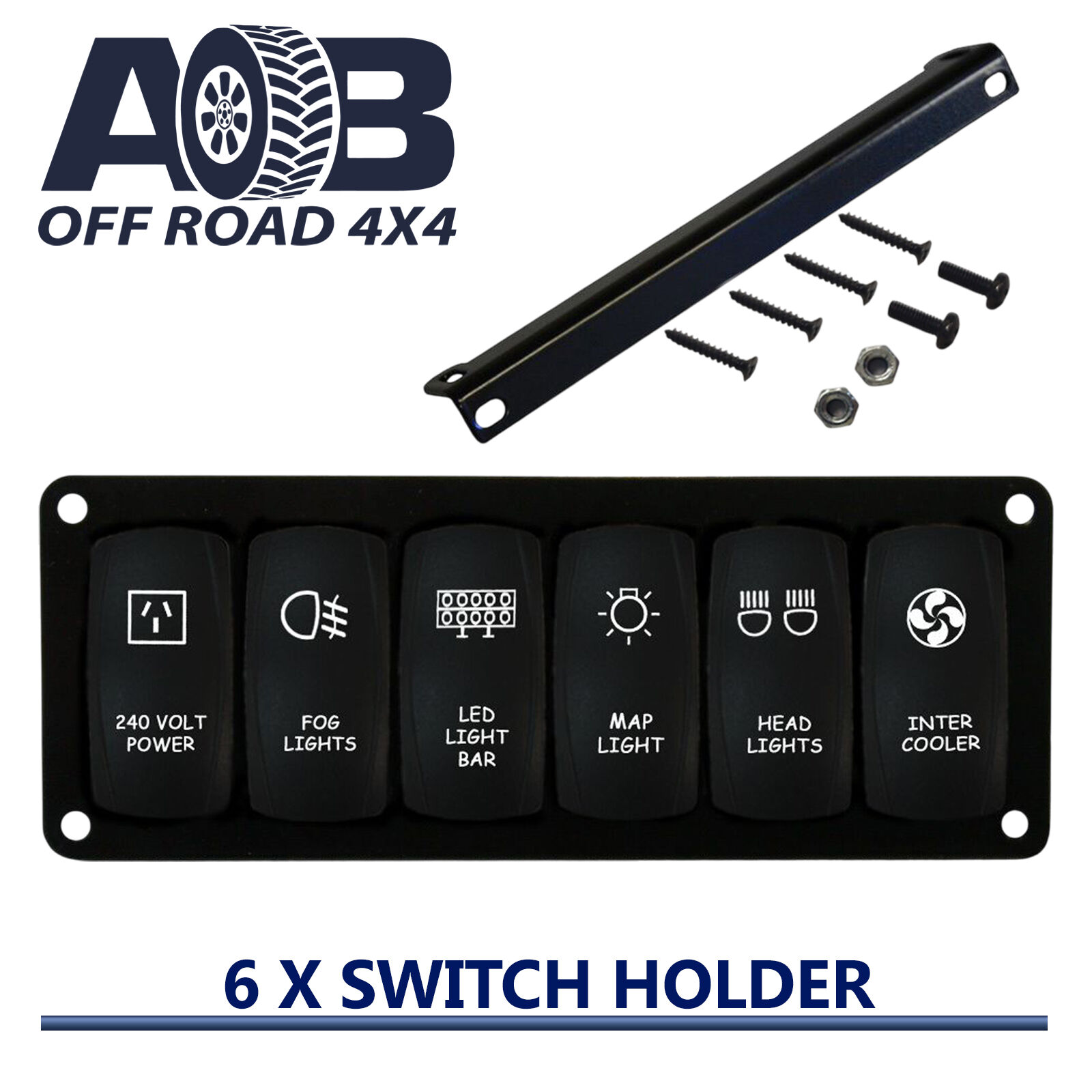

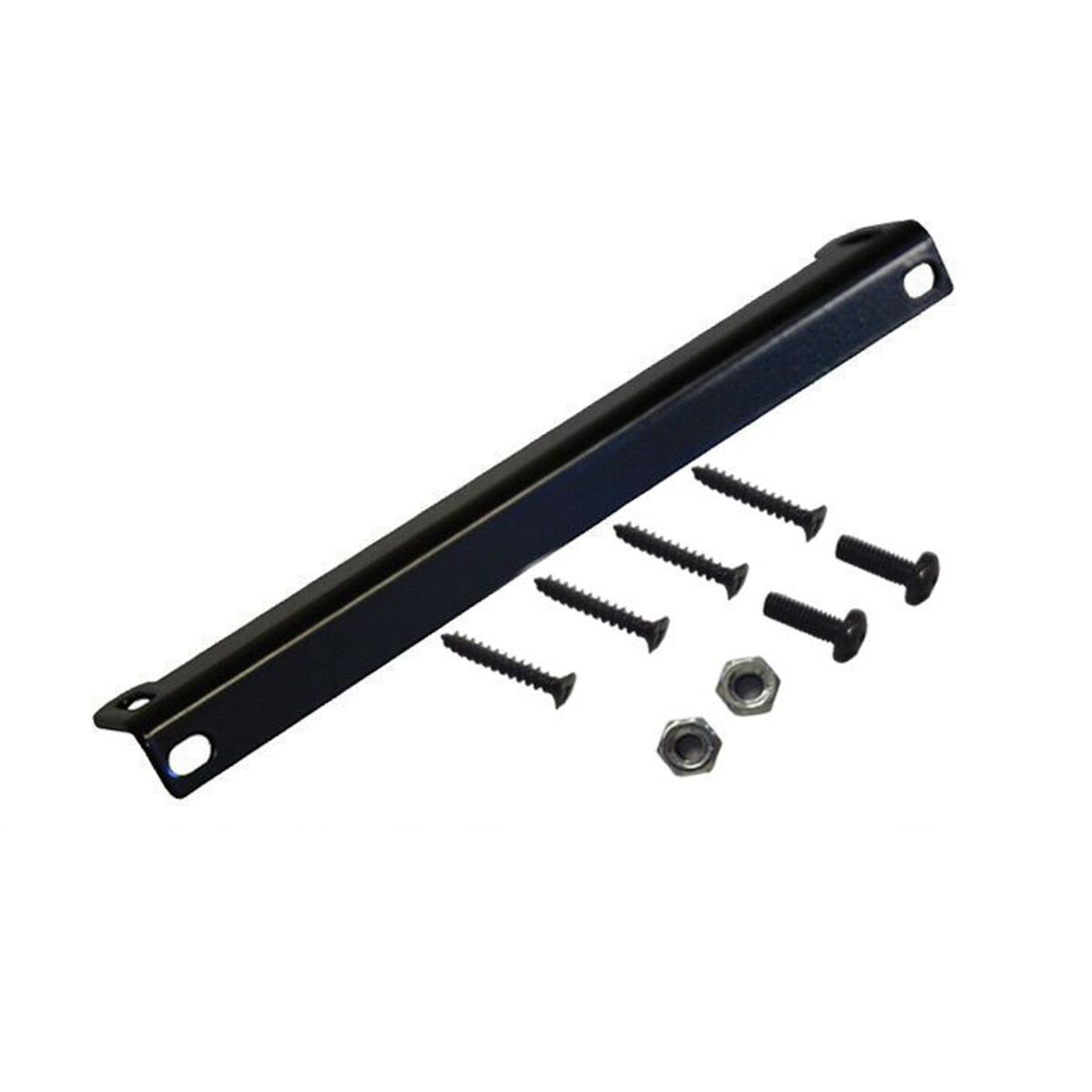

This high quality Rocker switch mounting bracket from AOB is a steel powder coated bracket. included with the sale comes a right angle bracket which will allow you to mount the switch bracket as an under dash assembly or use the flat panel to mount directly to a dash position. This strong bracket gives you unlimited options to mount many extra switches to your vehicle. Included with this sale is also the bolts and screws as shown in the picture.

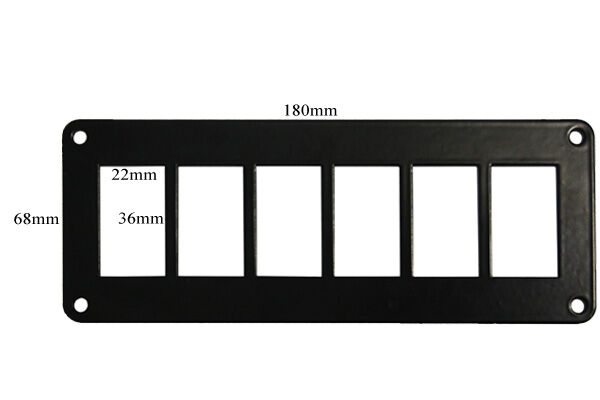

Dimensions

  • Length: 180mm
  • Height: 68mm
  • Switch Hole Size: 22mm x 36mm
  • Screw Hole Diameter: 5mm

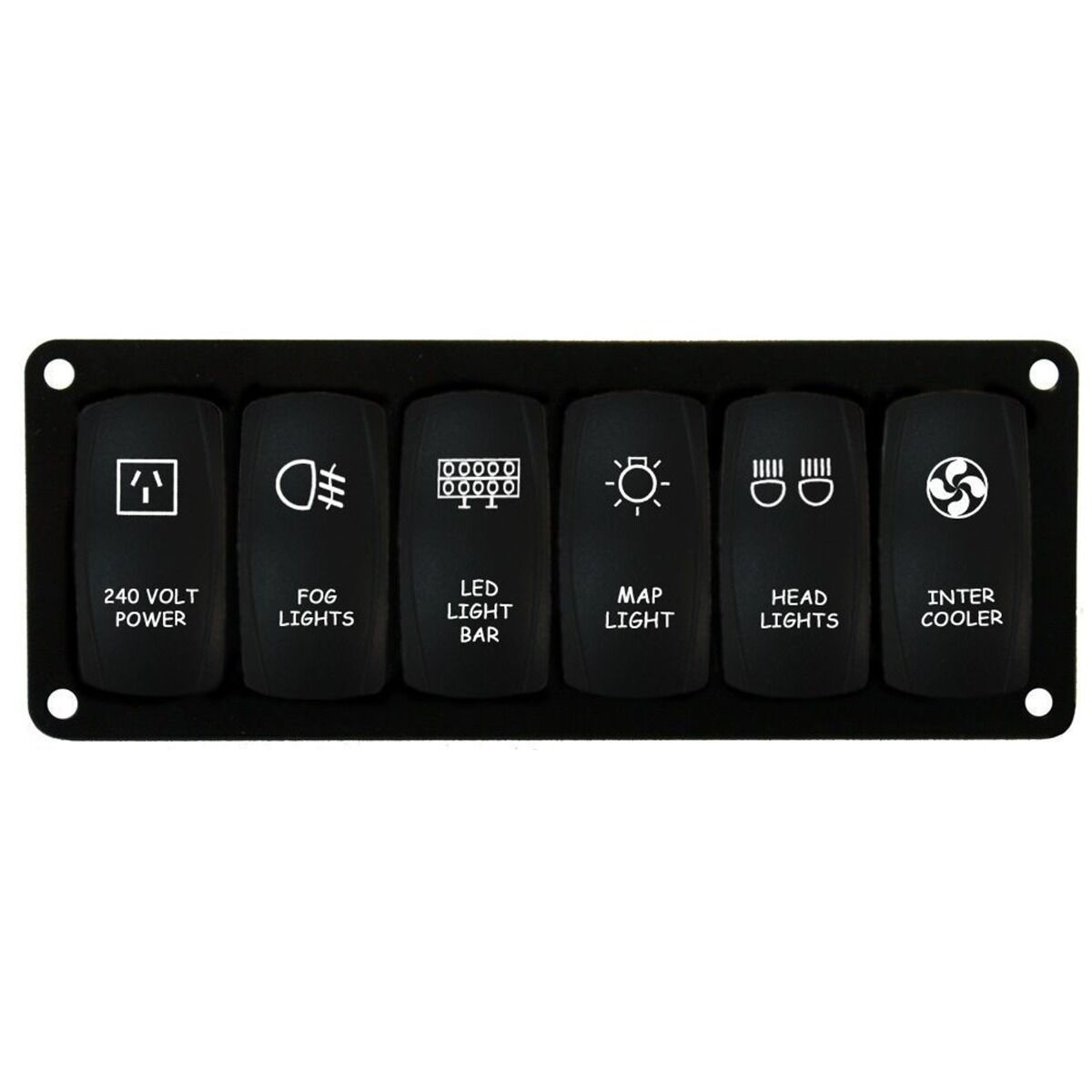

PLEASE NOTE THE SWITCHES SHOWN IN THE PICTURES ARE NOT INCLUDED IN THE SALE.

 two different options to mount the switch panel

This Image shows two different options to mount the switch panel.

As shown the bottom switches are mounted as an under dash version with the aid of the right angle bracket.

The top switches are cut directly into the dash.

For 200s and 400s Switches, please CLICK HERE

For 600s Laser etched Rocker Switches, please CLICK HERE

Length: 70mm Width: 180mm Height: 1mm

SKU SP6200
Shipping Weight 0.2200kg
Shipping Width 0.180m
Shipping Height 0.010m
Shipping Length 0.070m
Assembled Length 0.160m
Assembled Height 0.020m
