12 Volt 3amp ON - OFF - ON TOYOTA ROCKER Switch
Twin L.E.D Lights

This 12 volt rocker switch from AOB is a single pole double throw ON - OFF - ON switch designed to operate your 12 volt accessories. It has a face surface size of 32.5 mm x 22 mm and uses the original mounting hole of the vehicle.

This Switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.

• Single Pole Double Throw ON - OFF - ON ROCKER switch
• Single Input Dual Output
• Black hard surface
• Laser etched Legend
• Single upper L.E.D light in AMBER
• Single middle L.E.D light in LIGHT BLUE
• Single lower L.E.D light in AMBER
• Upper light is ON when the switch is pressed UP
• Lower light is ON when the switch is pressed DOWN
• Middle light can be wired to separate dash light circuit
• Rated at 3Amp 12V
• Wire Plug and wiring diagram supplied with switch

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. Therefore in ALL cases the accessory MUST be wired through a fused relay.

Dash Panel with AOBSWTR900 series Rocker Switches

Panel shown from 2013 LandCruiser 200 series. This Panel is mounted on the right side of the steering wheel.

AOBSWTR900 series

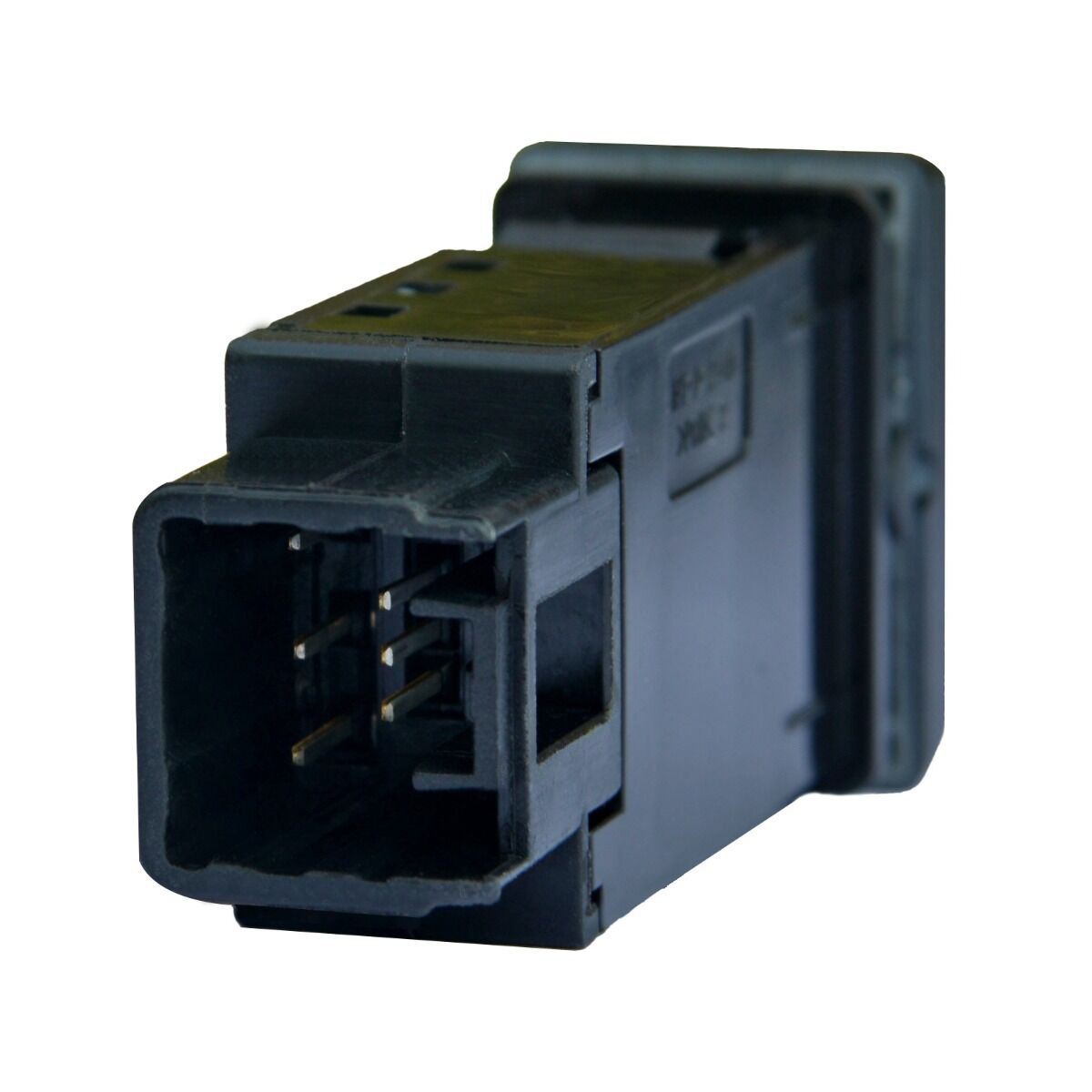

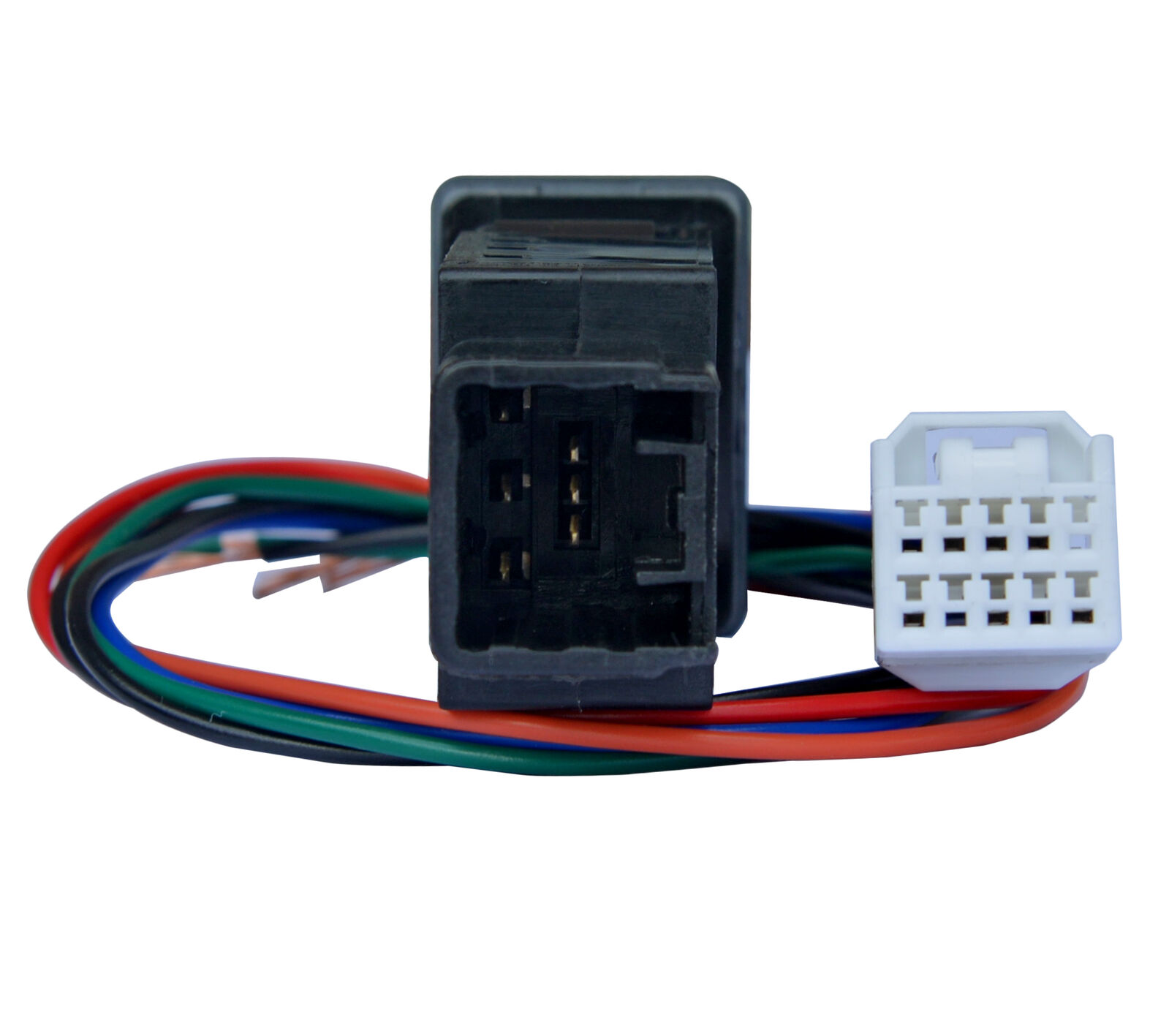

Rear picture showing terminals and wiring harness supplied with switch

Wiring diagram will be supplied with switch purchase.

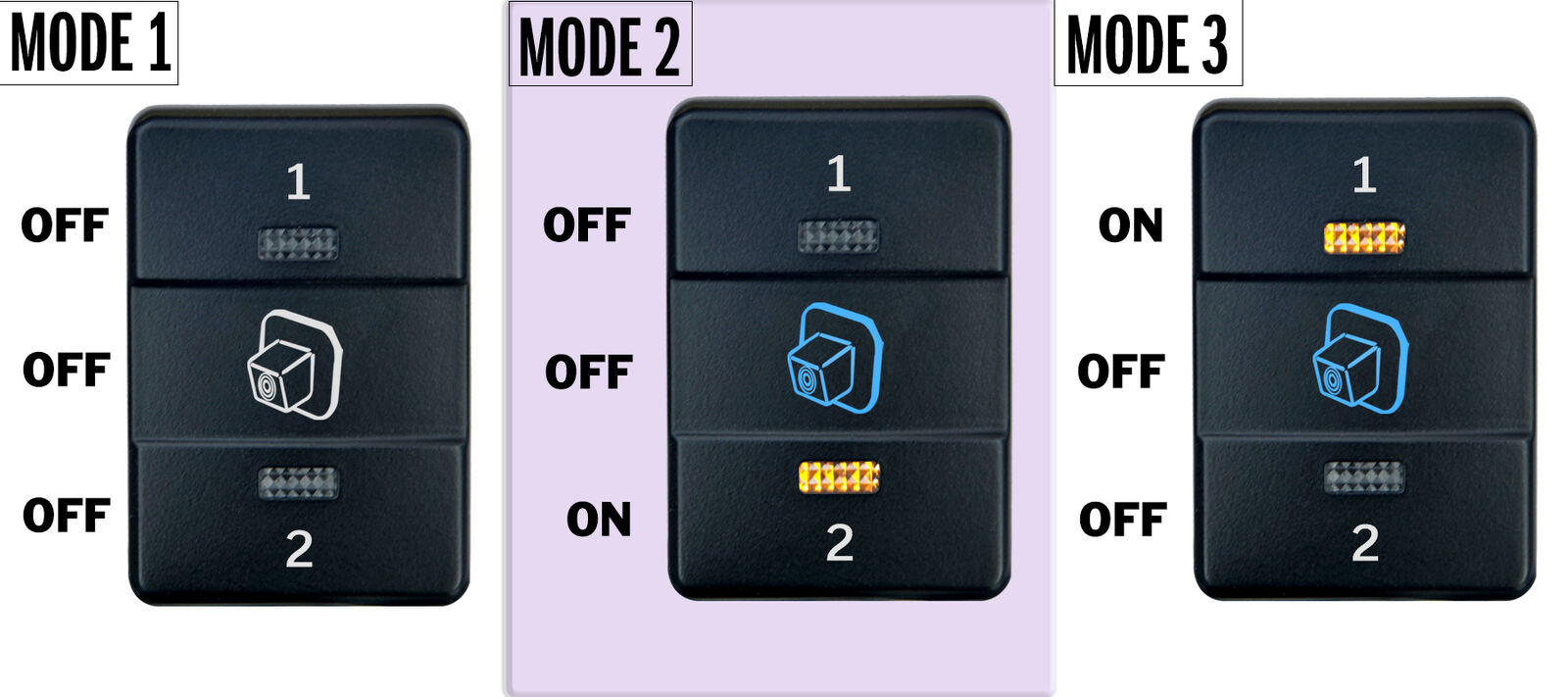

AOBSWTR900 series Illumination

When top switch is turned on, the top light illuminates in AMBER.

When bottom switch is turned on, the botton light illuminates in AMBER.

The middle light has an Independent wiring circuit to connect to your dash lights. You can connect it to the dash light circuit or leave off, your choice.

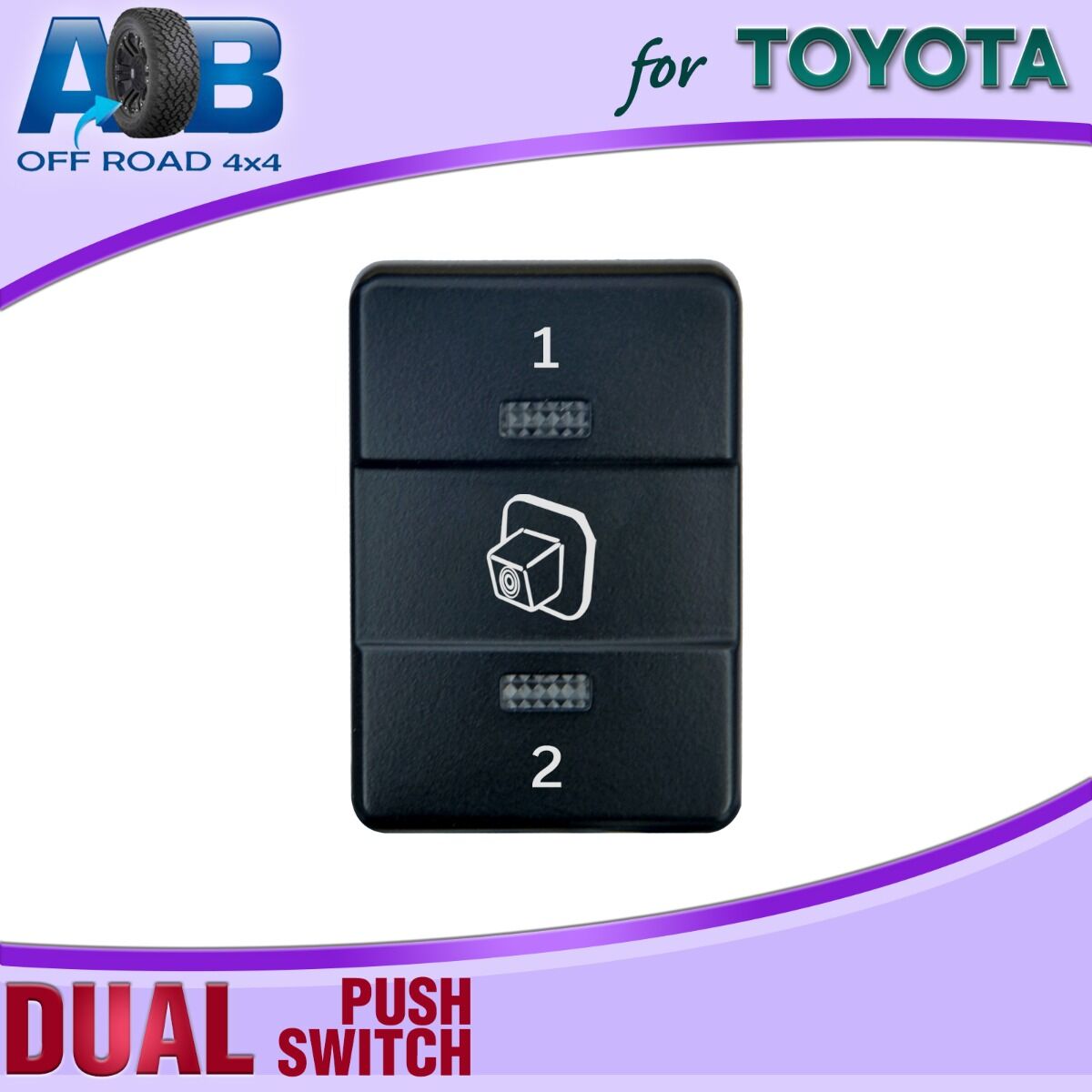

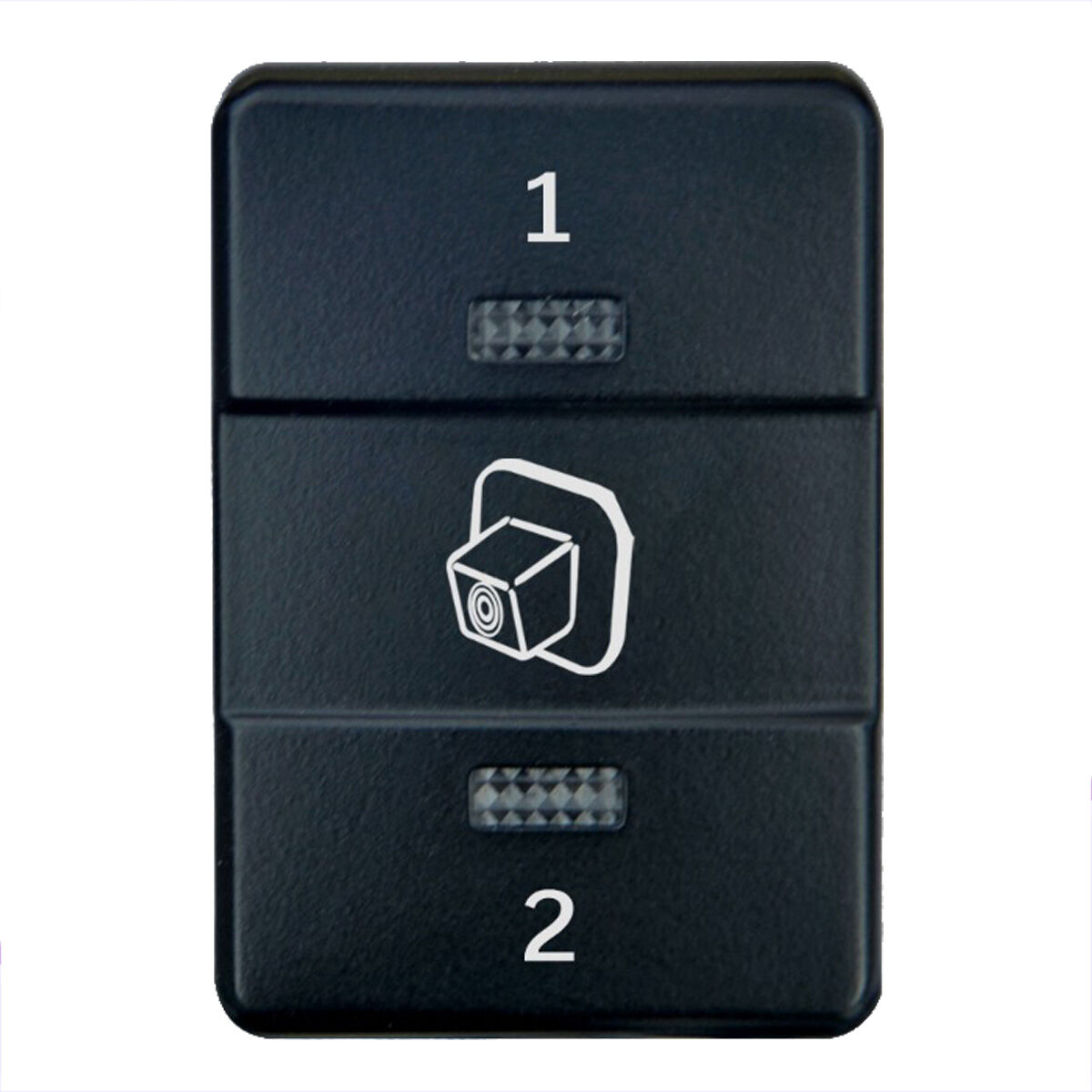

(this is a sample image with the LED CAMERA 1 2 logo)
