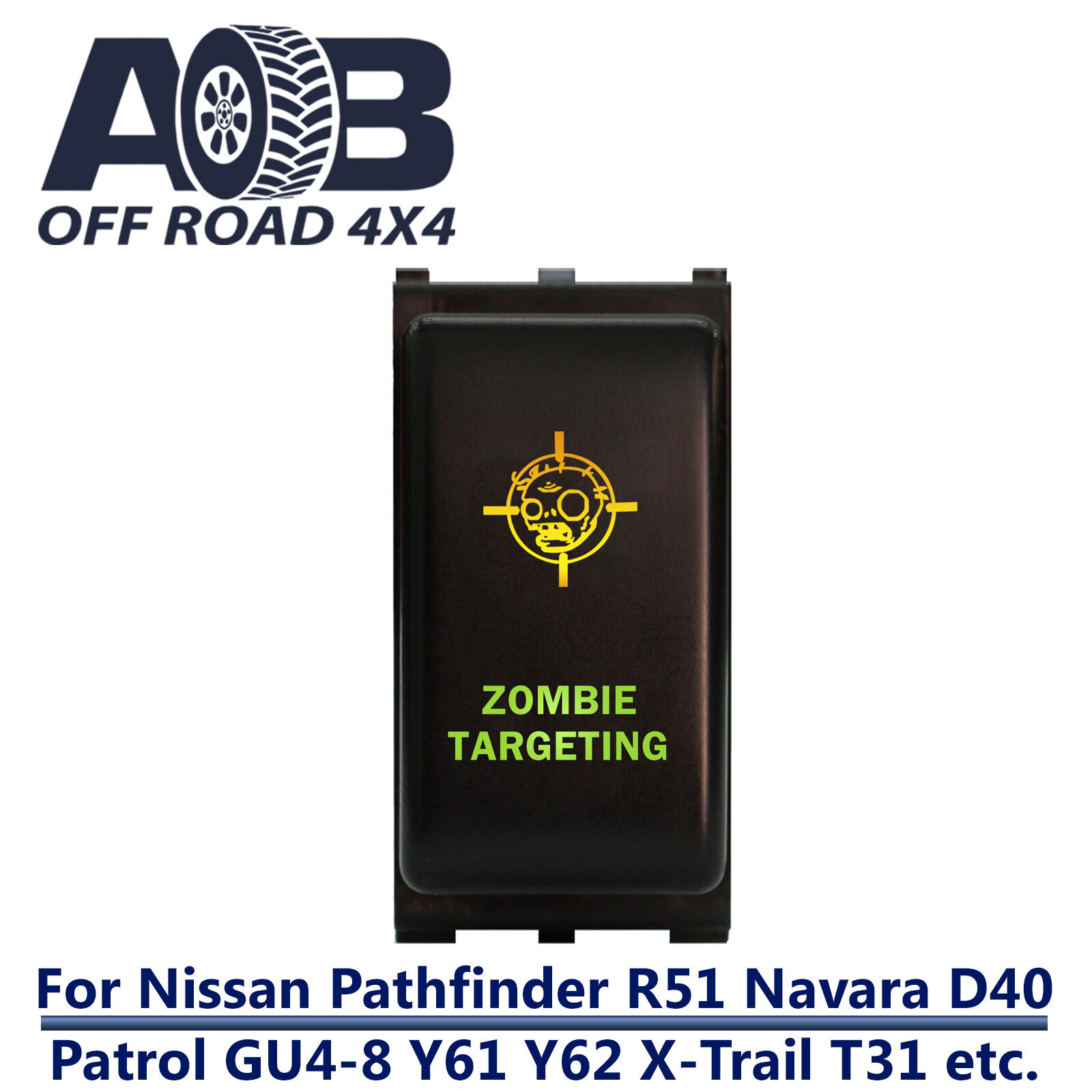

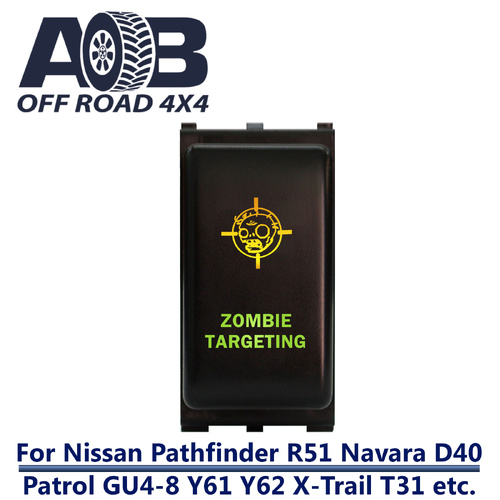

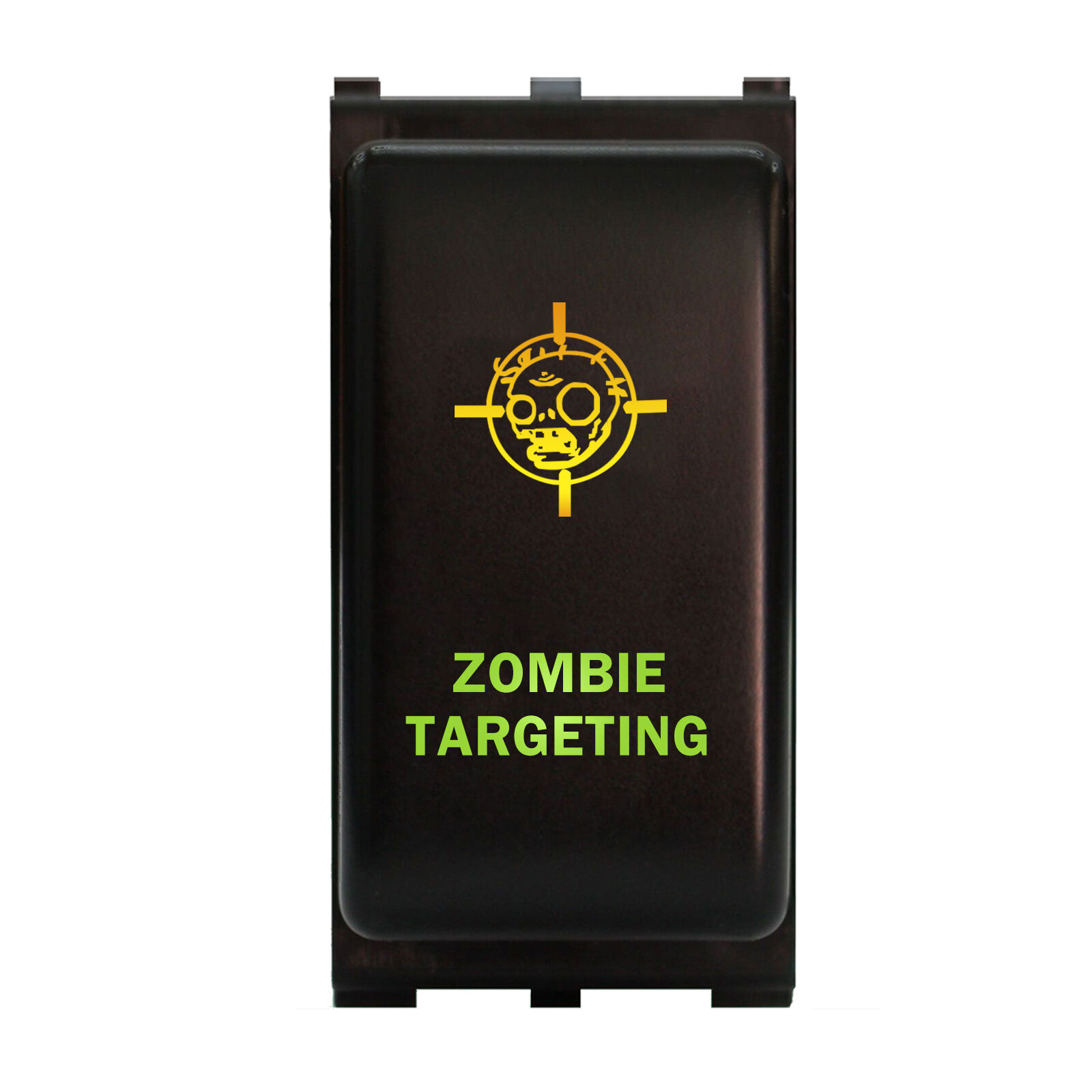

Nissan OEM Replacement Push Switch
Twin L.E.D Lights

This Switch Suit the Following Models only:

Pathfinder R51 2005 - 2012

 Navara D40 2005 - 2014

Patrol GU4-8 2004 - 2018

Patrol Y61 2013 - Current

X-Trail T31 2007 - 2013

This 12 volt push switch from AOB is a single throw ON - OFF switch designed to operate your 12 volt accessories. it has a face surface size of 35 mm x 20 mm, length of 55mm and uses the original mounting hole of the vehicle.

This switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.

• Single Pole Single Throw ON - OFF PUSH switch
• Laser etched Logo & text
• Single upper L.E.D light in amber.
• Single lower L.E.D light in green
• Lower light is ON when the switch is pressed IN.
• Upper light can be wired to separate dash light circuit.
• Rated at 3Amp 12V.
• Wiring diagram supplied with switch.

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. MUST be wired through a fused relay.

N100s Push Switches

Rear picture showing terminals and wiring harness supplied with switch. Wiring diagram will be supplied with switch purchase.

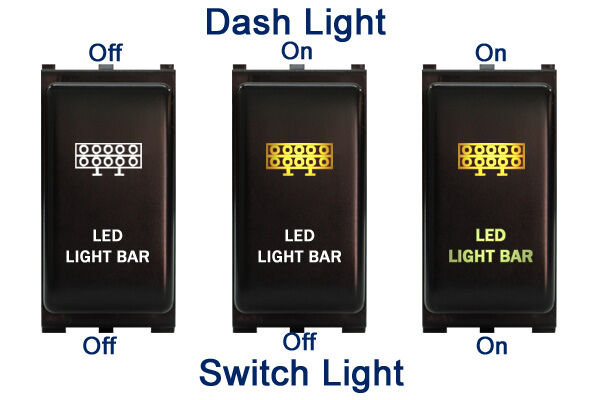

N100s Switches Illumination

When switch is turned on the bottom light illuminates.

The top light (image) has an Independent wiring circuit to connect to your dash lights. You can connect it to the dash light circuit or leave off, your choice.

(sample image with the LED LIGHT BAR logo)
