Direct OEM Replacement ON-OFF Push Switch
With Dual L.E.D Lights in LIGHT BLUE WHITE

This Switch Suits the following models ONLY:

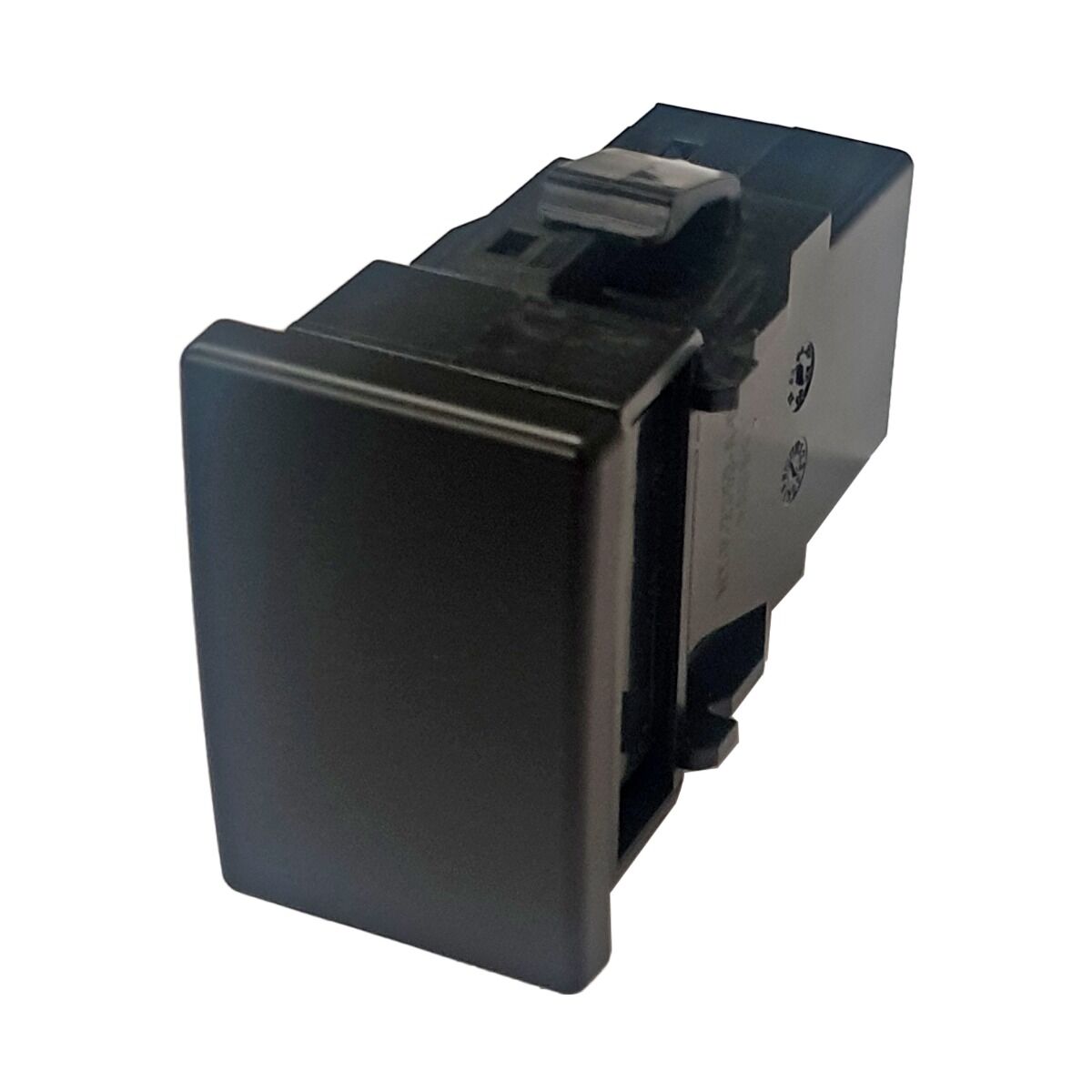

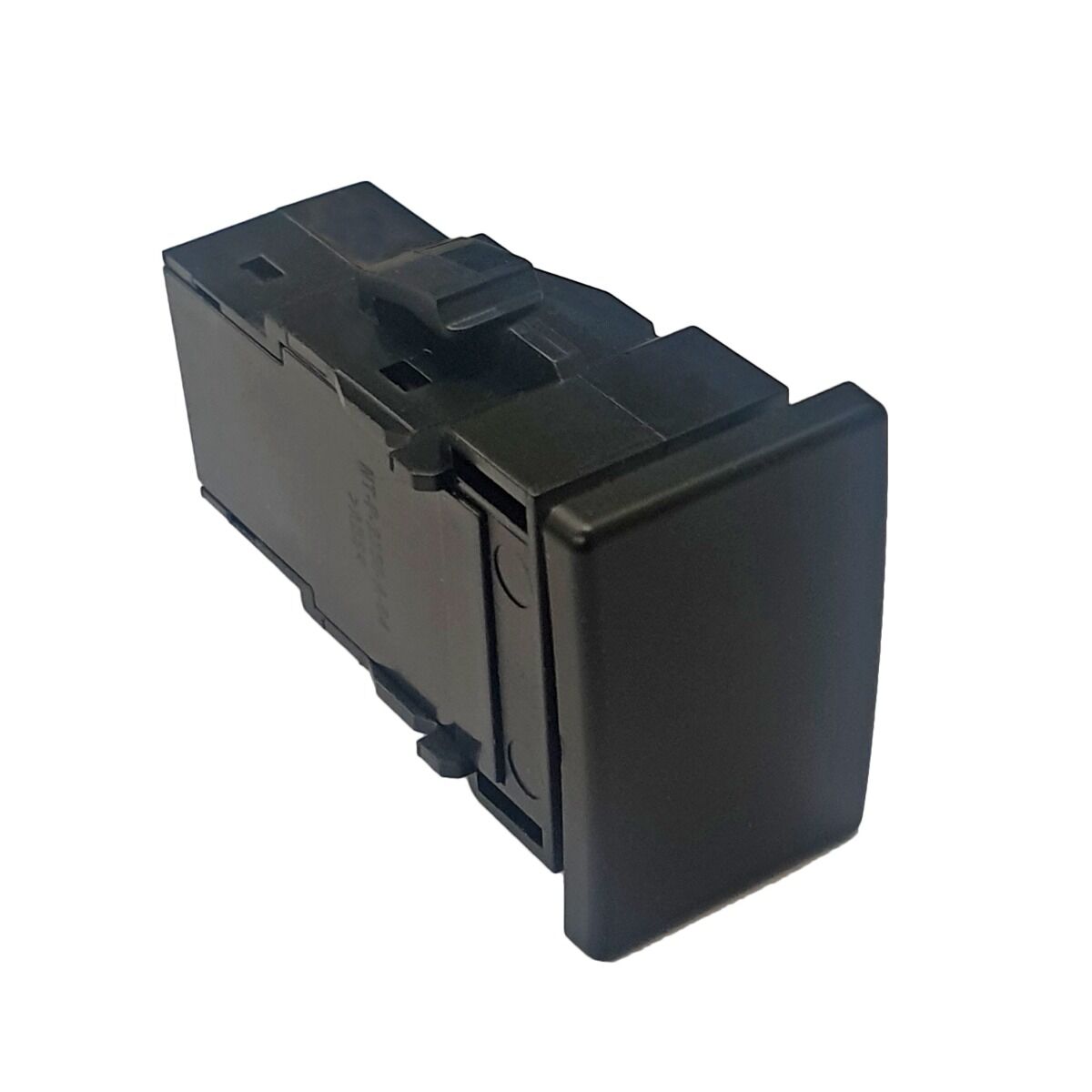

This high quality 12V 3A push switch from AOB is a single throw ON - OFF switch designed to operate your 12 volt accessories. it has a face surface size of 22.5 mm x 33 mm and length of 53 mm and uses the original mounting hole of the vehicle.

This Switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.

• Single Pole Single Throw ON - OFF PUSH switch
• Black hard surface.
• Laser etched Legend
• Single upper L.E.D light in LIGHT BLUE.
• Single lower L.E.D light in WHITE.
• Upper light is ON when the switch is pressed IN.
• Lower light can be wired to separate dash light circuit.
• Rated at 3Amp 12V.
• Wiring diagram supplied with switch.

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. Therefore in ALL cases the accessory MUST be wired through a fused relay.

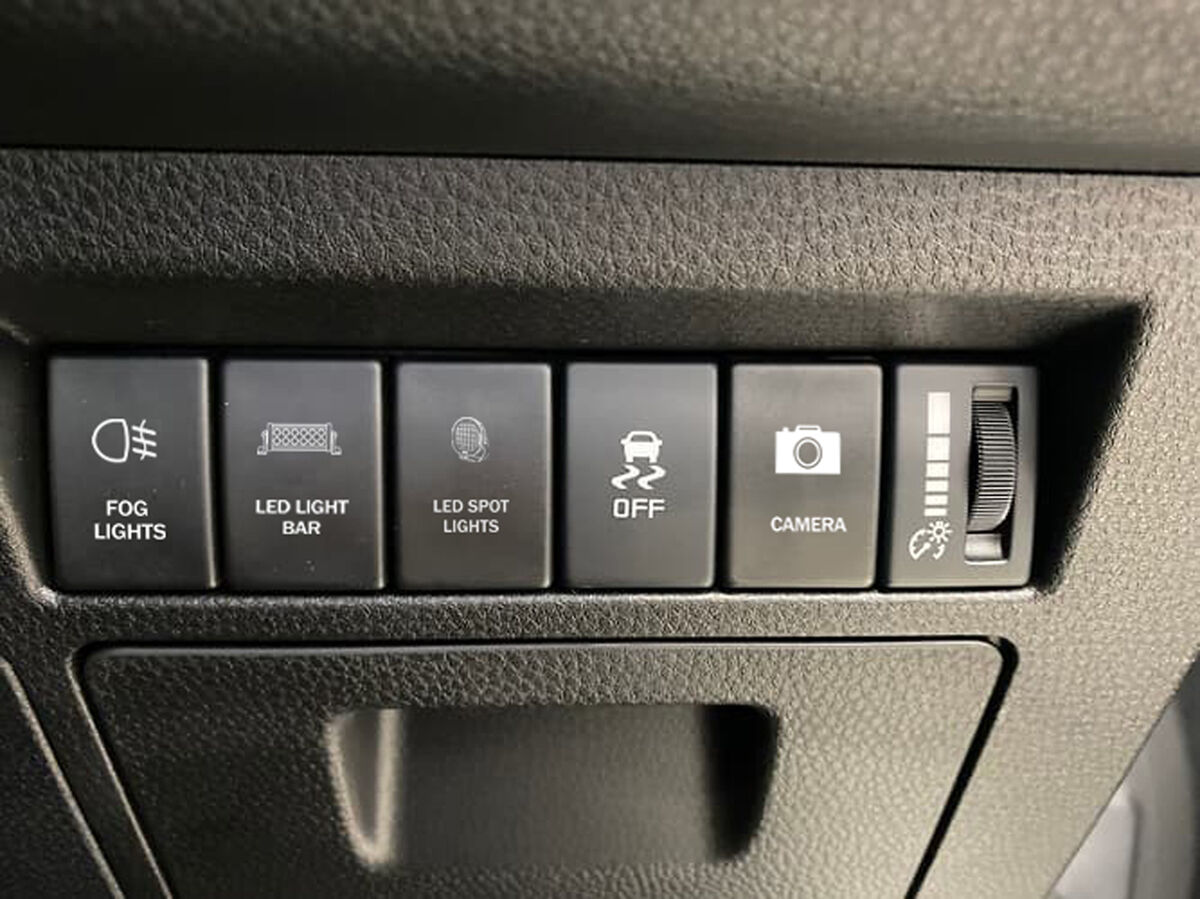

Example of Dash Panel with I400 series Push On-Off Switches

Panel shown from Mazda BT-50 2021 Auto 4x4 Dual Cab

I400s Push Switches

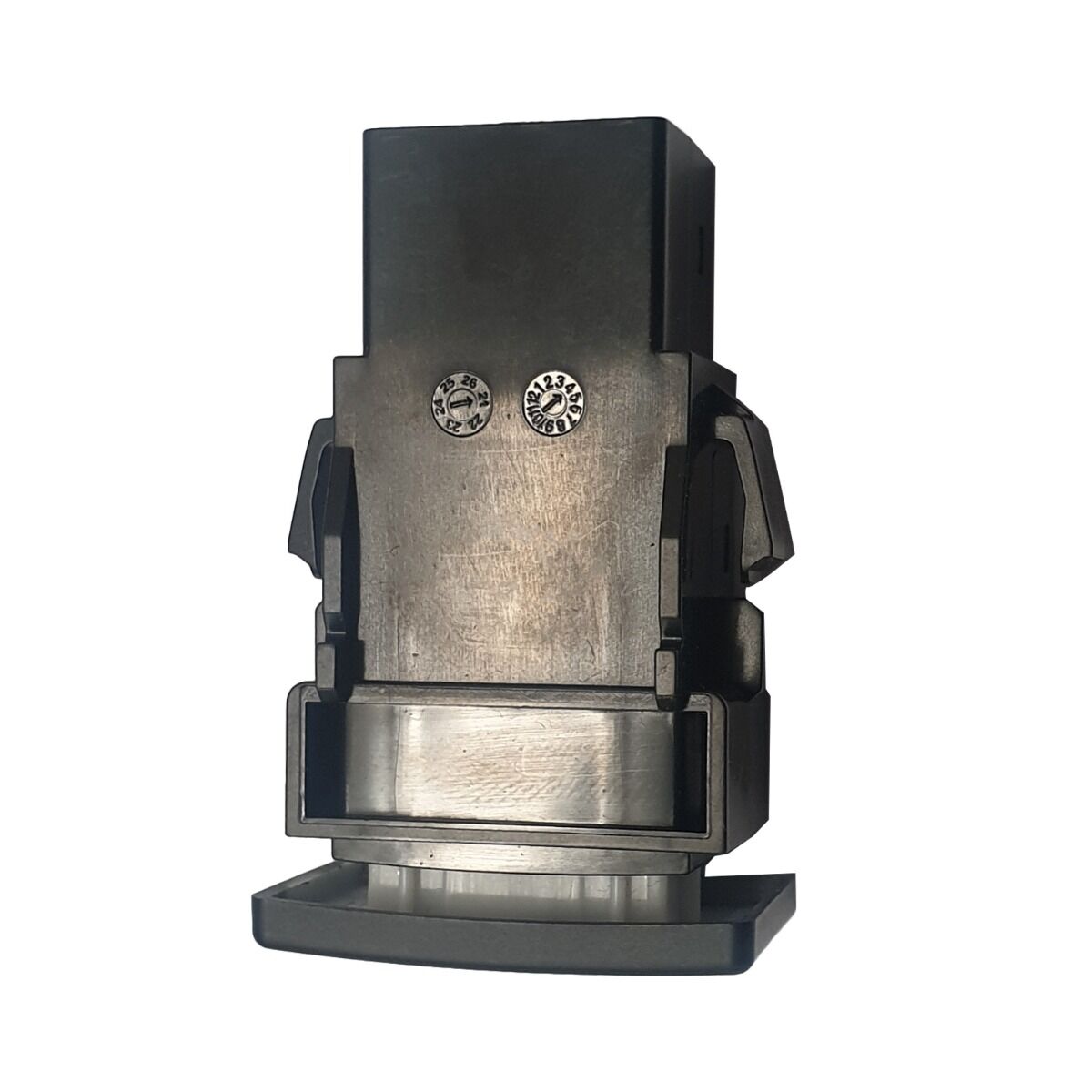

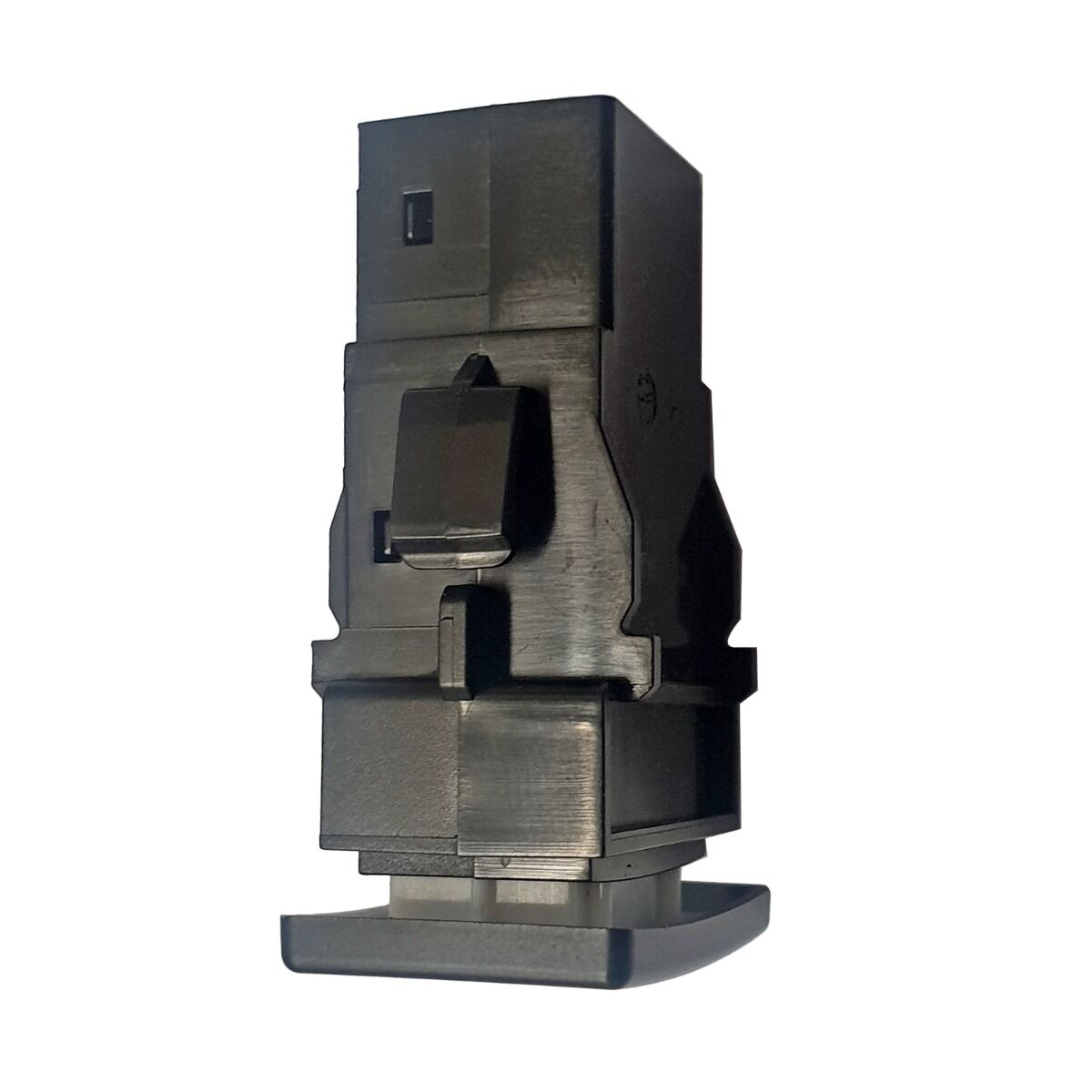

Rear picture showing terminals. Wiring harness and wiring diagram are supplied with switch purchase.

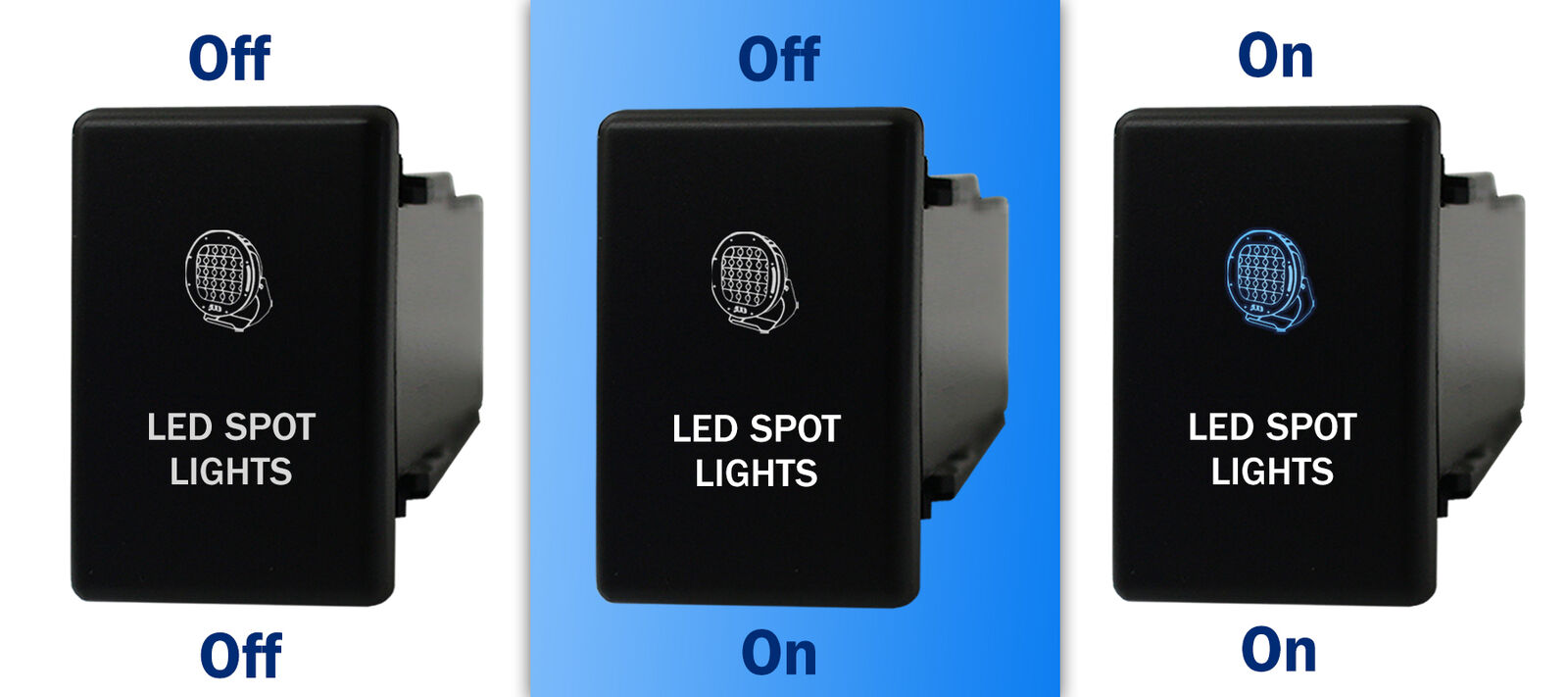

I400s Switches Illumination

When switch is turned on the top light illuminates.

The bottom light has an Independent wiring circuit to connect to your dash lights. You can connect it to the dash light circuit or leave off, your choice.

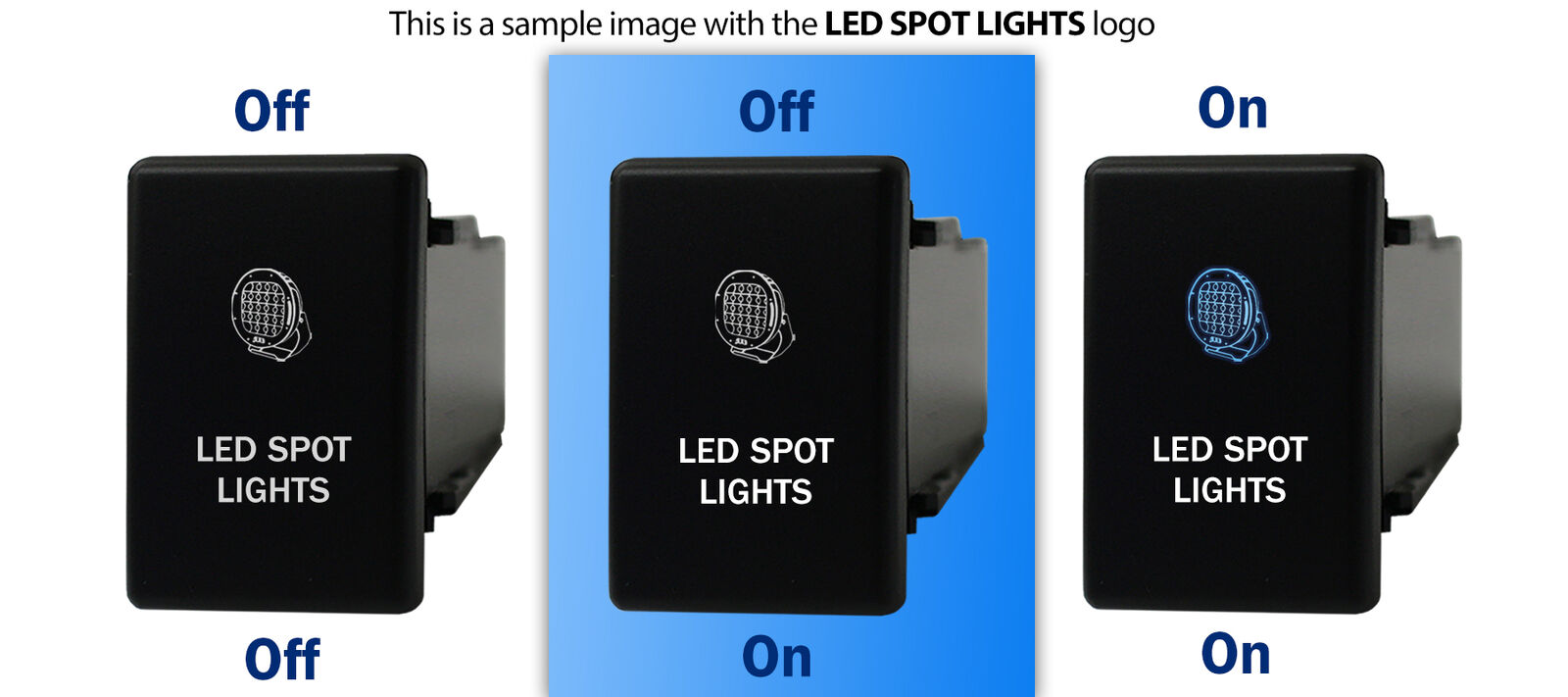

(this is a sample image with the LED SPOT LIGHTS logo)
