12V 3A ON - OFF Mitsubishi PUSH Switch
Twin L.E.D Lights

This Switch Suit the Following Models only:

ASX 2010 - Current

 Challenger 2009 - 2015

Pajero 2002 - Current

Triton ML 2009 - 2015

Triton MN 2009 - 2015

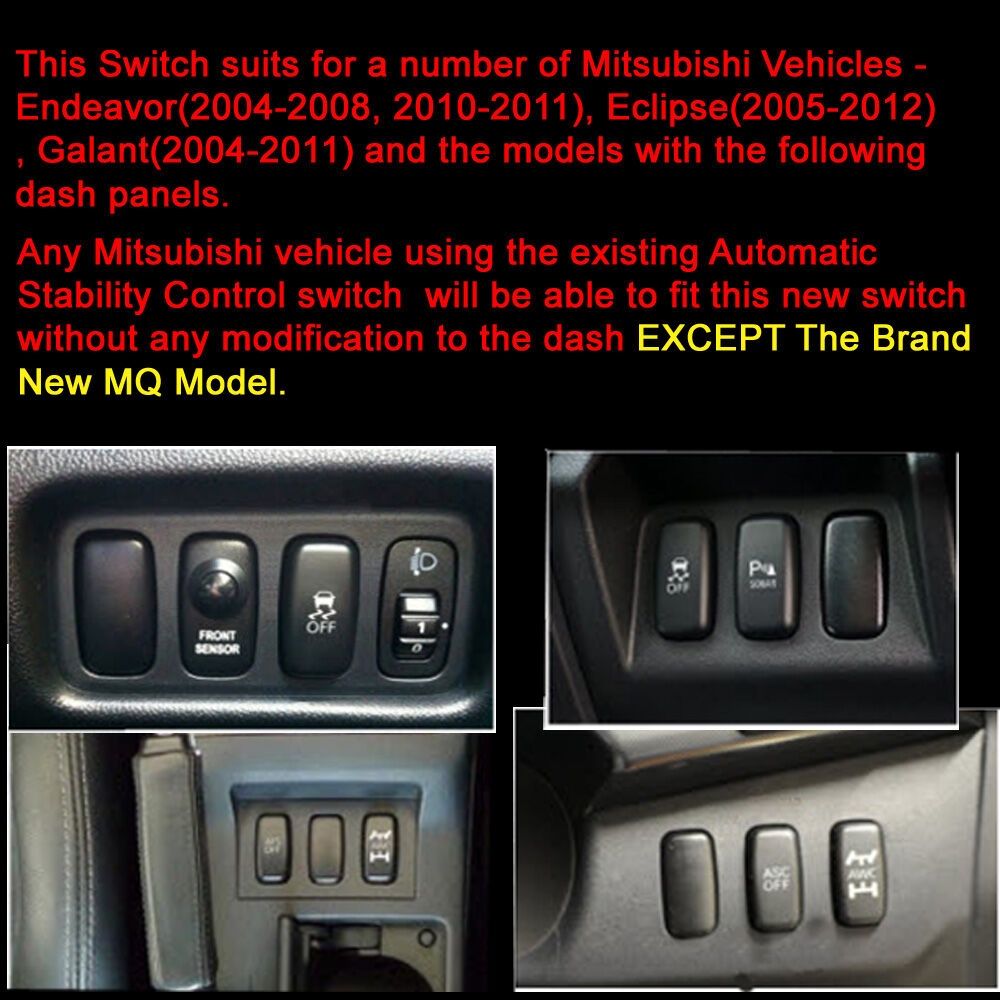

Any Mitsubishi vehicle using the existing ASC switch will be able to fit this new switch without any modification to the dash.

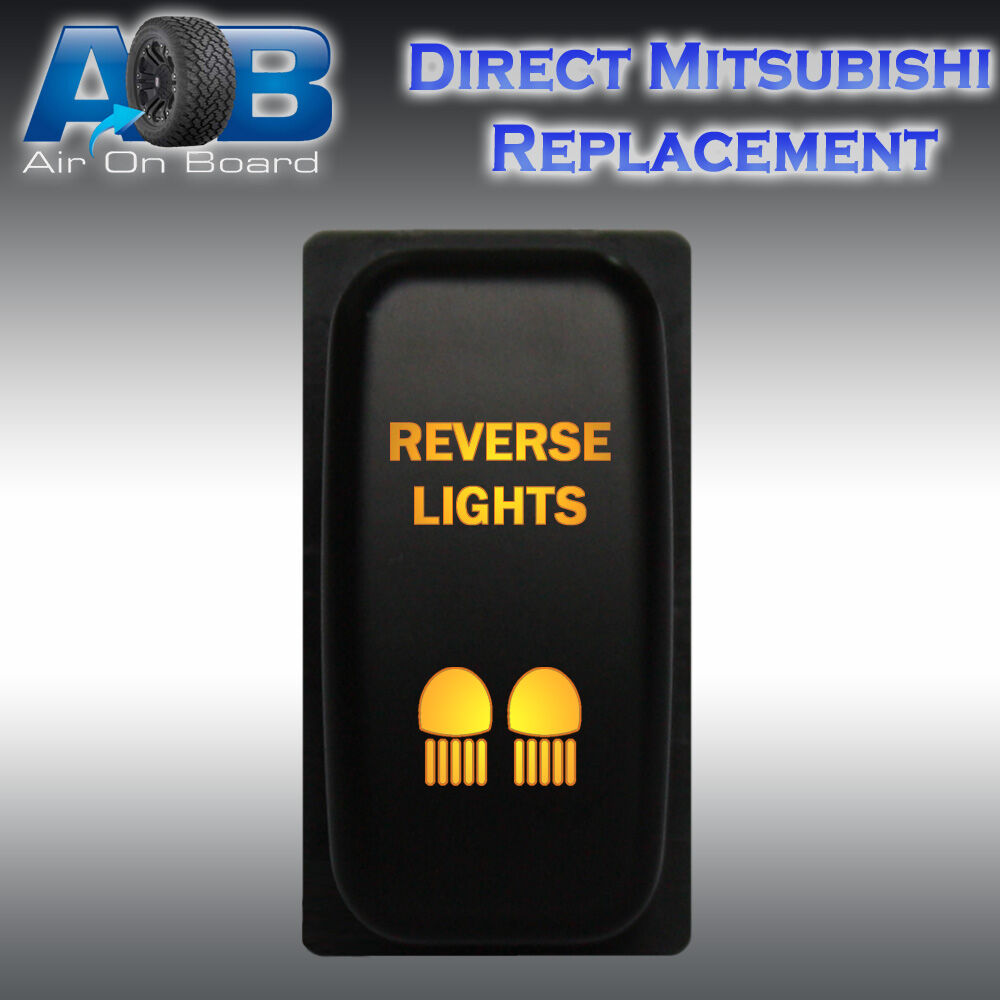

This high quality 12 volt push switch from AOB is a single throw ON - OFF switch designed to operate your 12 volt accessories. It has a face surface size of 35 mm x 18 mm and length of 60 mm. Any Mitsubishi vehicle using the existing ASC switch shown above will be able to fit this new switch without any modification to the dash.

This switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.

• Single Pole Single Throw ON - OFF PUSH switch
• Laser etched Logo & text
• Lower light is ON when the switch is pressed IN.
• Upper light can be wired to separate dash light circuit.
• Rated at 3Amp 12V.
• Wiring diagram supplied with switch.

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. MUST be wired through a fused relay.

M100s Push Switches

Rear picture showing terminals. Wiring harness and wiring diagram are supplied with switch purchase.

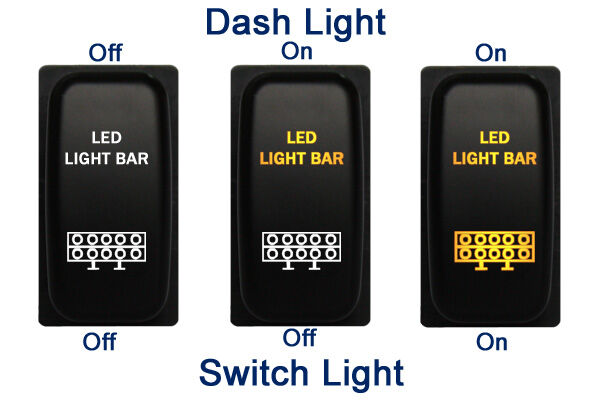

M100s Switches Illumination

When switch is turned on the top light illuminates.

The bottom light has an Independent wiring circuit to connect to your dash lights. Optional connect to the dash light circuit.

(sample image with the LED LIGHT BAR logo)
