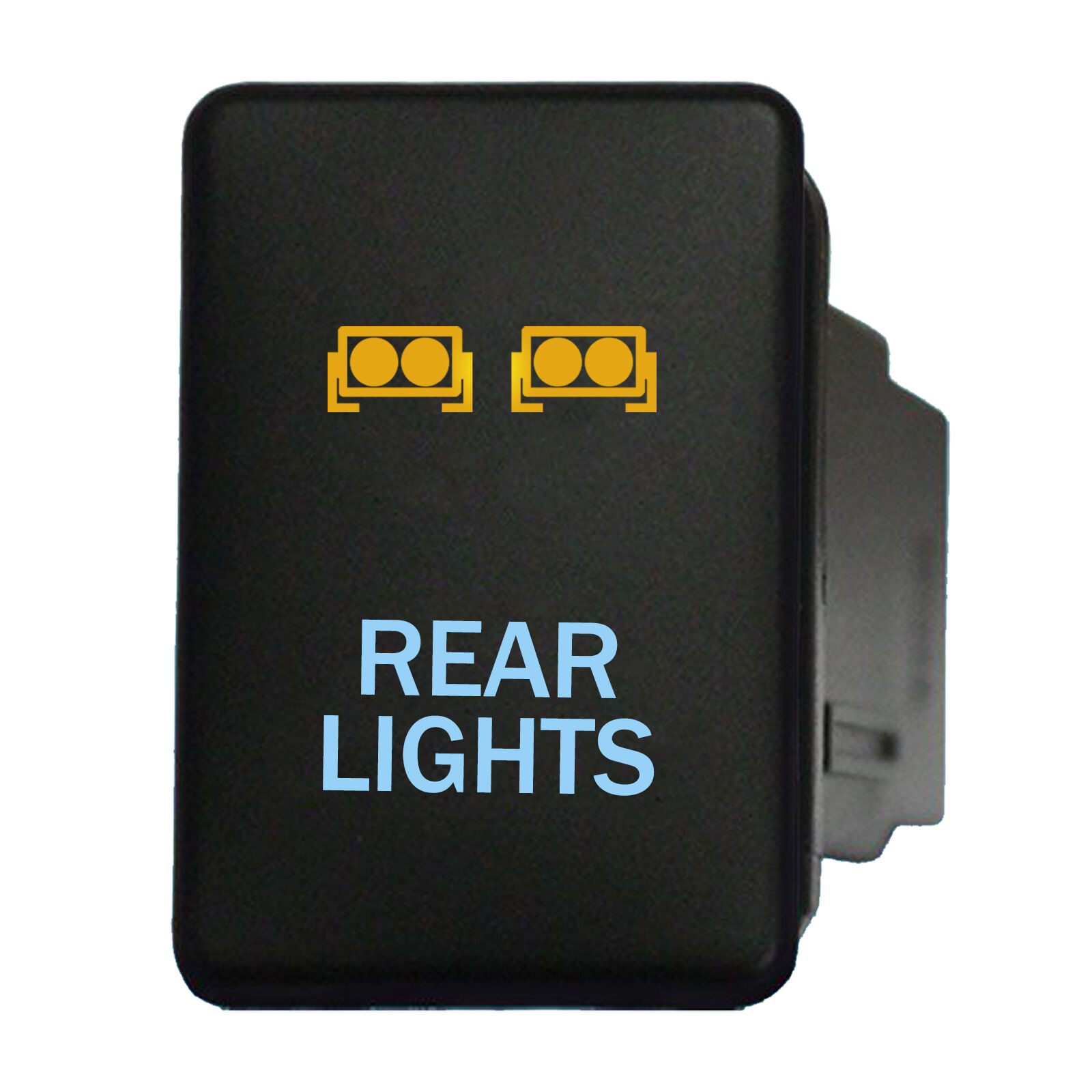

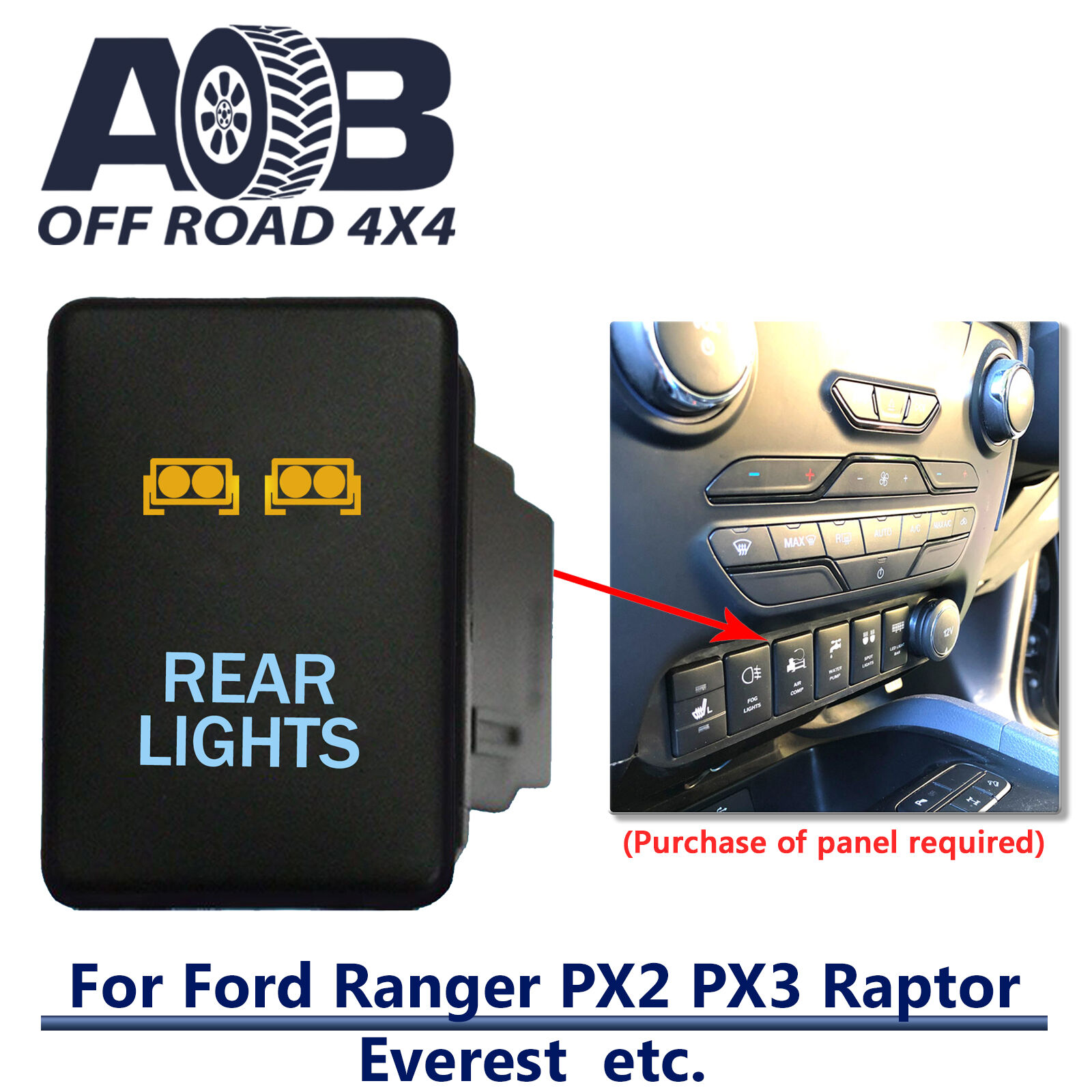

12 Volt 3amp ON-OFF Ford Push Switch
NEW AMBER / LIGHT BLUE COLOUR

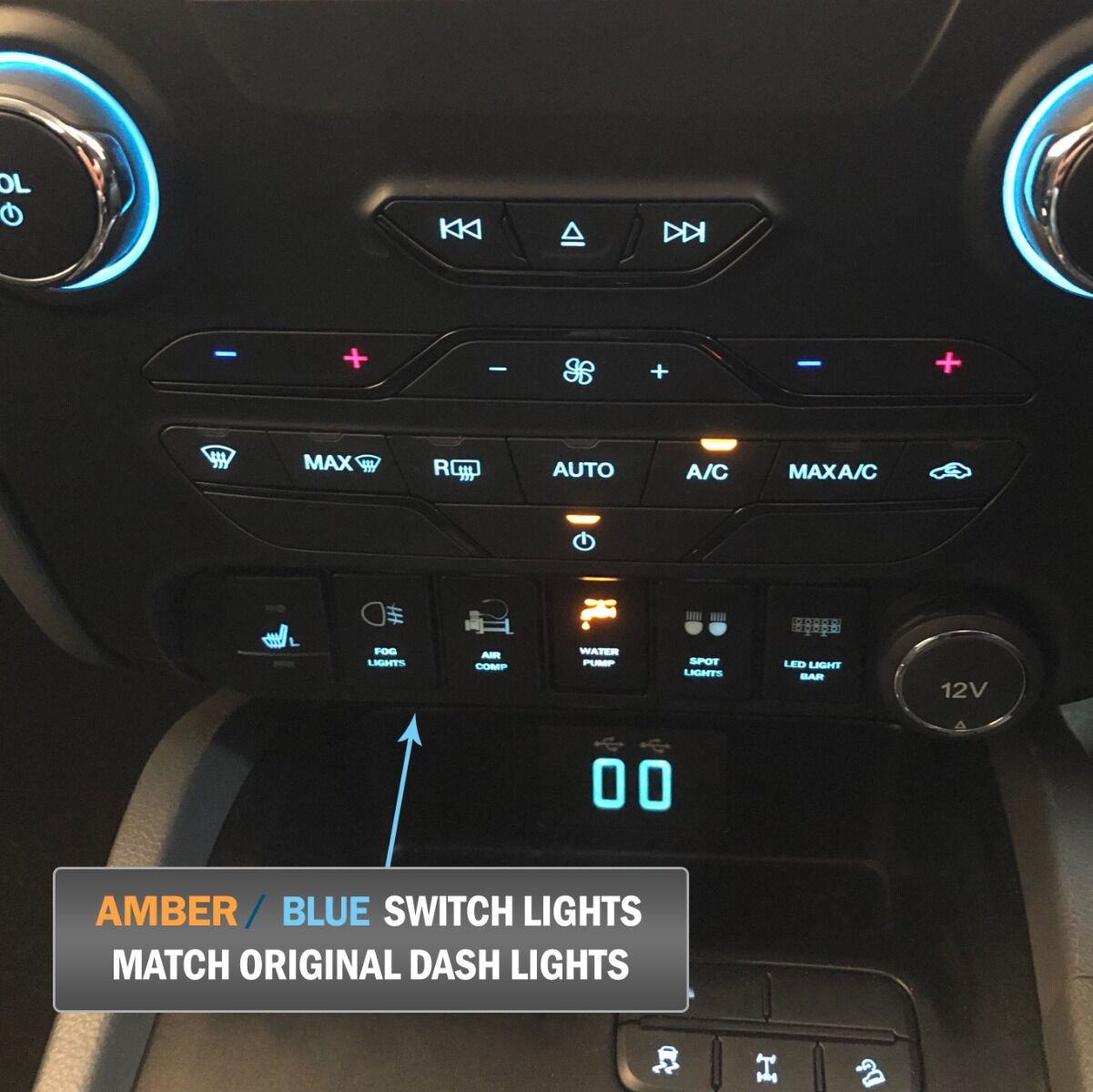

This 12 volt push switch from AOB is a single throw ON - OFF switch designed to operate your 12 volt accessories. It has a face surface size of 32.5 mm x 22 mm It has been specially designed to match the factory dash lights and activation light of the original switches to give that factory look and feel

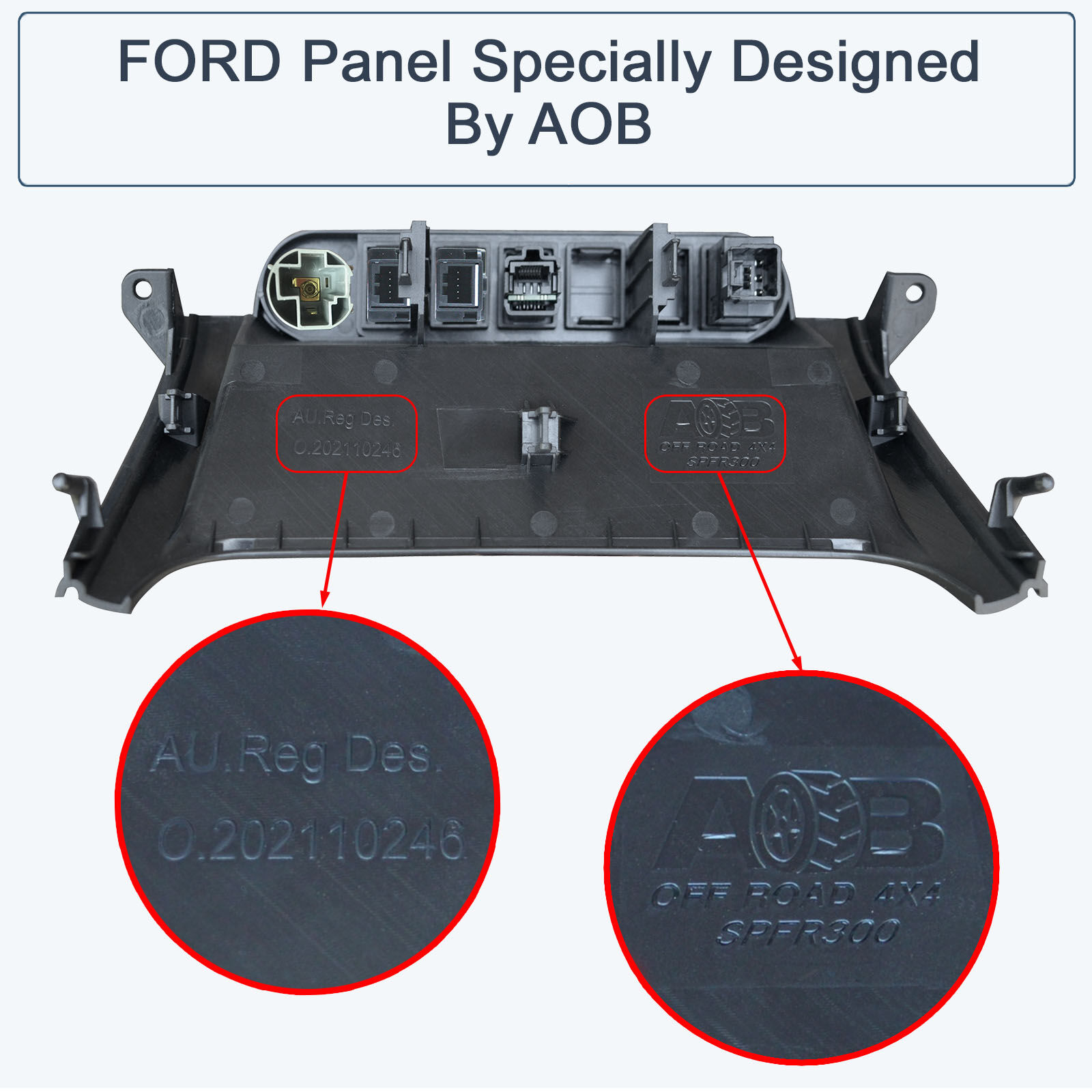

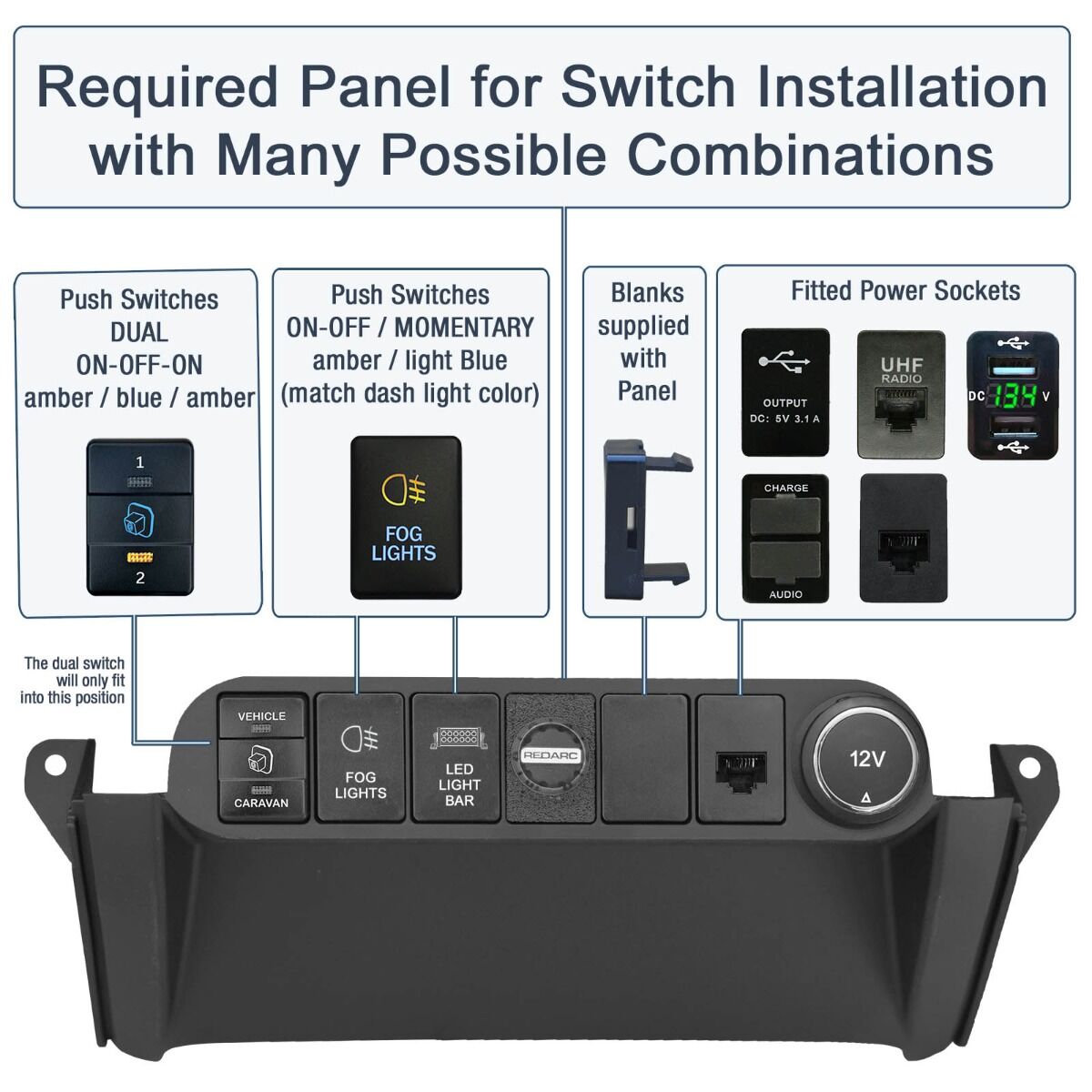

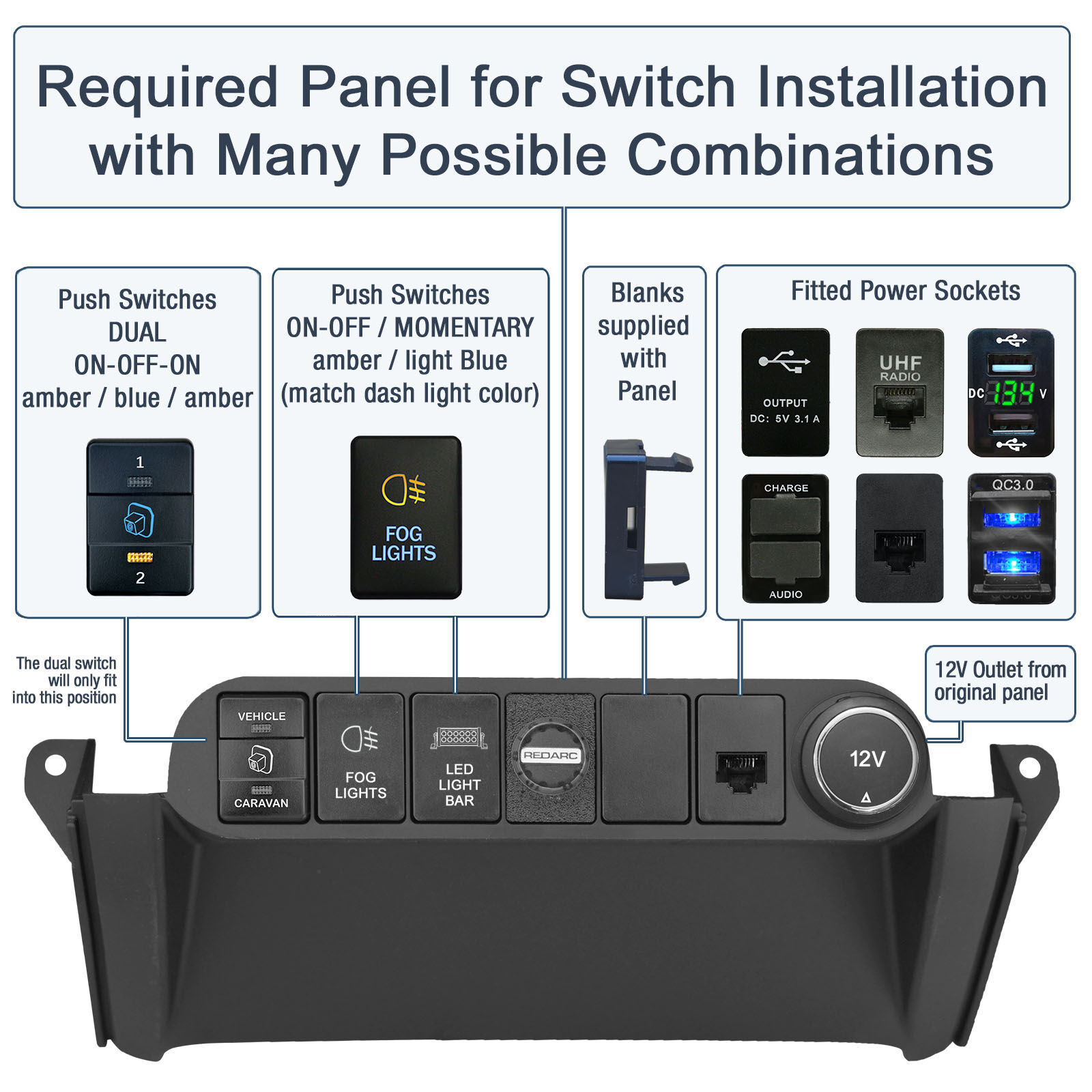

This unique Switch needs to be installed with our specially designed FORD switch panel which replaces your factory panel and allows you to add an extra 6 switches. This panel can be purchased from this link

• Single Pole Single Throw ON - OFF PUSH switch
• Black hard surface
• Laser etched Legend
• Single upper L.E.D light in AMBER
• Single lower L.E.D light in LIGHT BLUE
• Upper light is ON when the switch is pressed IN
• Lower light can be wired to separate dash light circuit
• Rated at 3Amp 12V
• Wire Plug and wiring diagram supplied with switch

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. Therefore in ALL cases the accessory MUST be wired through a fused relay.

AOBSW900CA series

Rear picture showing terminals and wiring harness supplied with switch

Wiring diagram will be supplied with switch purchase.

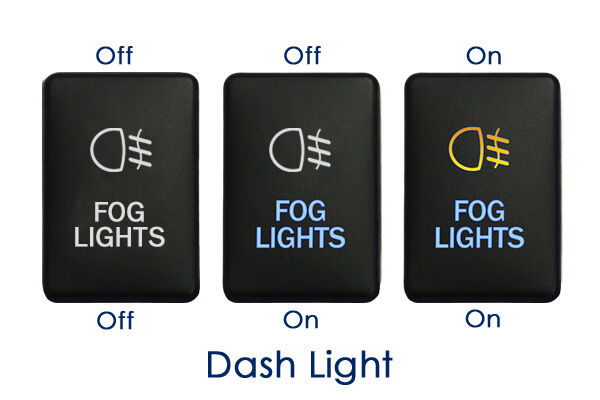

AOBSW900CA series Illumination

When switch is turned on the top light (picture 1) illuminates.

The bottom light (bar) has an Independent wiring circuit to connect to your dash lights. You can connect it to the dash light circuit or leave off, your choice.

(this is a sample image with the FOG LIGHTS logo)
