WARNING: This switch is to control the aftermarket towing mirrors that come with the mirror fold function. You must purchase a reversing relay to use this switch which will control the in and out function of the mirrors.
This switch will not work without the reversing relay and CAN NOT be plugged directly into the wiring supplied with the mirrors or with the OE wiring of the vehicle.

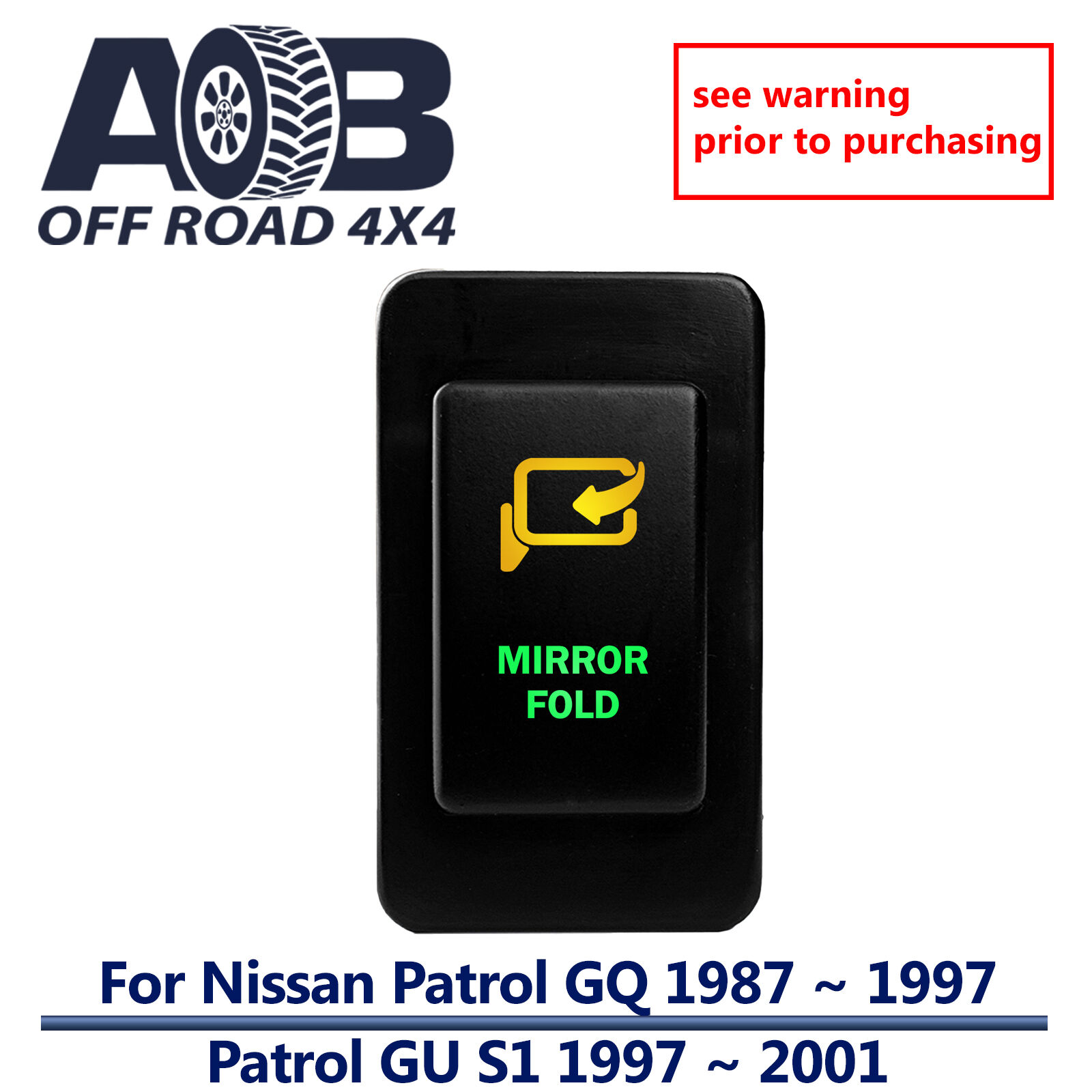

This Switch Suit the Following Models only:

Patrol GQ 1987 - 1997

 Patrol GU Series 1 1997 - 2001

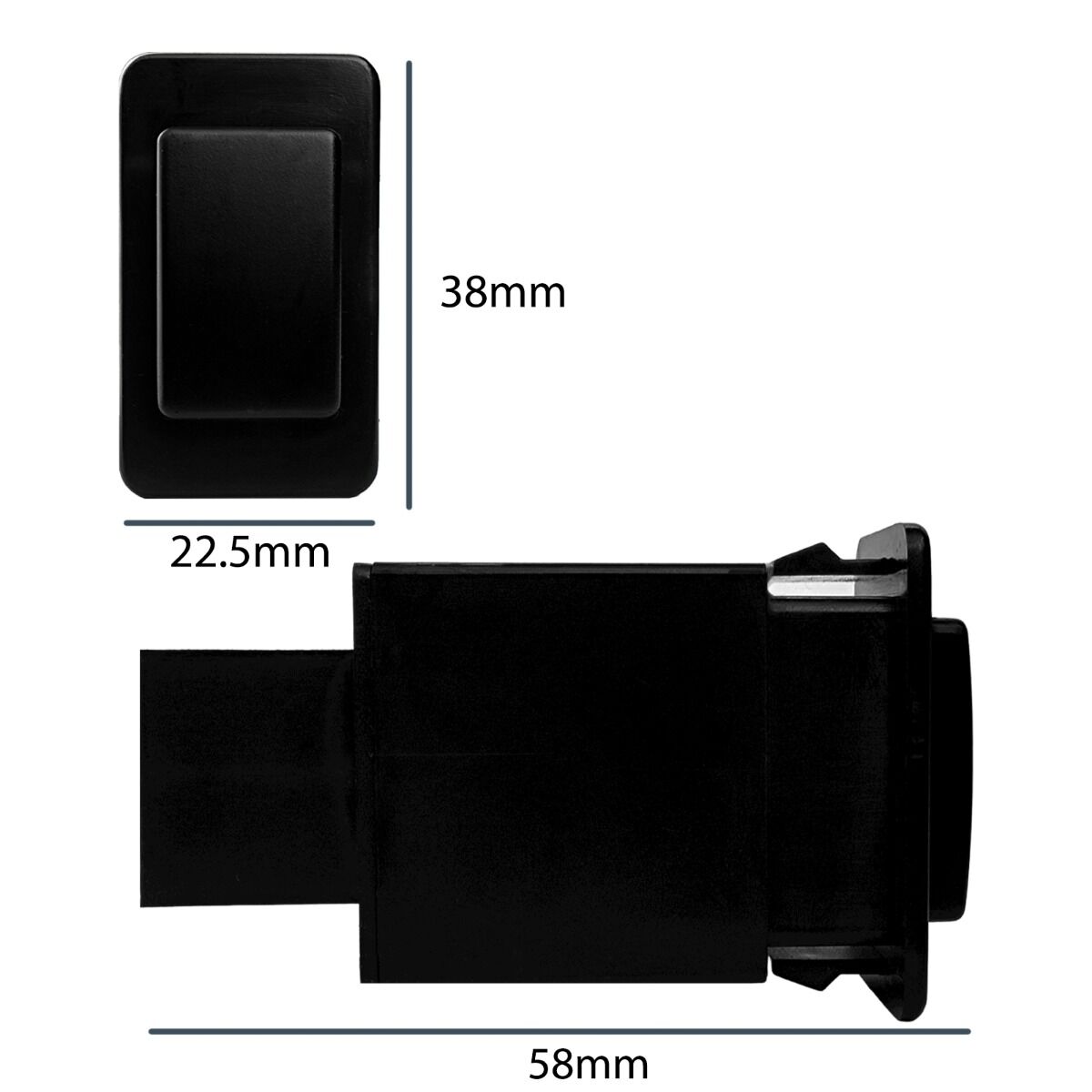

This 12 volt push switch from AOB is a single throw ON - OFF switch designed to operate your 12 volt accessories. it has a face surface size of 38 mm x 22.5 mm, length of 58mm and uses the original mounting hole of the vehicle.

This switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.

• Single Pole Single Throw ON - OFF PUSH switch
• Laser etched Logo & text
• Dual LED lights in AMBER GREEN
• Lower/Right light is ON when the switch is pressed IN.
• Upper/Left light can be wired to separate dash light circuit.
• Rated at 3Amp 12V.
• Wiring diagram supplied with switch.

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. MUST be wired through a fused relay.

N400s Push Switches

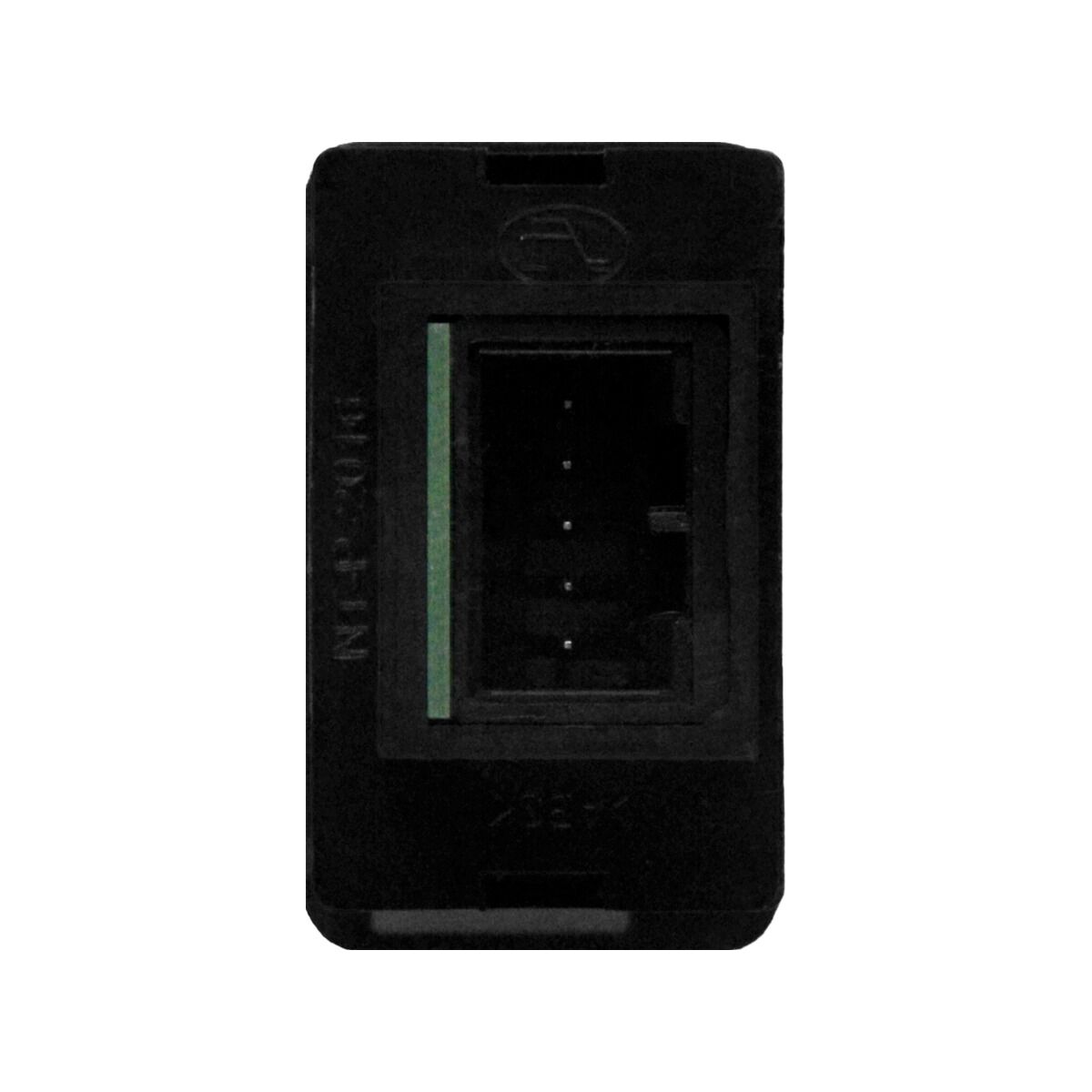

Rear picture showing terminals and wiring harness supplied with switch.Wiring diagram will be supplied with switch purchase.

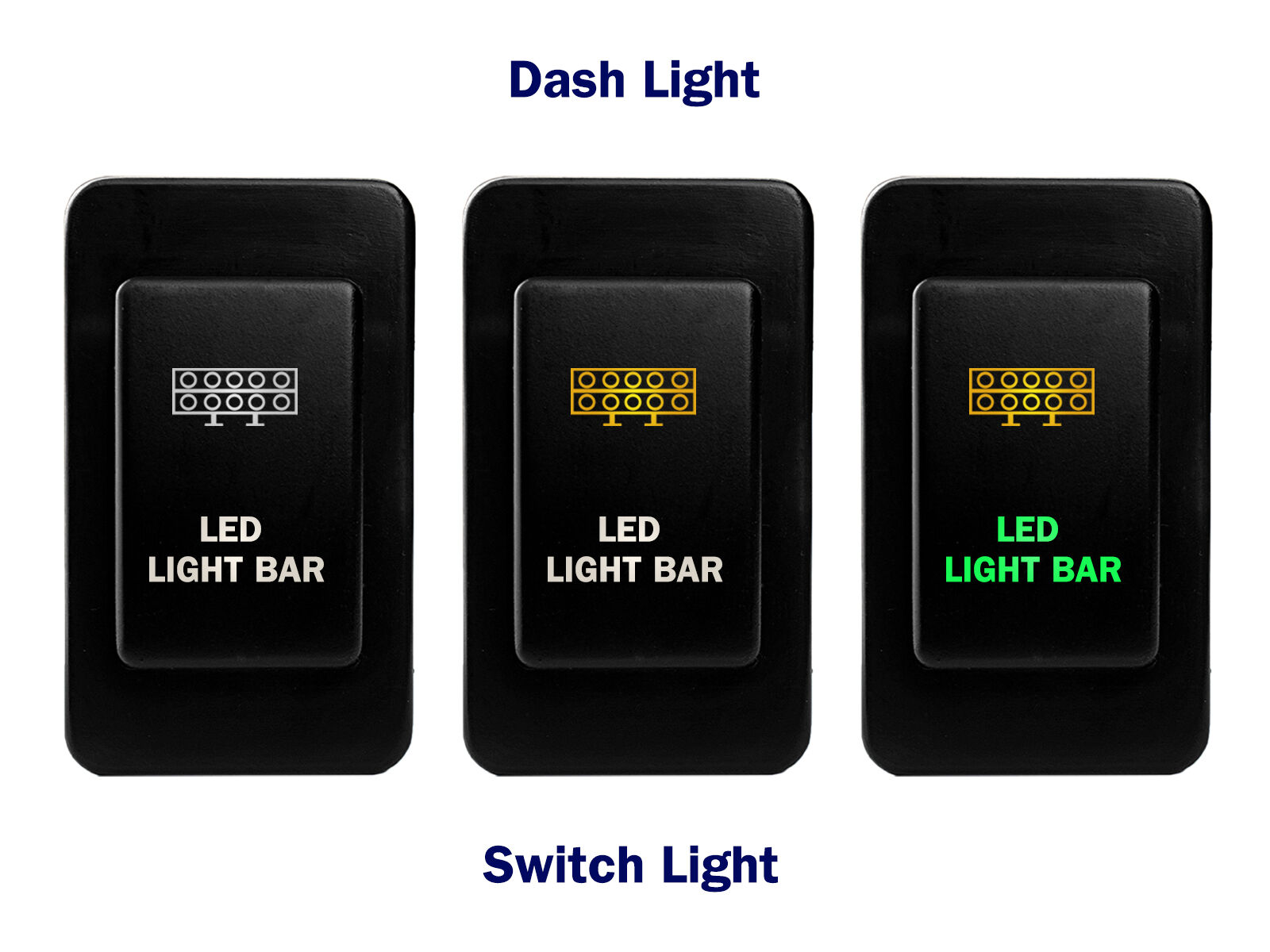

N400s Switches Illumination

When switch is turned on the bottom light illuminates.

The top light (image) has an Independent wiring circuit to connect to your dash lights. You can connect it to the dash light circuit or leave off, your choice.

(sample image with the LED LIGHT BAR logo)
