Rated 0/5 based on 0 review.

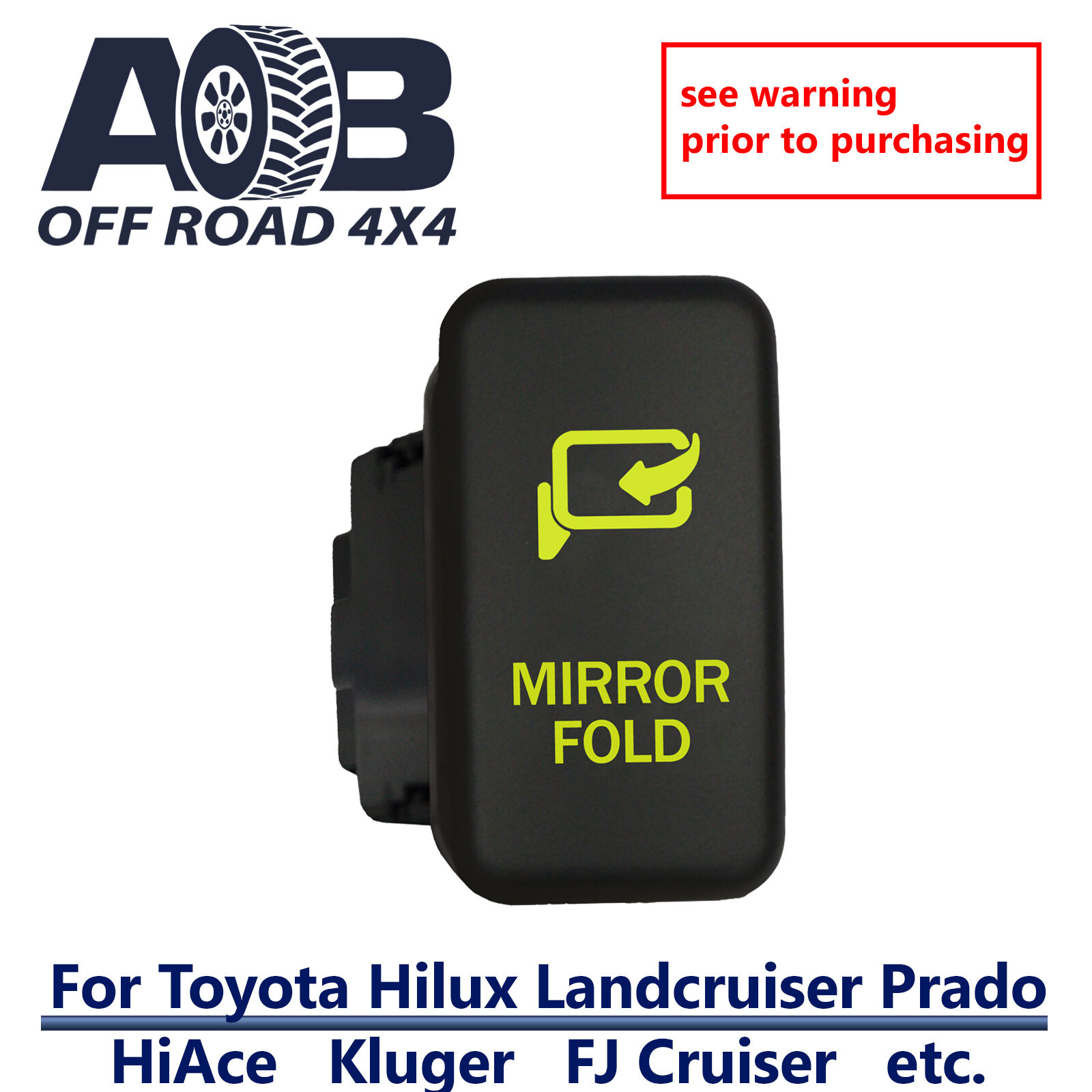

Push Switch MIRROR FOLD 8C82NG fits Toyota Hilux, Kluger, FJ Cruiser, Prado 120, HiAce, Landcruiser etc. dual LED in light green
In Stock
$21.60
SKU: SW8C82NG
12V 3A Laser etched ON-OFF Toyota OEM Replacement Push Switch 8C82NG with dual LED lights in light green and MIRROR FOLD legend
Australian Owned
Speedy Delivery
Easy Ordering
Bulk & Custom Orders
Flexible Payment Options
Secure Payment Methods
Calculate Shipping
In-Store Pick Up (Free) - FREE
⚠️ Important Notice: Some items may require assembly or preparation time. Please do not come to the store immediately. A team member will email or call you to confirm your order is ready and schedule your specific pick-up appointment.
⚠️ Important Notice: Some items may require assembly or preparation time. Please do not come to the store immediately. A team member will email or call you to confirm your order is ready and schedule your specific pick-up appointment.
12 Volt 3amp ON-OFF TOYOTA PUSH Switch
Twin L.E.D Lights
WARNING: This switch is to control the aftermarket towing mirrors that come with the mirror fold function. You must purchase a reversing relay to use this switch which will control the in and out function of the mirrors.
This switch will not work without the reversing relay and CAN NOT be plugged directly into the wiring supplied with the mirrors or with the OE wiring of the vehicle.
This Switch Suit the Following Models only:
FJ Cruiser 2007 - 2018
HiAce 2005 - 2013
Hilux KUN26R, GGN15R, GGN25R 2005 - Early 2015
Kluger 2001 - 2007
Landcruiser 76 / 78 / 79 Series Plastic Dash
Landcruiser 100 Series 1998 - 2007
Prado 120 Series 2003 - 2009
Tundra (Centre console if exists) 2005 - 2006
This Switch will not fit the new Hilux GUN series
This 12 volt push switch from AOB is a single pole single throw ON-OFF switch designed to operate your 12 volt accessories. It has a face surface size of 39 mm x 21 mm and uses the original mounting hole of the vehicle.
This switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.
- Single Pole Single Throw ON - OFF PUSH switch
- Laser etched Logo & text
- Upper light is ON when the switch is pressed IN.
- Lower light can be wired to separate dash light circuit.
- Rated at 3Amp 12V.
- Wiring diagram supplied with switch.
All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.
The switch is an electronic switch rated at 3amp's. MUST be wired through a fused relay.

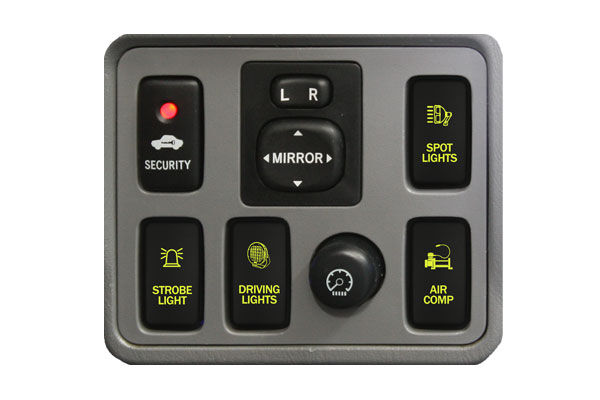

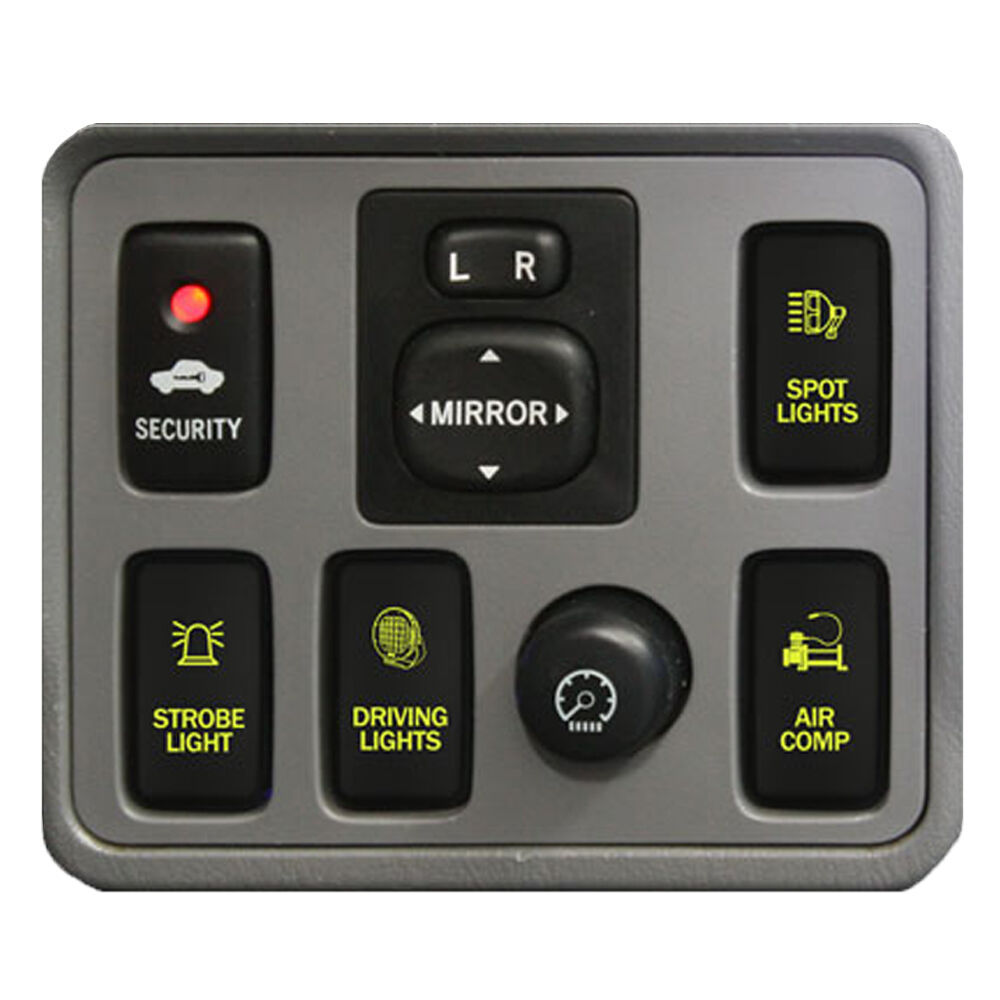

Example of Dash Panel with 800 series Push On-Off Switches
Panel shown from 2010 Toyota. This Panel is mounted on the left side of the steering wheel.
800s Push Switches
Rear picture showing terminals. Wiring harness and wiring diagram are supplied with switch purchase.

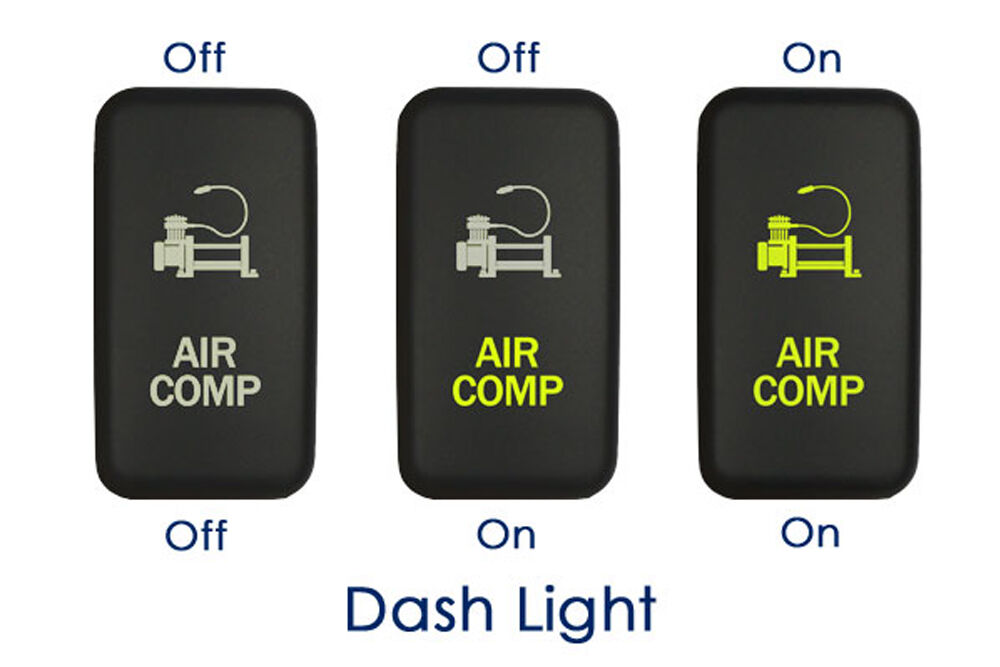

800s Switches Illumination
When switch is turned on the top light illuminates.
The bottom light (bar) has an Independent wiring circuit to connect to your dash lights. You can connect it to the dash light circuit or leave off, your choice.
(sample image with the LED LIGHT BAR logo)
Face Size 21mm(W) x 39mm (H) | Cut out size 16.8mm (W) x 35.4mm (H) | 12volt Max 3 Amp
| SKU | SW8C82 |
