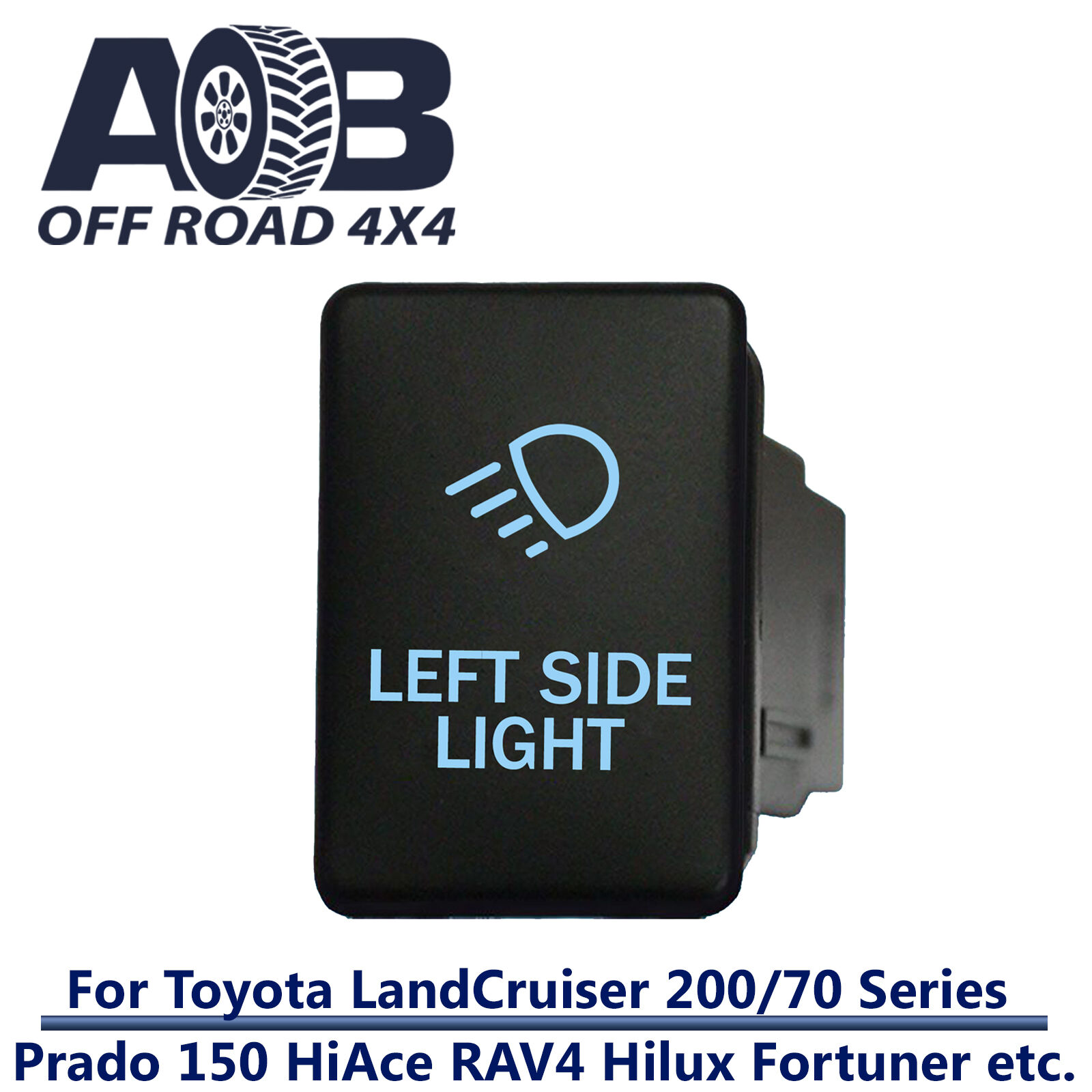

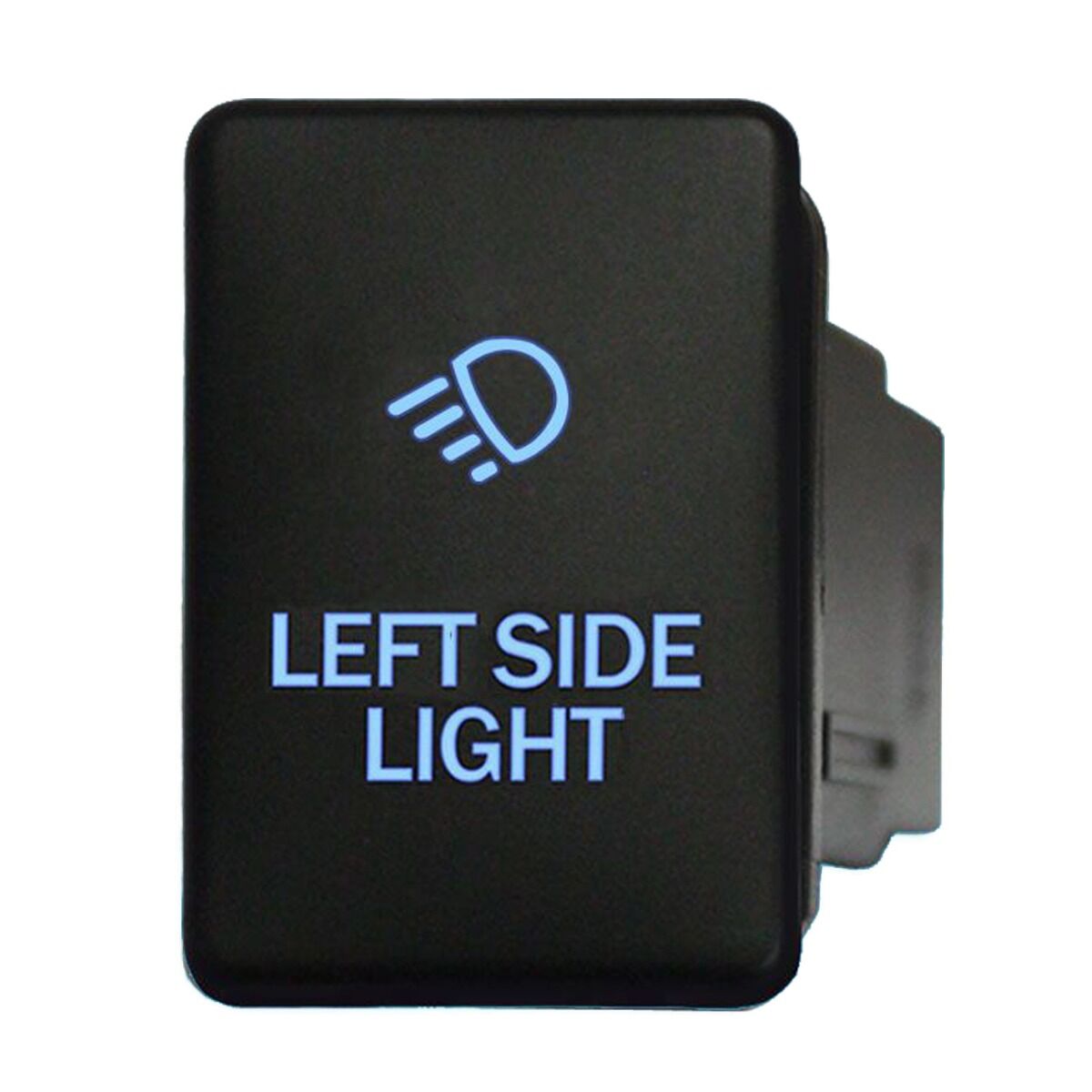

12 Volt 3amp ON-OFF TOYOTA PUSH Switch
Twin L.E.D Lights

This Switch Suit the Following Models only:

86 (Subaru BRZ / Scion FR-S) 2012 - 2020

 Camry 2011 - 2014

Corolla 2006 - 2013

FJ Cruiser (roof console only) 2011 - 2016

Fortuner 2015 - Current

HiAce 2014 - Current

Hilux GUN Series 09/2015 - 11/2025

Kluger 2008 - 2019

Landcruiser 200 Series 2008 - Current

Landcruiser 79 Series (Plastic Dash) Right side of steering wheel 2021 - Current

Prado 150 Series 2010 - Current

RAV4 2006 - 2019

Tundra 2007 - 2014

Suzuki Jimny JB64W JB74W 2018 - Current

Please check the hole size before purchase



This 12 volt push switch from AOB is a single pole single throw ON-OFF switch designed to operate your 12 volt accessories. It has a face surface size of 32.5 mm x 22 mm and uses the original mounting hole of the vehicle.

This switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.

  • Single Pole Single Throw ON - OFF PUSH switch
  • Laser etched Logo & text
  • Upper light is ON when the switch is pressed IN.
  • Lower light can be wired to separate dash light circuit.
  • Rated at 3Amp 12V.
  • Wiring diagram supplied with switch.

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. MUST be wired through a fused relay.

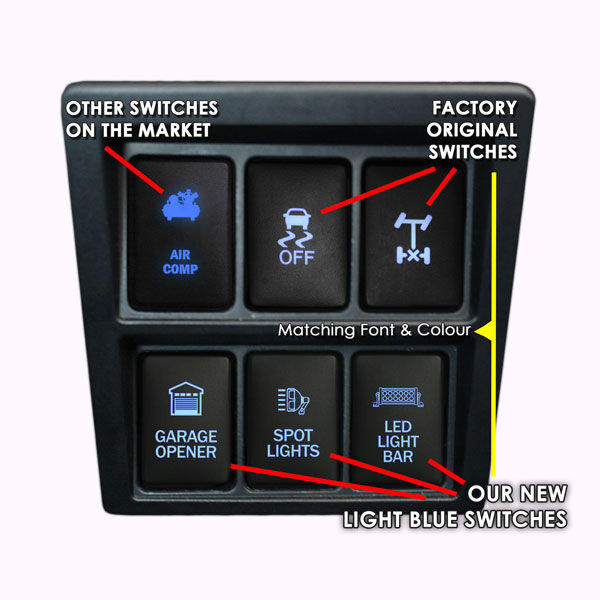

Dash Panel from Toyota Suzuki Auto 4x4 MY12 with AOBSW900 series Push Button Switches

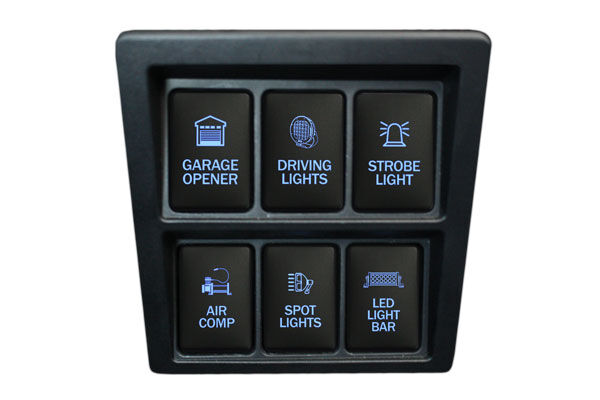

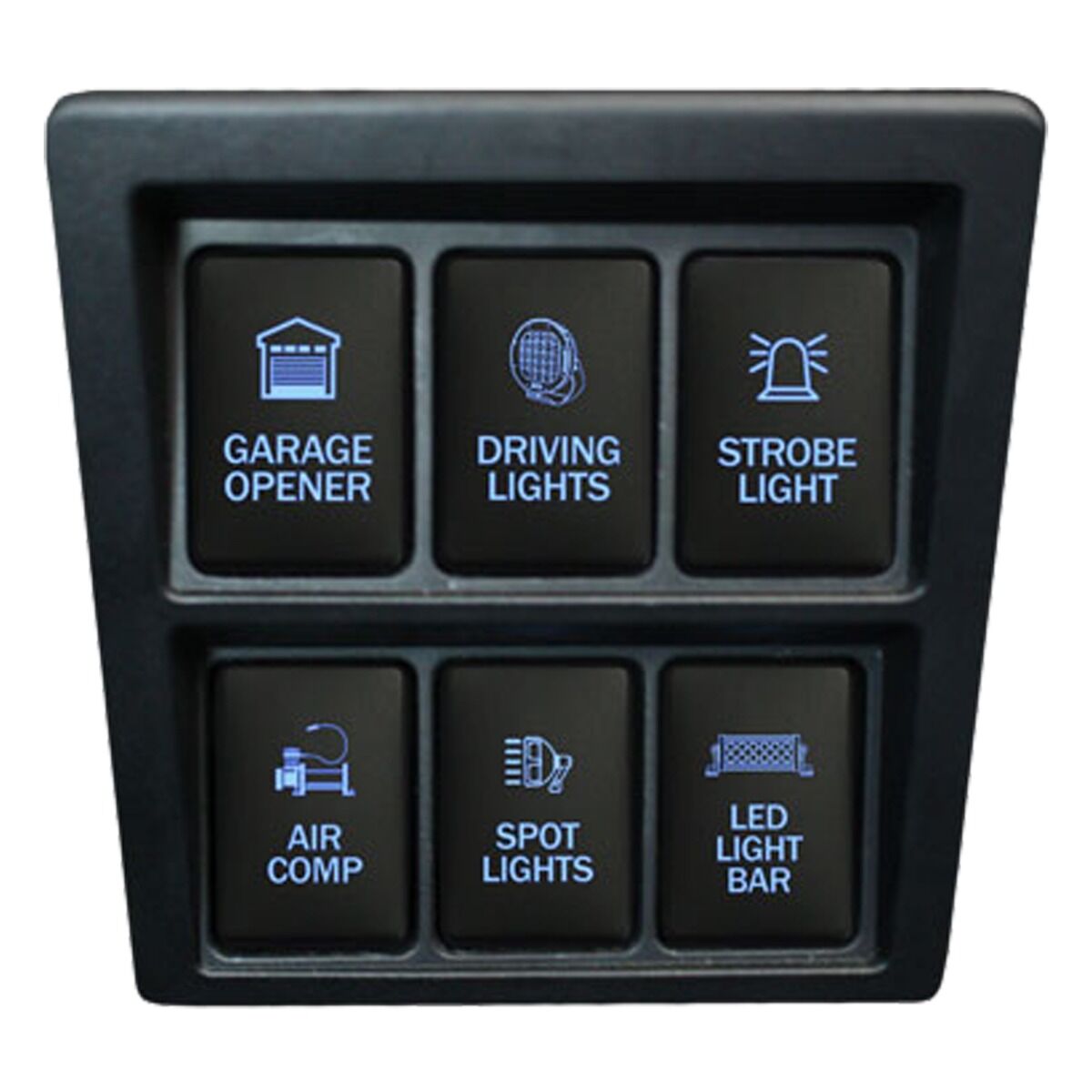

Example of Dash Panel with 900 series Push On-Off Switches

Panel shown from 2013 LandCruiser 200 series. This Panel is mounted on the right side of the steering wheel.

Rear picture of AOBSW800 series TOYOTA & SUZUKI Push Button Switch

900s Push Switches

Rear picture showing terminals. Wiring harness and wiring diagram are supplied with switch purchase.

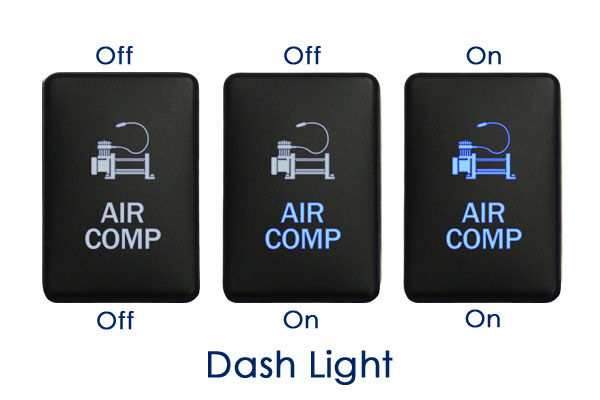

Light Illumination effect of AOBSW900 series HILUX, PRADO & TUNDRA Push Button Switch with dual LED LIGHTS in BLUE

900s Switches Illumination

When switch is turned on the top light illuminates.

The bottom light (bar) has an Independent wiring circuit to connect to your dash lights. You can connect it to the dash light circuit or leave off, your choice.

(sample image with the LED LIGHT BAR logo)

Face Size: 32.50mm(H) x 22mm (W) | Cutout Size 17mm (W) x 26.5mm (H) | Depth 65mm | Max 3amp

SKU SW9C47
Shipping Weight 0.0230kg
Shipping Width 0.100m
Shipping Height 0.030m
Shipping Length 0.160m
Shipping Cubic 0.000480000m3
