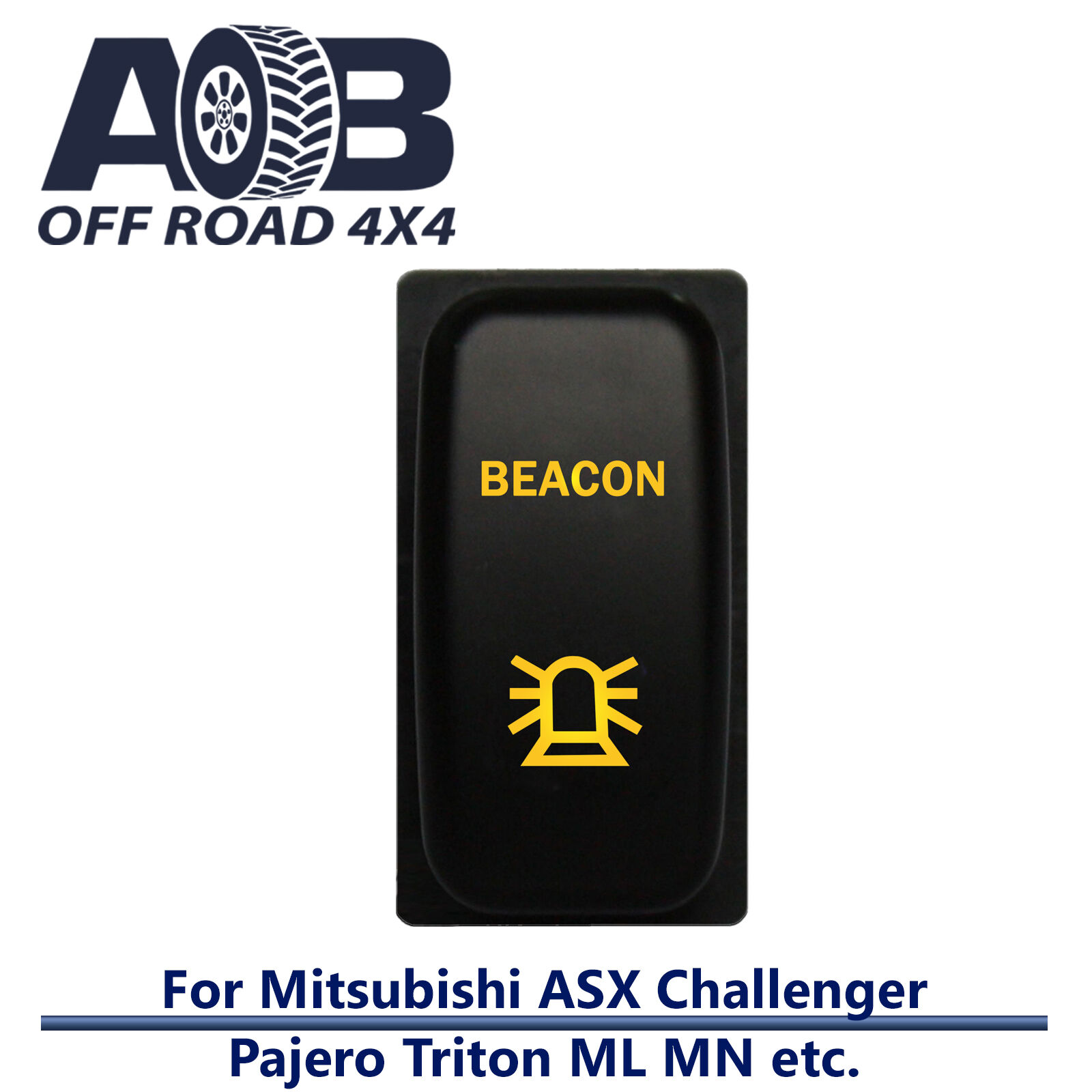

12V 3A ON - OFF Mitsubishi PUSH Switch
Twin L.E.D Lights

This Switch Suits the following Mitsubishi models ONLY:

Any Mitsubishi vehicle using the existing ASC switch will be able to fit this new switch without any modification to the dash.

This high quality 12 volt push switch from AOB is a single throw ON - OFF switch designed to operate your 12 volt accessories. It has a face surface size of 35 mm x 18 mm and length of 60 mm. Any Mitsubishi vehicle using the existing ASC switch shown above will be able to fit this new switch without any modification to the dash.

This Switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.

• Single Pole Single Throw ON - OFF PUSH switch
• Black hard surface.
• Laser etched Legend
• Single upper L.E.D light in BLUE.
• Single lower L.E.D light in BLUE.
• Lower light is ON when the switch is pressed IN.
• Upper light can be wired to separate dash light circuit.
• Rated at 3Amp 12V.
• Wiring diagram supplied with switch.

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. Therefore in ALL cases the accessory MUST be wired through a fused relay.

Rear picture showing terminals and wiring harness supplied with switch.Wiring diagram will be supplied with switch purchase.

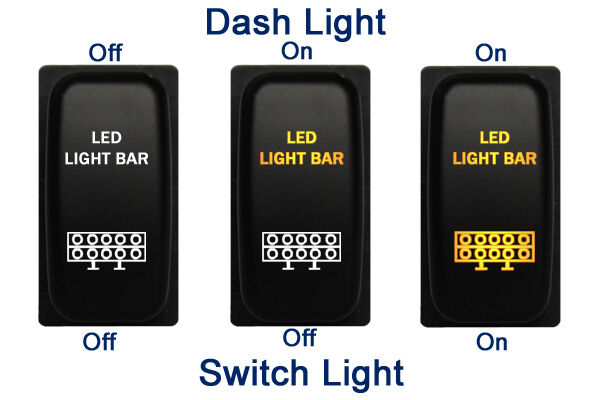

Mitsubishi Switches Illumination

When switch is turned on the bottom light illuminates.

The top light (image) has an Independent wiring circuit to connect to your dash lights.Optional dash light circuit. (this is a sample image with the LED LIGHT BAR logo)
