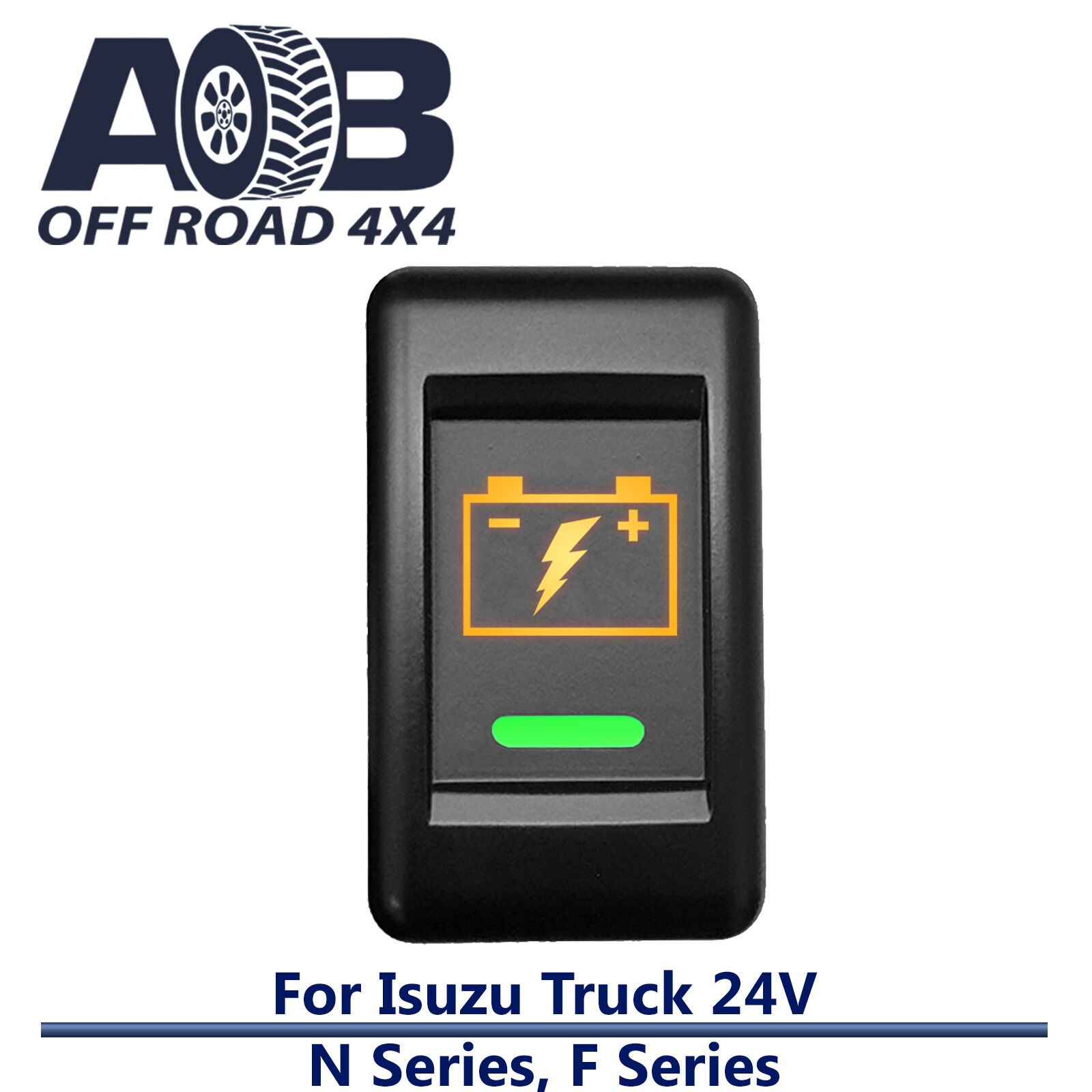

24 Volt ON - OFF ISUZU TRUCK PUSH Switch
Twin L.E.D Lights

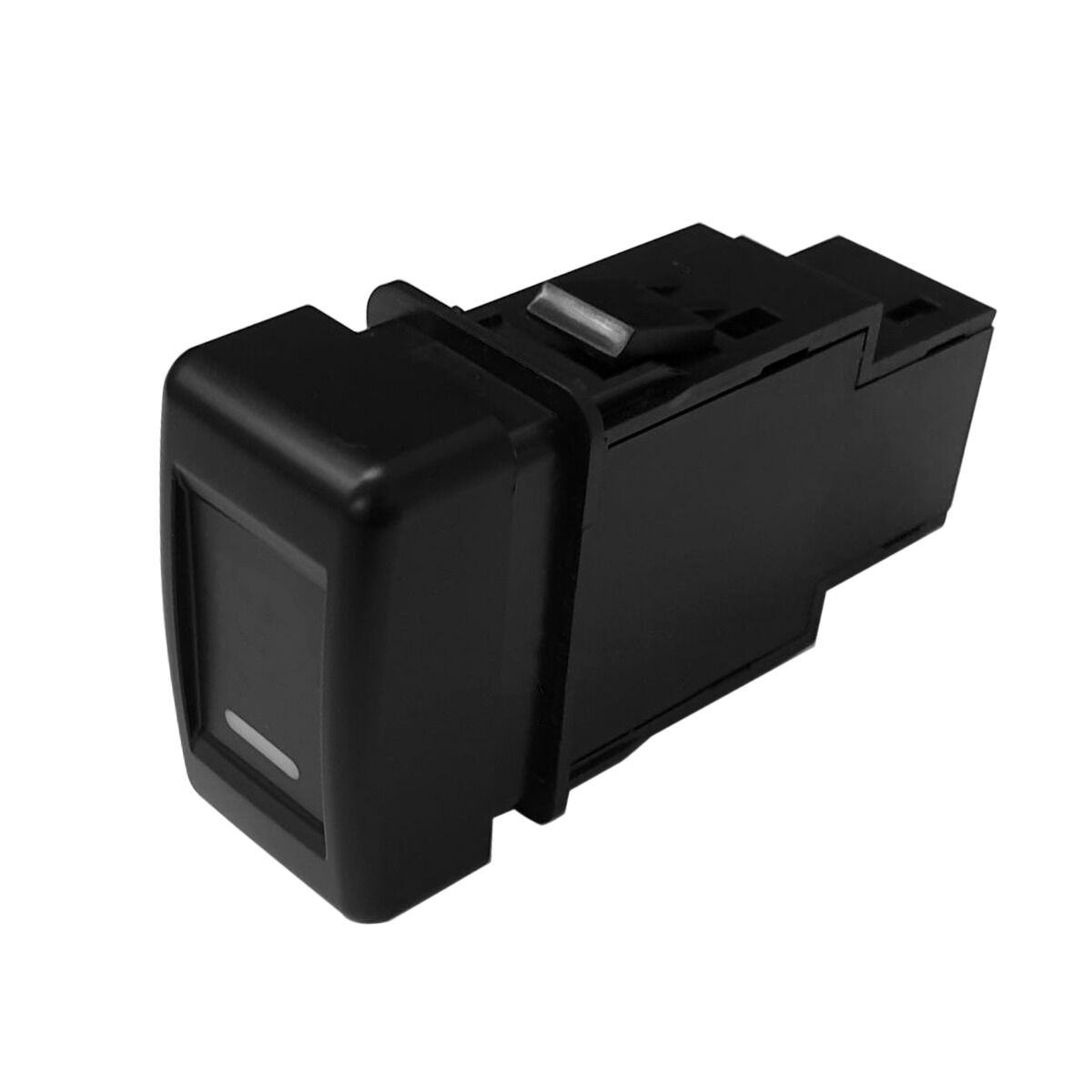

This 24 volt push switch from AOB is a single pole single throw ON - OFF switch designed to operate your 24 volt accessories. It has a face surface approx size of 39mm x 23mm and uses the original mounting hole of the vehicle.

This Switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.

• Single Pole Single Throw ON - OFF PUSH switch
• Black hard surface
• Laser etched Legend
• Single upper L.E.D light in AMBER
• Single lower L.E.D light in GREEN
• Lower light is ON when the switch is pressed IN
• Upper light can be wired to separate dash light circuit.
• Rated at 3Amp 24V
• Wire Plug and wiring diagram supplied with switch

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. Therefore in ALL cases the accessory MUST be wired through a fused relay.

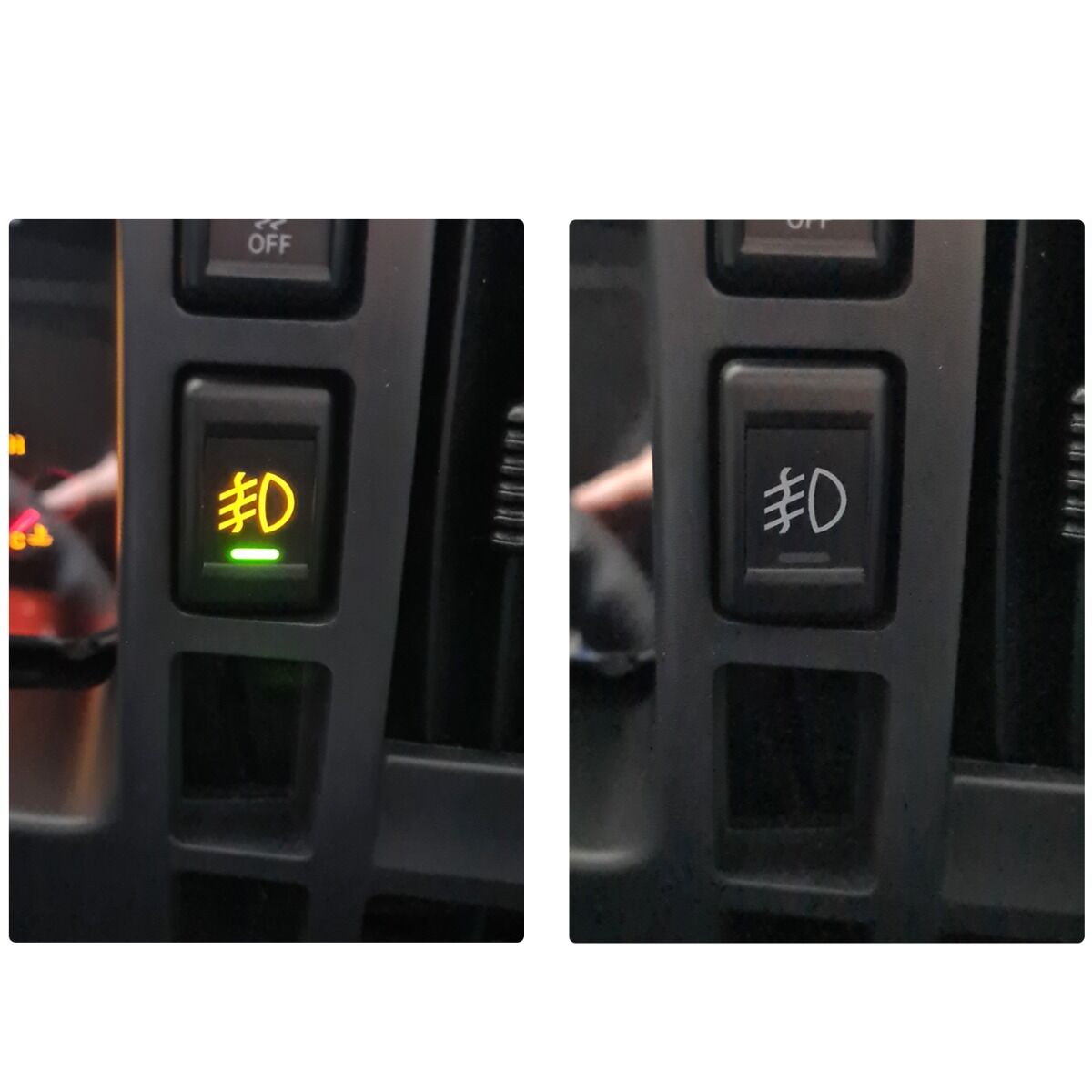

Dash Panel with AOBSWIT500 series Push Switches

Panel shown from 24V Isuzu Truck. This Panel is mounted on the right side of the steering wheel.

AOBSWIT500 series

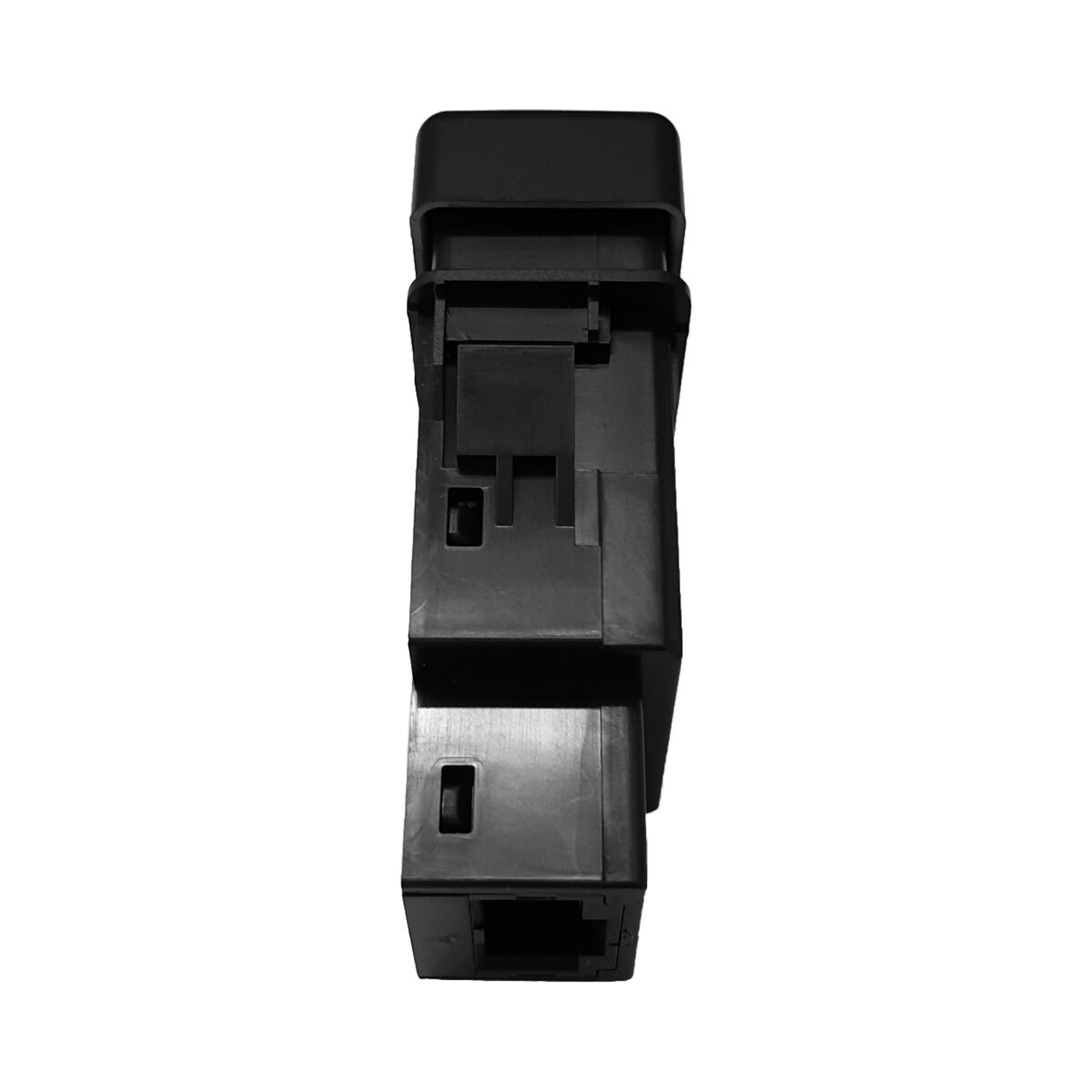

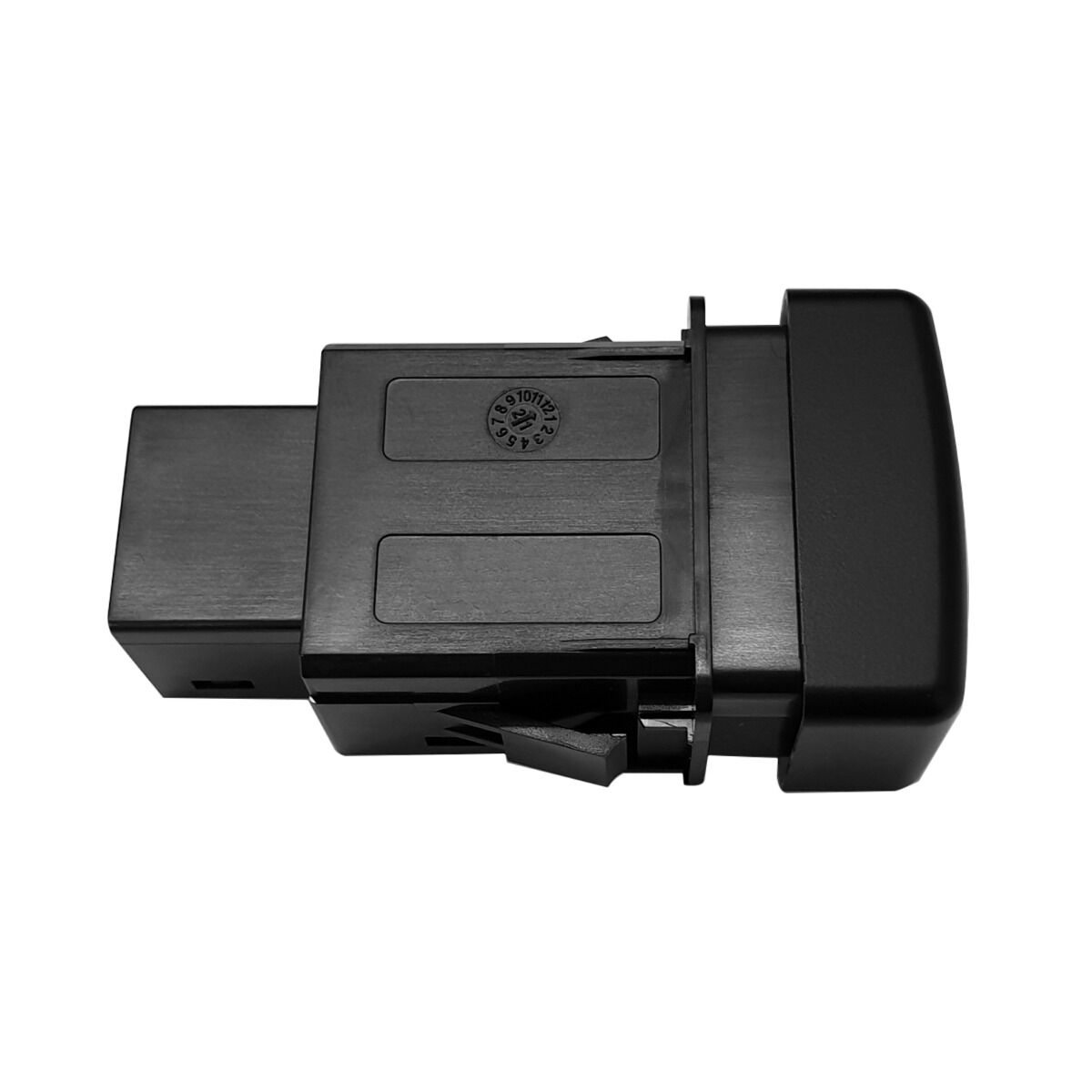

Rear picture showing terminals and wiring harness supplied with switch

Wiring diagram will be supplied with switch purchase.

AOBSWIT500 series Illumination

When top switch is turned on, the top light illuminates in AMBER.

When bottom switch is turned on, the botton light illuminates in GREEN.

The middle light has an Independent wiring circuit to connect to your dash lights. You can connect it to the dash light circuit or leave off, your choice.

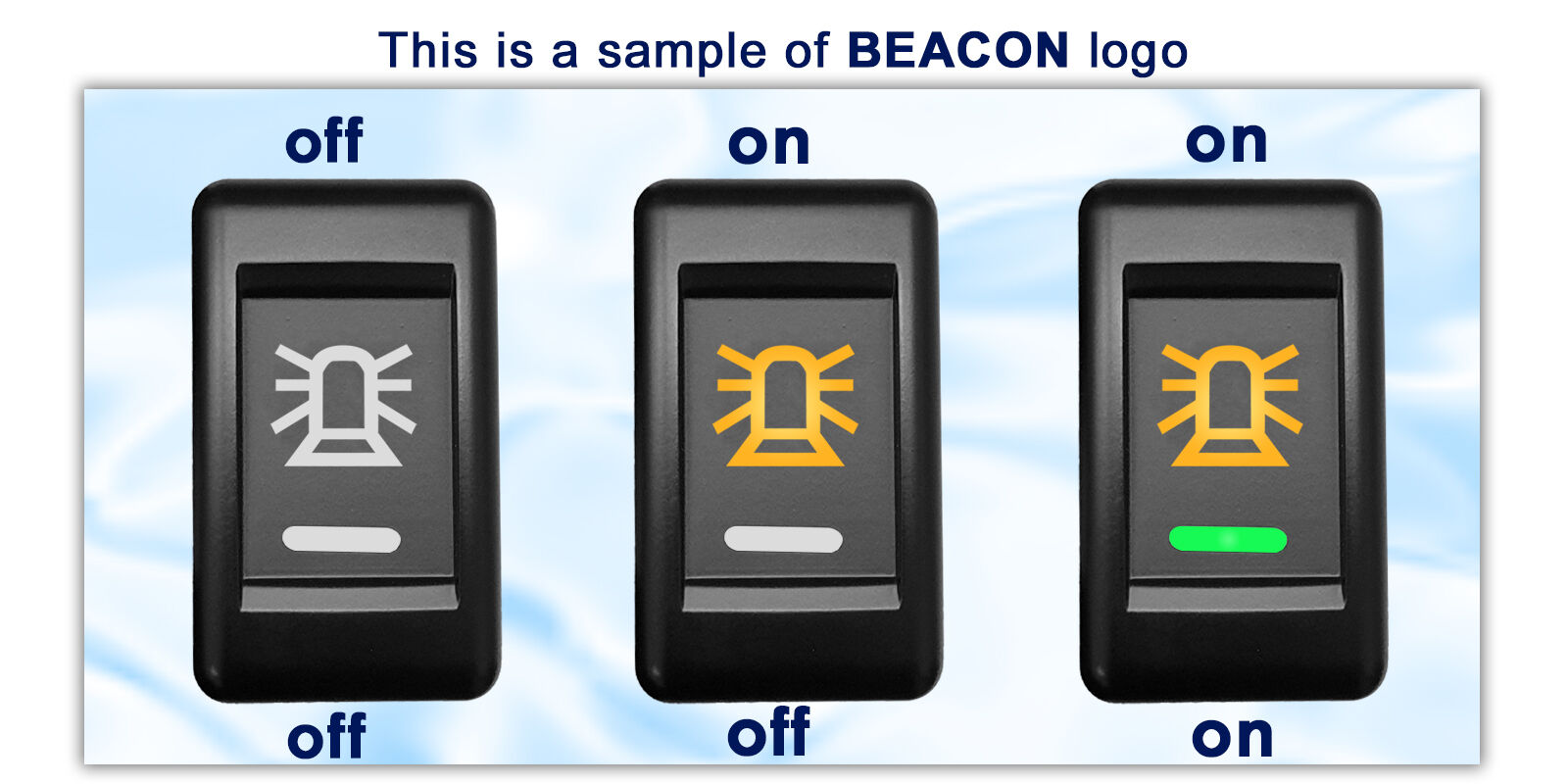

(this is a sample image with the LED BEACON logo)
