Direct OEM Replacement MOMENTARY HORIZONTAL Push Switch
With Dual LED lights in GREEN

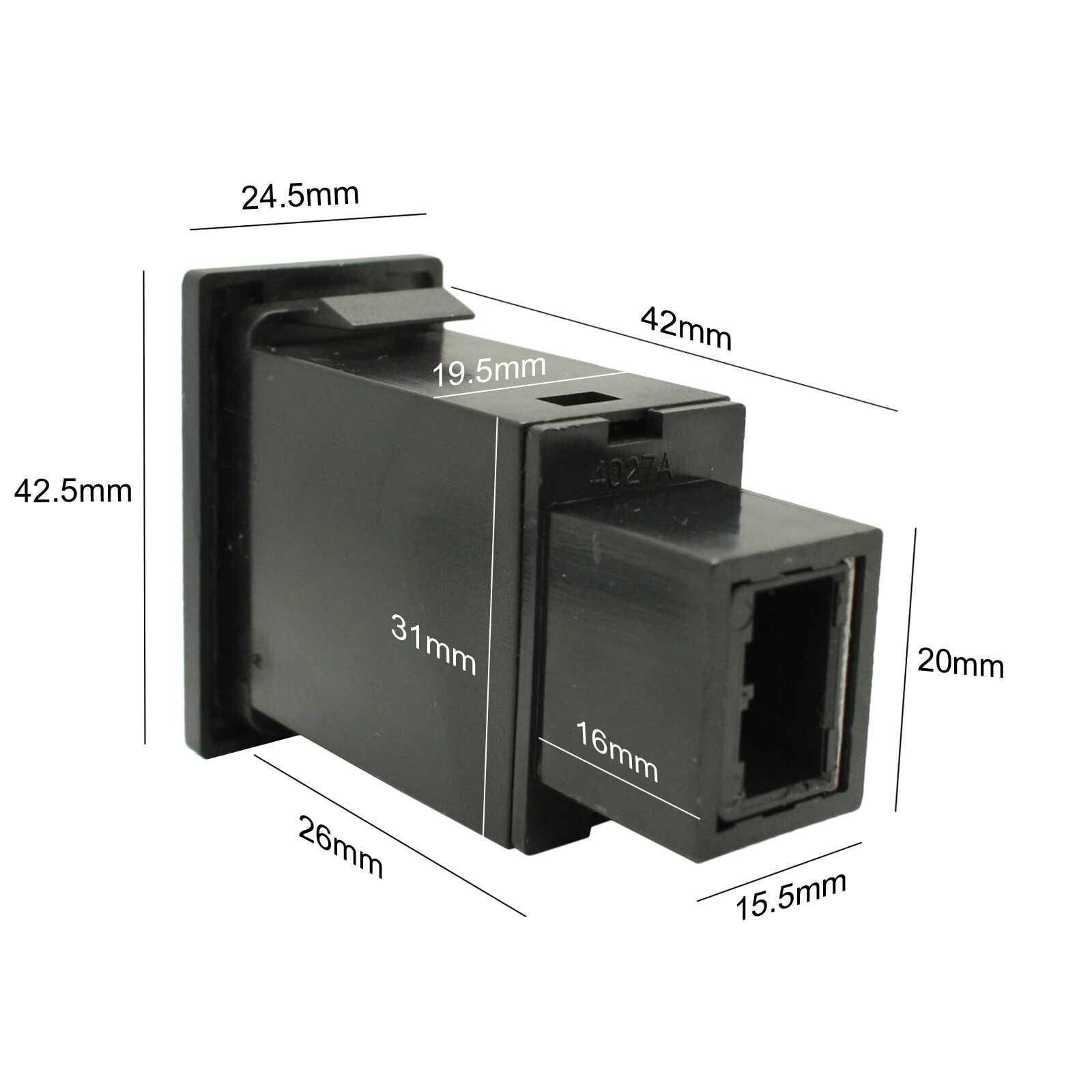

This high quality push switch from AOB is a single throw MOMENTARY switch designed to operate your 12 volt accessories. It has a face surface size of 42.5 mm x 24.5 mm and uses the original mounting hole of the vehicle.

This Switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.

• Single Pole Single Throw MOMENTARY PUSH switch
• Black hard surface
• Laser etched Legend
• Left L.E.D light in GREEN
• Right L.E.D light in GREEN
• Left light is ON when the switch is pressed IN
• Right light can be wired to separate dash light circuit
• Rated at 3Amp 12V
• Wire Plug and wiring diagram supplied with switch

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. Therefore in ALL cases the accessory MUST be wired through a fused relay.

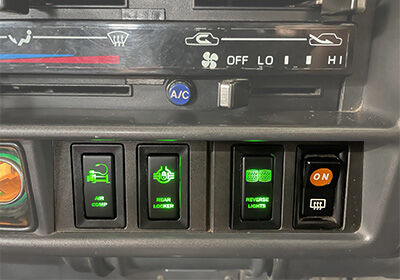

Example of Dash Panel with AOBSWT200 series Push Switches

Panel shown is from Toyota LandCruiser 60 Series and is mounted next to the cigarette lighter socket

AOBSWT200 series

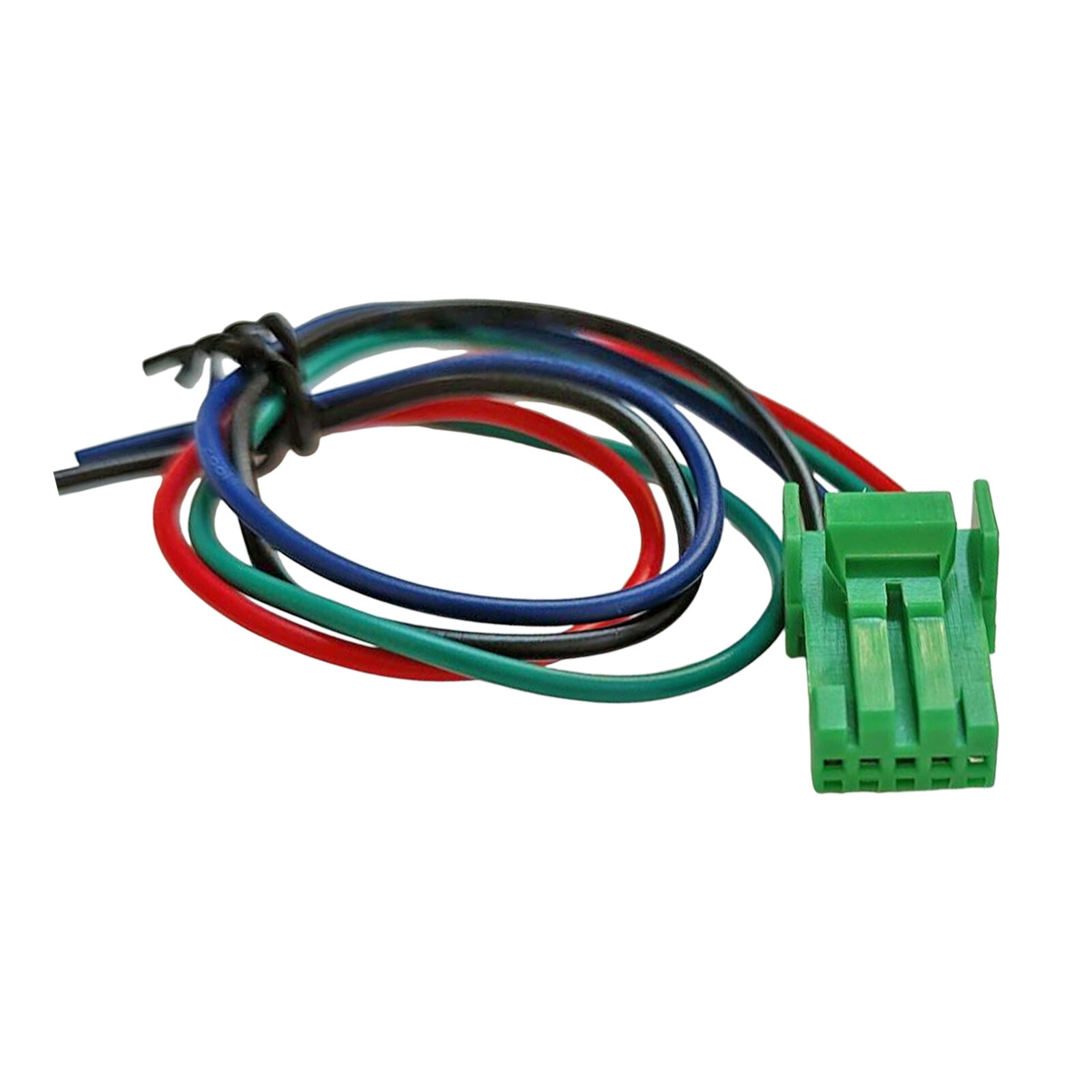

Rear picture showing terminals and wiring harness supplied with switch

Wiring diagram will be supplied with switch purchase.

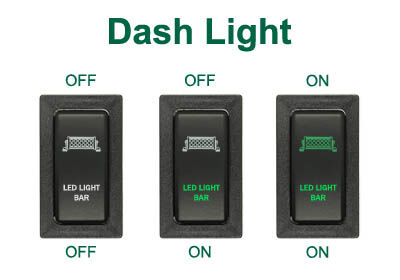

AOBSWT200 series Illumination

When switch is turned on the top light illuminates.

The bottom Etching (words) has an Independent wiring circuit to connect to your dash lights. You can connect it to the dash light circuit or leave off, your choice.

(this is a sample image with the LED LIGHT BAR logo)
