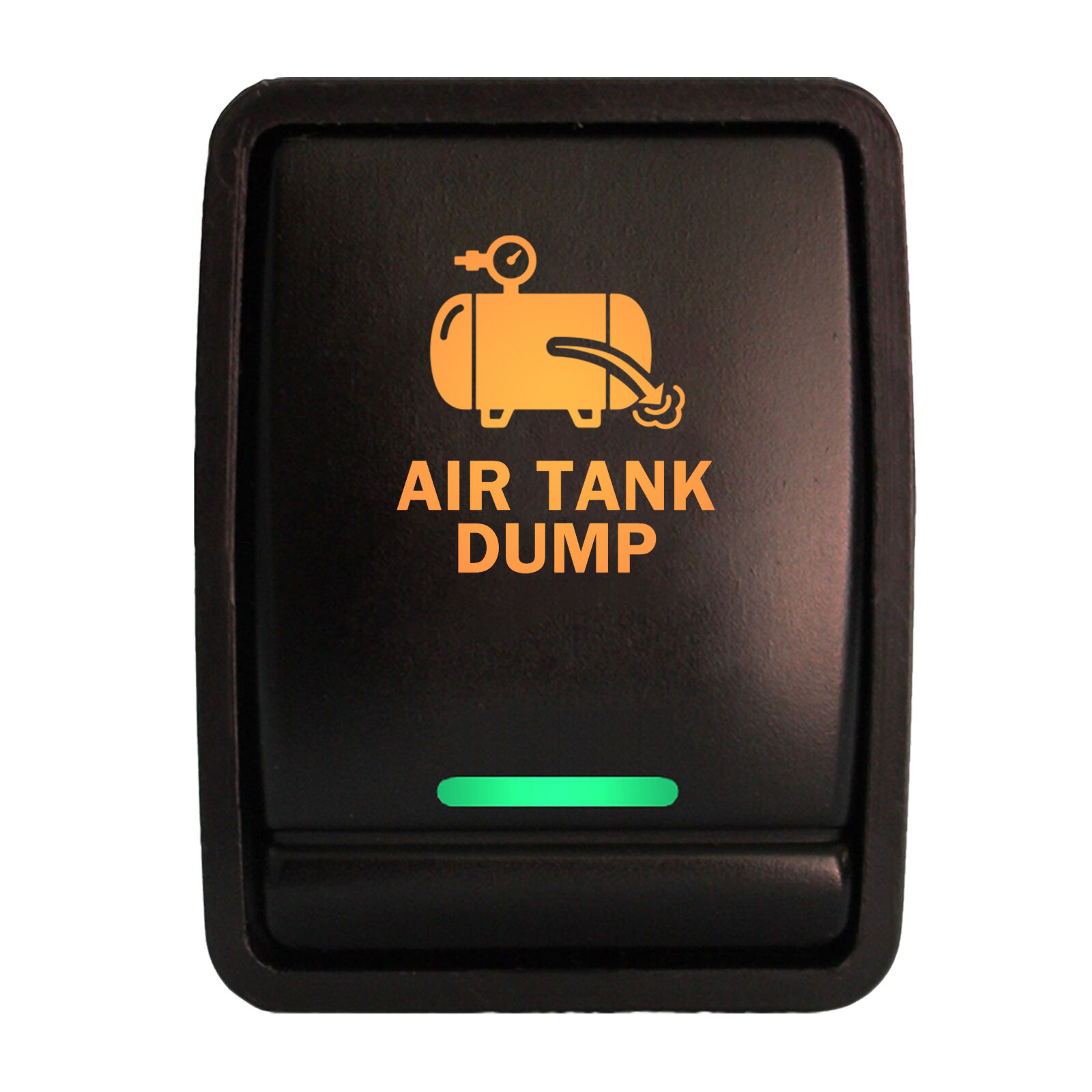

12 Volt 3amp Nissan MOMENTARY PUSH Switch
Twin L.E.D Lights

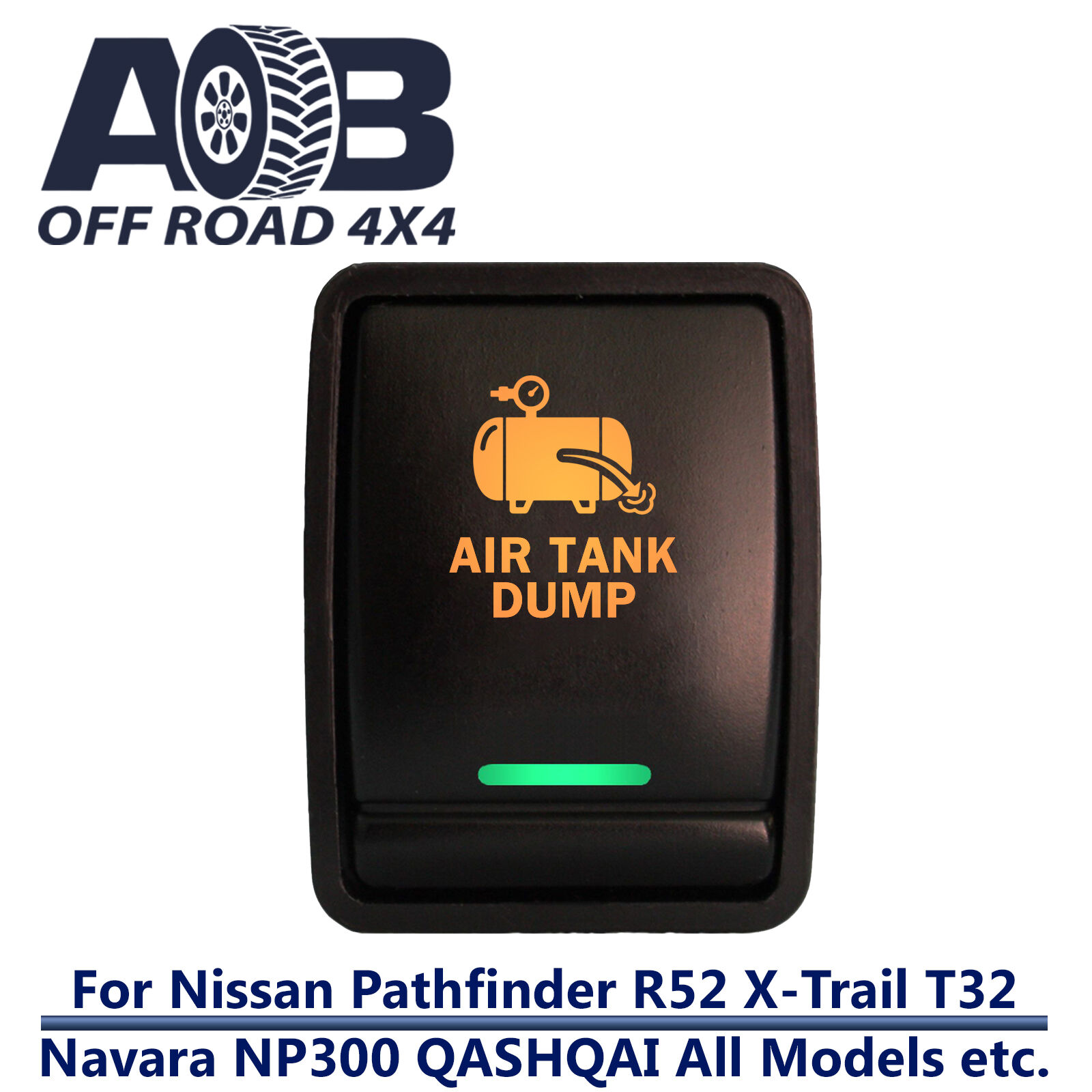

This Switch Suits the following models ONLY:

This high quality 12 volt push switch from AOB is a single throw MOMENTARY switch designed to operate your 12 volt accessories. it has a face surface size of 30 mm x 23 mm, length of 53 mm and uses the original mounting hole of the vehicle.

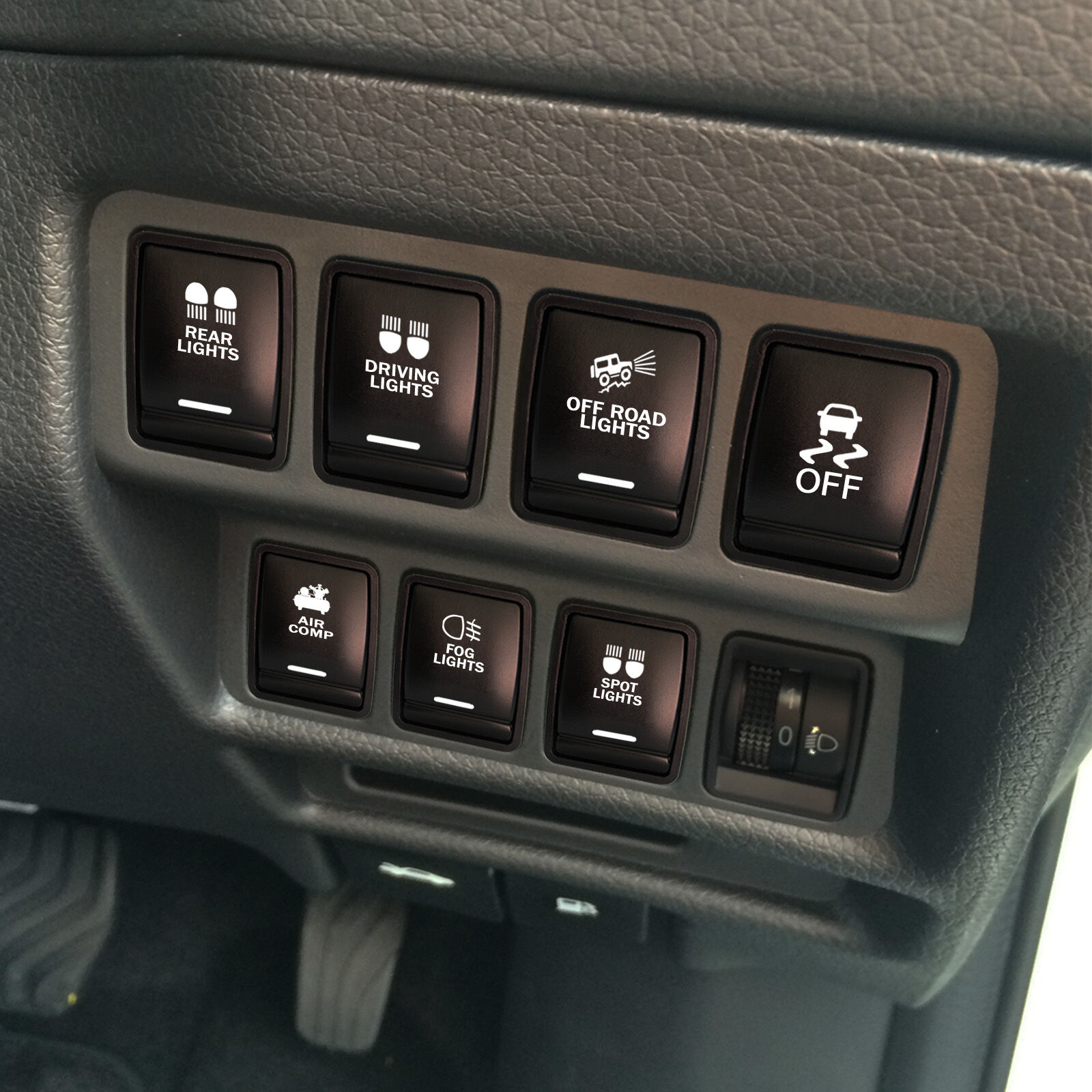

This Switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.

• Single Pole Single Throw MOMENTARY PUSH switch
• Laser etched Legend
• Single upper L.E.D light in amber.
• Single lower L.E.D light in green.
• Lower light is ON when the switch is pressed IN.
• Upper light can be wired to separate dash light circuit.
• Rated at 3Amp 12V.
• Wiring diagram supplied with switch.

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. Therefore in ALL cases the accessory MUST be wired through a fused relay.

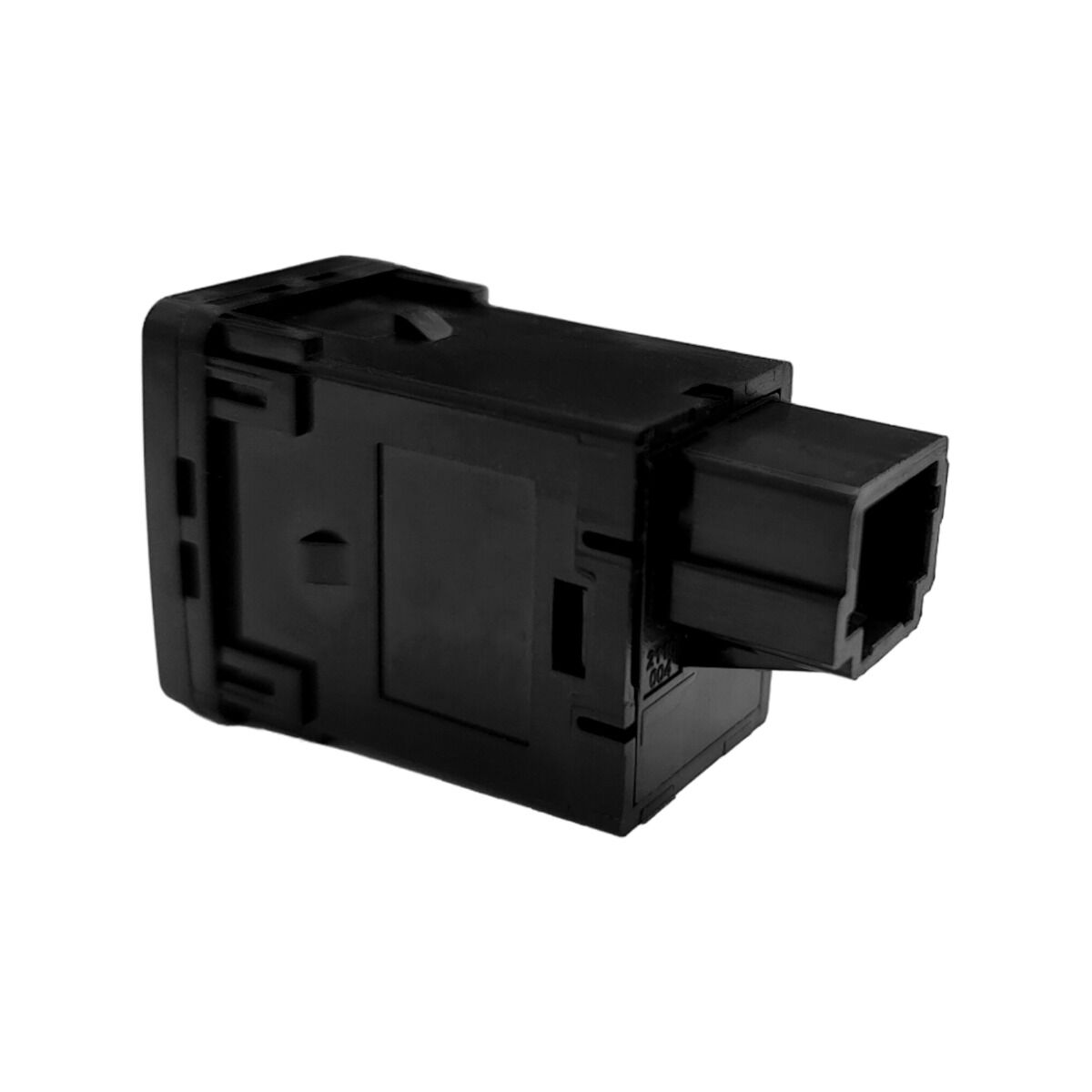

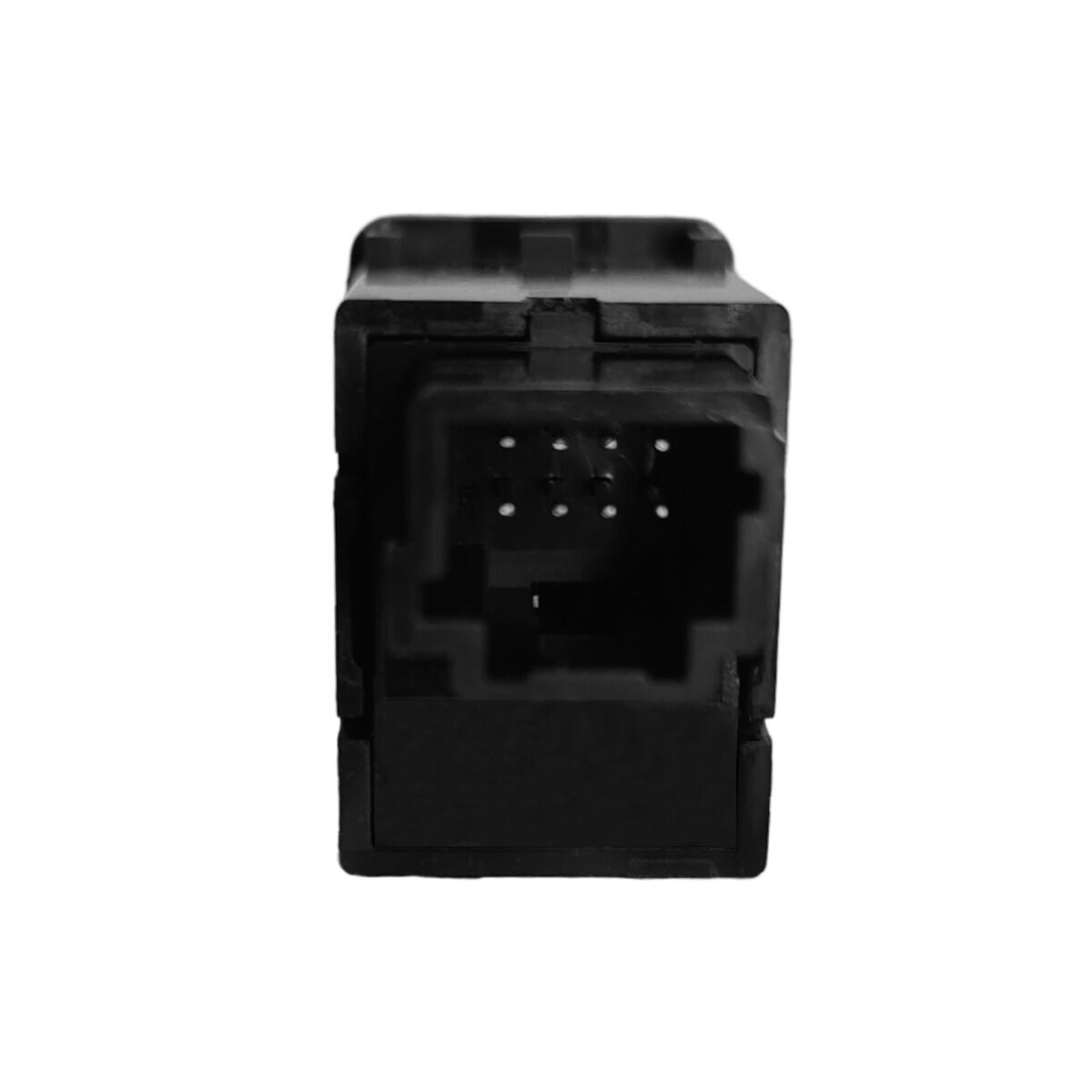

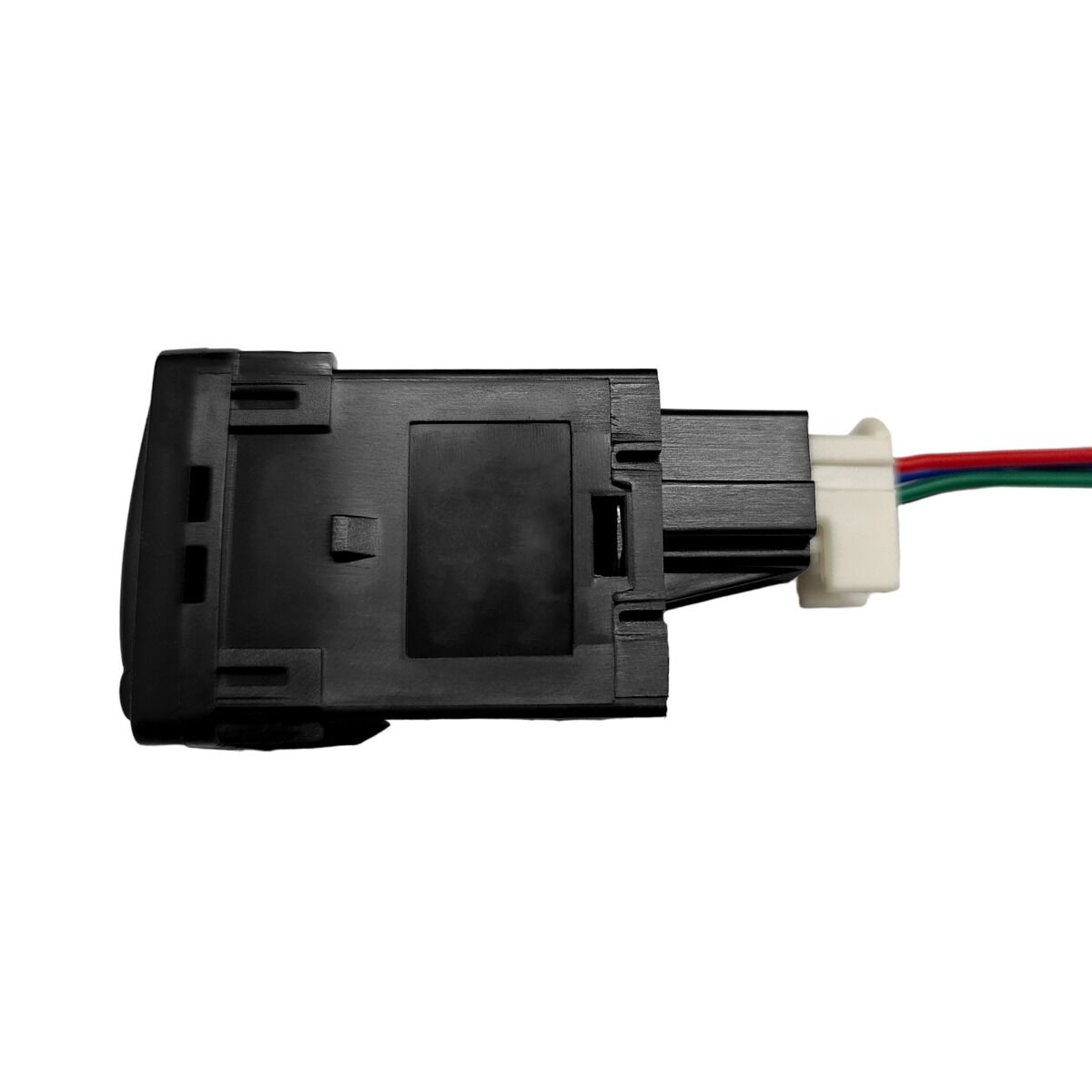

Rear picture showing terminals and wiring harness supplied with switch.Wiring diagram will be supplied with switch purchase.

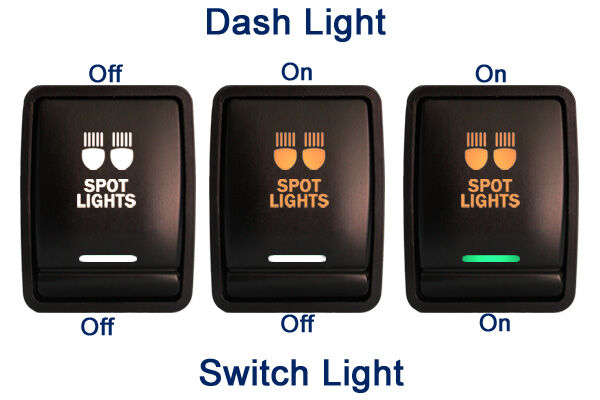

Nissan Switch Illumination

When switch is turned on the bottom light illuminates.

The top light (image) has an Independent wiring circuit to connect to your dash lights. YConnectin Dash light circuit-Optional. (this is a sample image with the SPOT LIGHTS logo)
