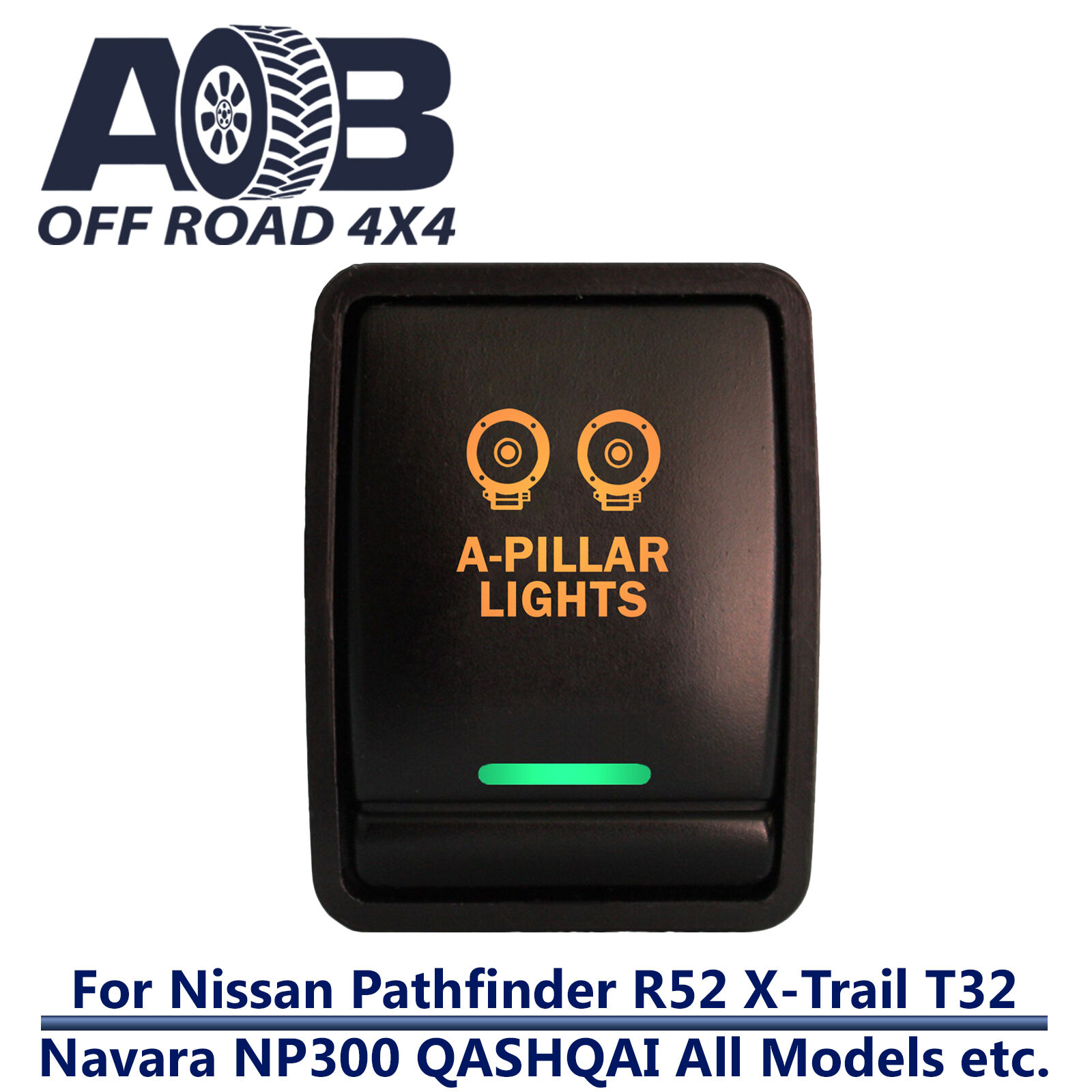

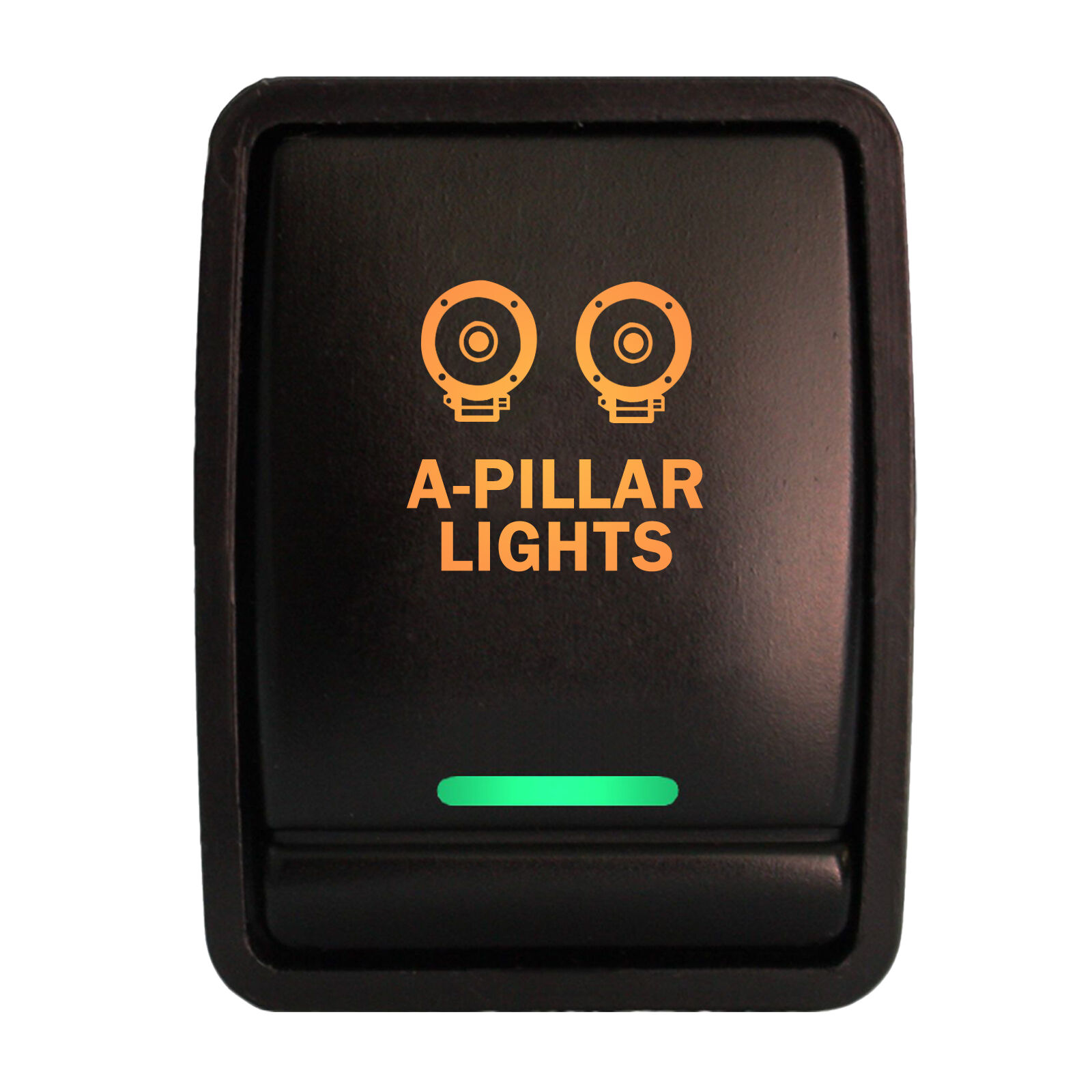

Nissan OEM Replacement Push Switch
Twin L.E.D Lights

This Switch Suit the Following Models only:

Pathfinder R52 2012 - Current

 Navara NP300 2015 - Current

X-Trail T32 2014 - 2022

Patrol Y61 2013 - Current

QASHQAI All Models 2014 - Current

This high quality 12 volt push switch from AOB is a single throw ON - OFF switch designed to operate your 12 volt accessories. it has a face surface size of 30 mm x 23 mm, length of 53 mm and uses the original mounting hole of the vehicle

This switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.

• Single Pole Single Throw ON - OFF PUSH switch
• Laser etched Logo & text
• Single upper L.E.D light in amber.
• Single lower L.E.D light in green
• Lower light is ON when the switch is pressed IN.
• Upper light can be wired to separate dash light circuit.
• Rated at 3Amp 12V.
• Wiring diagram supplied with switch.

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. MUST be wired through a fused relay.

N200s Push Switches

Rear picture showing terminals and wiring harness supplied with switch. Wiring diagram will be supplied with switch purchase.

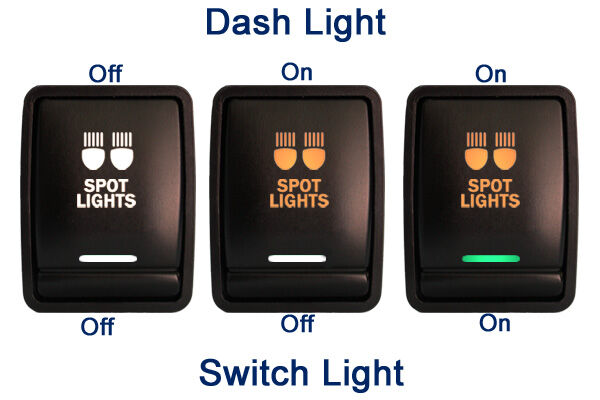

N200s Switches Illumination

When switch is turned on the bottom light illuminates.

The top light (image) has an Independent wiring circuit to connect to your dash lights. You can connect it to the dash light circuit or leave off, your choice.

(sample image with the SPOT LIGHTS logo)
