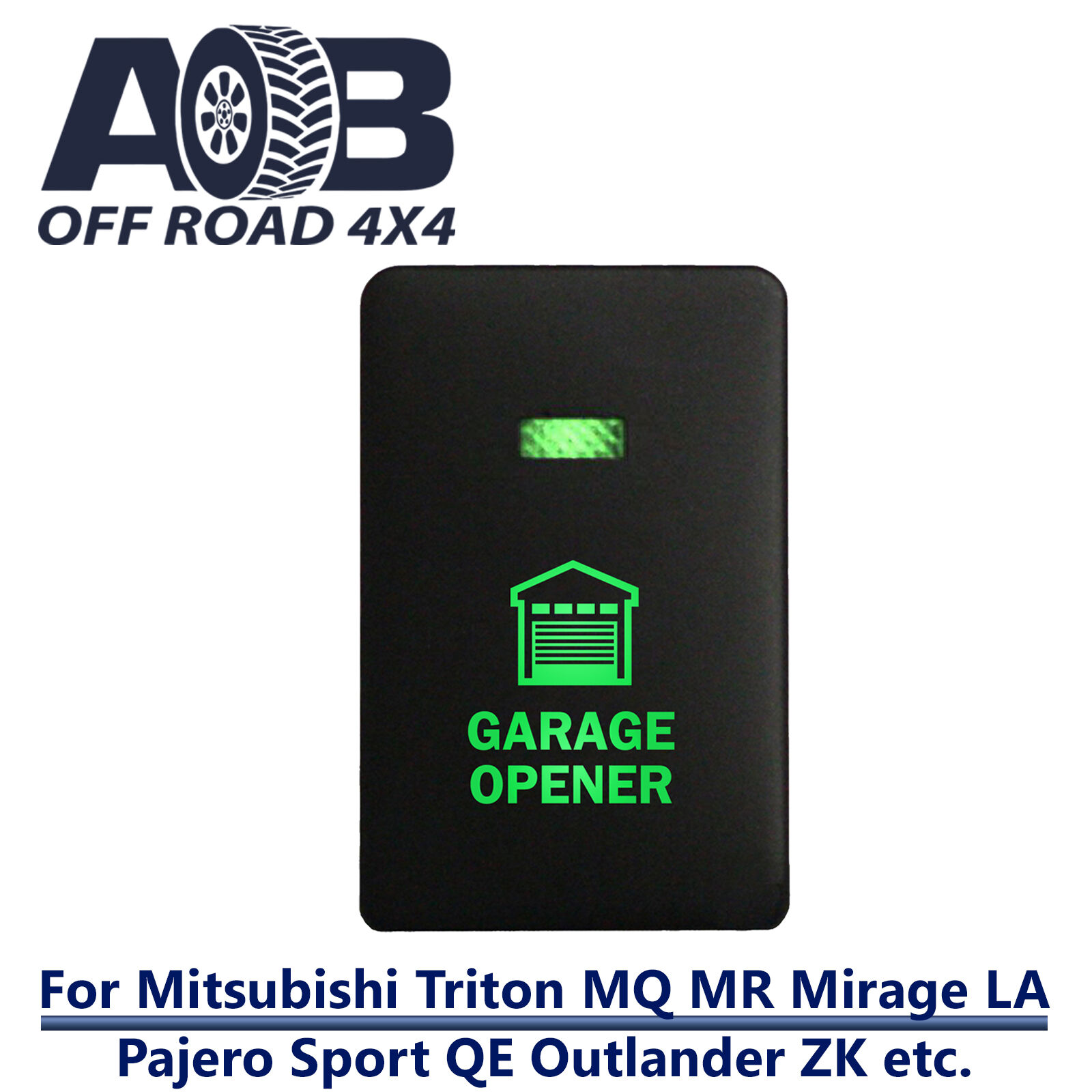

Mitsubishi 200 Series Push Switch
Twin L.E.D Lights

This Switch Suits the following models ONLY:

This 12 volt push switch from AOB is a single throw MOMENTARY switch designed to operate your 12 volt accessories. It has a face surface size of 32 mm x 21 mm, length of 50 mm and uses the original mounting hole of the vehicle.

This Switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.

• Single Pole Single Throw MOMENTARY PUSH switch
• Laser etched Legend
• Single upper L.E.D light.
• Single lower L.E.D light.
• Lower light is ON when the switch is pressed IN.
• Upper light can be wired to separate dash light circuit.
• Rated at 3Amp 12V.
• Wiring diagram supplied with switch.

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. accessories MUST be wired through a fused relay.

Rear picture showing terminals and wiring harness supplied with switch.Wiring diagram will be supplied with switch purchase.

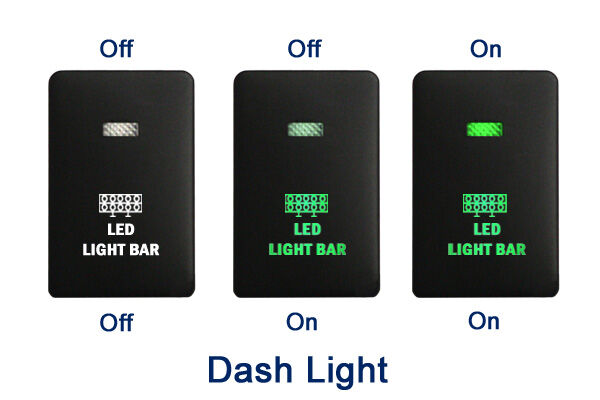

Mitsubishi 200 Series Switches Illumination

When switch is turned on the bottom light illuminates.

The top light (image) has an Independent wiring circuit to connect to your dash lights. Optional dash light circuit.

(this is a sample image with the LED LIGHT BAR logo and dual LED lights in GREEN)
