Four way Pneumatic Switch Control Panel Kit

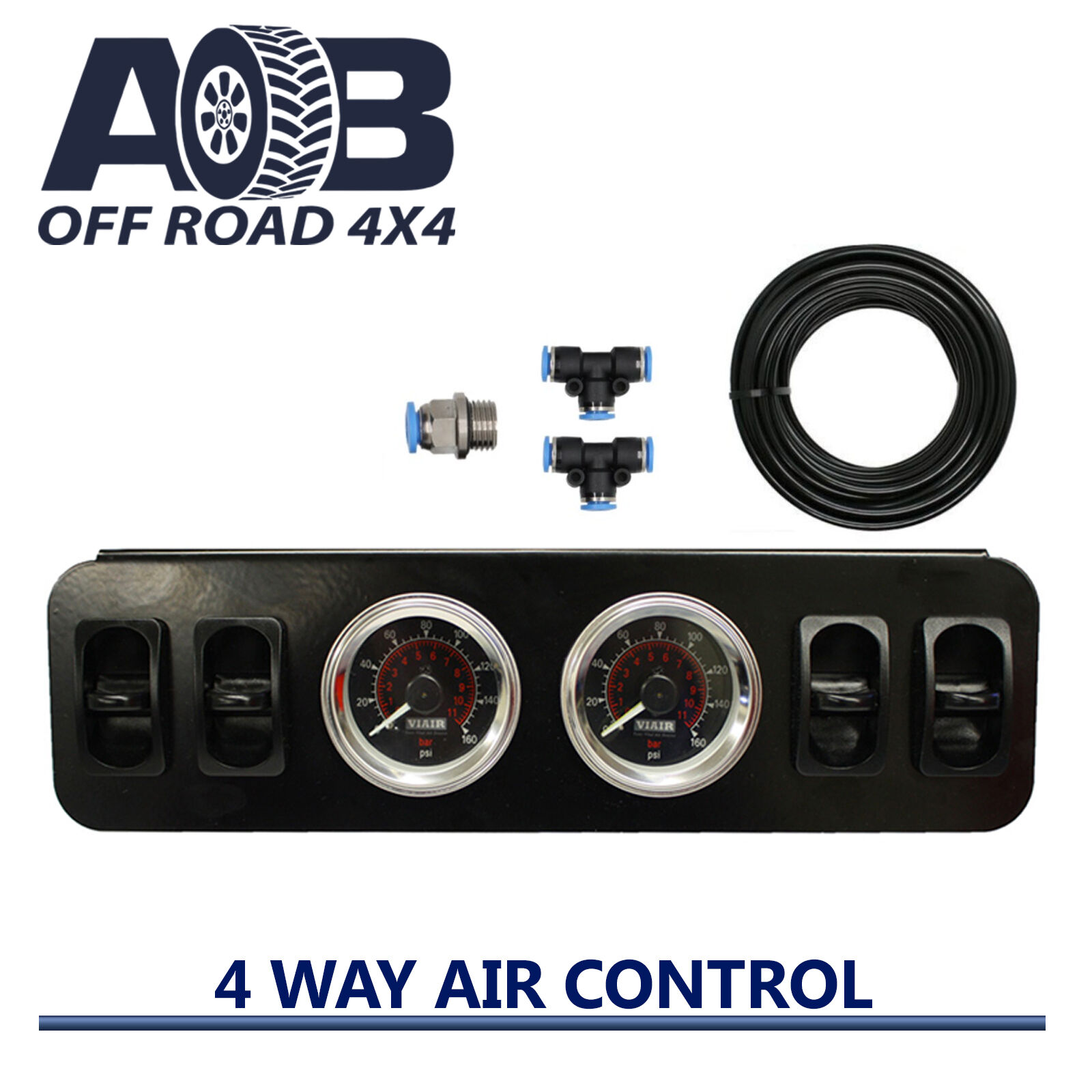

Kits include:

  • 1 x Gauge Panel

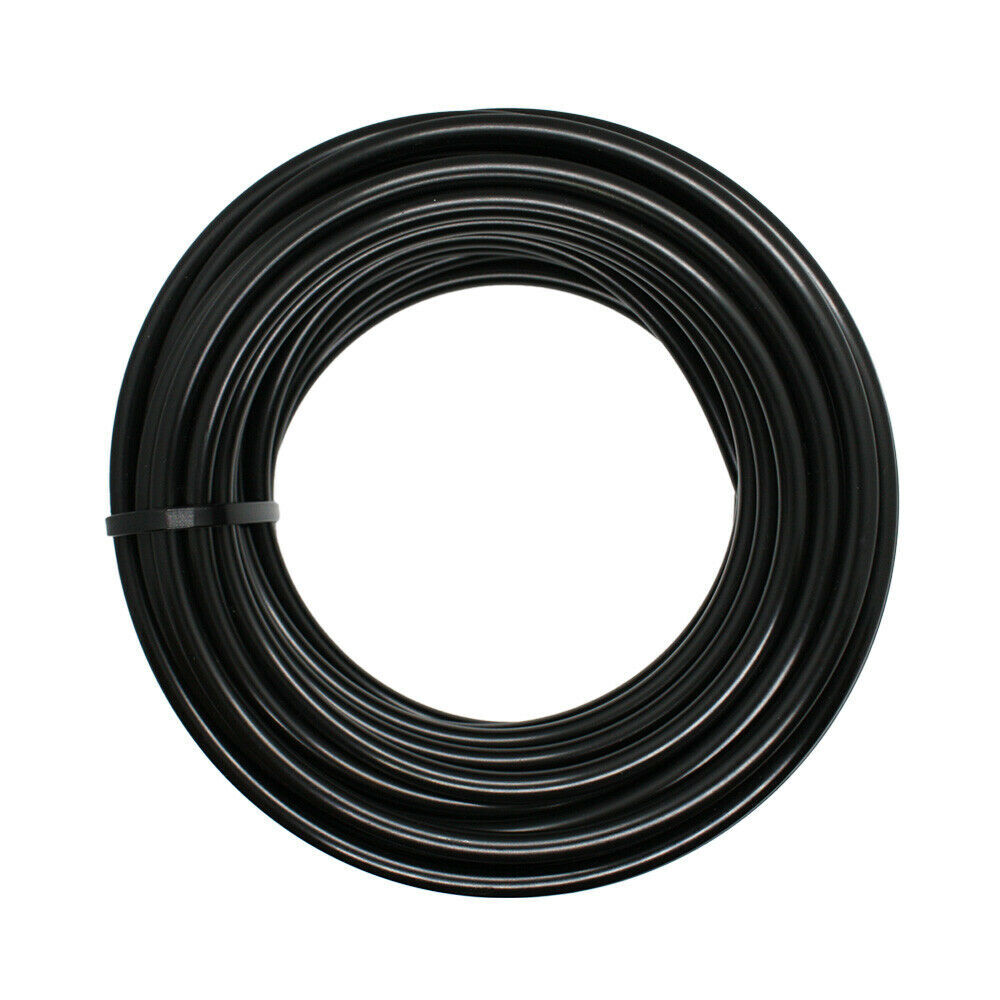

  • 1 x 12m air hose

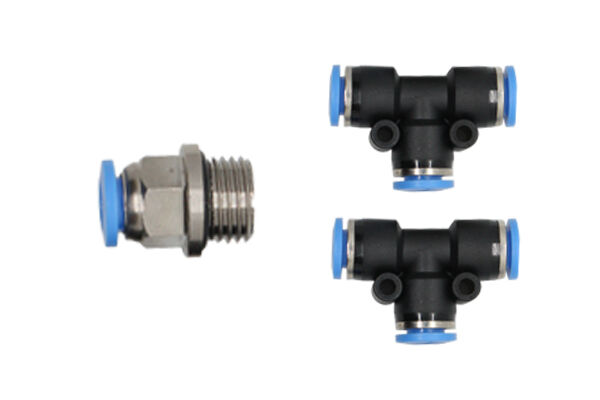

  • 2 x 1/4 PU T Piece
  • 1 x 1/4 PU TO 1/4 BSP Male Fitting

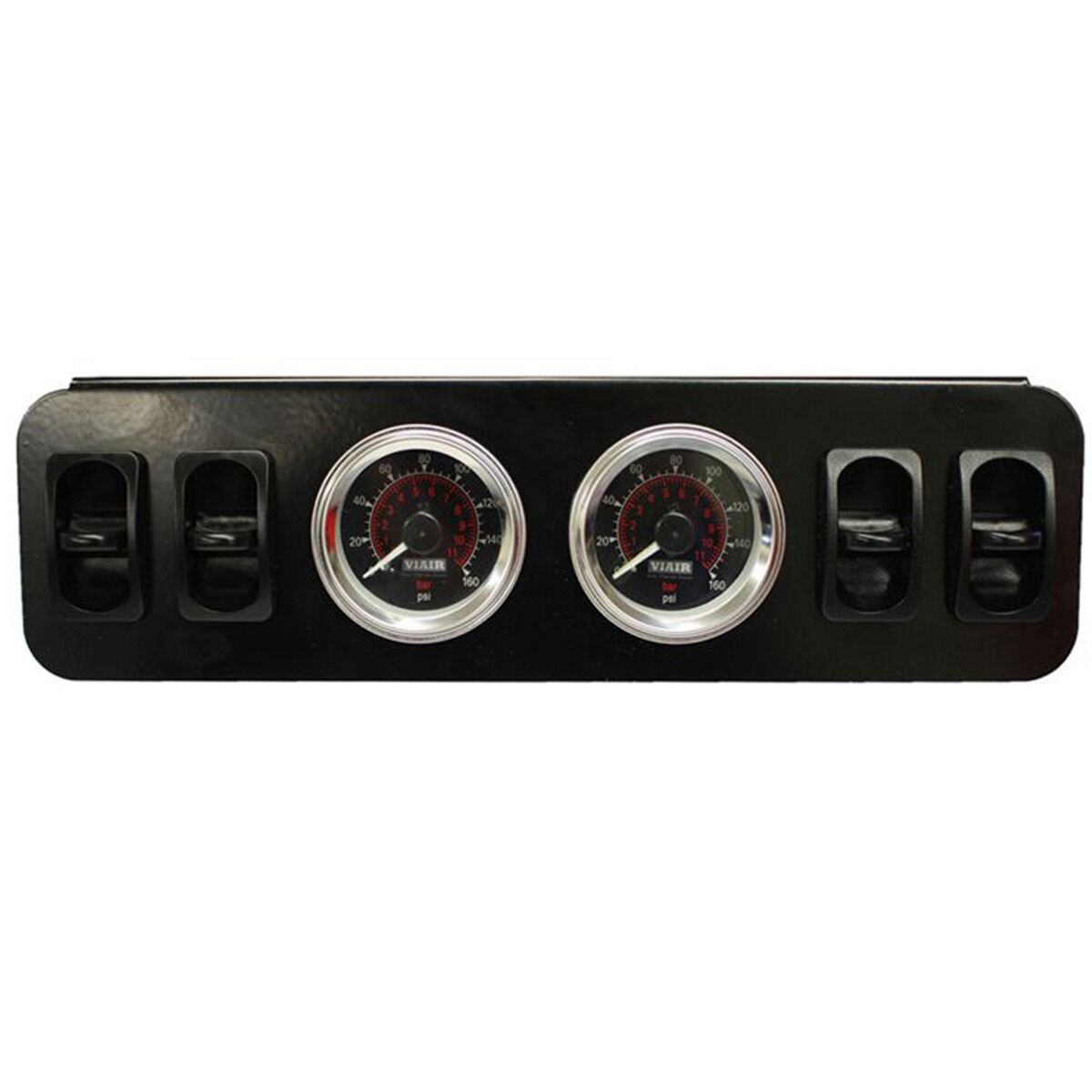

This panel is fitted with two of GENUINE VIAIR Illuminated Twin needle gauge sets along with 4 AOB Air control paddle switches. This clever unit lets you control, with out the use of 12 volt solenoids, all four of you air bags individually.

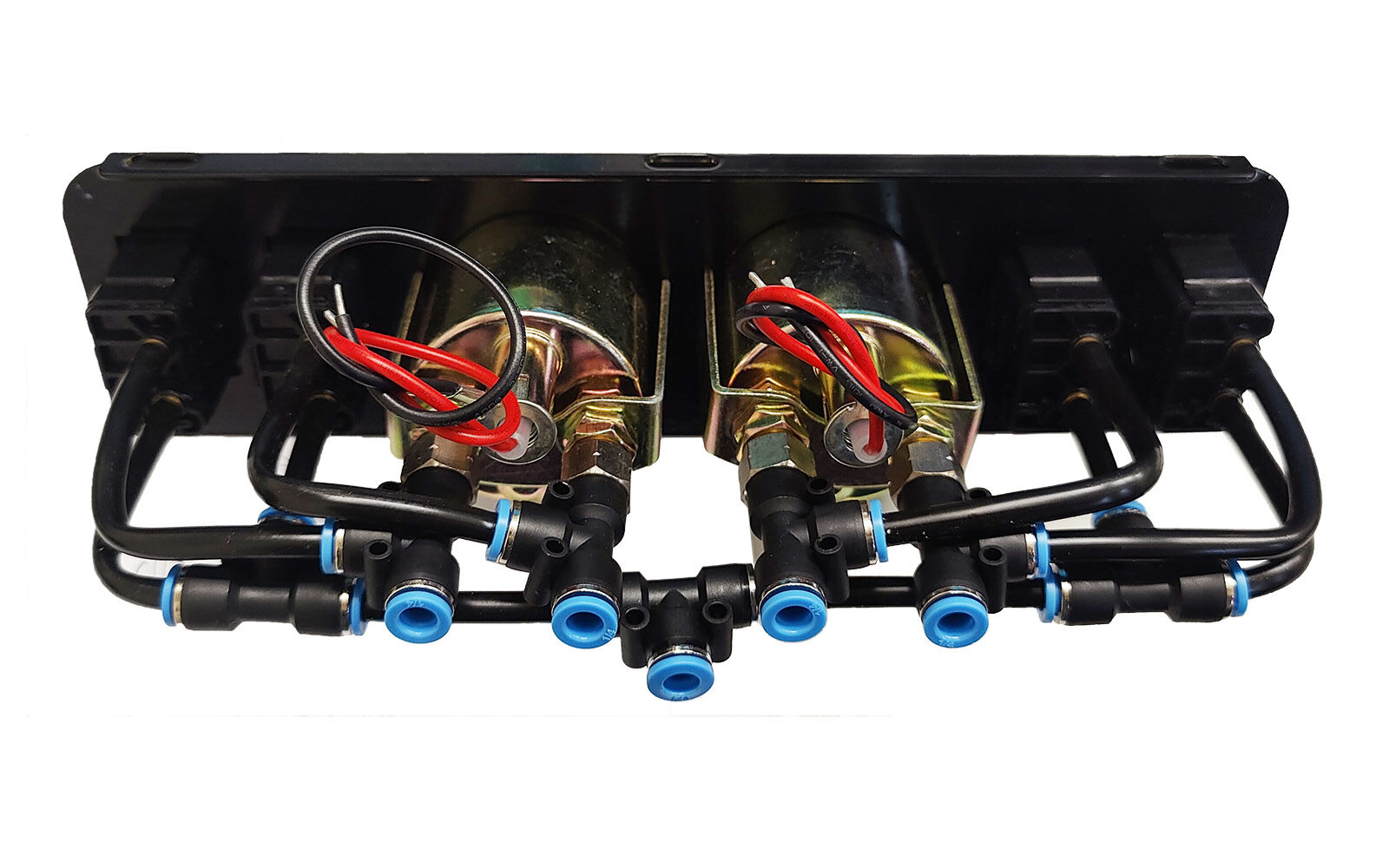

This gauge and switch set comes completely assembled for easy installation using the best quality PU air fittings available. Inlet and outlet is by 1/4'' PU hose.

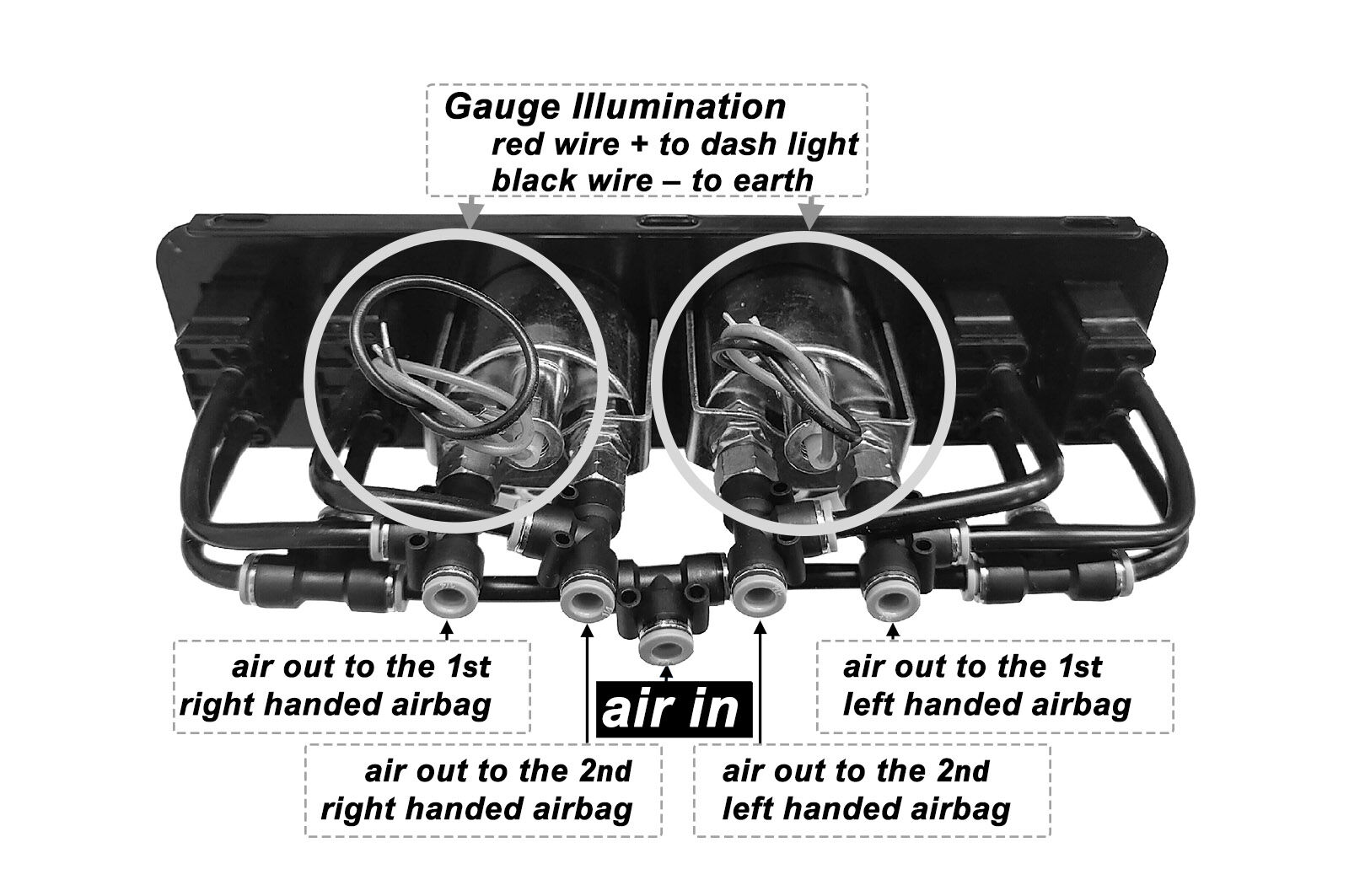

The 4 air paddle switches allows air to flow to your airbags by pushing the switch down and allows air to escape to atmosphere from the air bags by pushing the switch up.The maximum pressure of the air paddle switch is 110 psi.

The panel face measures 280mm wide 79mm high and 110mm deep however this can be shortened to 80mm if you have to fit it into a tight spot.

With a 160 psi max working pressure it is sure to survive the most rigorous out back travel

(Air compressor is needed to operate this switch set, not included)

Length: 25mm Width: 15mm Height: 8mm

SKU PG440K
Shipping Weight 1.1000kg
Shipping Width 0.150m
Shipping Height 0.080m
Shipping Length 0.250m
Assembled Length 0.220m
Assembled Height 0.140m
