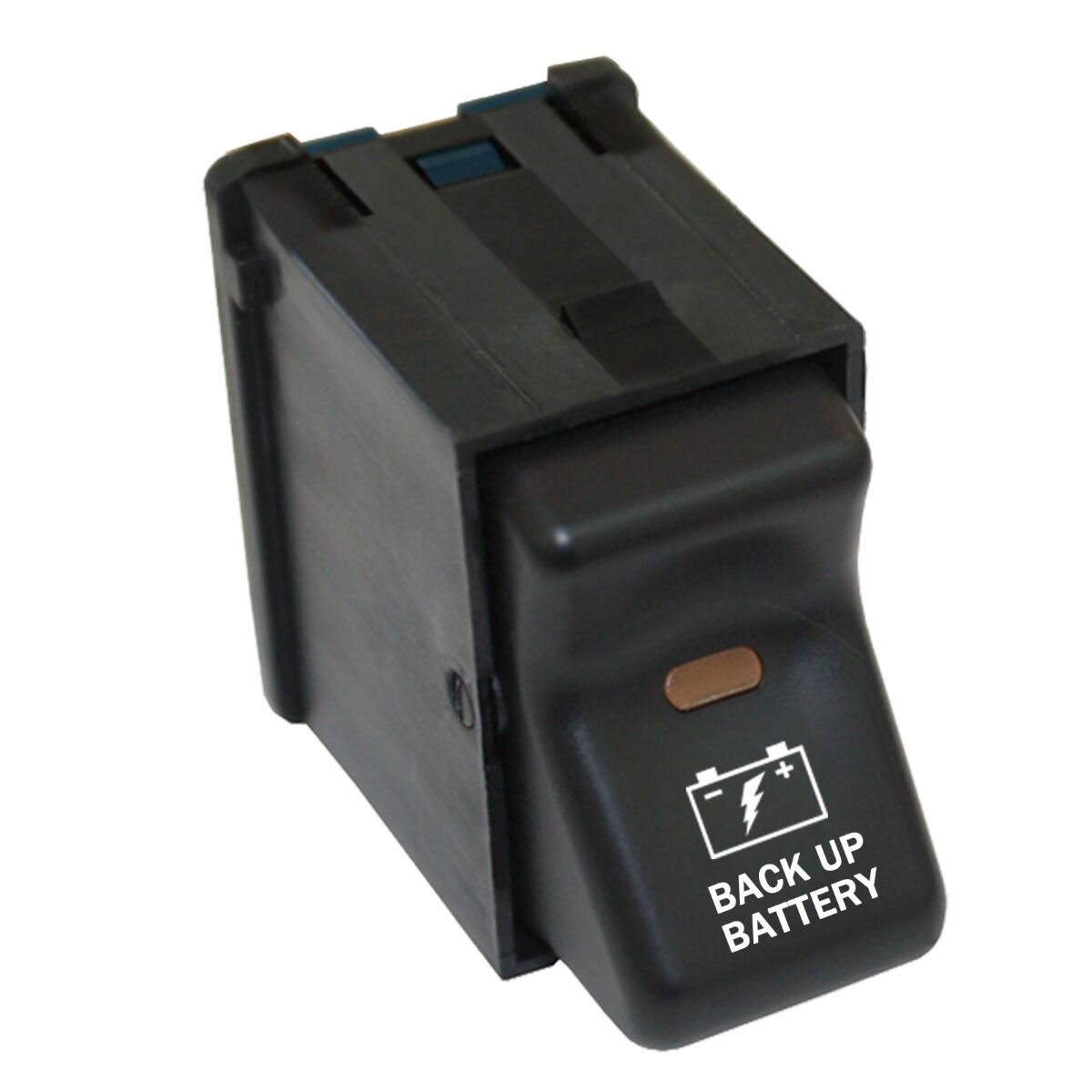

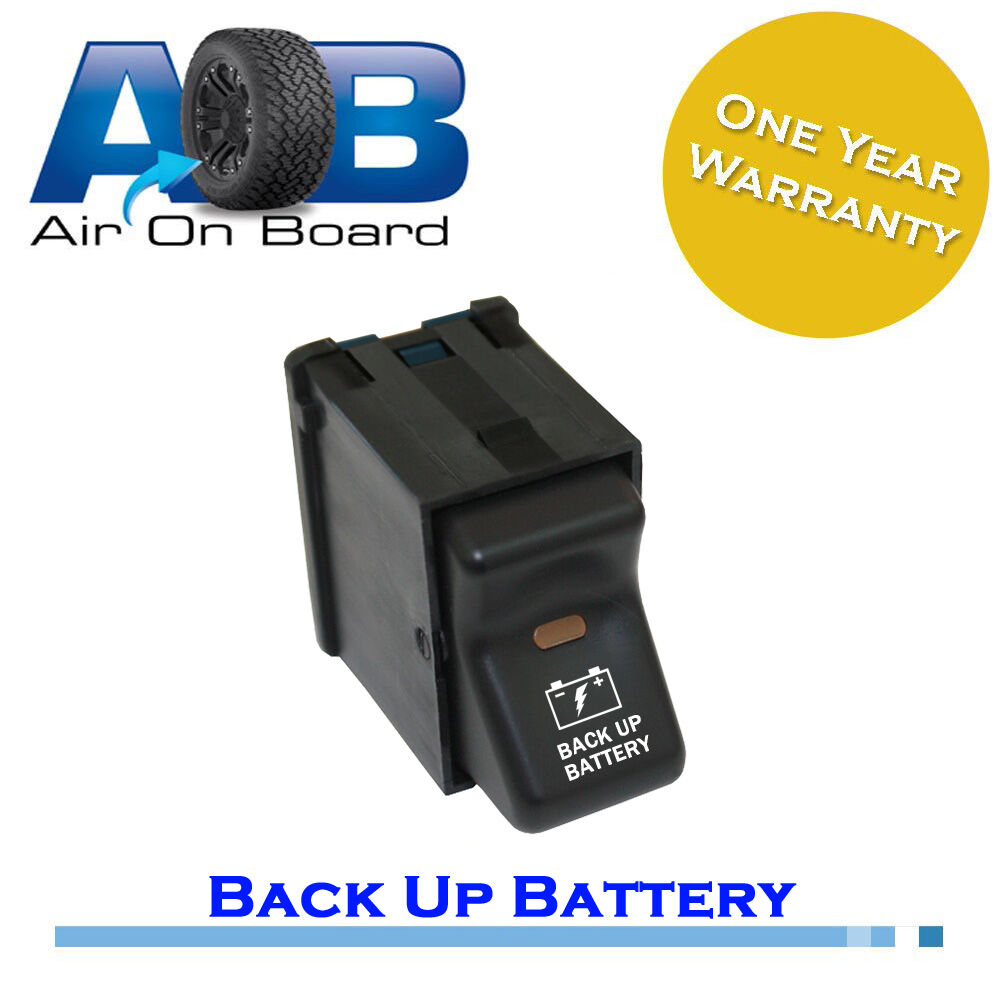

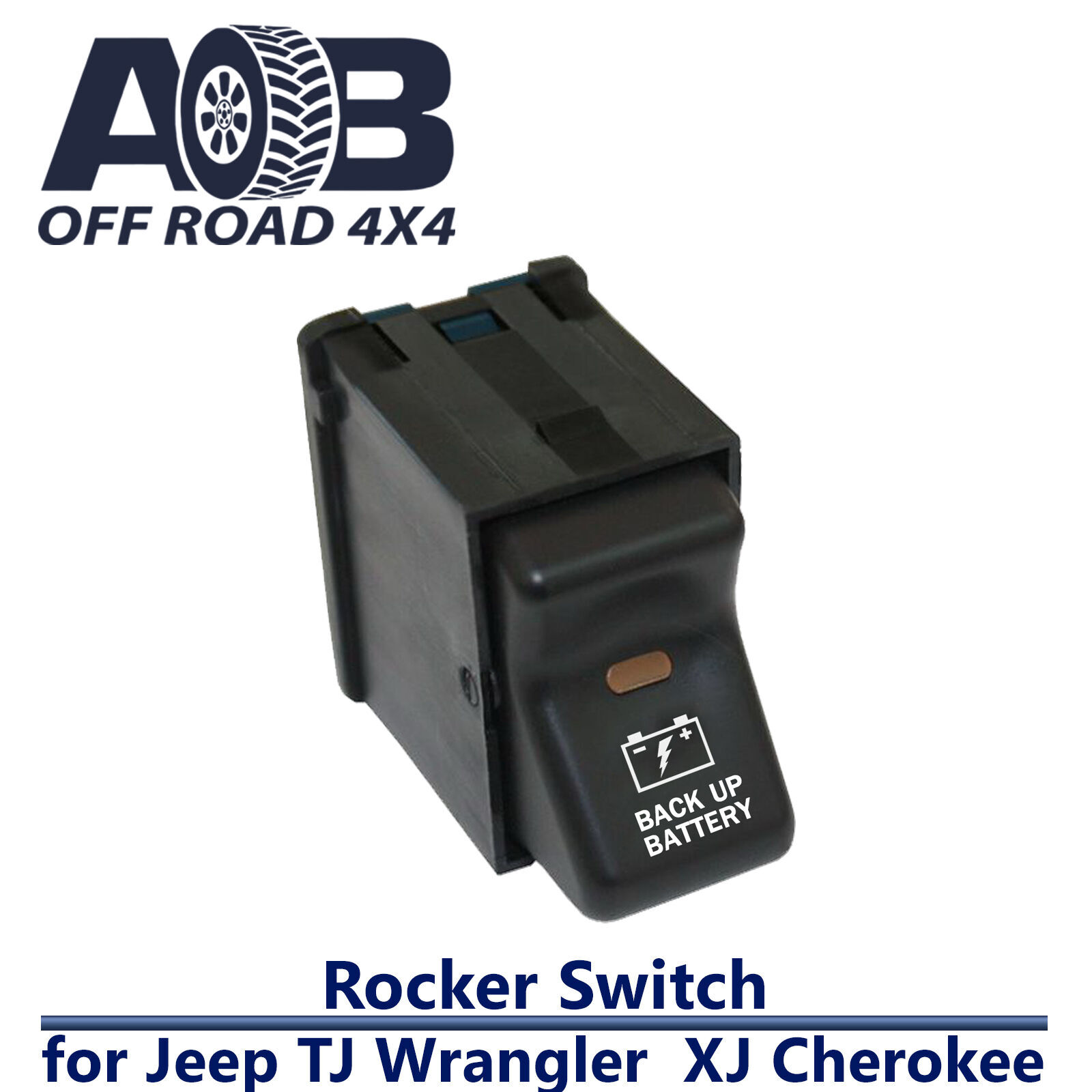

JEEP Rocker Switch BACK UP BATTERY 362
On Off Rocker Switch
In Stock
Don't pay $34.99
$21.60
38% OFF
SKU: SW362
12 volt 15amp JEEP Rocker Switch for your TJ Wrangler 1997-2006 or XJ Cherokee1997-2001
Australian Owned
Speedy Delivery
Easy Ordering
Bulk & Custom Orders
Flexible Payment Options
Secure Payment Methods
Calculate Shipping
In-Store Pick Up (Free) - FREE
⚠️ Important Notice: Some items may require assembly or preparation time. Please do not come to the store immediately. A team member will email or call you to confirm your order is ready and schedule your specific pick-up appointment.
⚠️ Important Notice: Some items may require assembly or preparation time. Please do not come to the store immediately. A team member will email or call you to confirm your order is ready and schedule your specific pick-up appointment.
12 Volt 15amp ON - OFF JEEP Rocker Switch
This is an ''O.E'' style direct replacement switch that will snap straight into the original dash panel of your TJ Wrangler 1997-2006 or XJ Cherokee1997-2001
(must be wired in and don't connect directly to the factory wiring plugs)
This high quality 12 volt Rocker switch from AOB is a single throw ON - OFF switch designed to operate your 12 volt accessories. It has a face surface size of 38mm x 25mm and uses a standard din size mounting hole.
- Single Pole Single Throw ON - OFF Rocker Switch
- Black hard surface
- Laser etched Legend
- Single Upper incandescent light
- Upper light is ON when the switch is pressed down
- Rated 15A 12V
- No rear barriers between terminals
- Pig tail wire and plug supplied
- Wiring diagram supplied with switch
All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.
The switch is rated at 15amp's. however in ALL case we recommend that you wire the accessory through a fused relay.

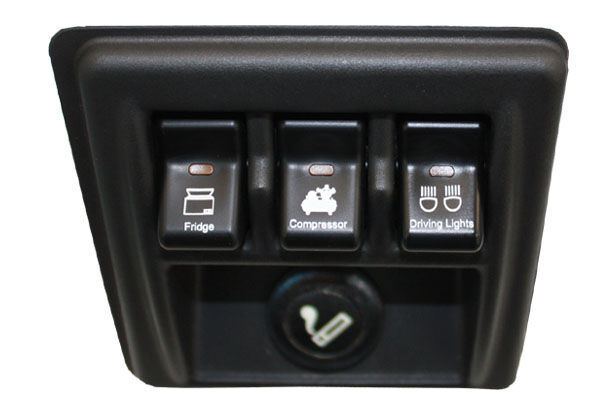

Please note this sale is for one switch and pig tail connector ONLY. The Jeep dash Panels shown in all the pictures are for demonstration purposes ONLY.
AOBSW300 series

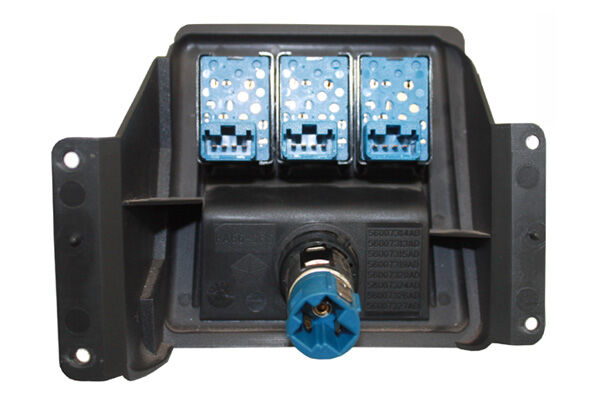

Rear picture showing terminals.
Included with the sale of every switch is the pig tail connector and wiring as shown.
Wiring diagram will be supplied with switch purchase.
AOBSW300 series Illumination
Upper incandescent light
Upper Amber light turns ON when the switch is pressed down.
(this is a sample image with the Diff lockers logo)
Face size38mm x 25mm | Upper light is ON when the switch is pressed down | Rated 15A 12V
| SKU | SW362 |
| Shipping Weight | 0.0280kg |
| Shipping Width | 0.020m |
| Shipping Height | 0.035m |
| Shipping Length | 0.070m |
| Shipping Cubic | 0.000049000m3 |
| Assembled Length | 0.160m |
| Assembled Height | 0.030m |
