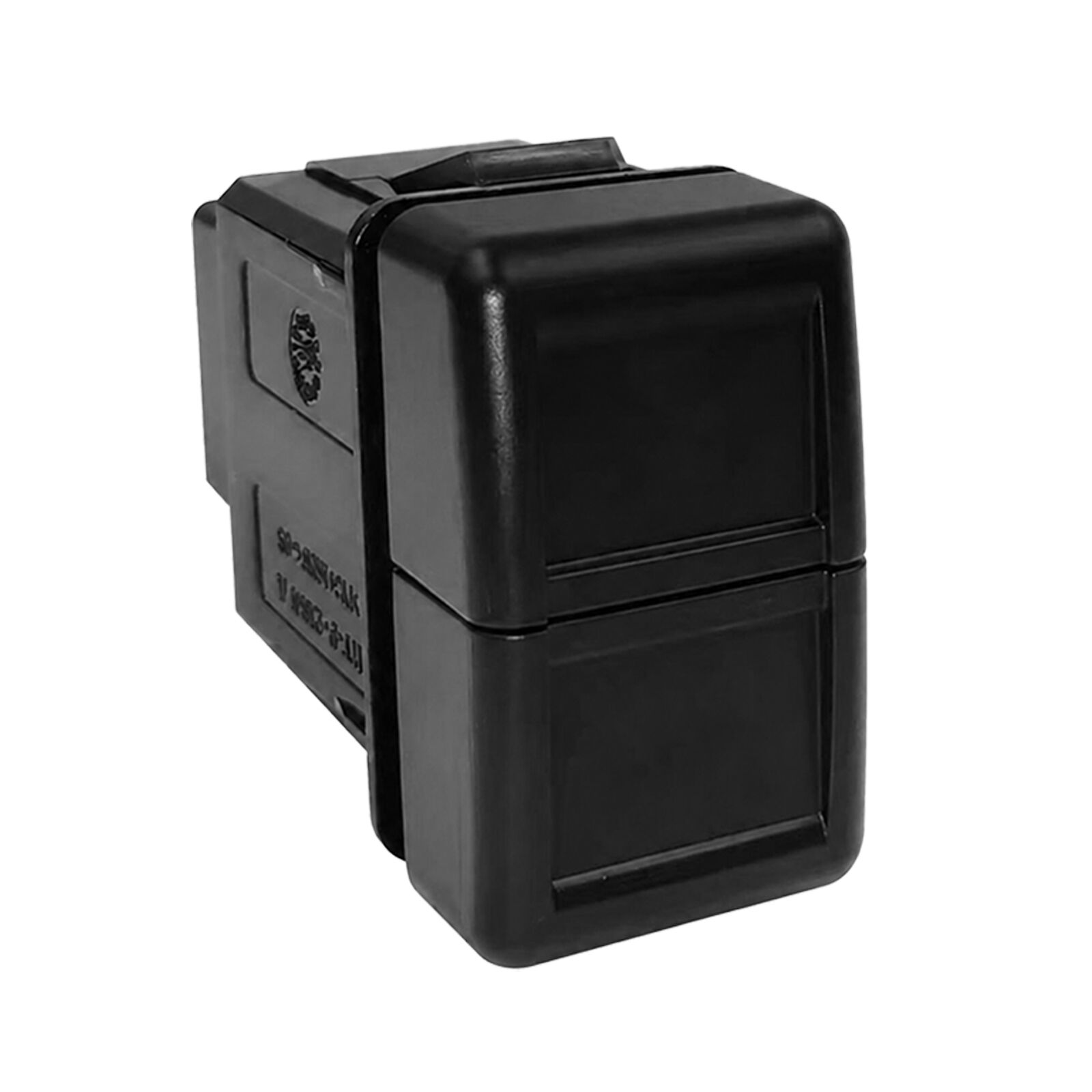

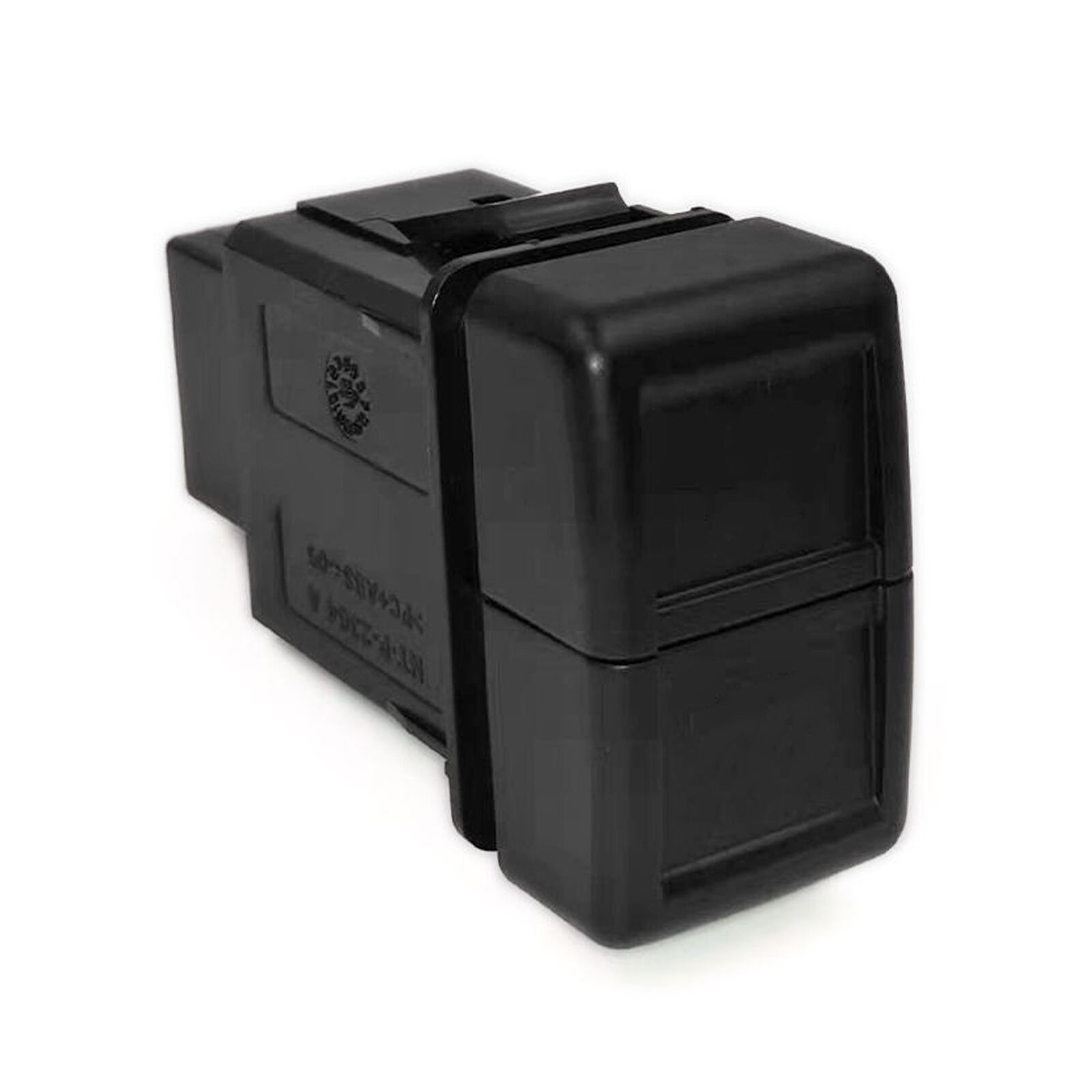

24 Volt ON - OFF/MOMENTARY ISUZU TRUCK DUAL PUSH Switch
Twin L.E.D Lights

This 24 volt push switch from AOB is a single pole single throw ON - OFF/MOMENTARY switch designed to operate your 24 volt accessories. It has a face surface approx size of 39mm x 23mm and uses the original mounting hole of the vehicle.

This Switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.

• Single Pole Single Throw ON - OFF/MOMENTARY PUSH switch
• Black hard surface
• Laser etched Legend
• DUAL upper L.E.D light in amber / green.
• DUAL lower L.E.D light in amber / green.
• Lower light is ON when the switch is pressed IN
• Upper light can be wired to separate dash light circuit.
• Rated at 3Amp 24V
• Wire Plug and wiring diagram supplied with switch

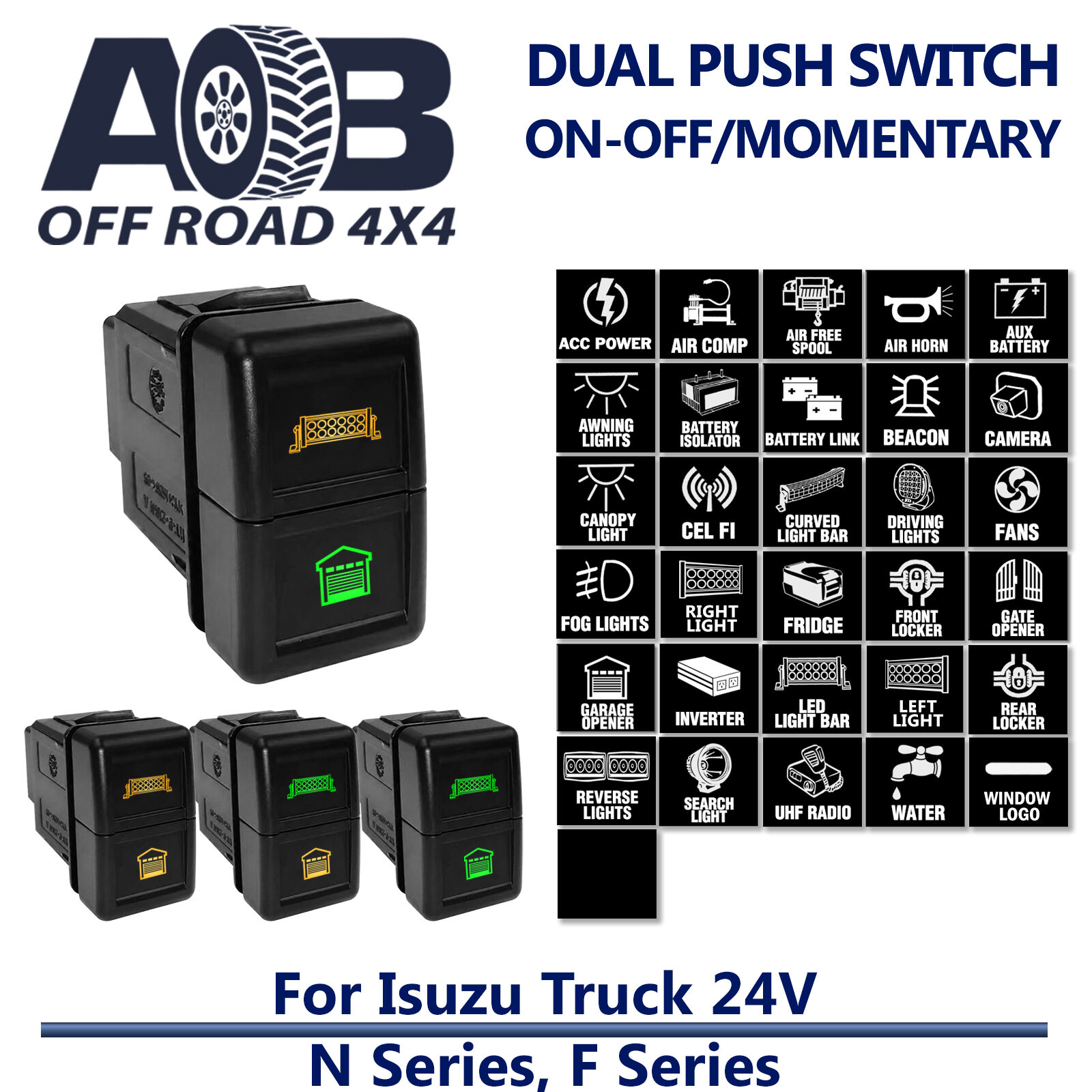

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. Therefore in ALL cases the accessory MUST be wired through a fused relay.

AOBSWIT500 series

Rear picture showing terminals and wiring harness supplied with switch

Wiring diagram will be supplied with switch purchase.

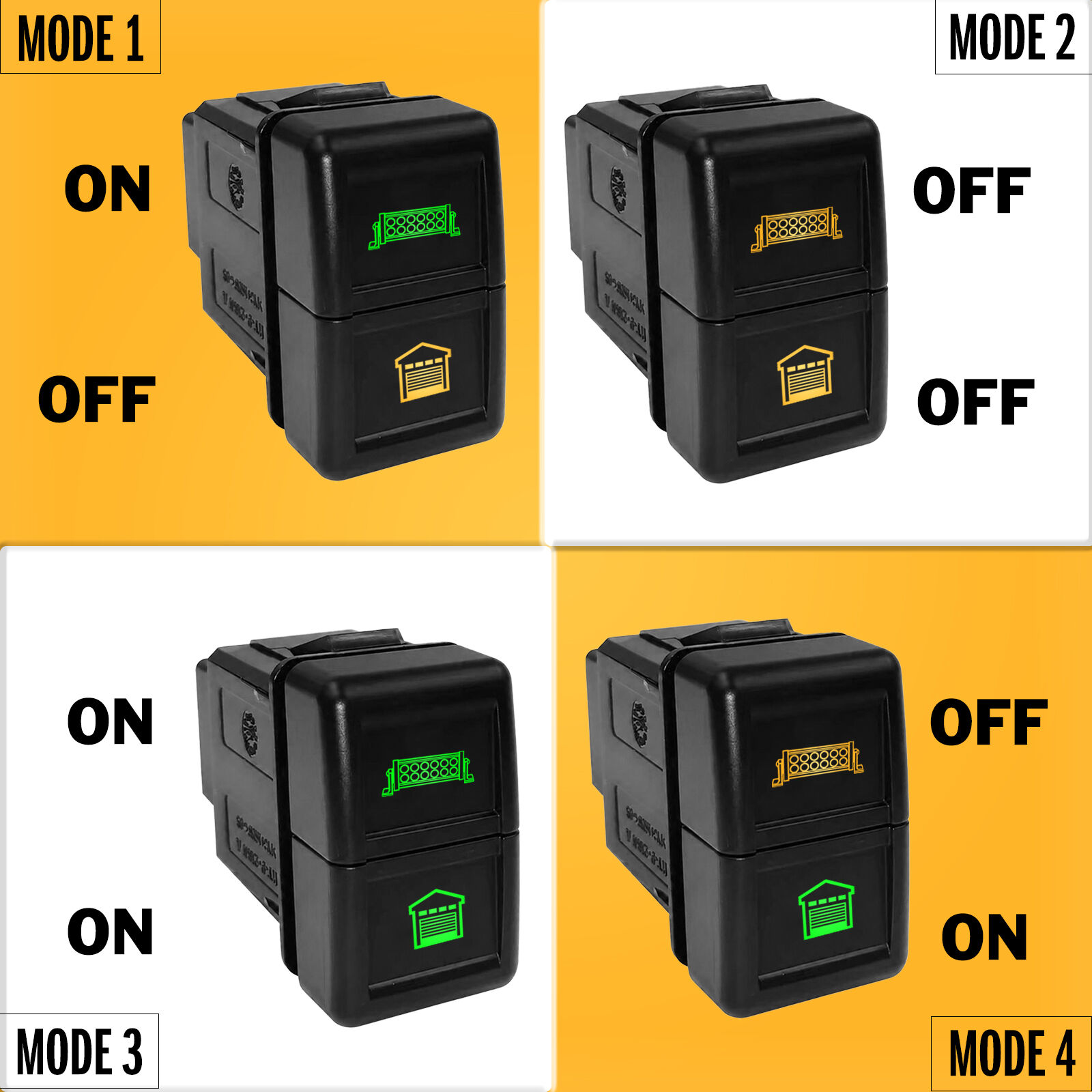

AOBSWIT500 series Illumination

When switch is pressed in the green light illuminates.

TThe top light (image) has an Independent wiring circuit to connect to your dash lights. You can connect it to the dash light circuit or leave off, your choice.

(this is a sample image with the LED LIGHT BAR and GARAGE OPENER logo)
