ISUZU & MAZDA OEM REPLACEMENT
DUAL INPUT DUAL OUTPUT PUSH SWITCH
TWIN L.E.D LIGHTS
**Switches will have the image only and no text**

This Switch Suit the Following Models only:

Isuzu D-Max 3rd Generation Sept 2020 ~ Onwards

 Isuzu MU-X 07/2021 ~ Onwards

Mazda BT-50 3rd Generation October 2020 ~ Onwards

Upgrade your vehicle’s functionality with our Dual Input Dual Output Push Switch, engineered for a seamless integration into Isuzu and Mazda dashboards. Designed to match the OEM look and feel, this switch provides reliable control of two separate circuits from a single, stylish unit.

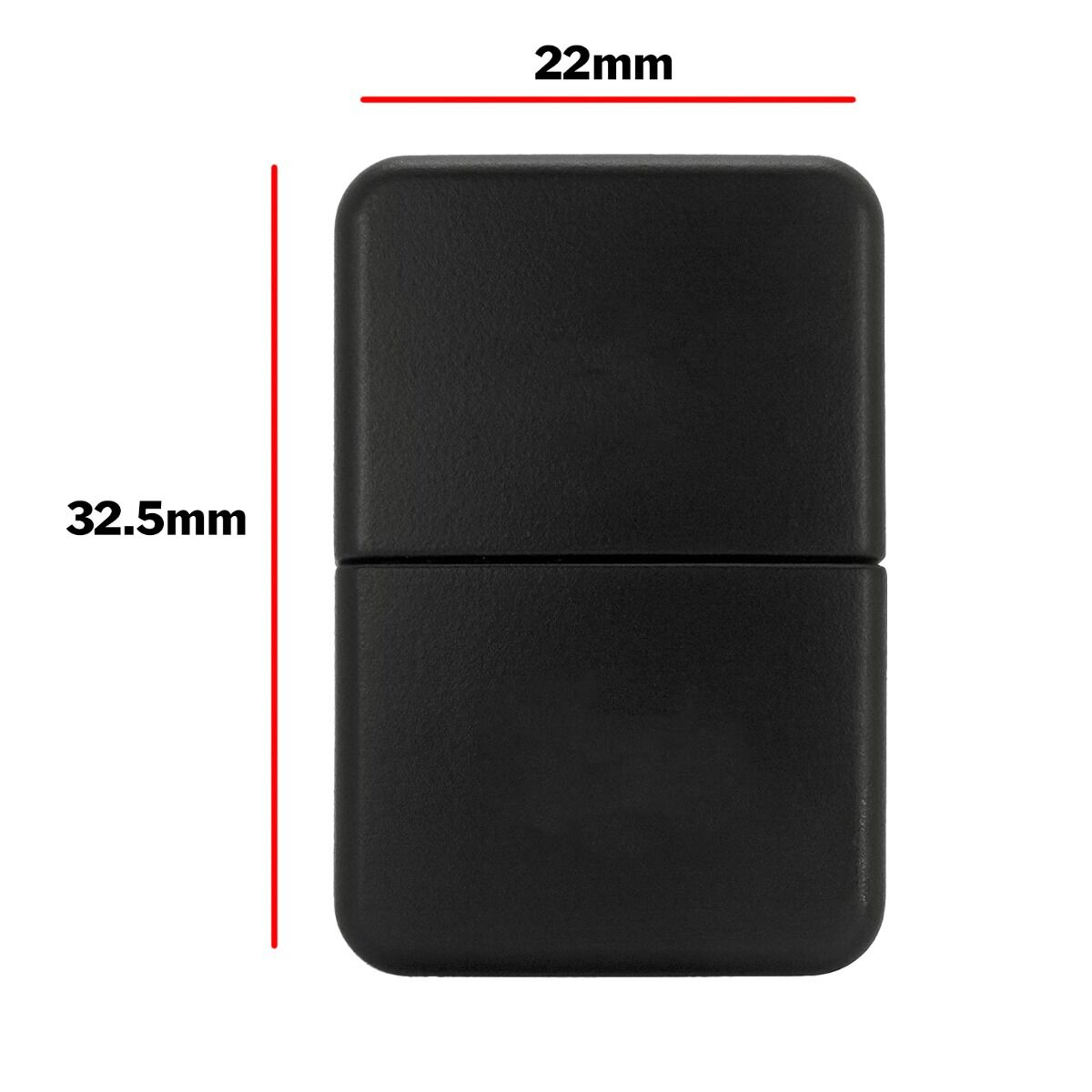

This 12 volt push switch from AOB is dual input dual output ON-OFF MOMENTARY switch designed to operate your 12 volt accessories. it has a face surface size of 32.5mm x 22mm, and uses the original mounting hole of the vehicle.

• Dual Input / Dual Output Design to control two devices independently
• Laser etched Logo
• Dual-color LEDs for easy identification of each circuit’s status—visible day or night.
• DUAL upper L.E.D light in green / blue.
• DUAL lower L.E.D light in green / blue..
• ONE Light is ON when the switch is pressed IN..
• Rated at 3Amp 12V.

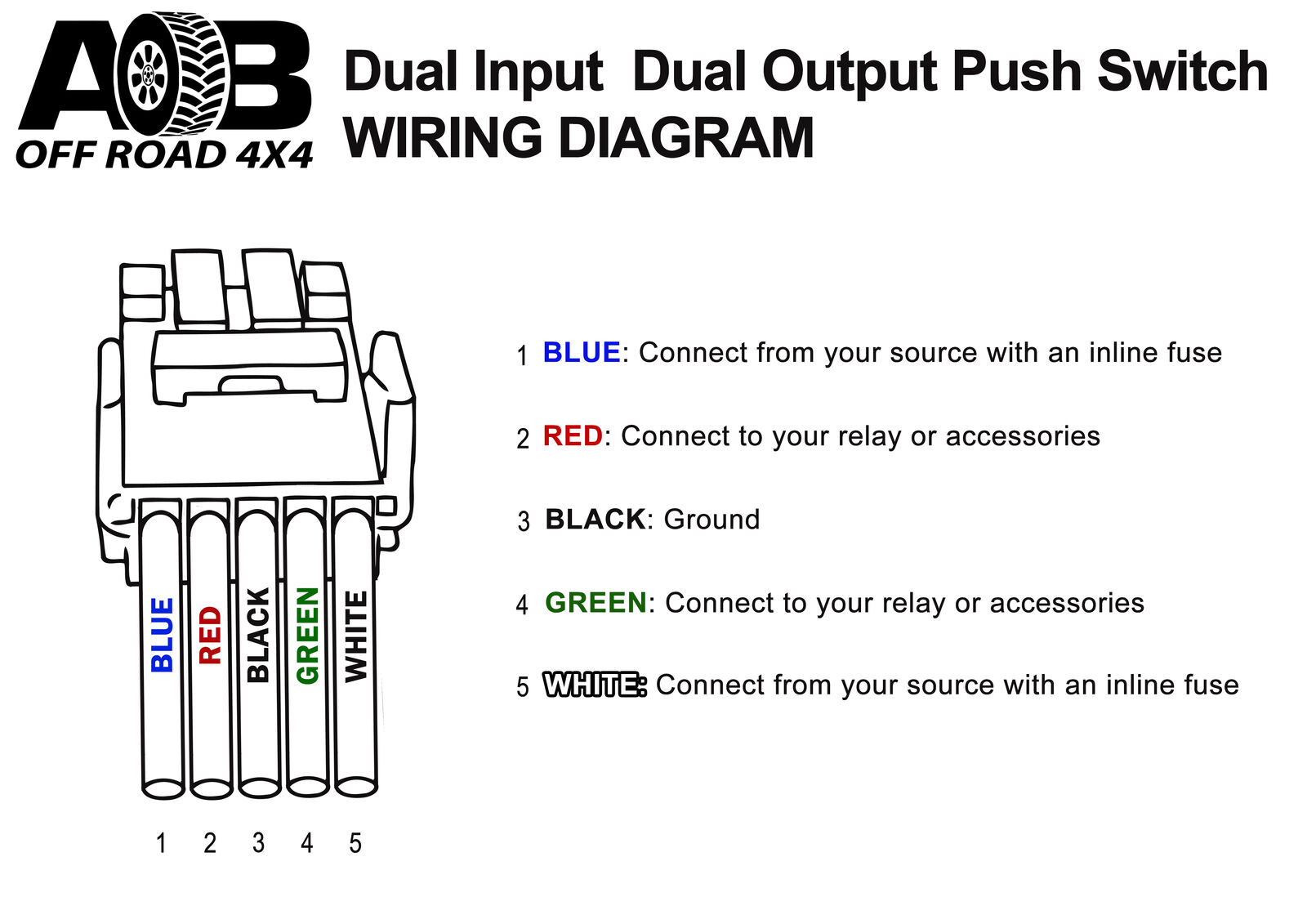

• Wiring diagram supplied with switch.
• Please Note: Switches will have the image only and no text

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is an electronic switch rated at 3amp's. MUST be wired through a fused relay.

Isuzu & Mazda Switches

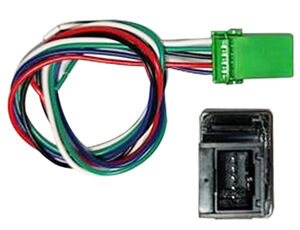

Rear picture showing terminals and wiring harness supplied with switch. Wiring diagram will be supplied with switch purchase.

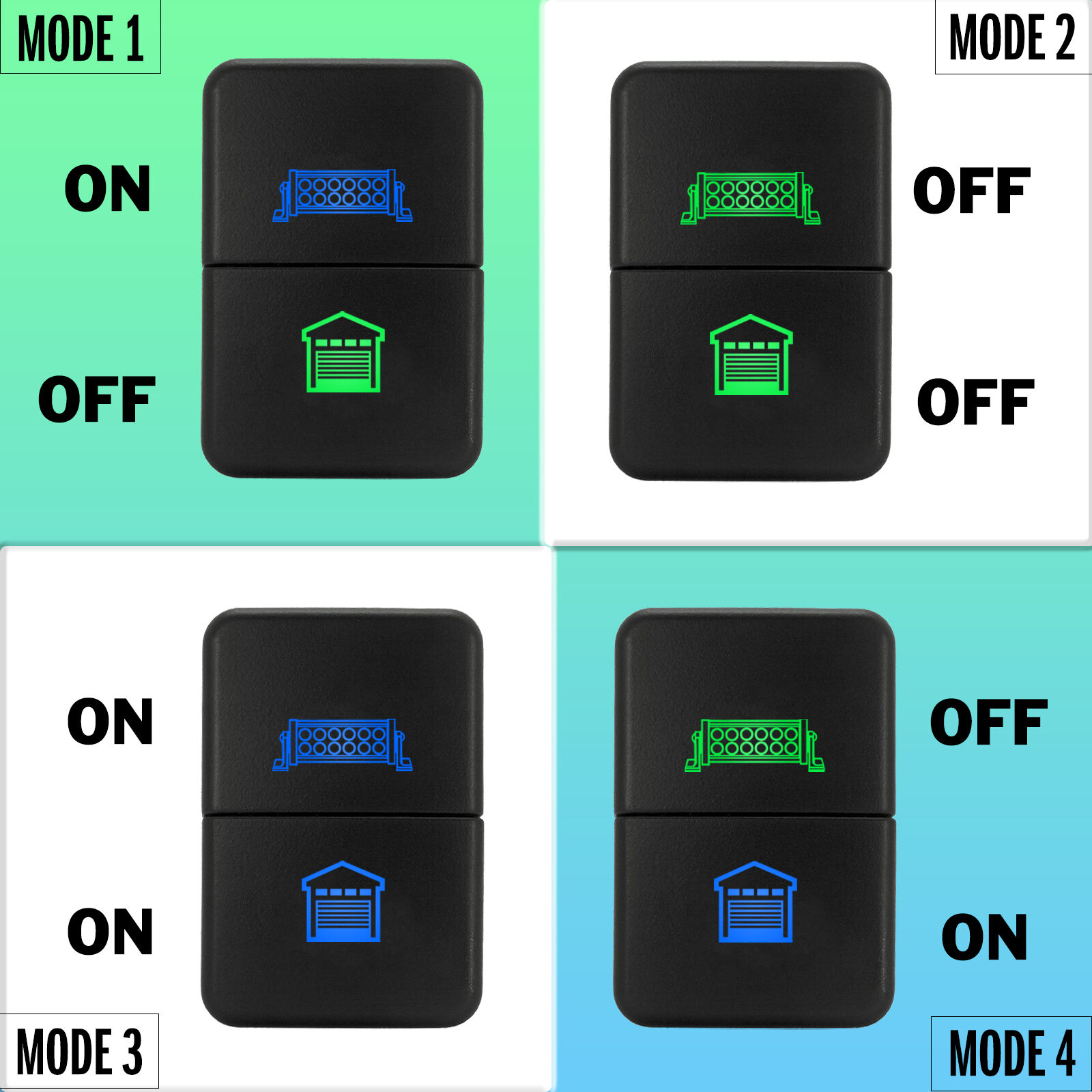

Isuzu & Mazda Switches Illumination

When switch is pressed in the green light illuminates.

The bottom light has an Independent wiring circuit to connect to your dash lights. Optional connect to the dash light circuit.

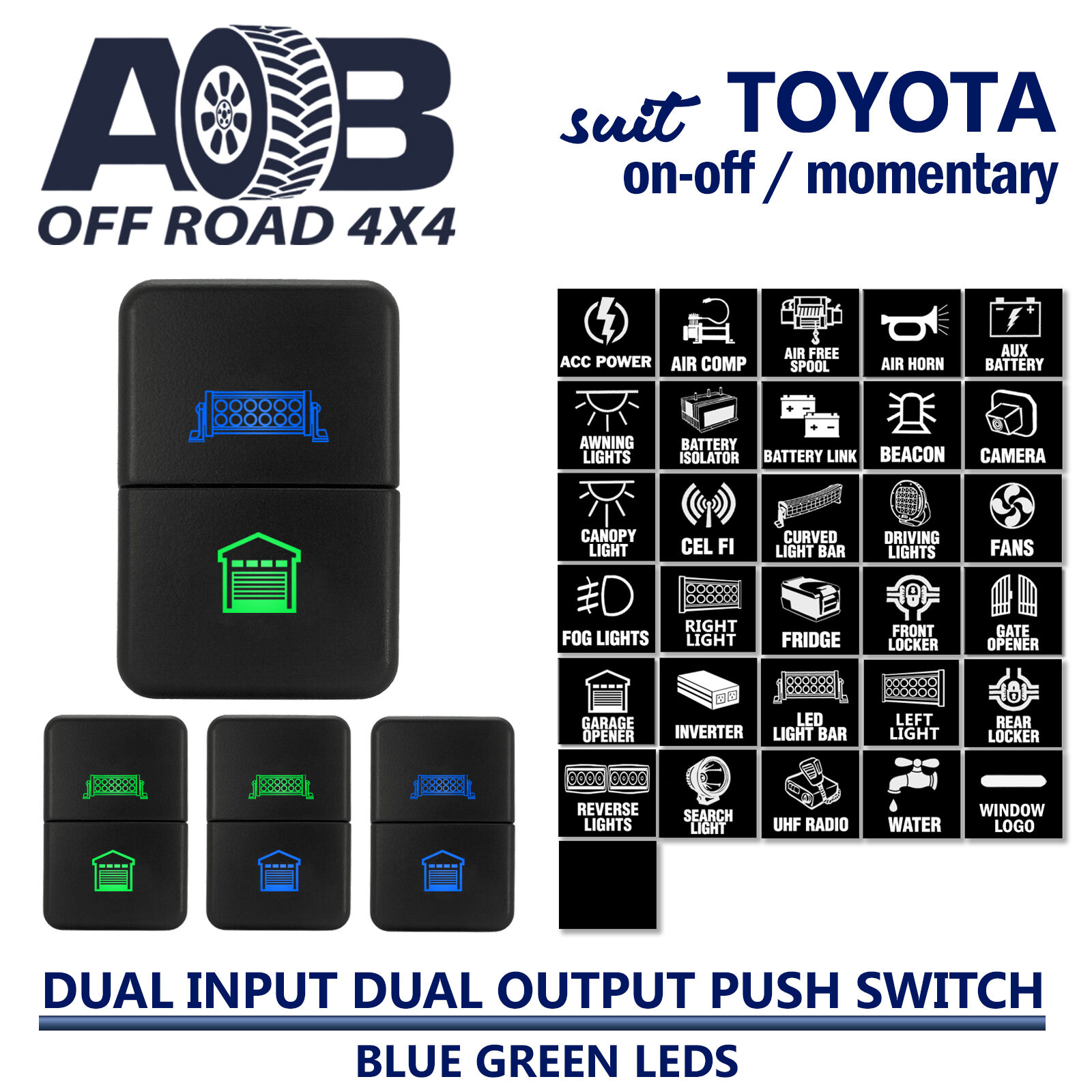

(this is a sample image with the LED LIGHT BAR and GARAGE OPENER logo)
