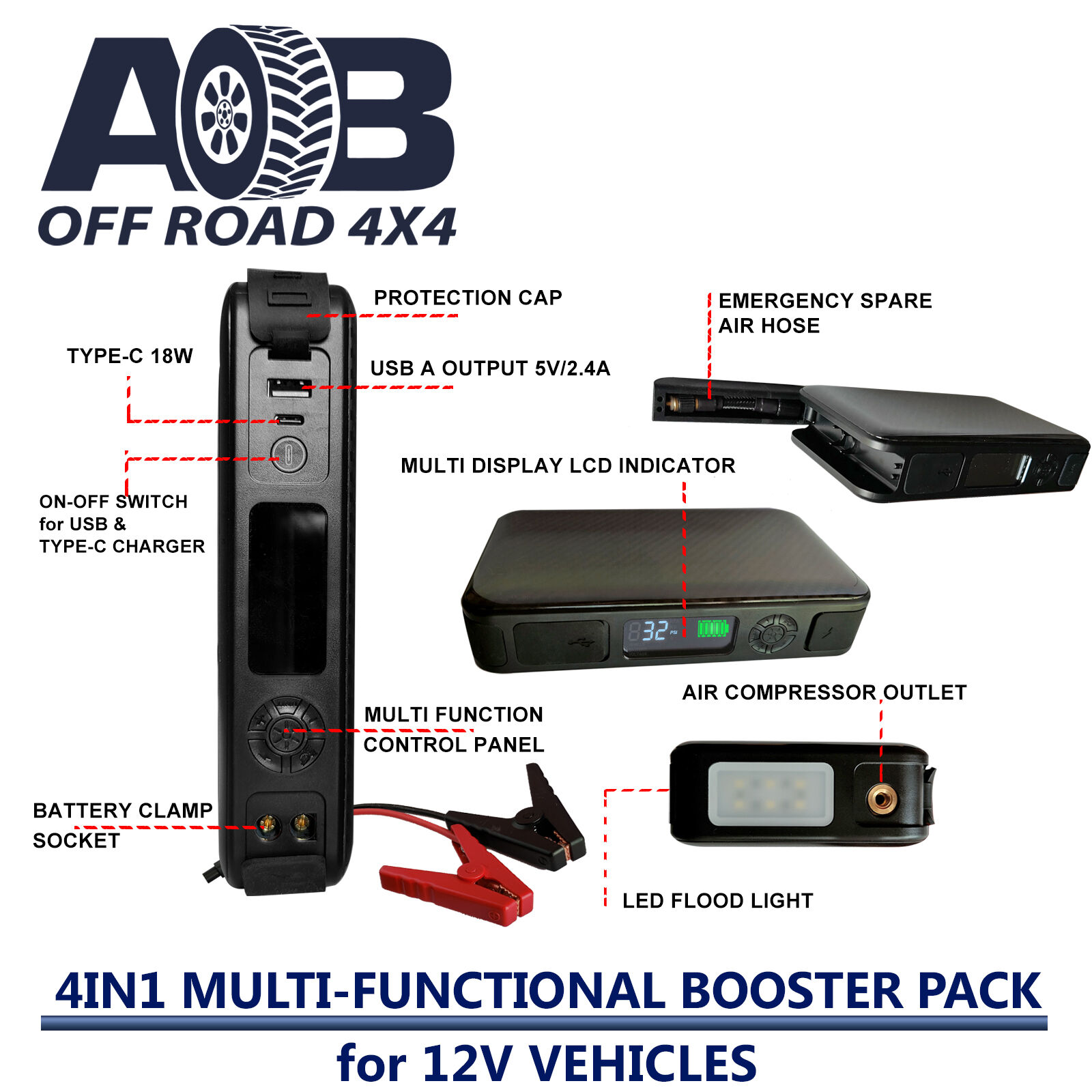

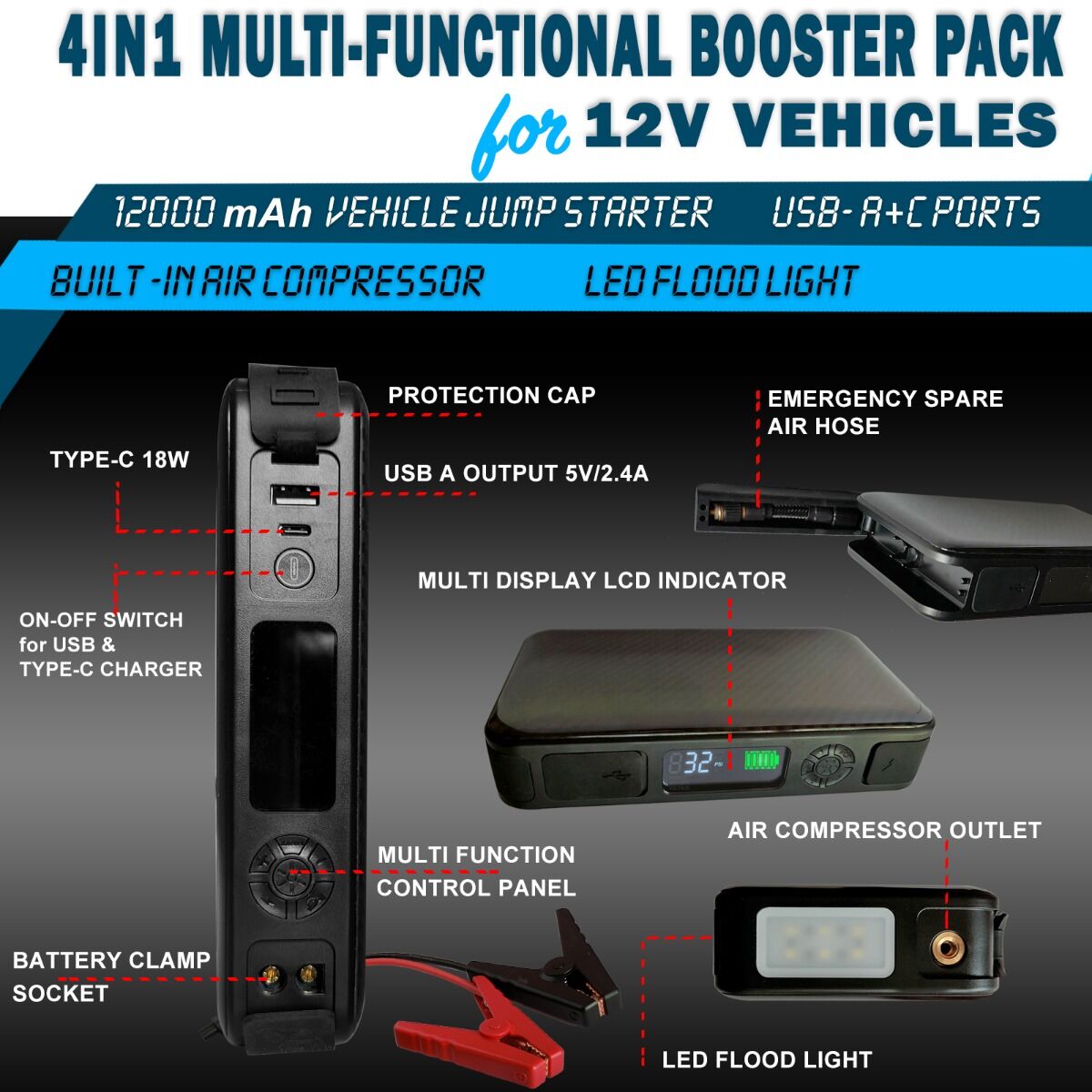

4 in 1 Multi-functional Booster Pack

Features and Functions

• High efficiency 1000A booster power for most of diesel and Gas engine
• 100 psi max. Air compressor for car tire inflation
• Multi-purposes LED worklight
• USB-A + Type-C power outlets support QC3.0 fast charge protocol
• Large size colorful display
• Type-C charging input, super fast charging is allowed

Benefits and Protections

• Streamline designed plastic housing
• Light weight and compact size, easier for storage and hand carrying
• Battery balancing for maintaining a better battery’s life span
• Sophisticated BMS for keeping a safe and stable battery performance.

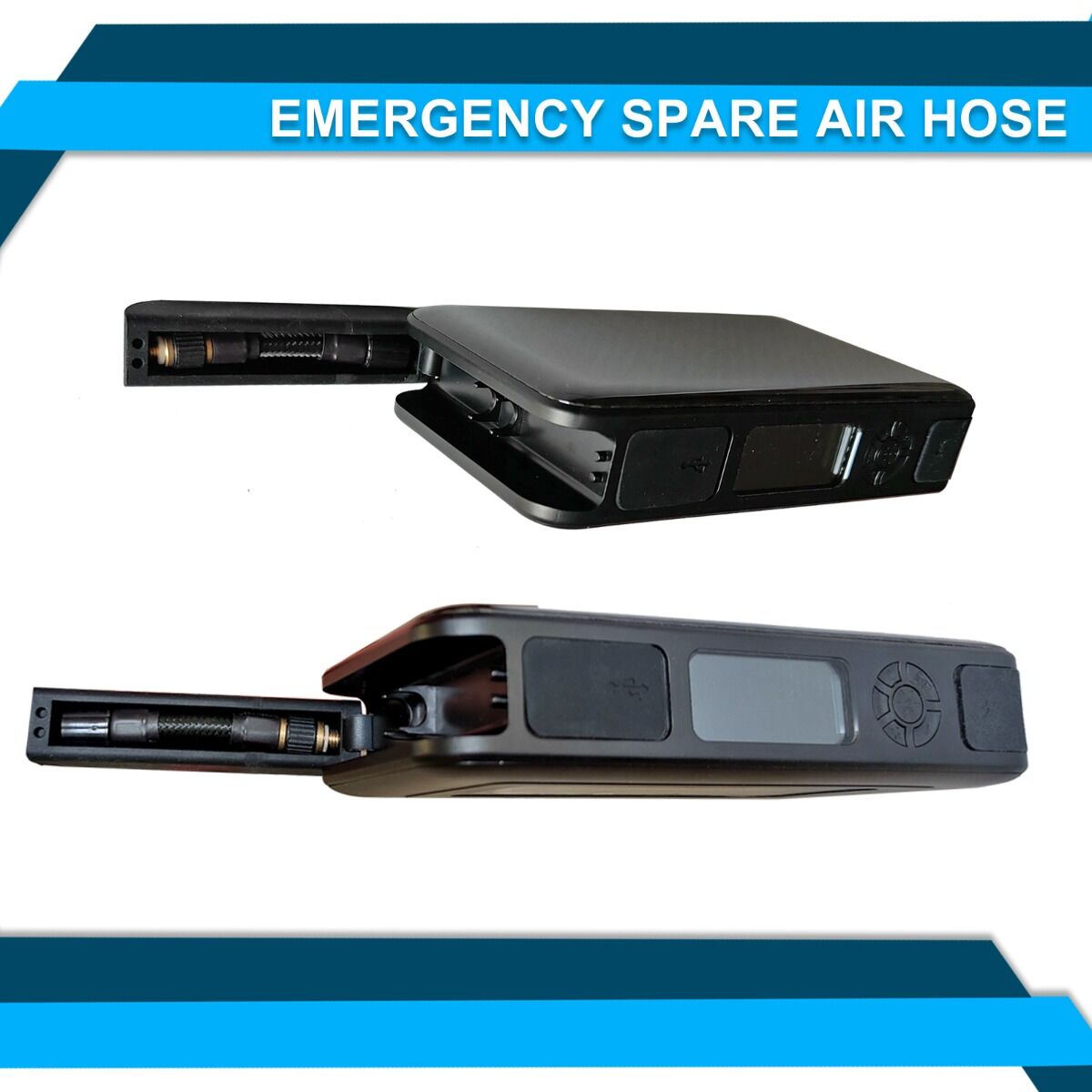

• Hidden compartment for Air hose storage
• Digital Air pressure gauge

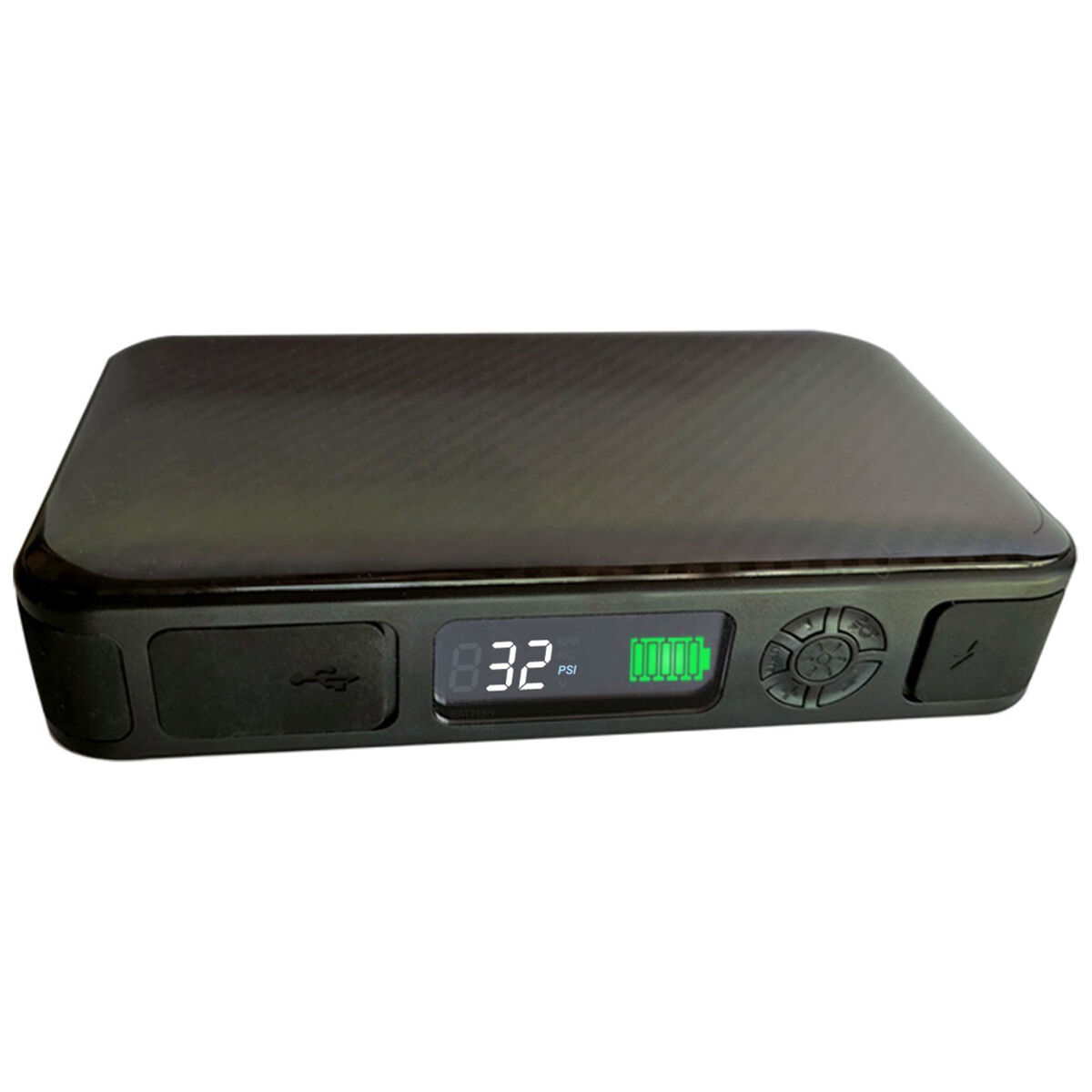

• Colorful extra large LCD, the status of operation could clearly be monitored

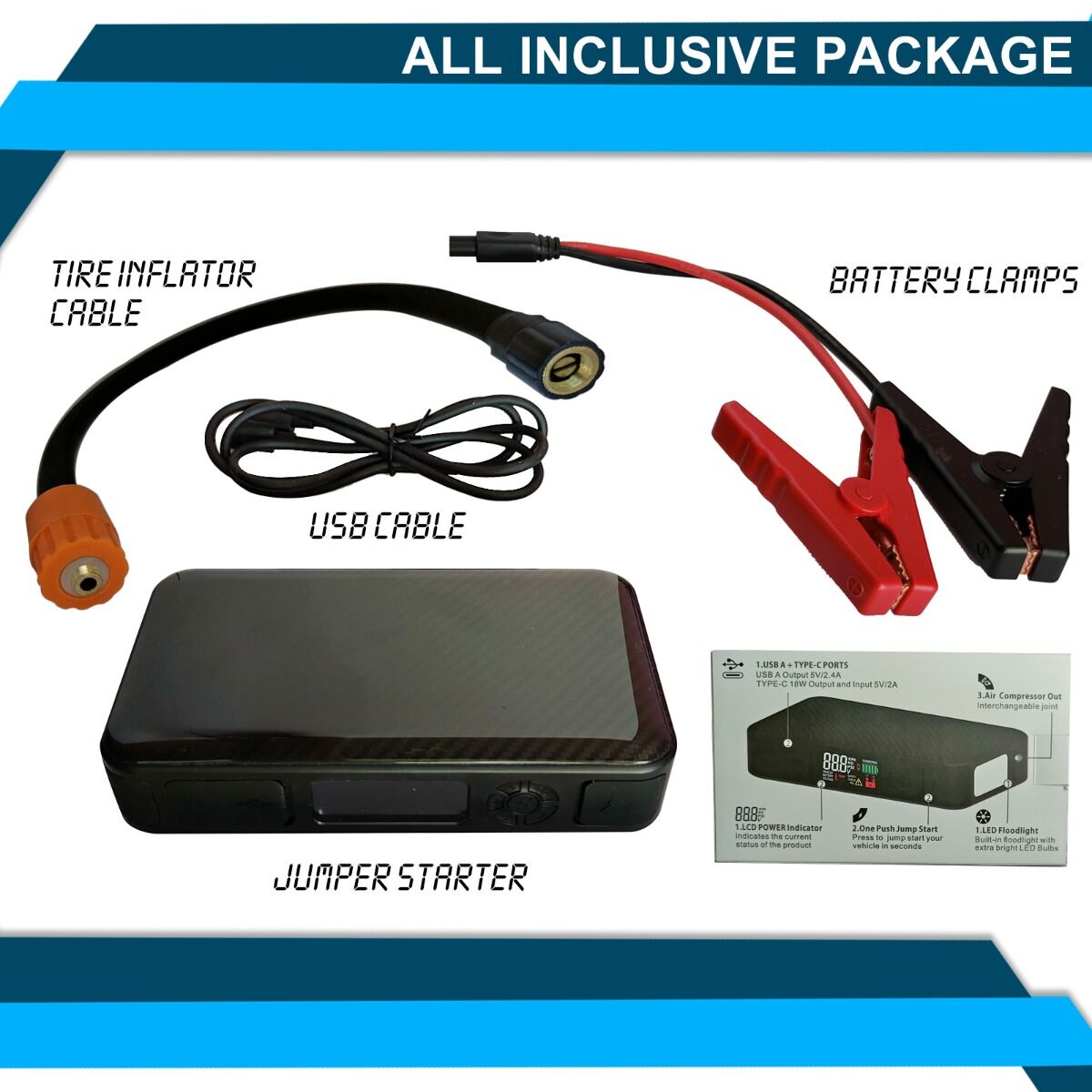

• Accessories of Air Inflator, included 600mm hose extender, variety of Nozzles
• Cable accessories, included heavy duty Jump Cable with larger clamp, USB-C charging cable.
• 1W LED worklight, ideal for illumining and emergency signal.

Protection performed by BMS:

• Reverse Polarity protection
• Short-circuited protection
• Thermal control for charging and discharging
• Thermal control for Air inflator
• Battery body Over heat protection
• Back drain current protection
• Over charge protection
• Over load protection
• Spark proof

Specifications

Lithium Battery

• Battery Type : Lithium Polymer
• Battery capacity : 3000mAh @ 4.2V per cell
• Total capacity : 12,000mAh (Packed 4S1P)
• Voltage : 16V
• Max. crank power : 500A
• Peak power : 1000A
• Charging : via USB-type C
• Charging time : 3 to 5 hours estimated
• Cut off @ : when battery drops until 13.3V
• Life cycles : after 500-800 cycles, 70% capacity retained

Air Inflator

• Compressor : built-in type
• Air pressure : 100 psi max.
• Hose length : 88mm
• Extended hose : 600mm

LED Torch

• Power consumption: 3.3V 1W super bright LED

USB Outlets

• USB Type : 1 x USB-A + 1 x USB-Type C
• Max. Output : 3.0A@ 5V, 2.0A@ 9V and 1.5A@ 12V

Enclosures

• Material : PC
• Fire Retardant : 94V0
• Color : Black
• IP Rate : IP20
• Booster Cable
• Cable Length : 210mm
• Cable Material : 100% copper @5.26sq.mm copper section
• Jacket material : Silicon
• Connector : EC 5 or equivalency
• Clamp Material : Steel with copper plated

Unit Measurements

• Unit dimension : 185mm x 99mm x 42mm
• Unit weight : 800gms
• Temperature and Humidity
• Operating Temp. : -20 ℃ to +45℃
• Operating Humid: 20% to 90%
• Storage Temp. : -20℃ to +55℃
• Storage Humid : 20% to 90%
