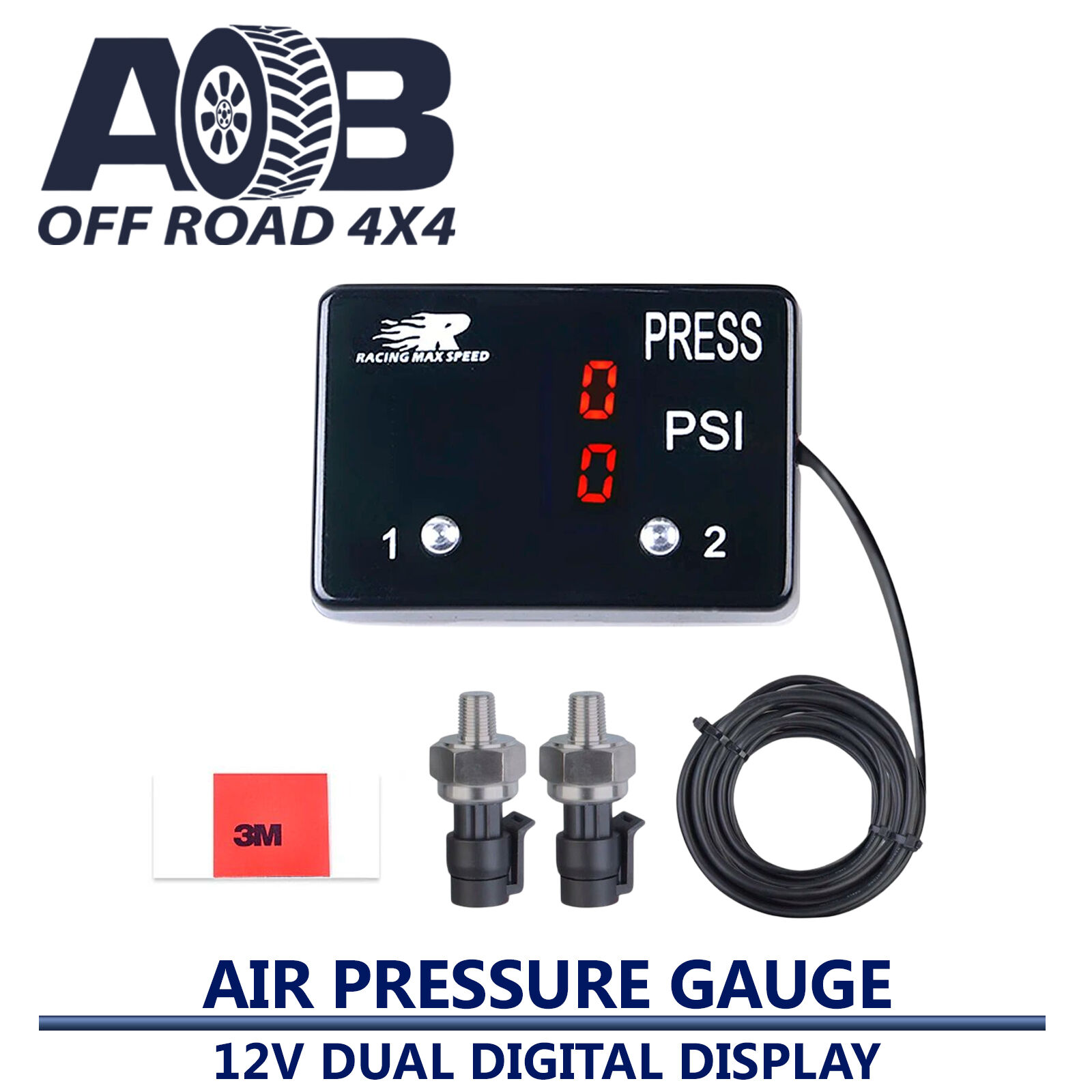

Universal 12V Dual Digital Display Air Pressure Gauges/Meter + 2pcs 1/8 Npt Sensor OPM-01

Features

  • 100% Brand New and High Quality
  • Universally compatible with most DC 12V motorbikes, cars, boats, ATVs, UTVs, campers, caravans, travel trailers, and more.
  • Easy installation—mount the sensors to each airbag and connect the cables to the pressure sender units and 12V power
  • Gauge installs with only two power wires, plus simple sensor mounting
  • Equipped with a 3-digit LED display available in red, blue, or white

Specification

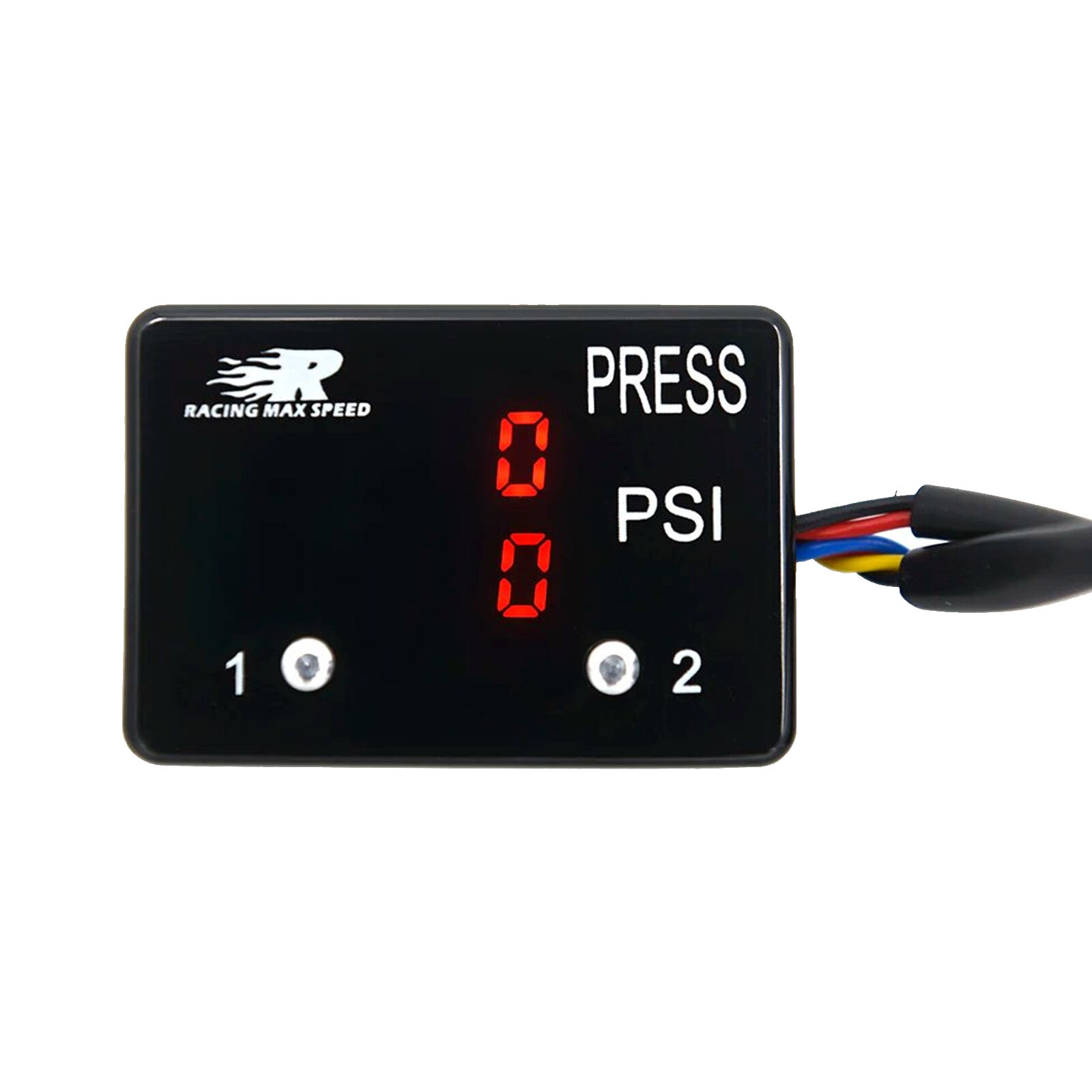

  • Dual digital display with RED LED
  • Designed to measure air pressure in airbags or other pressure-based applications
  • Measurement range: 0–200 PSI
  • High accuracy and simple operation
  • Unit: PSI

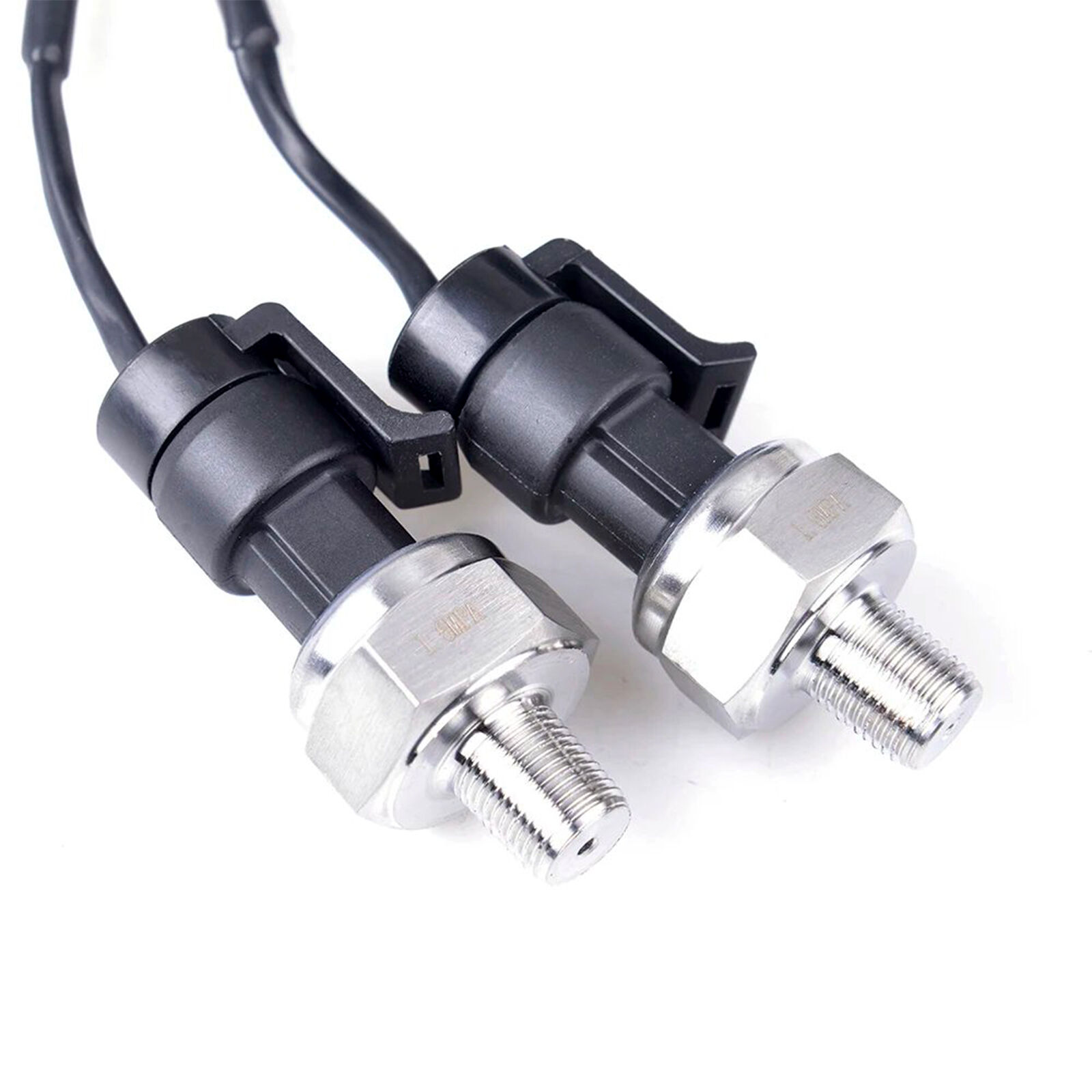

  • Sensor mounting thread: NPT 1/8"
  • Power supply: 12V DC, max 0.3A

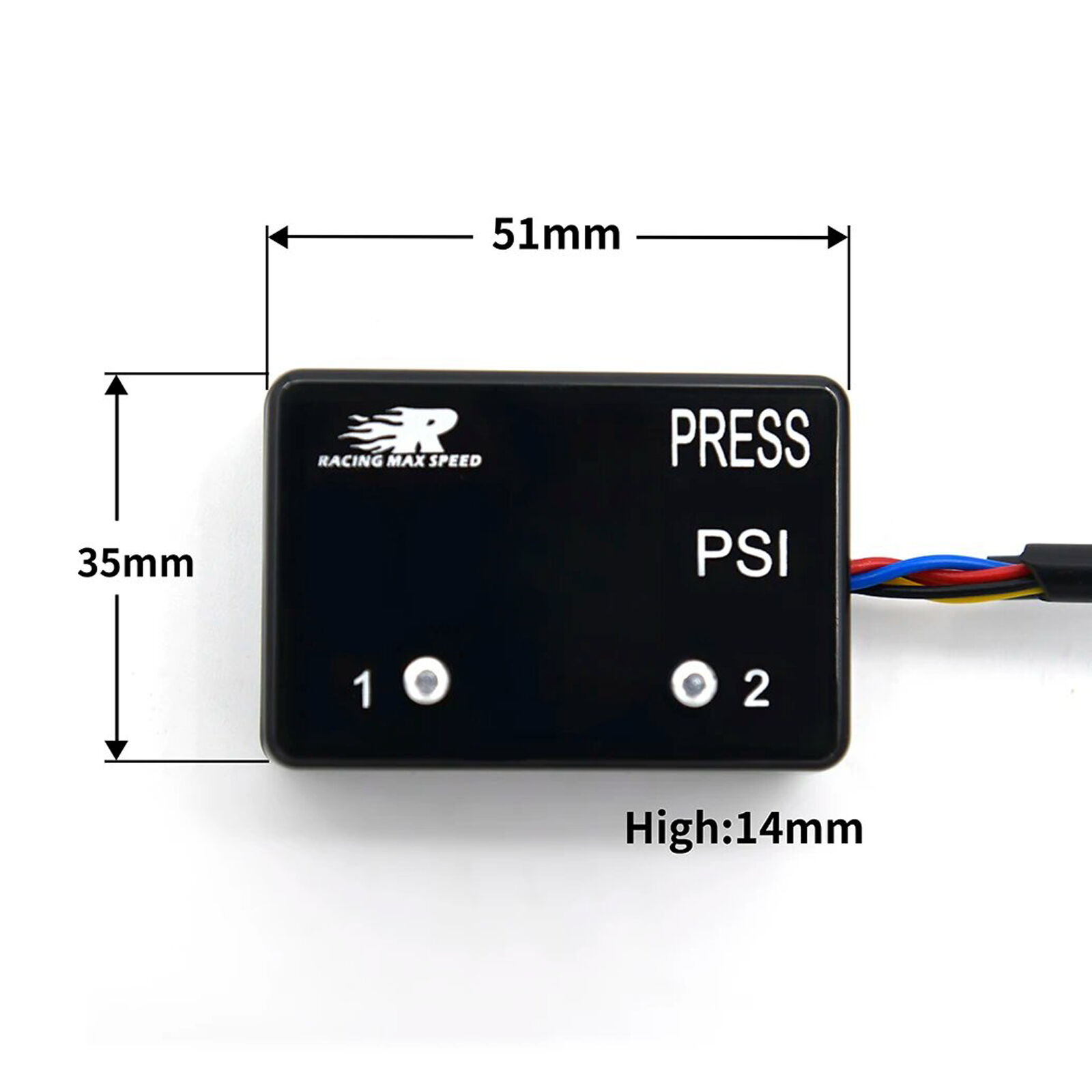

  • Pressure sender unit size: 5 × 3.4 × 1.3 cm (2" × 1.3" × 0.5") (L × W × H)
  • Wiring harness length: 5 m to each sensor from the gauge, plus 1.5 m power cable

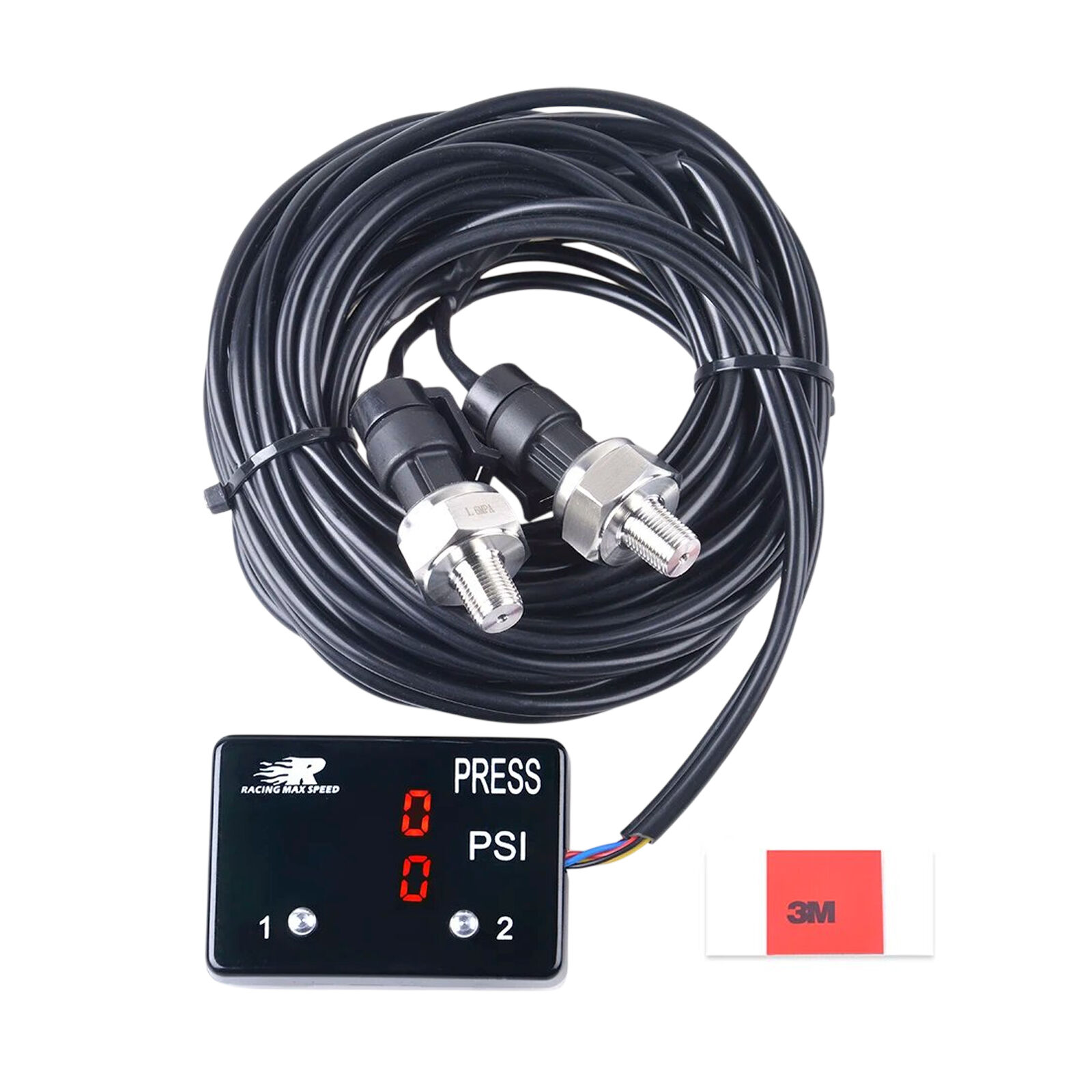

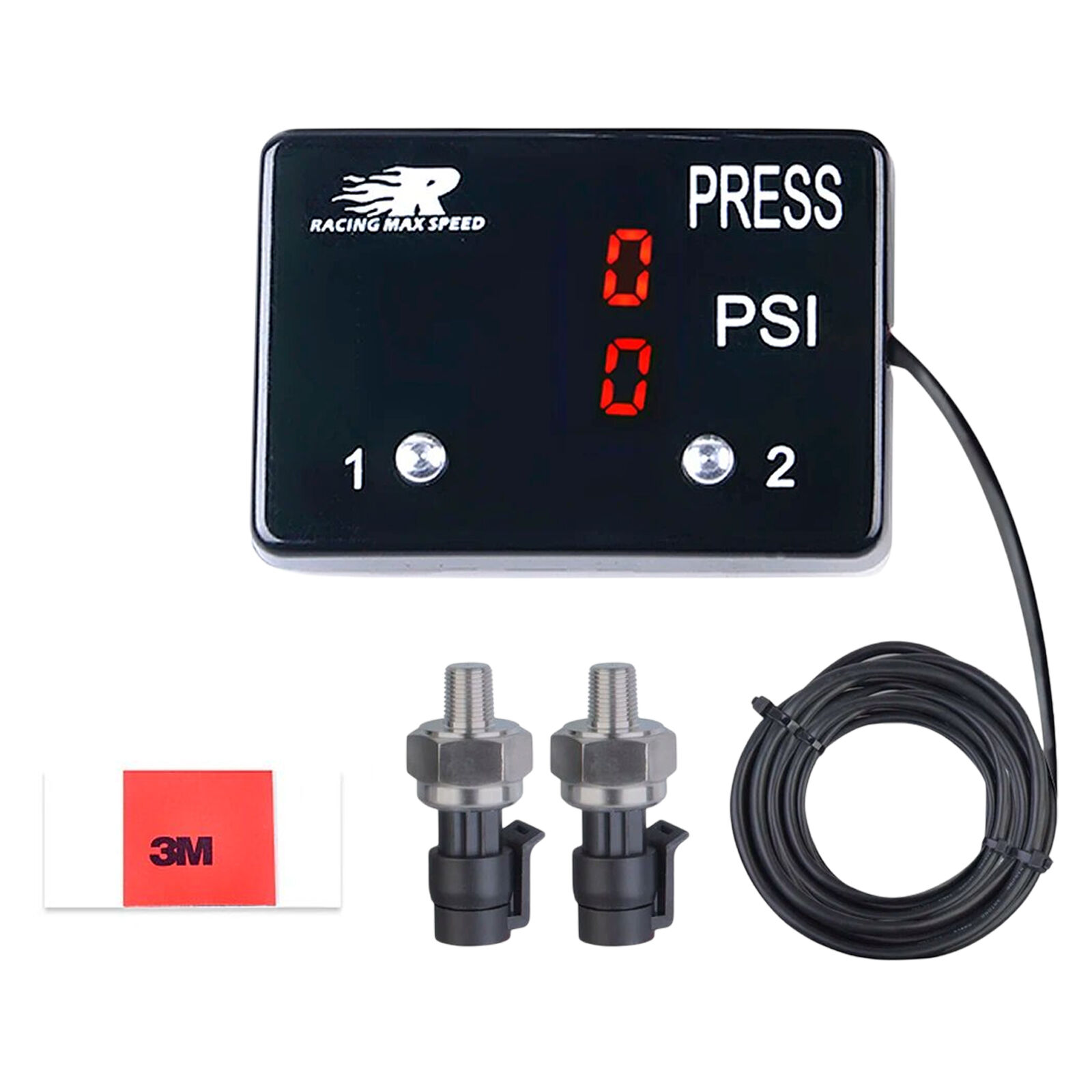

Package

  • 1 x DC 12V LED Air Pressure Gauge
  • 2 x Sensor
  • 1 × Wiring harness

Length: 16mm Width: 12mm Height: 8mm

SKU PGSQ2R
Shipping Weight 0.4330kg
Shipping Width 0.120m
Shipping Height 0.080m
Shipping Length 0.160m
