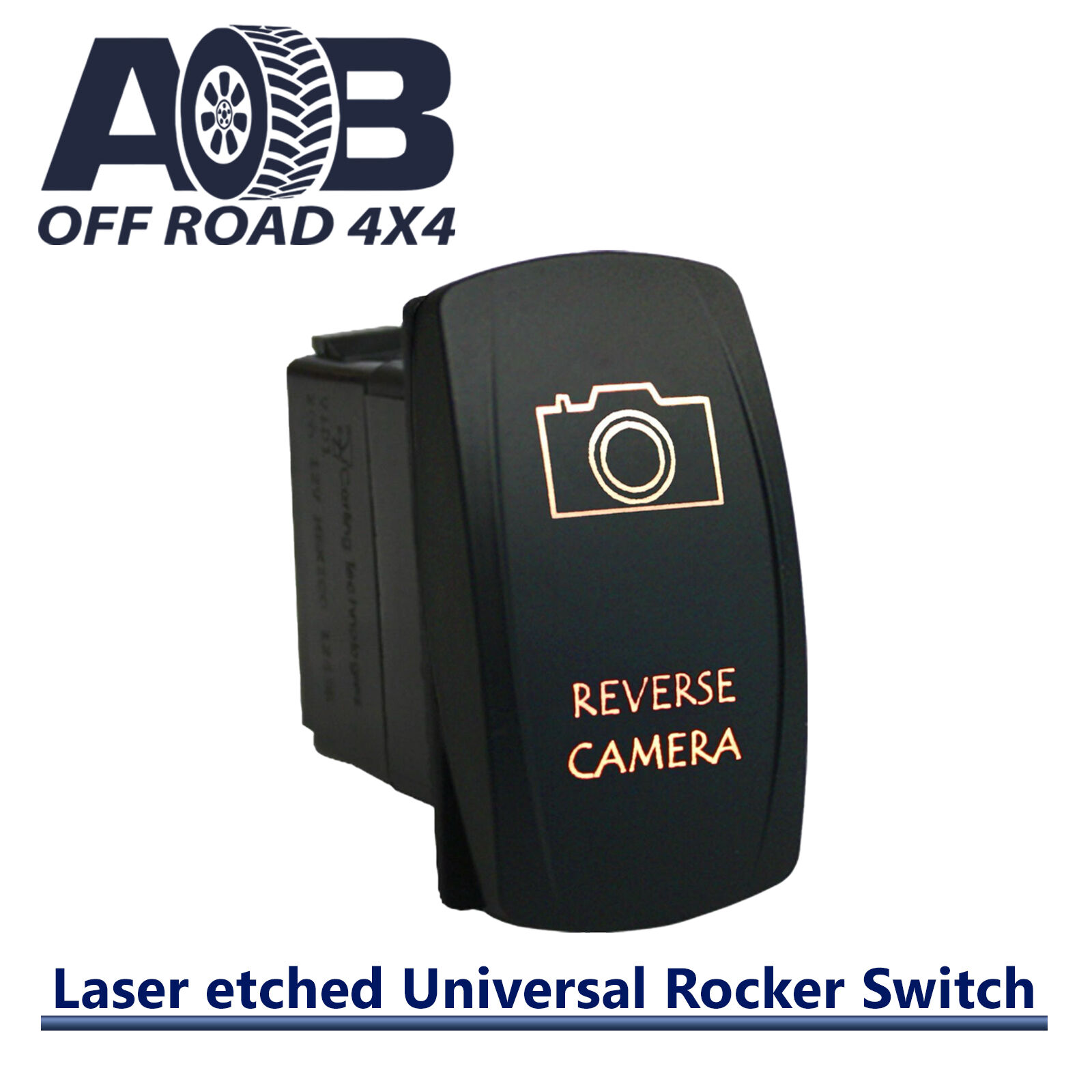

12V 20A / 24V 10A ON - OFF Rocker Switch
******LASER ETCHED & LED SERIES******

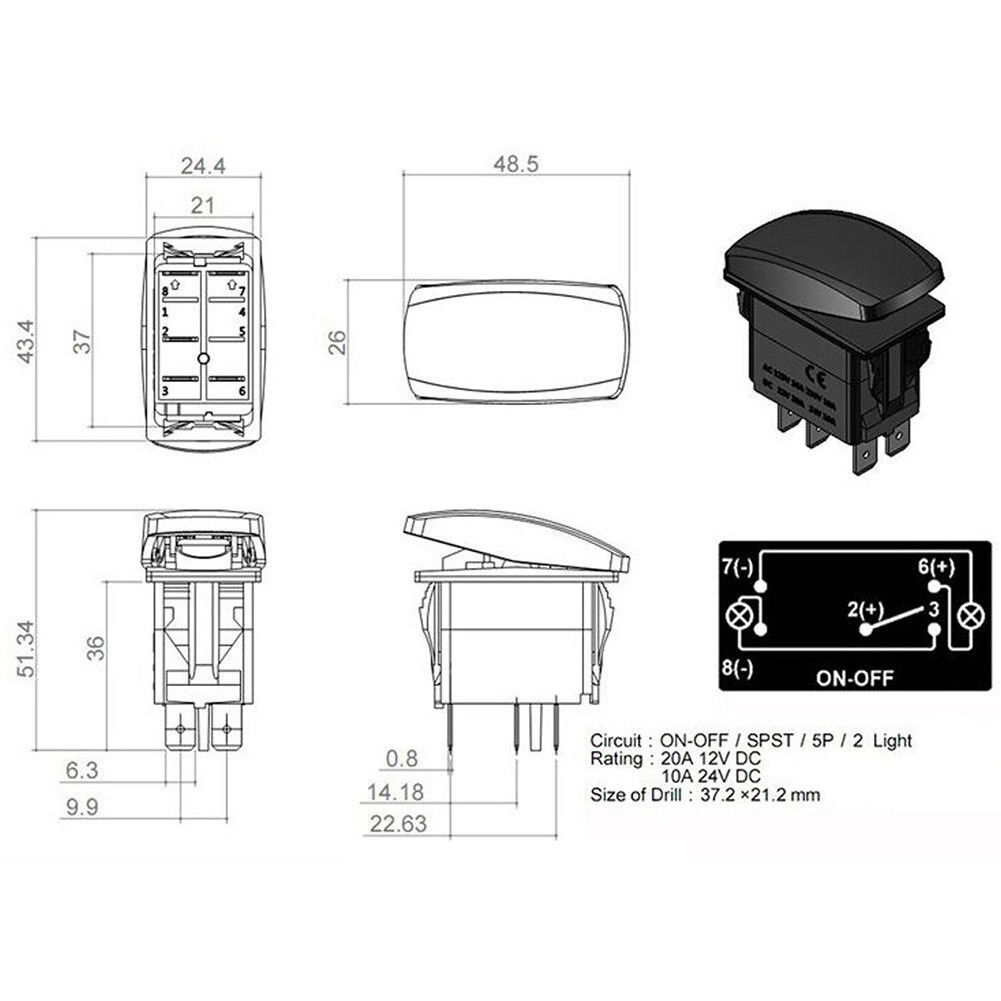

This high quality 12V/24V Rocker switch from AOB is a switch designed to operate your accessories. It has a face surface size of 49mm x 26mm and uses a standard din size mounting hole of 37.5mm x 21.2mm. This is the standard size of most switch holes in modern vehicles, Please check the cut out hole size if unsure.

• Single Pole Single Throw ON - OFF switch
• Black hard surface rocker.
• Laser etched Legend
• Dual LED lights.
• Upper light is ON when the switch is pressed UP.
• Lower light is ON when the switch is pressed DOWN.
• Waterproof rating of IP66.
• Same size as the ARB switches.
• Rated 12V 20A / 24V 10A
• No rear barriers between terminals.
• This switch uses the same light configuration as the ARB switches.
• Wiring diagram supplied with switch.

All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.

The switch is rated to 20amp at 12V and 10amp at 24V. We recommend that you wire the accessory through a fused relay.

AOBSW600 series

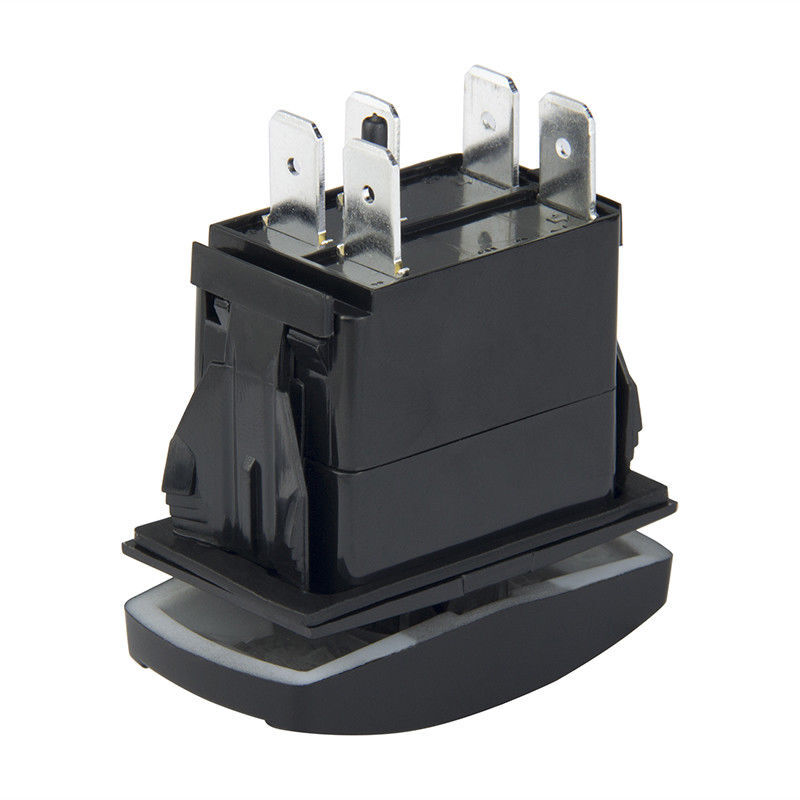

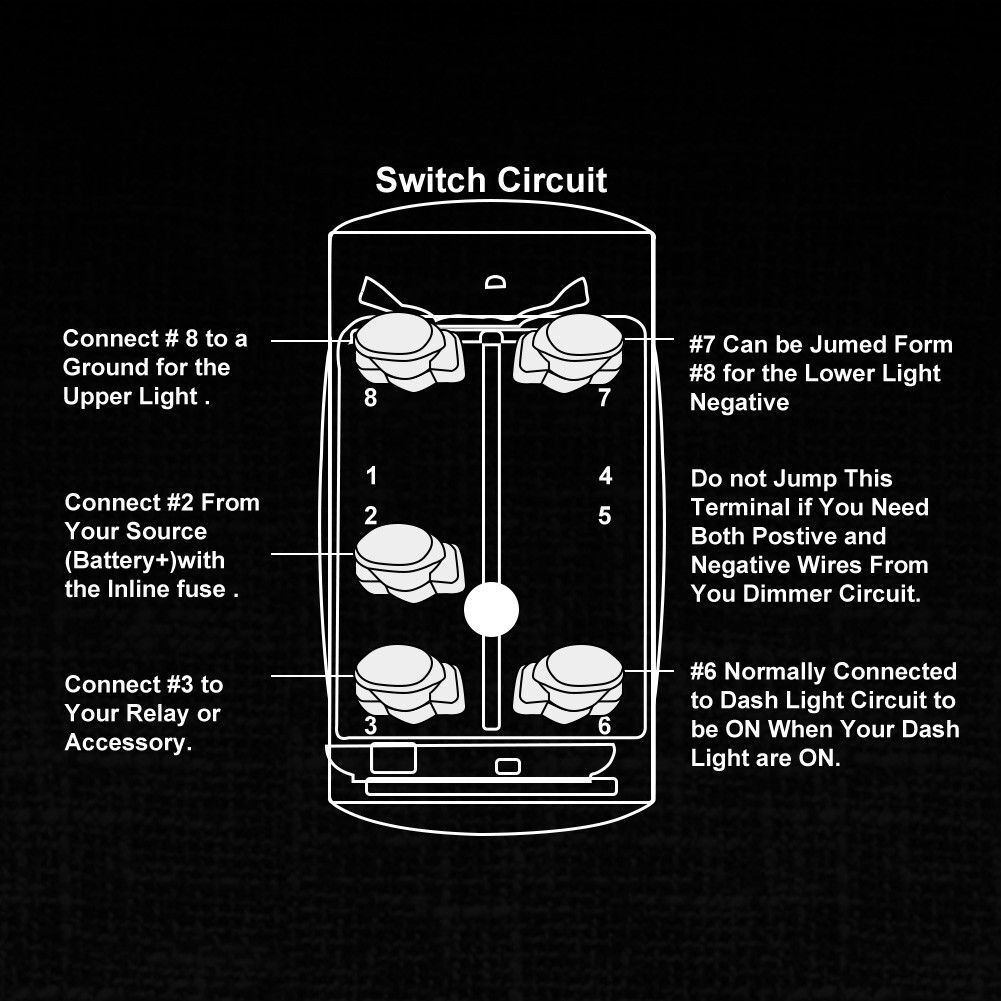

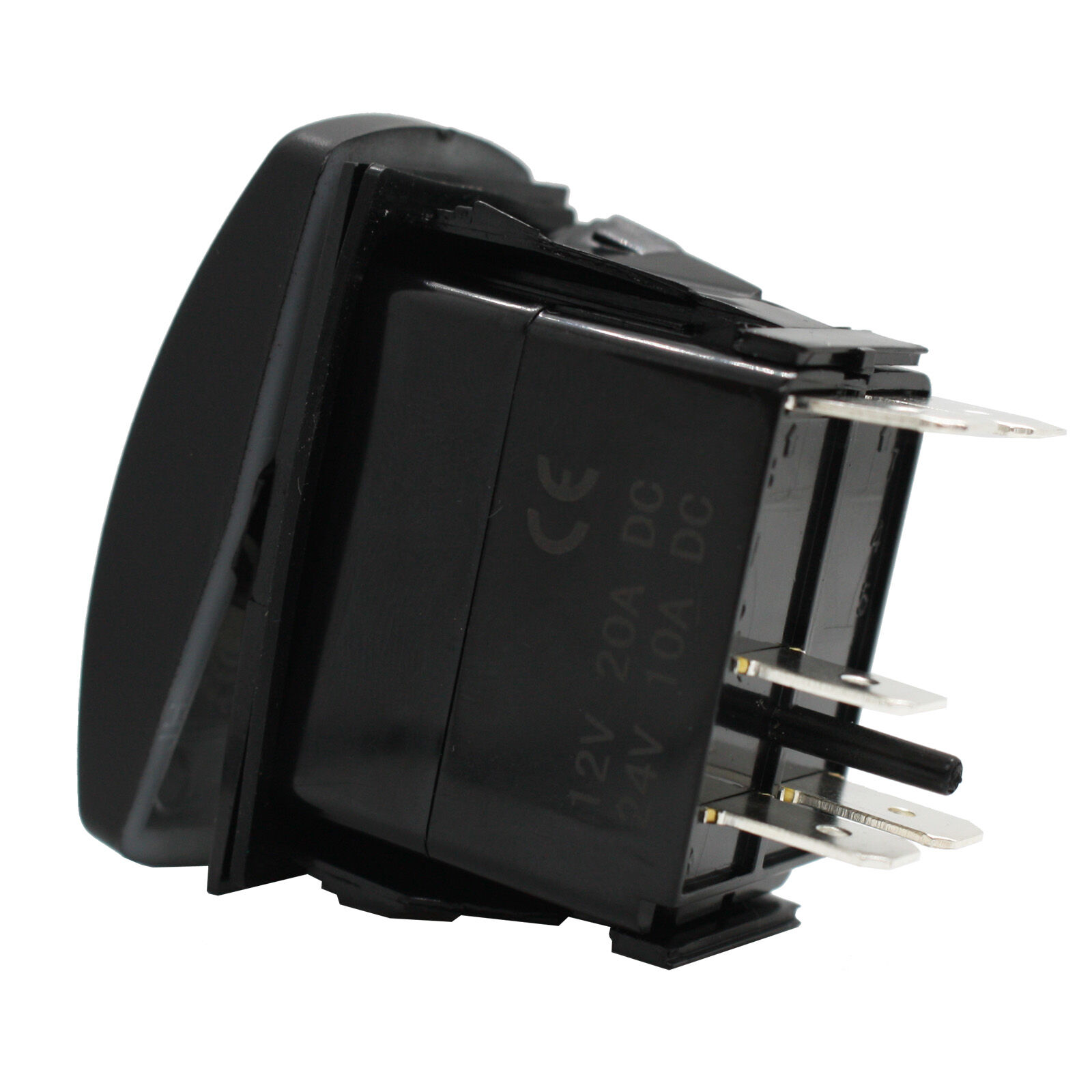

Rear picture showing terminals. Wiring diagram will be supplied with switch purchase. Independent wiring circuit to connect dash lights

AOBSW600 series Illumination

When switch is turned on the top light (picture 3) illuminates. The bottom Etching (words) has an Independent wiring circuit to connect to your dash lights. You can connect it to the dash light circuit or leave off, your choice.

(this is a sample image with the Zombie Lights logo)
